LP7863TN-B TV mount/stand
177.8 cm (70") Black
Model LP7863TN-BEAN 8433281013148
29 specifications
- Weight2.78 kg
- ColourBlack
- Number of displays supported1
- Adjustable depthYes
- Quantity per pack1 pc(s)
- Width640 mm
Overview
- Weight
- 2.78 kg
- Colour
- Black
- Number of displays supported
- 1
- Adjustable depth
- Yes
- Quantity per pack
- 1 pc(s)
- Width
- 640 mm
- Brand
- TooQ
- Category
- TV Mounts & Stands
- Model
- LP7863TN-B
- Part number
- LP7863TN-B
- EAN / UPC
- 8433281013148
- Also known as
- TooQ LP7863TN-B TV mount/stand 177.8 cm (70") Black
Specifications
29 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |

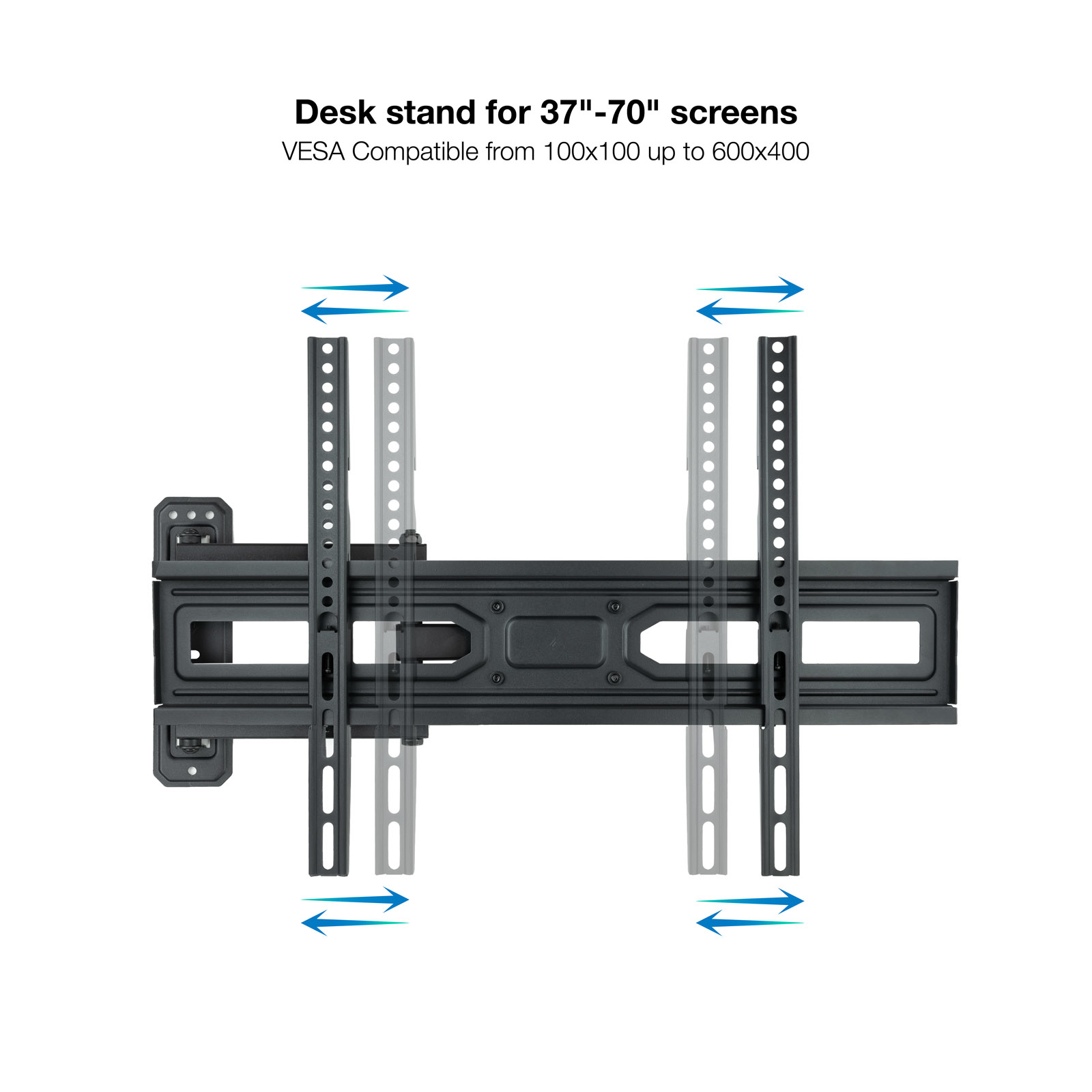

| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 3° |
| Swivelling | Yes |

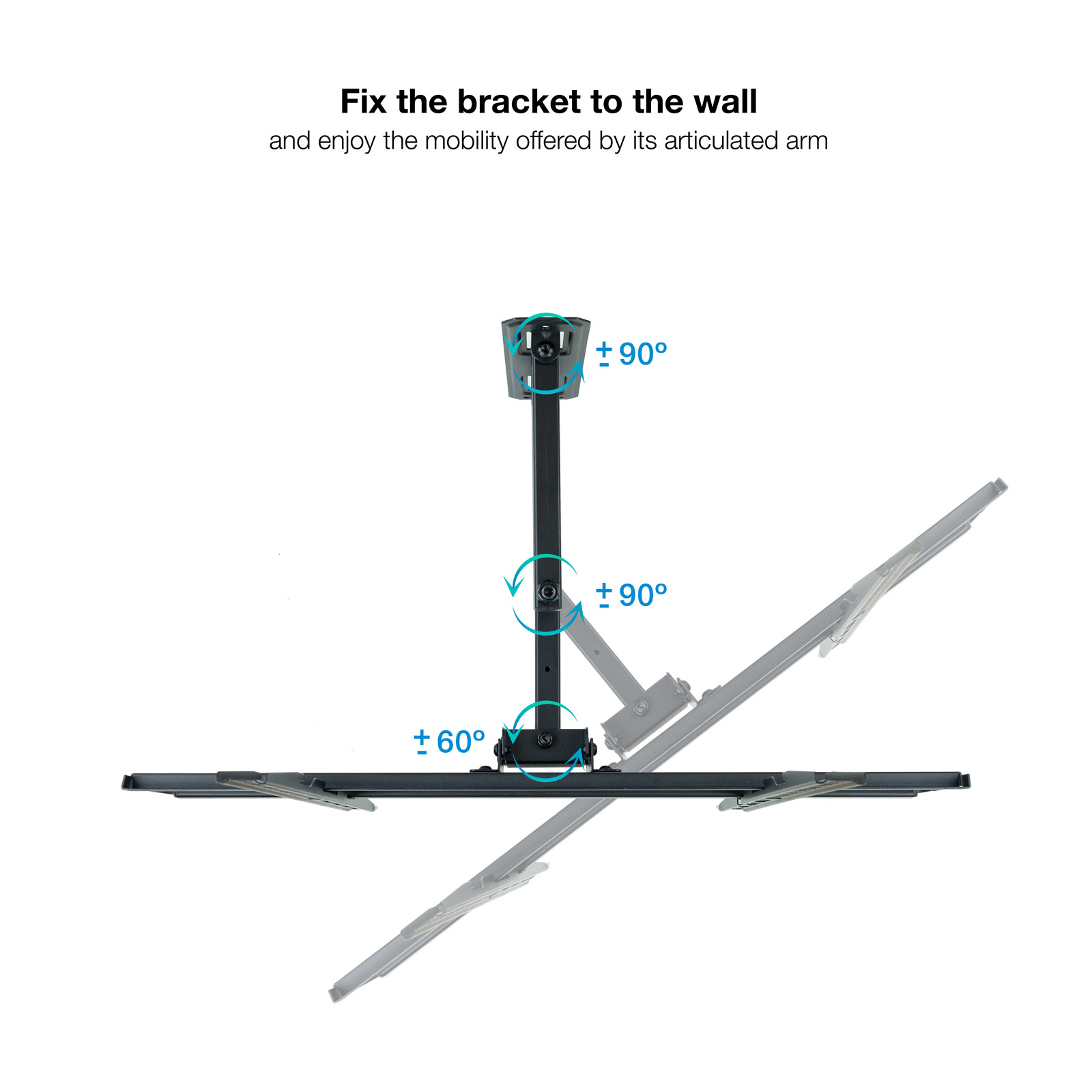

| Swivel angle range | -60 - 60° |
| Built-in spirit level | Yes |

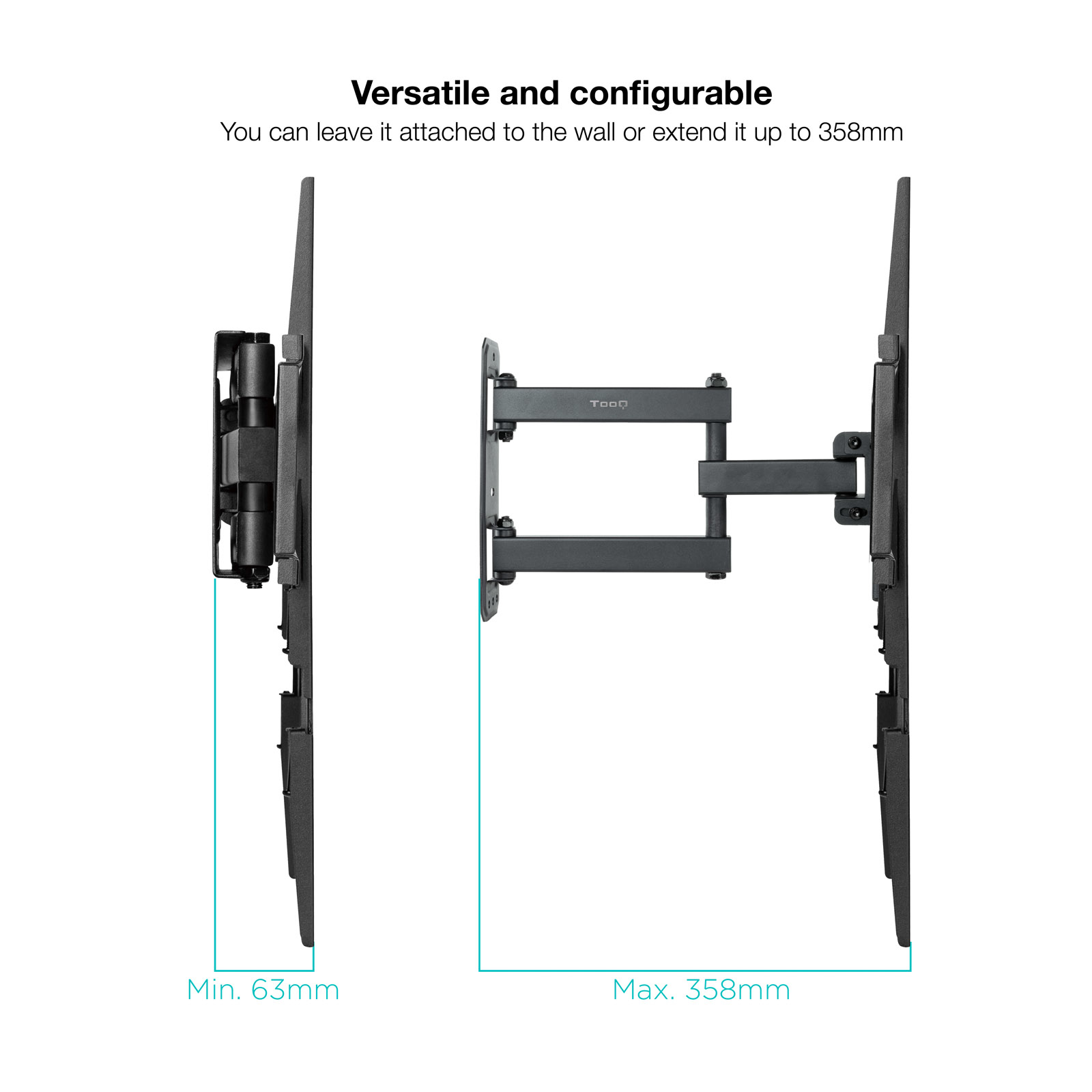

| Distance to the wall (max) | 35.8 cm |
| Distance to the wall (min) | 6.3 cm |
| Suitable for curved screen | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 640 mm |
| Height | 420 mm |
| Weight | 2.78 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 645 mm |
| Package depth | 62 mm |
| Package height | 250 mm |
| Package weight | 3.02 kg |
| Package type | Box |
