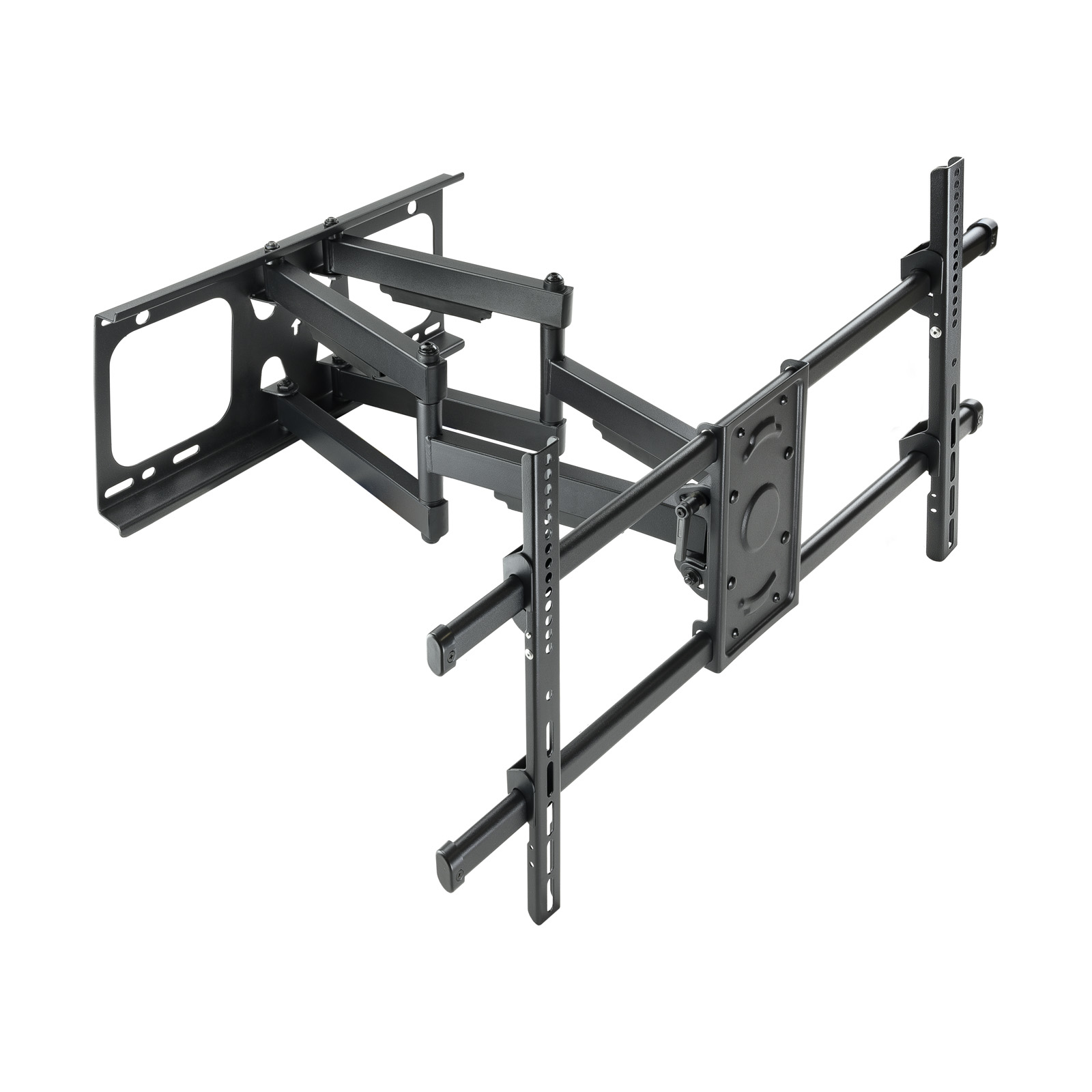

LP3790TN-B TV mount/stand 2.29 m (90") Black
Model LP3790TN-BEAN 8433281010031
31 specifications
- Weight10.5 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Quantity per pack1 pc(s)
- Width885 mm
Overview
- Weight
- 10.5 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Quantity per pack
- 1 pc(s)
- Width
- 885 mm
- Brand
- TooQ
- Category
- TV Mounts & Stands
- Model
- LP3790TN-B
- Part number
- LP3790TN-B
- EAN / UPC
- 8433281010031
- Also known as
- TooQ LP3790TN-B TV mount/stand 2.29 m (90") Black
Specifications
31 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.29 m (90") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |

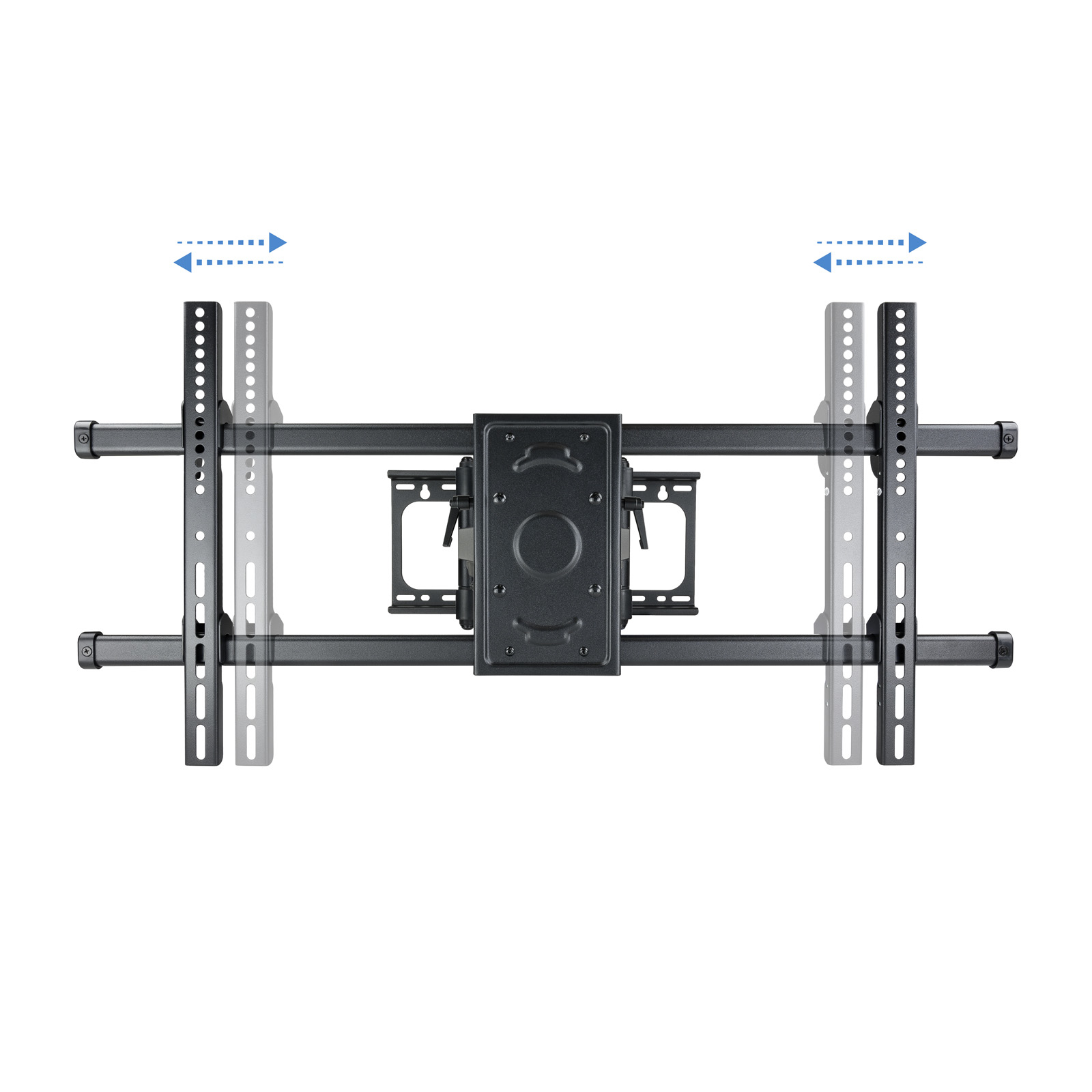

| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

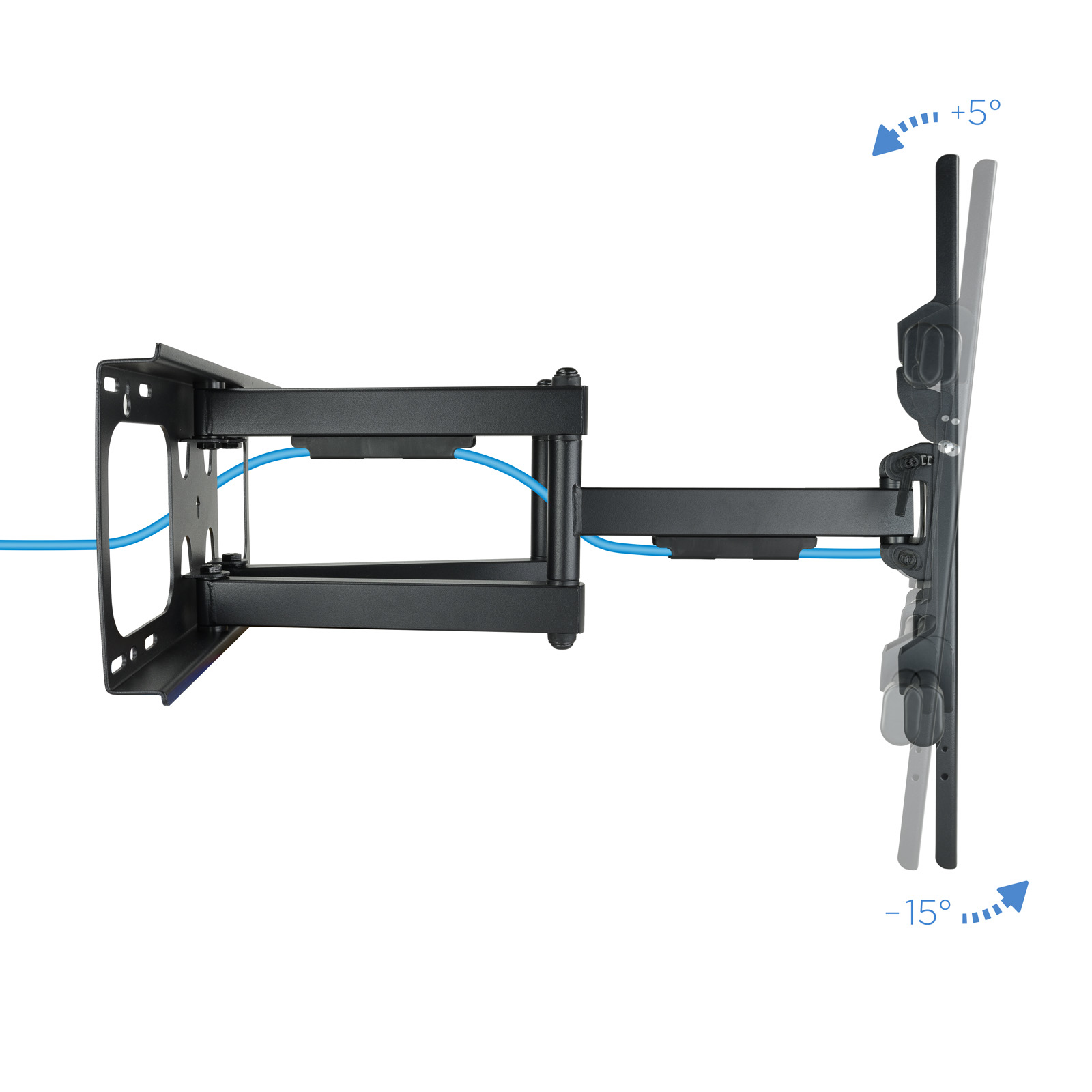

| Tilt angle range | -15 - 5° |

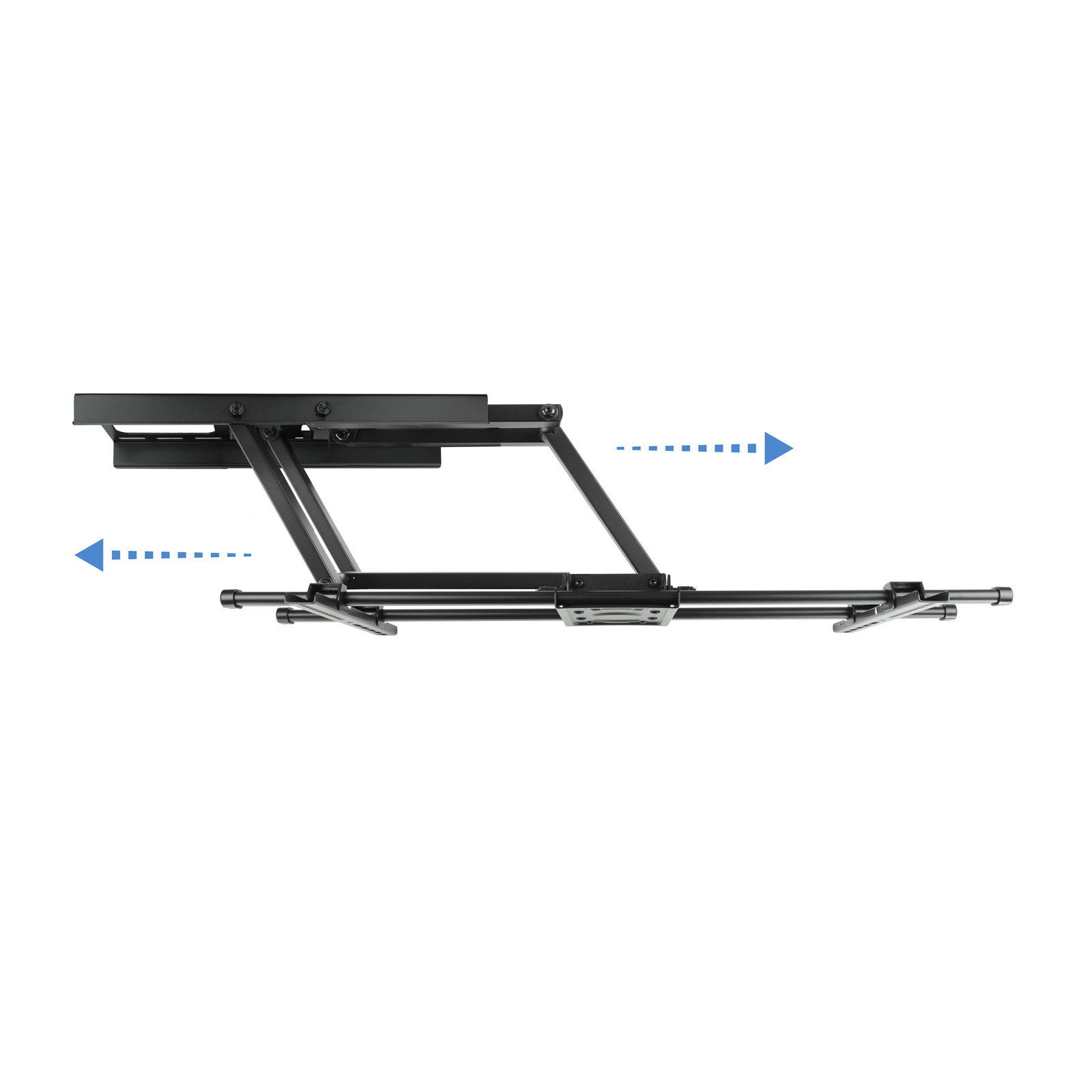

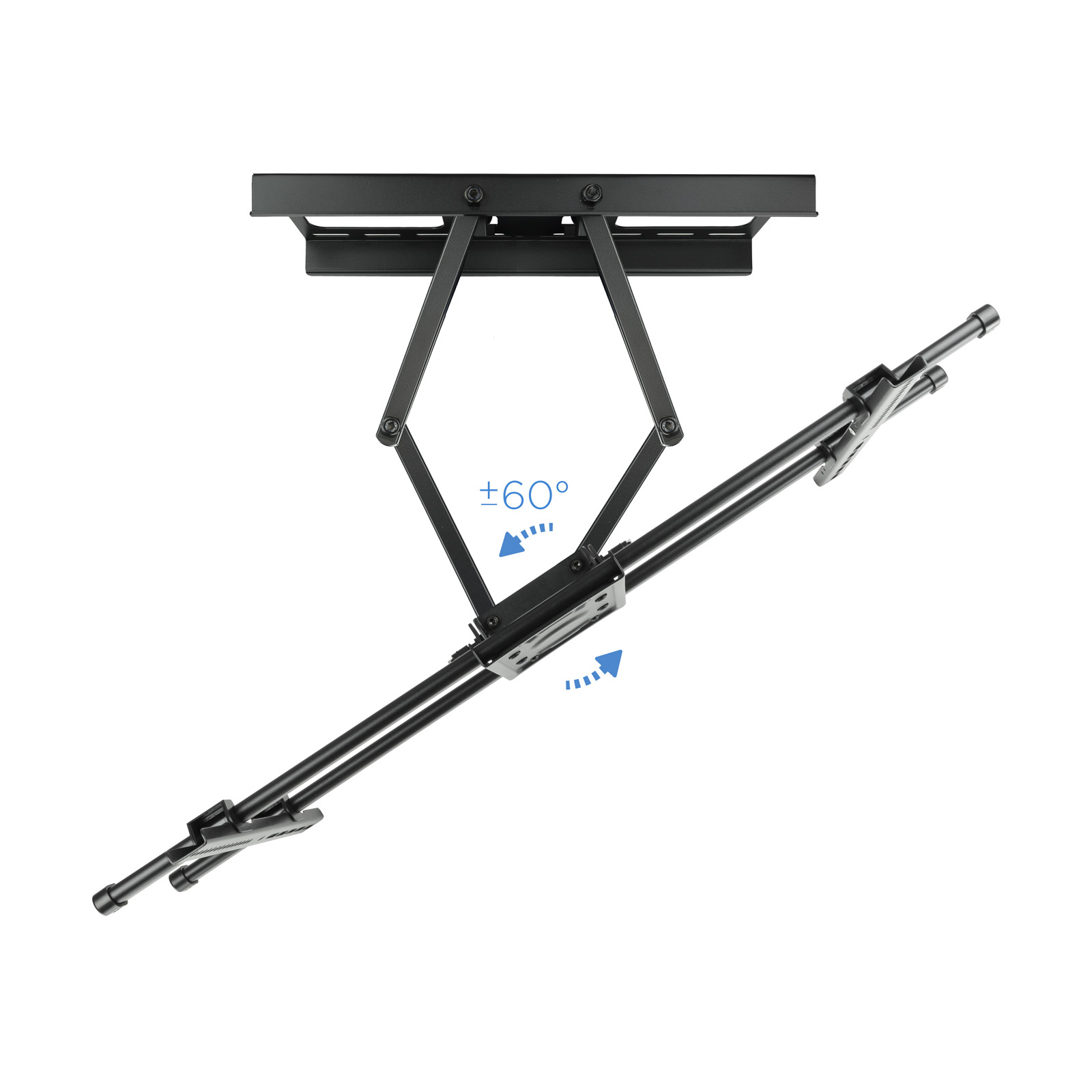

| Swivel angle range | -60 - 60° |

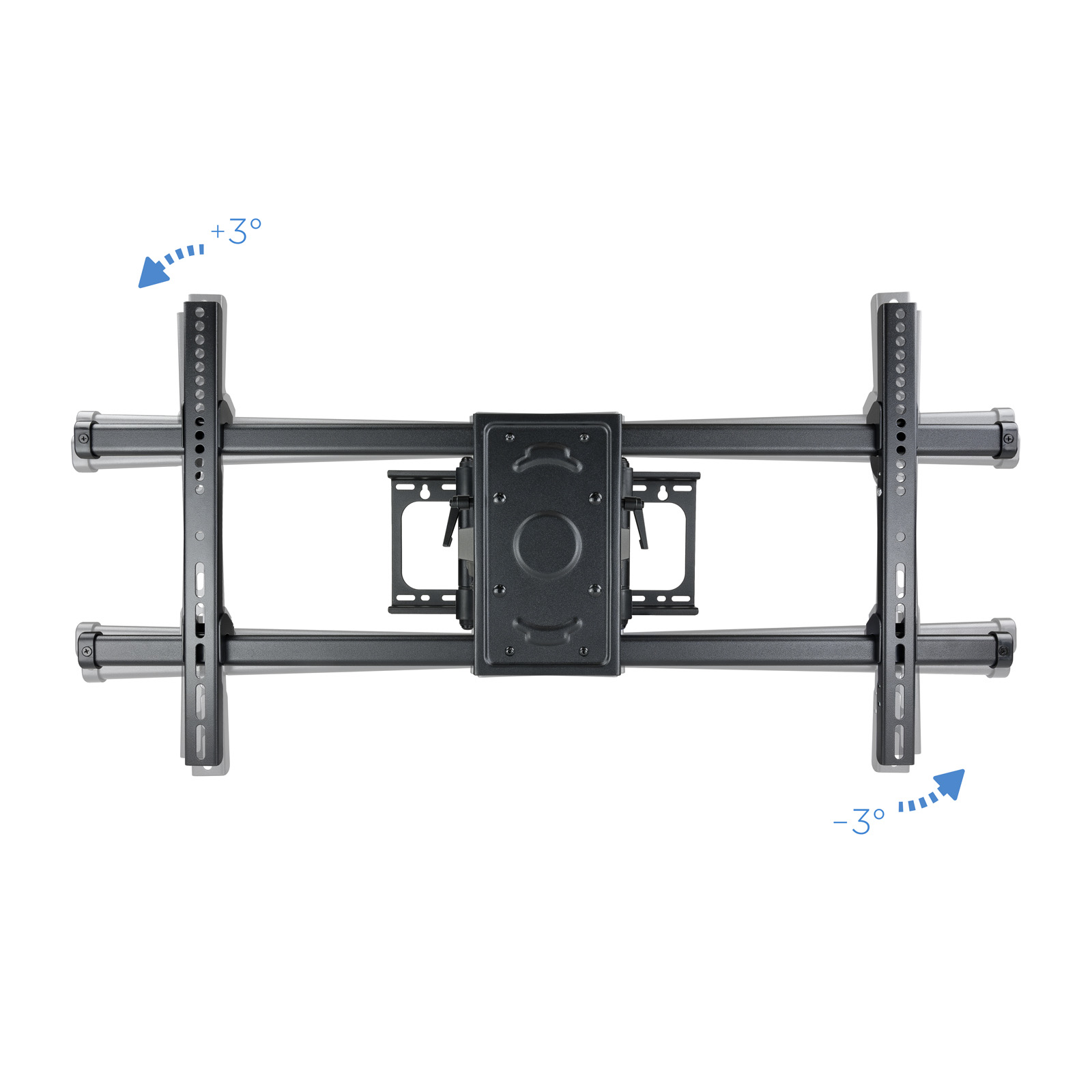

| Turn angle | 3° |
| Cable management | Yes |
| Built-in spirit level | Yes |

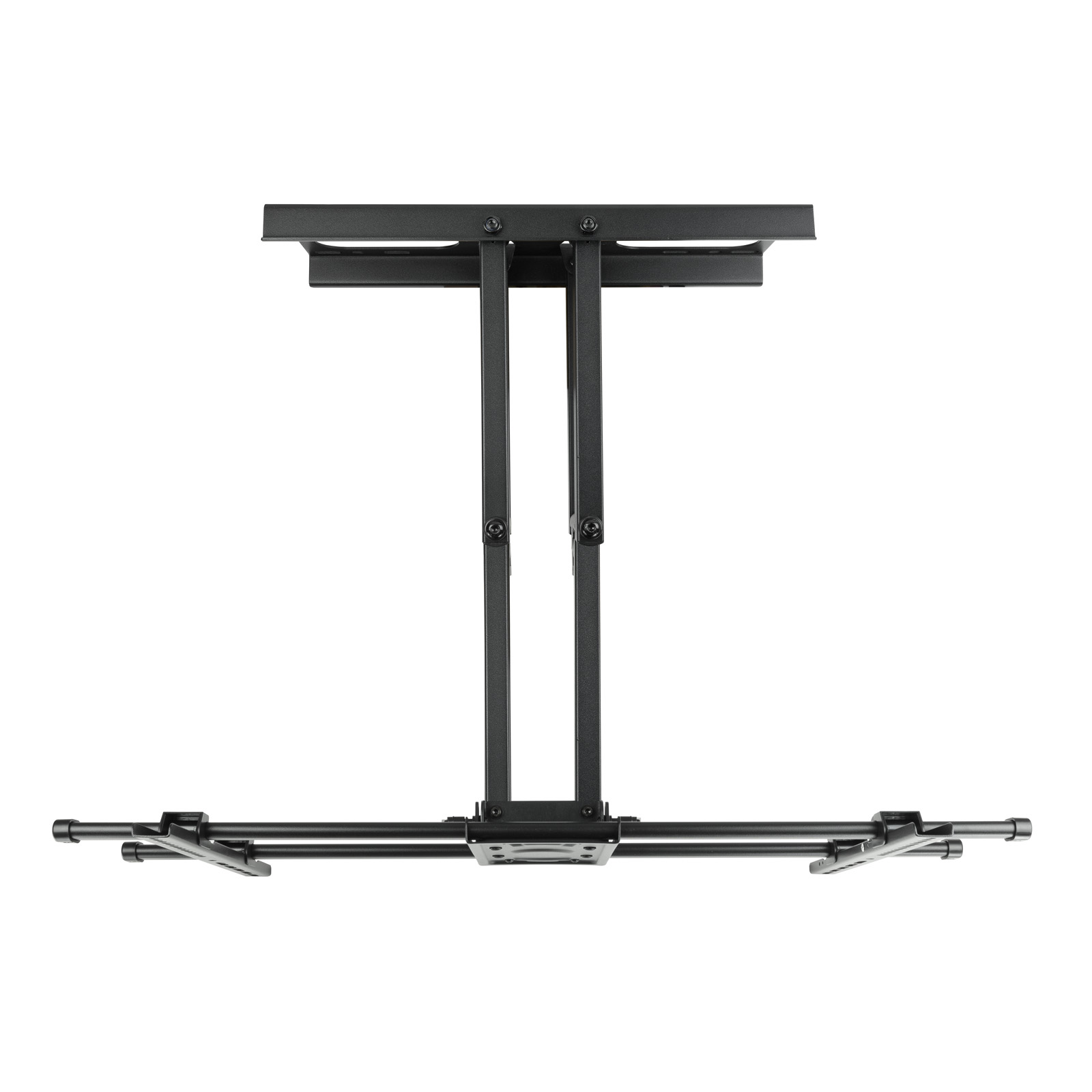

| Distance to the wall (max) | 63.5 cm |

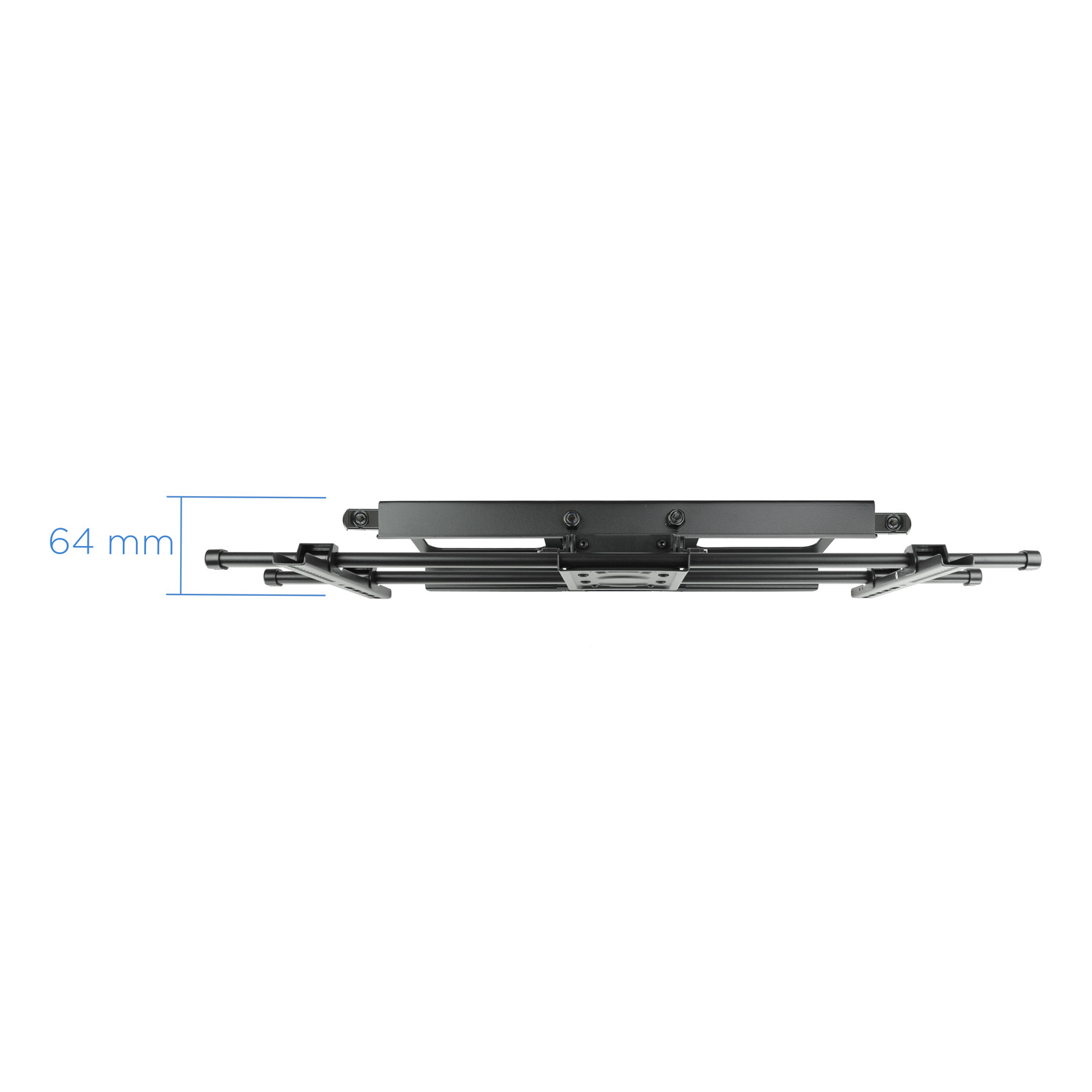

| Distance to the wall (min) | 6.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | 1 x Mount 1 x Mounting kit (includes tools) 1 x Installation manual |
Technical details
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 885 mm |
| Depth (min) | 6.9 cm |
| Depth (max) | 63.5 cm |
| Height | 430 mm |
| Weight | 10.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 920 mm |
| Package depth | 73 mm |
| Package height | 288 mm |
| Package weight | 11.2 kg |
| Package type | Box |
