Lottus Fixed Floor/Wall Mount with Height Adjustment for Screens 60‘-100’, Black
Model LottusPart no. FS2290HM-BEAN 8433281014572
27 specifications
- TypeFixed
- Weight27.3 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentYes
- Quantity per pack1 pc(s)
Overview
- Type
- Fixed
- Weight
- 27.3 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- Yes
- Quantity per pack
- 1 pc(s)
- Brand
- TooQ
- Category
- TV Mounts & Stands
- Model
- Lottus
- Part number
- FS2290HM-B
- EAN / UPC
- 8433281014572
- Also known as
- TooQ Lottus Fixed Floor/Wall Mount with Height Adjustment for Screens 60‘-100’, Black
Specifications
27 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 100 kg |
| Minimum screen size | 152.4 cm (60") |
| Maximum screen size | 2.54 m (100") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 1000 x 600 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,1000 x 600 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | Yes |

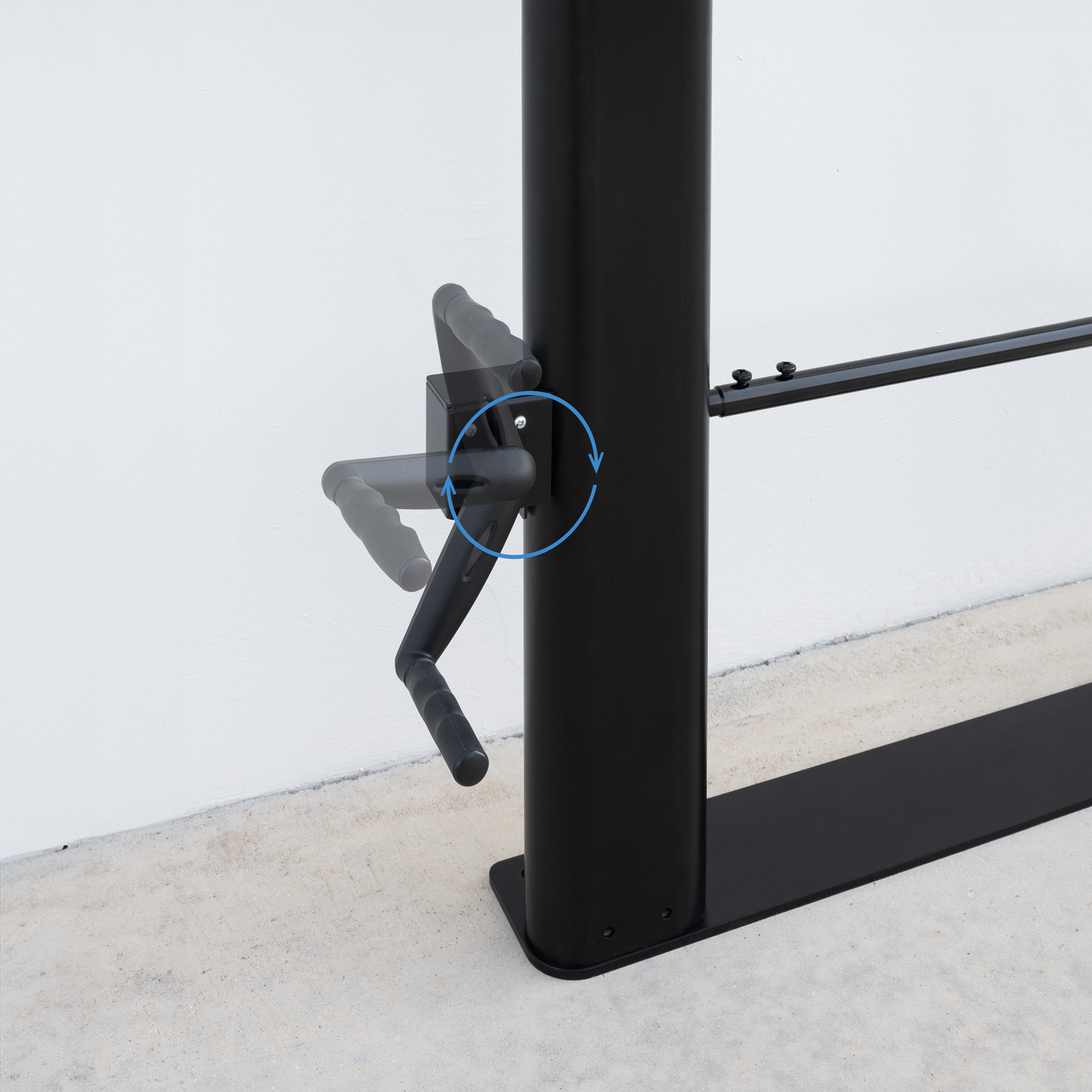

| Height adjustment type | Manual |

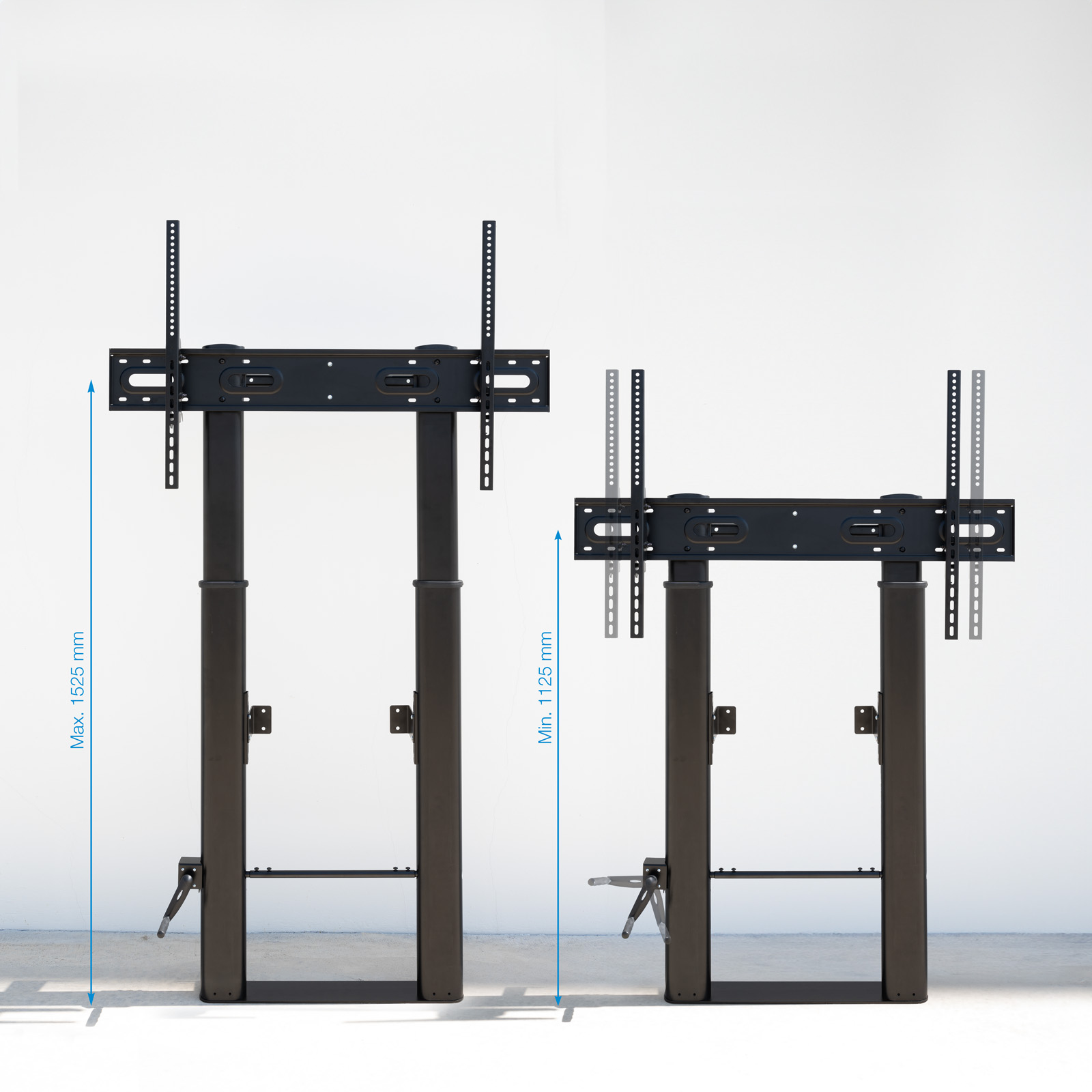

| Height adjustment range | 1125 - 1525 mm |
| Tilt adjustment | Yes |

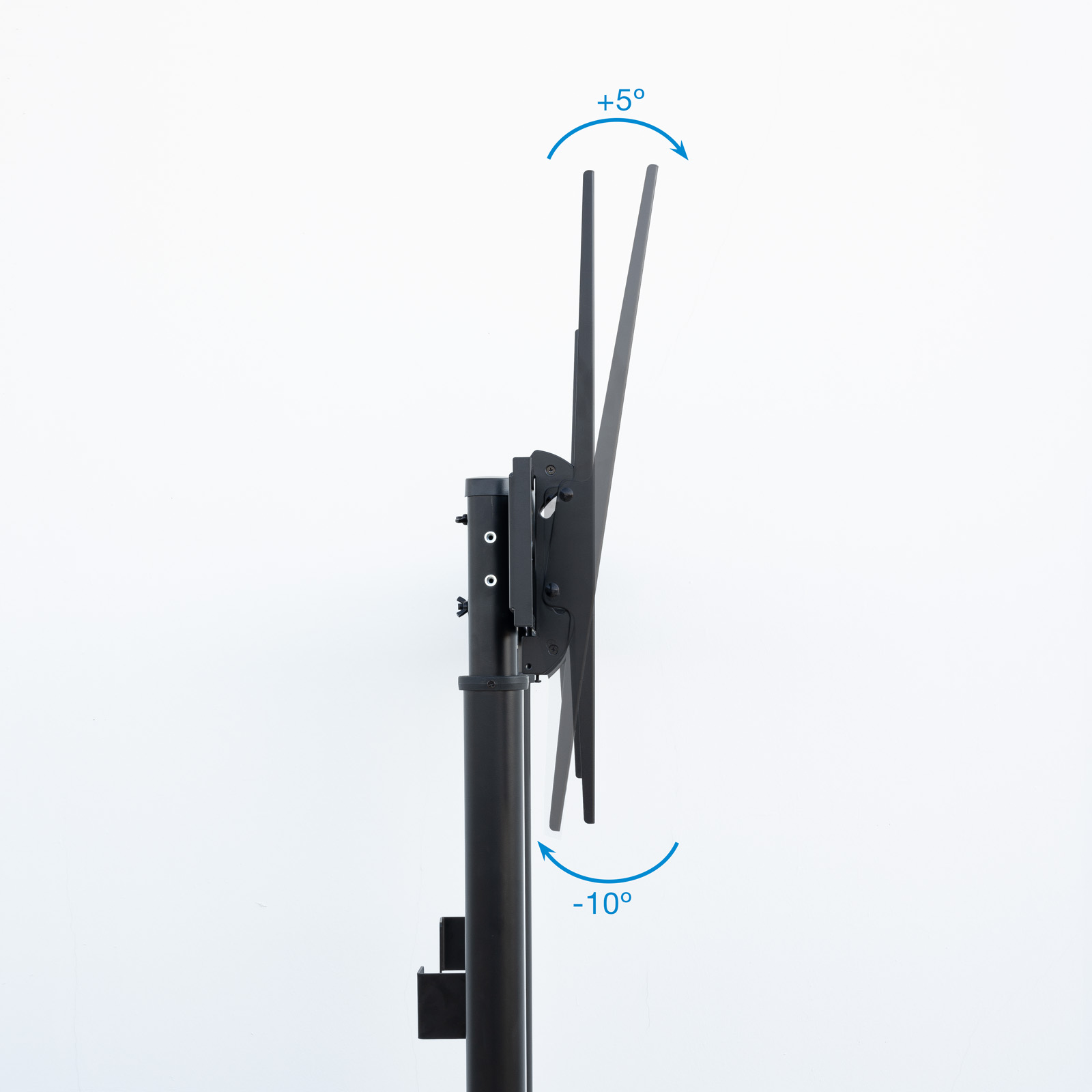

| Tilt angle range | -10 - 5° |
| Type | Fixed |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | 1 x Stand 1 x Mounting kit (including tools) 1 x Installation manual |
Technical details
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

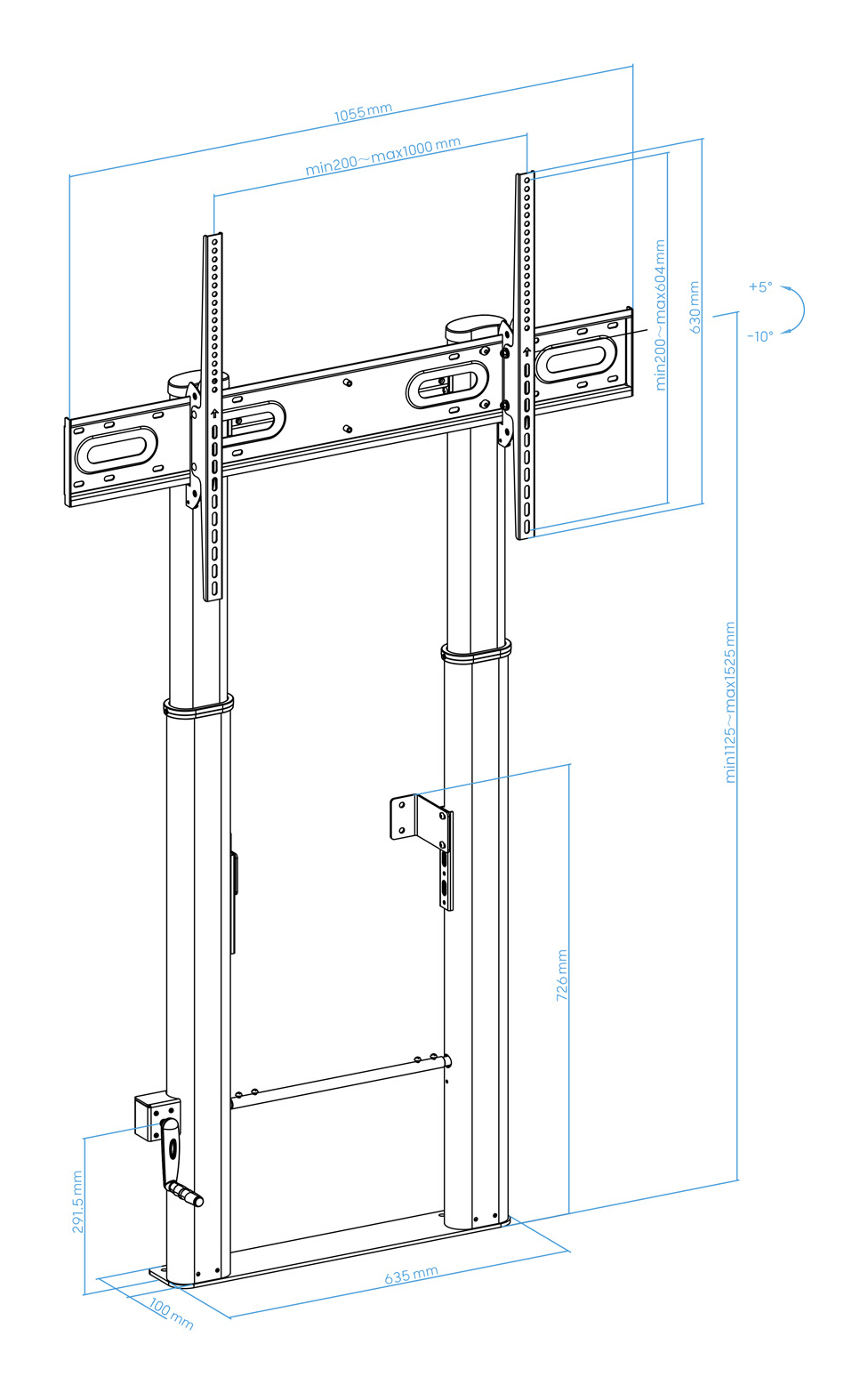

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1055 mm |
| Height | 1840 mm |
| Weight | 27.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1250 mm |
| Package depth | 220 mm |
| Package height | 270 mm |
| Package weight | 29 kg |
