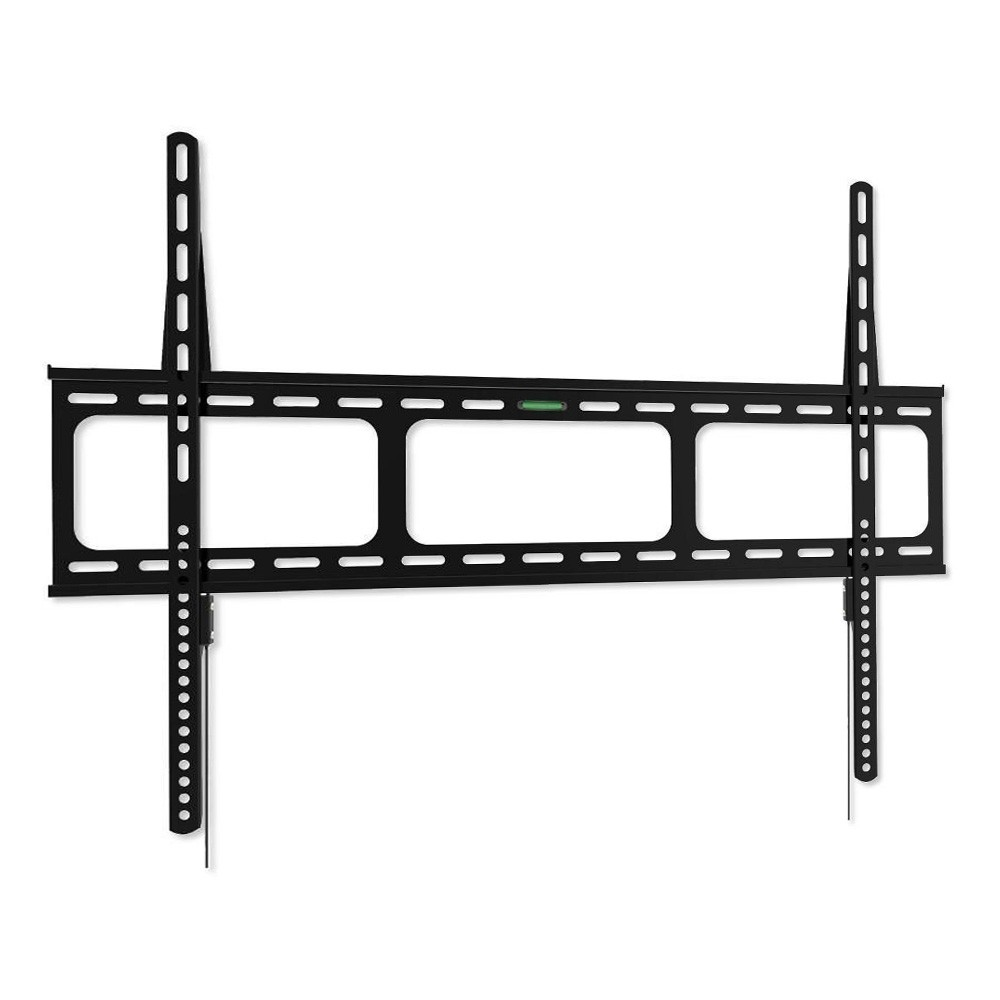

ICA-PLB 860
Model ICA-PLB 860EAN 8054529022649
23 specifications
- Weight2.65 kg
- ColourBlack
- Number of displays supported1
- Built-in spirit levelYes
- Compliance certificatesRoHS
- Width833 mm
Overview
- Weight
- 2.65 kg
- Colour
- Black
- Number of displays supported
- 1
- Built-in spirit level
- Yes
- Compliance certificates
- RoHS
- Width
- 833 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 860
- Part number
- ICA-PLB 860
- EAN / UPC
- 8054529022649
- Also known as
- Techly Wall Mount for LED LCD TV 42-80 Ultra Slim Fixed H600mm" ICA-PLB 860
Specifications
23 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 60 kg |
| Minimum screen size | 106.7 cm (42") |
| Maximum screen size | 2.03 m (80") |
| Mounting type | Wall |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,100 x 200,120 x 180,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,500 x 400,600 x 200,600 x 400,600 x 600,700 x 400,800 x 400,800 x 500,800 x 600 |
Ergonomics
| Specification | Value |
|---|---|
| Built-in spirit level | Yes |

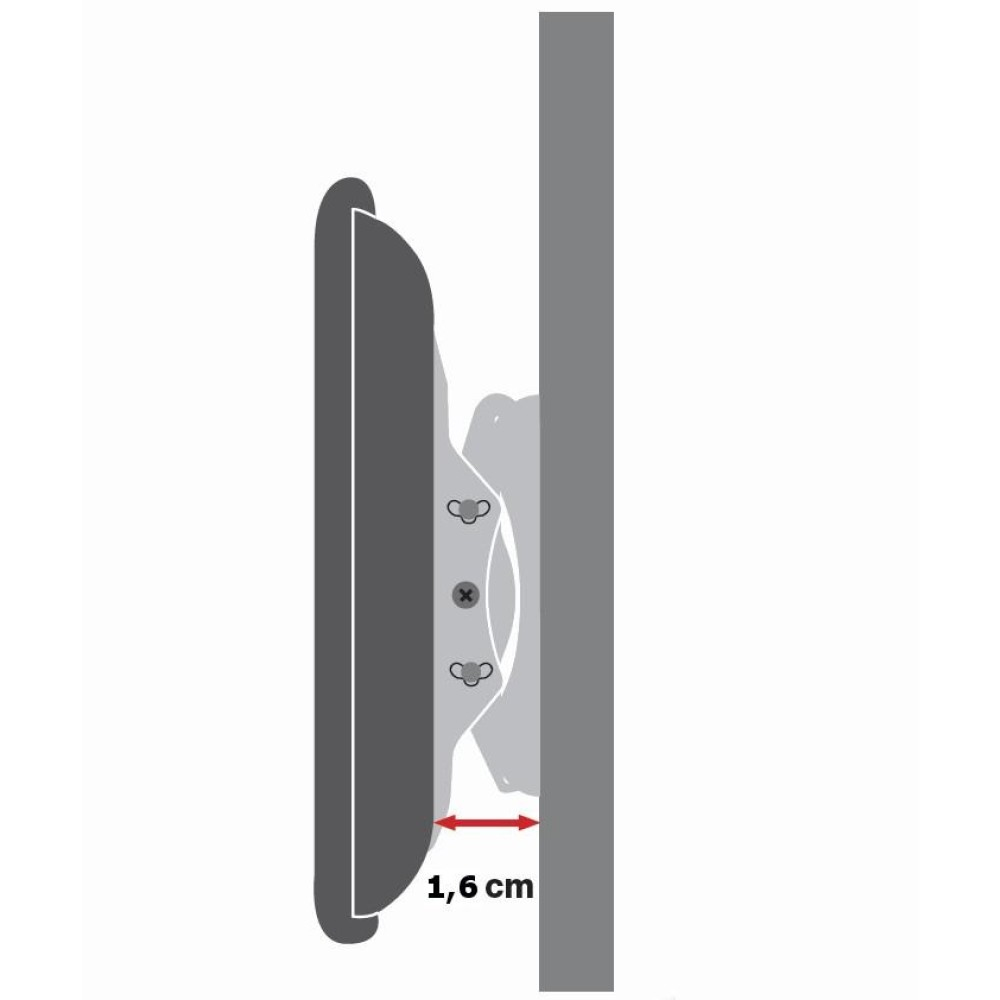

| Distance to the wall (max) | 1.6 cm |
| Distance to the wall (min) | 1.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 10 year(s) |

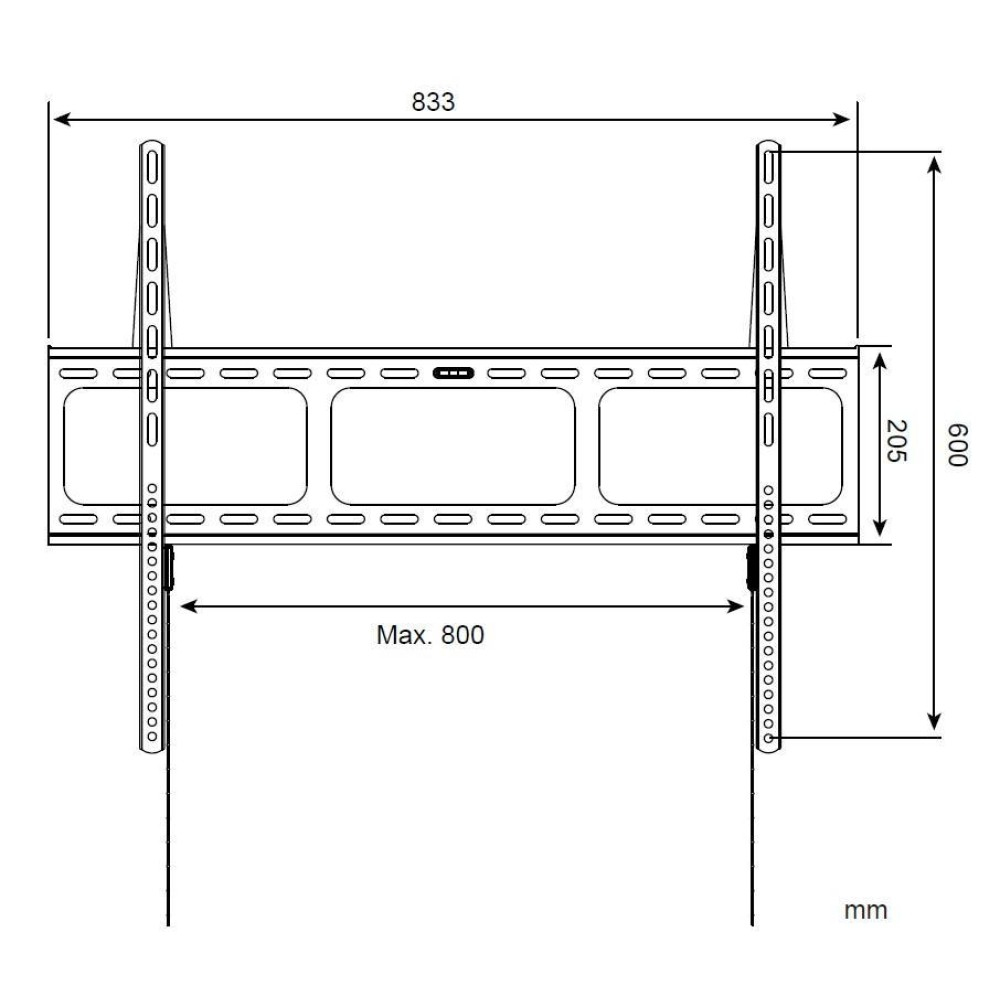

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 833 mm |
| Depth | 22 mm |
| Height | 600 mm |
| Weight | 2.65 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
