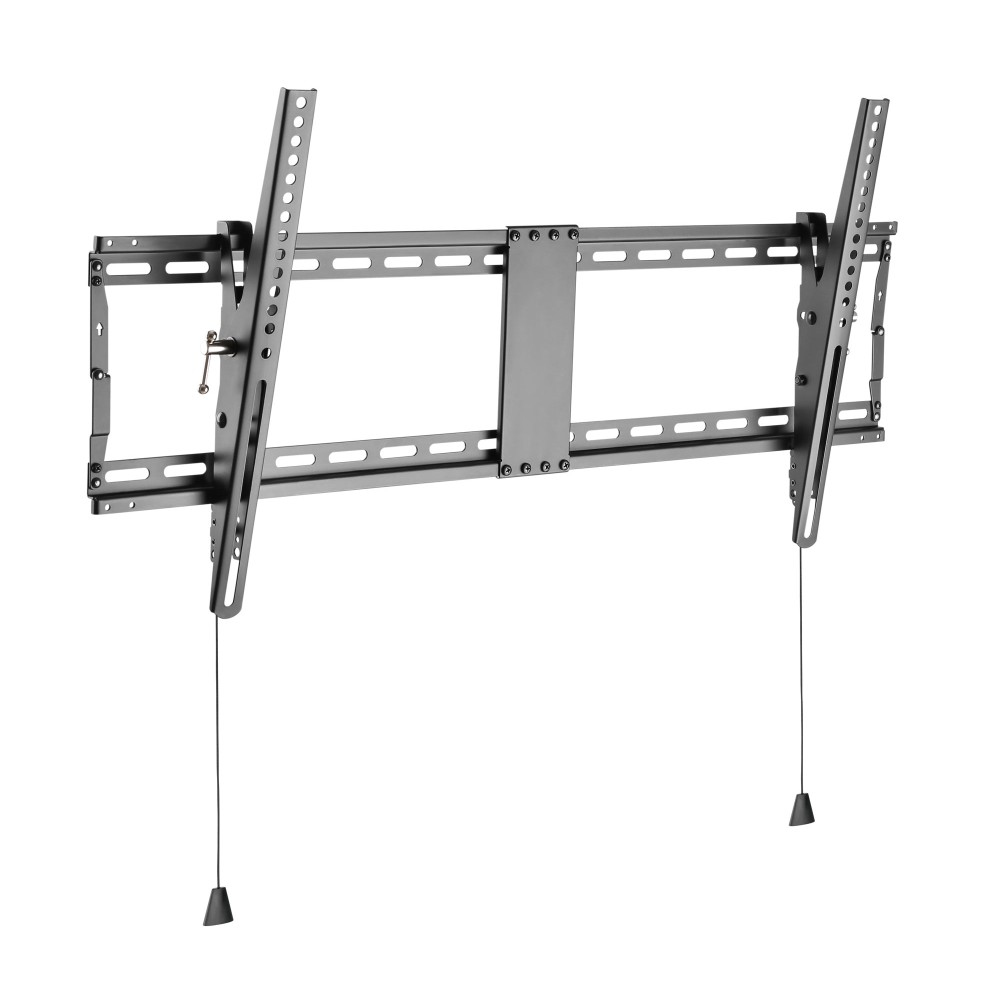

ICA-PLB 590
Model ICA-PLB 590EAN 8051128105421
23 specifications
- Weight3.15 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-12 - 3°
- Warranty period10 year(s)
- Width890 mm
Overview
- Weight
- 3.15 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -12 - 3°
- Warranty period
- 10 year(s)
- Width
- 890 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 590
- Part number
- ICA-PLB 590
- EAN / UPC
- 8051128105421
- Also known as
- Techly ICA-PLB 590 TV mount/stand 2.29 m (90") Black
Specifications
23 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 70 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.29 m (90") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -12 - 3° |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 4.9 cm |
| Distance to the wall (min) | 4.9 cm |
| Suitable for curved screen | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | Yes |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |

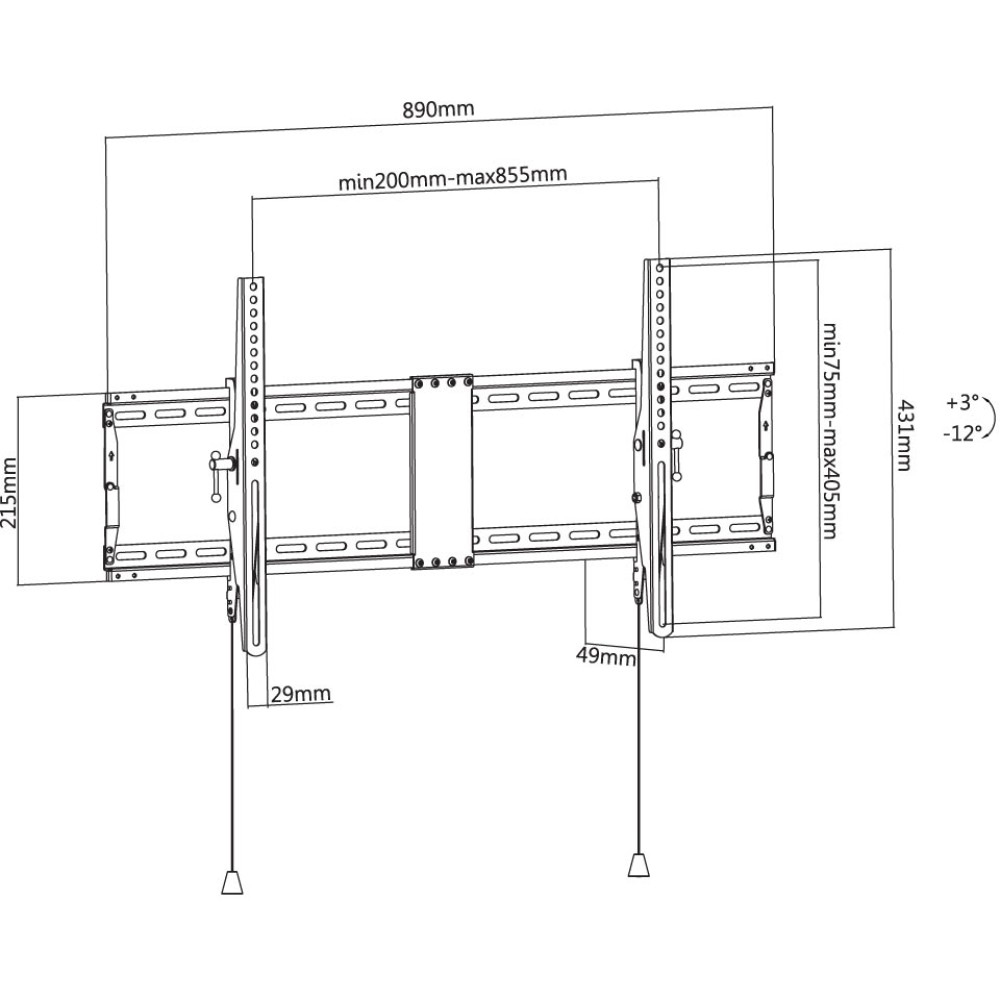

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 890 mm |
| Depth | 49 mm |
| Height | 431 mm |
| Weight | 3.15 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
