ICA-PLB 201L
Model ICA-PLB 201LEAN 8057685301252
17 specifications
- Weight2.65 kg
- ColourBlack
- Maximum weight capacity25 kg
- Tilt angle range0 - 15°
- Compliance certificatesRoHS
- Width690 mm
Overview
- Weight
- 2.65 kg
- Colour
- Black
- Maximum weight capacity
- 25 kg
- Tilt angle range
- 0 - 15°
- Compliance certificates
- RoHS
- Width
- 690 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 201L
- Part number
- ICA-PLB 201L
- EAN / UPC
- 8057685301252
- Also known as
- Techly 40-65" Ultra Slim Wall Bracket for LED LCD TV Tilting" ICA-PLB 201L
Specifications
17 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 25 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 200,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 0 - 15° |
| Distance to the wall (min) | 1.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

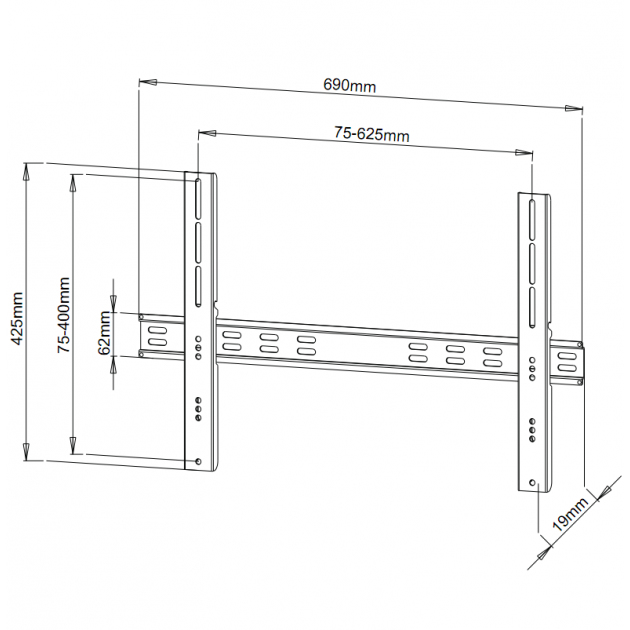

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 690 mm |
| Depth | 19 mm |
| Height | 425 mm |
| Weight | 2.65 kg |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Size | L |
