ICA-PLB 180L
Model ICA-PLB 180LEAN 8054529025886
24 specifications
- Weight10.9 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-10 - 10°
- Number of joints2
Overview
- Weight
- 10.9 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -10 - 10°
- Number of joints
- 2
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 180L
- Part number
- ICA-PLB 180L
- EAN / UPC
- 8054529025886
- Also known as
- Techly Wall Support for LCD LED 50-100" Full Motion Black ICA-PLB 180L
Specifications
24 specifications in 7 groups

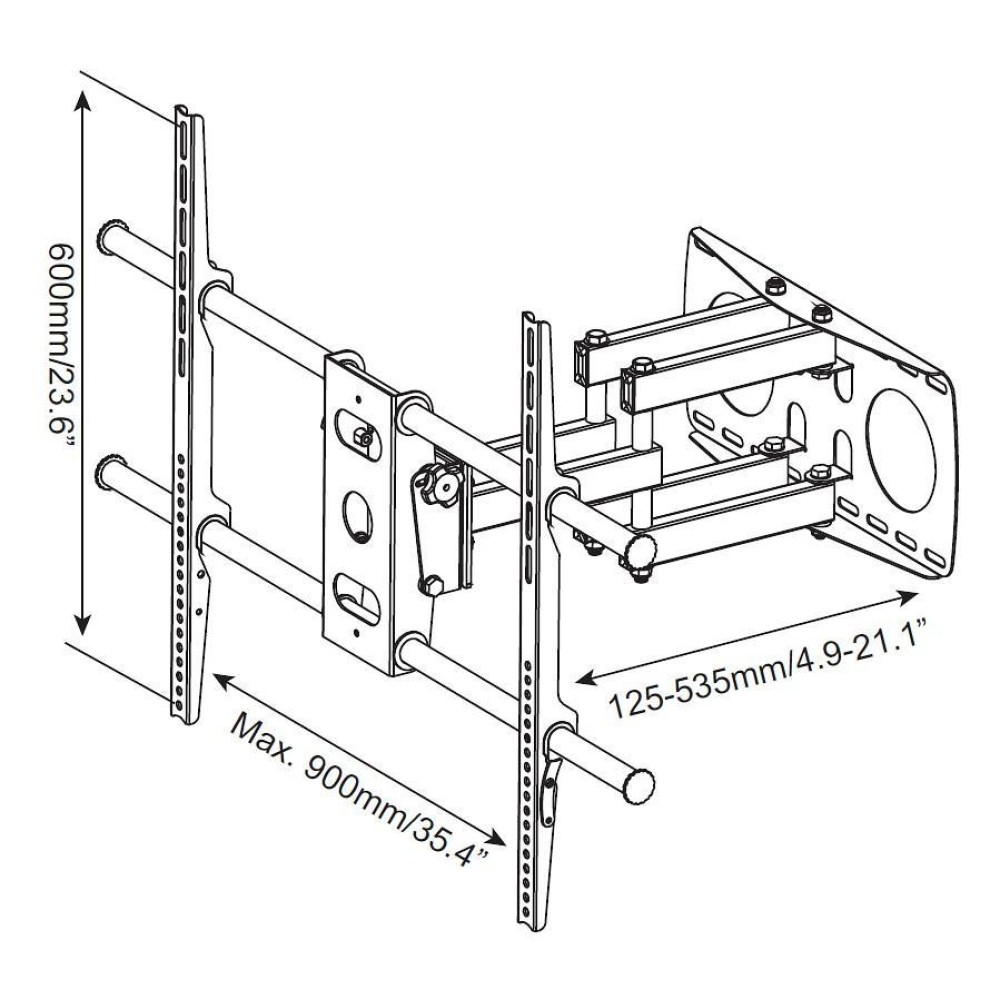

Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 80 kg |
| Minimum screen size | 127 cm (50") |
| Maximum screen size | 2.54 m (100") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 900 x 600 mm |
| Panel mounting interface | 200 x 200,400 x 400,600 x 400,800 x 400,900 x 600 |

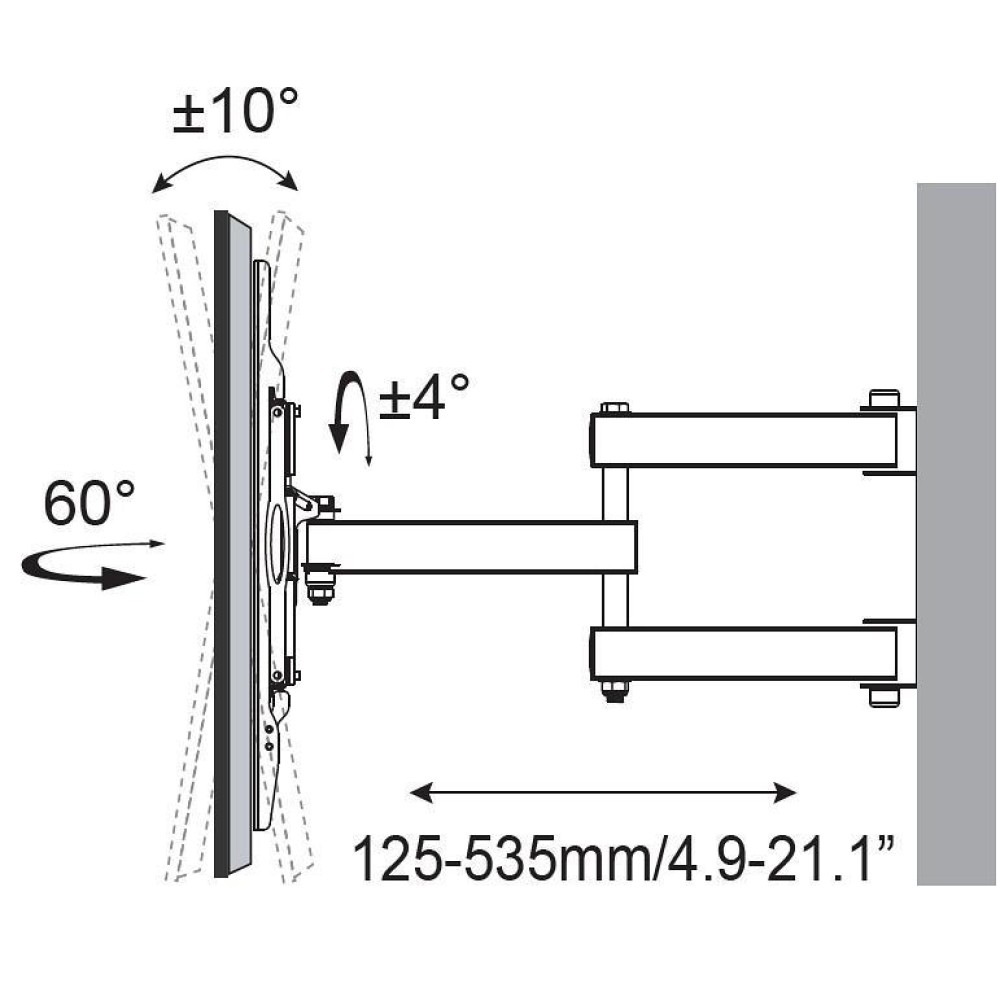

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -10 - 10° |
| Swivel angle | 60° |
| Swivel angle range | 0 - 60° |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 53.5 cm |
| Distance to the wall (min) | 12.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of joints | 2 |
| Warranty period | 10 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 10.9 kg |
| Arm length | 53.5 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
