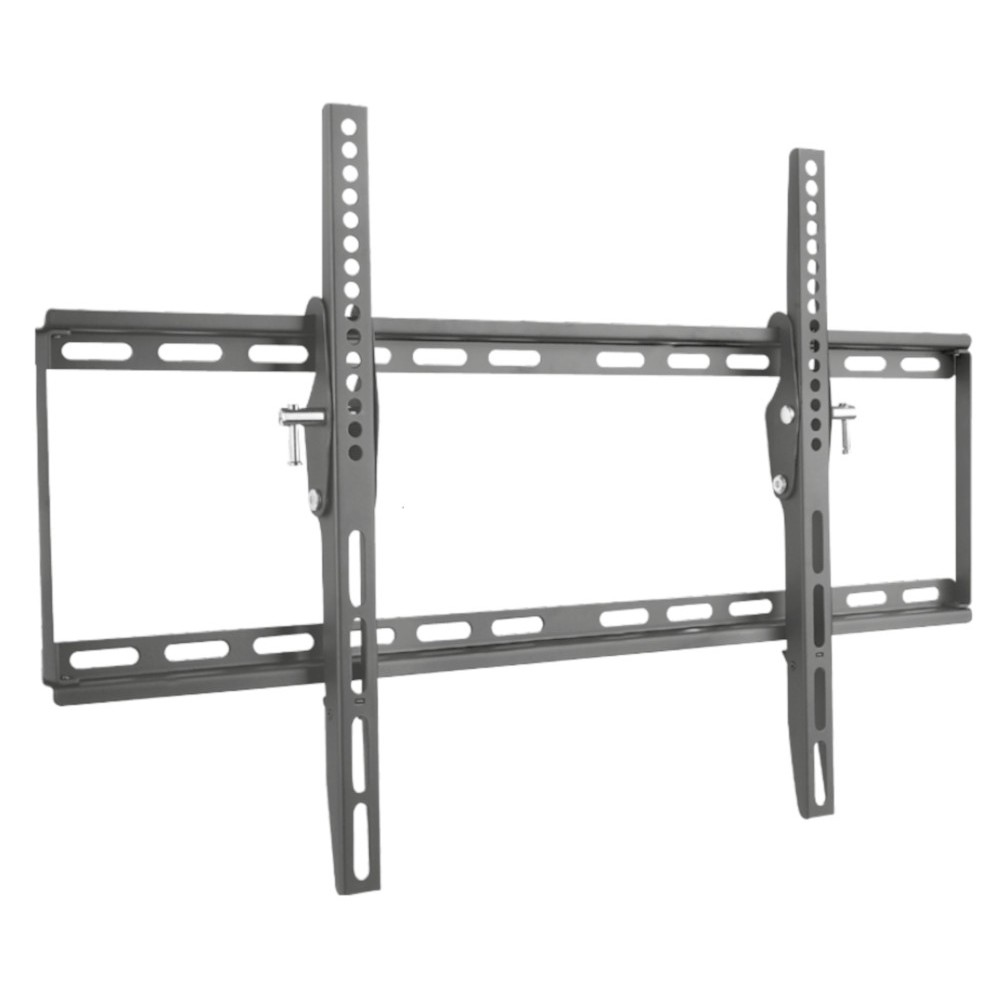

ICA-PLB 161L
Model ICA-PLB 161LEAN 8051128107685
27 specifications
- Weight1.68 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentNo
- Compliance certificatesRoHS
- Width665 mm
Overview
- Weight
- 1.68 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- No
- Compliance certificates
- RoHS
- Width
- 665 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 161L
- Part number
- ICA-PLB 161L
- EAN / UPC
- 8051128107685
- Also known as
- Techly Fixed Wall Bracket LED TV LCD 40-65"
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |

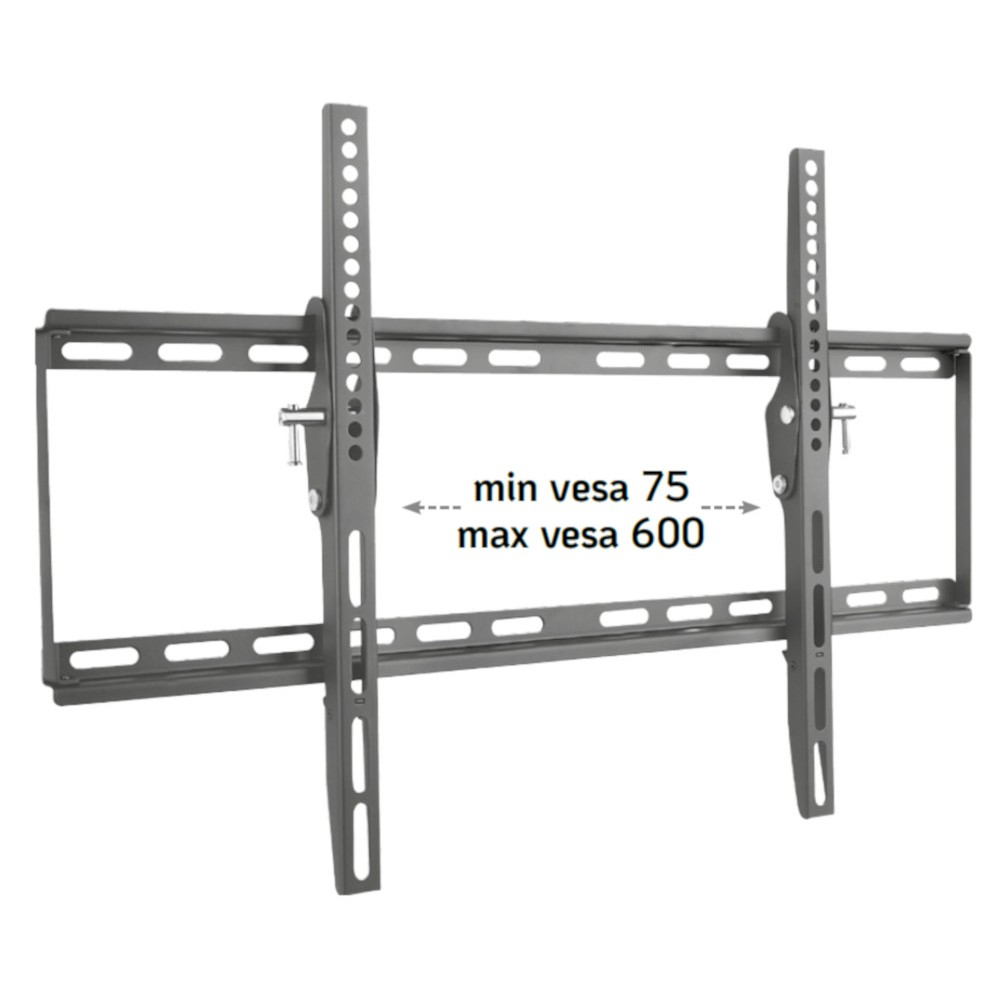

| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -12 - 0° |
| Rotating | No |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 3.6 cm |
| Distance to the wall (min) | 3.6 cm |
| Suitable for curved screen | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 1 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|

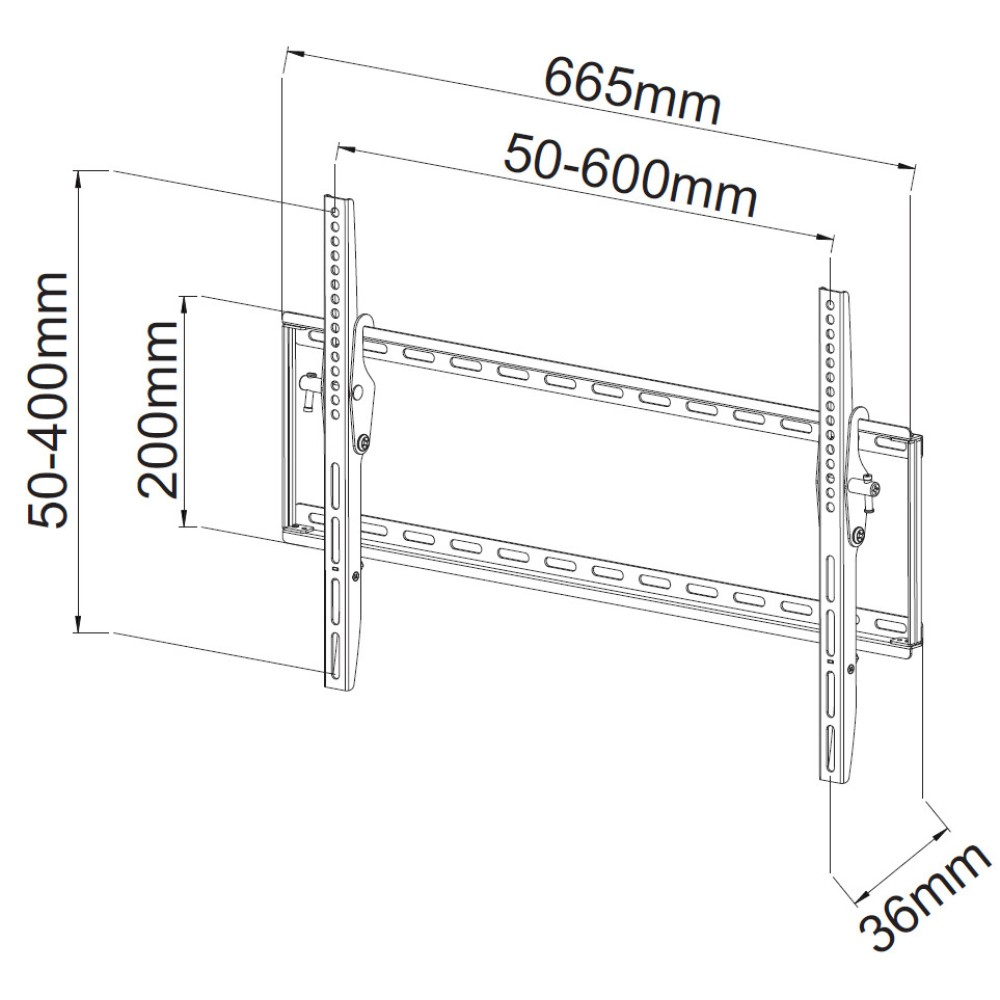

| Width | 665 mm |
| Weight | 1.68 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
