ICA-PLB 148L
Model ICA-PLB 148LEAN 8054529027620
25 specifications
- Weight8.41 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-2 - 12°
- Number of joints3
Overview
- Weight
- 8.41 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -2 - 12°
- Number of joints
- 3
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 148L
- Part number
- ICA-PLB 148L
- EAN / UPC
- 8054529027620
- Also known as
- Techly ICA-PLB 148L TV mount/stand 165.1 cm (65") Black
Specifications
25 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 200,120 x 180,200 x 100,200 x 200,200 x 300,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|

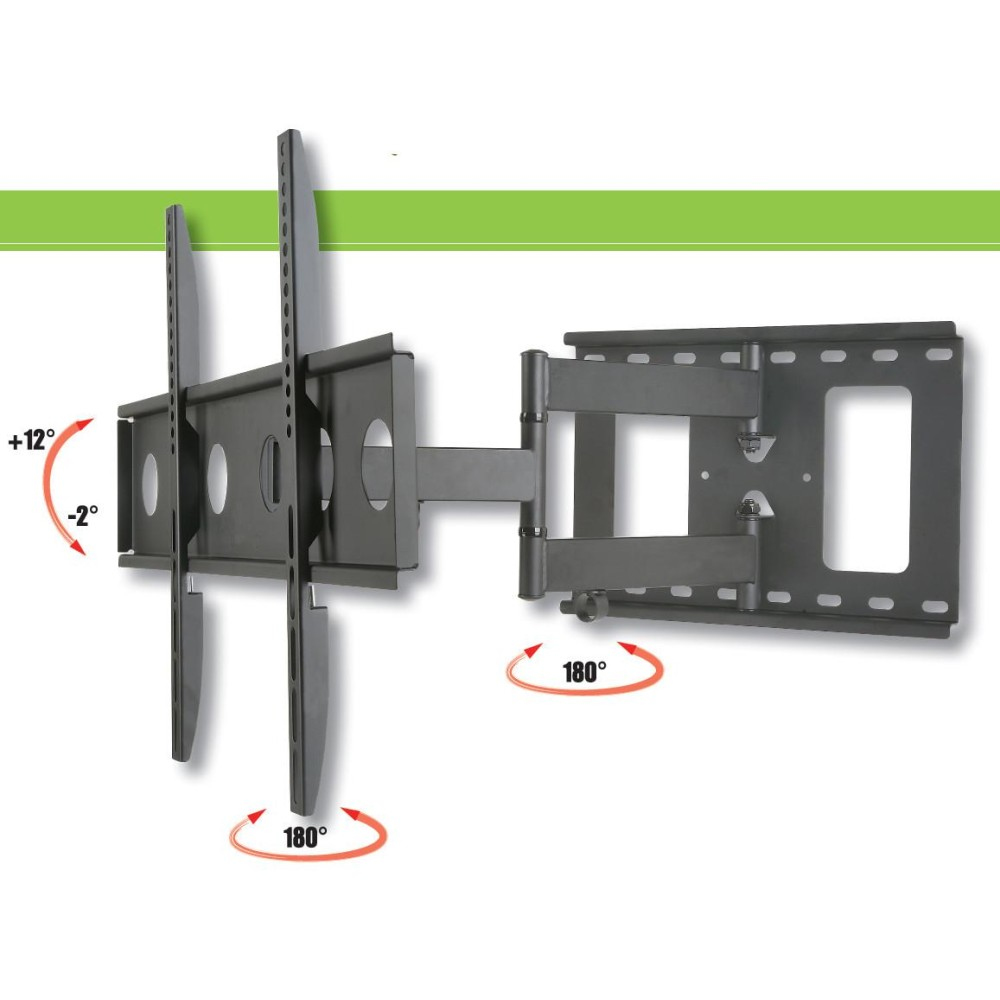

| Tilt angle range | -2 - 12° |
| Swivel angle | 180° |
| Swivel angle range | -90 - 90° |
| Cable management | Yes |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 50 cm |
| Distance to the wall (min) | 6.35 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of joints | 3 |
| Warranty period | 10 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.41 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
