ICA-PLB 147M
Model ICA-PLB 147MEAN 8057685301429
27 specifications
- Weight7.5 kg
- ColourBlack
- Maximum weight capacity70 kg
- Tilt angle range-12 - 0°
- Compliance certificatesRoHS
- Width458 mm
Overview
- Weight
- 7.5 kg
- Colour
- Black
- Maximum weight capacity
- 70 kg
- Tilt angle range
- -12 - 0°
- Compliance certificates
- RoHS
- Width
- 458 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 147M
- Part number
- ICA-PLB 147M
- EAN / UPC
- 8057685301429
- Also known as
- Techly 23-55" Wall Bracket for LED TV LCD Full-Motion Dual Arm" ICA-PLB 147M
Specifications
27 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 70 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |

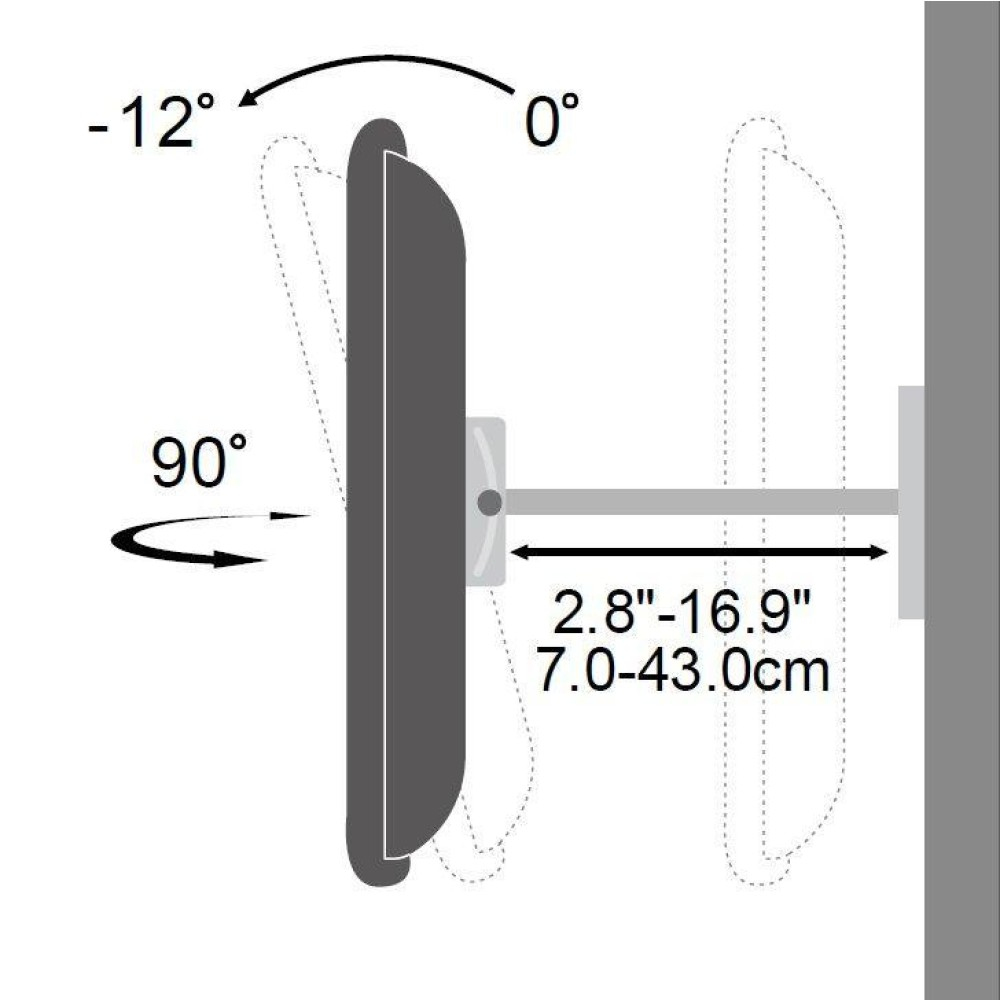

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -12 - 0° |
| Swivel angle | 90° |
| Number of pivot points | 3 |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 43 cm |
| Distance to the wall (min) | 7 cm |
| Suitable for curved screen | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Number of joints | 3 |
| Warranty period | 10 year(s) |

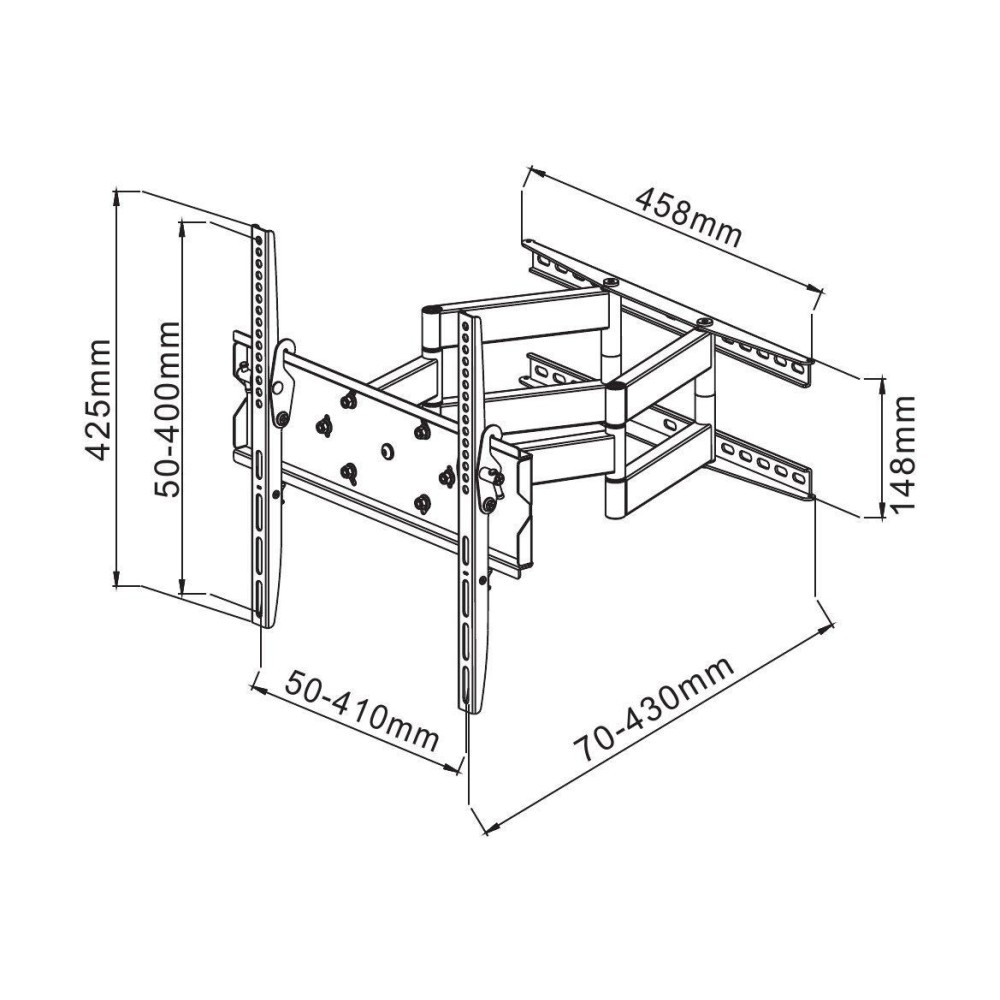

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 458 mm |
| Depth (min) | 7 cm |
| Depth (max) | 43 cm |
| Height | 425 mm |
| Weight | 7.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Size | M |
