ICA-PLB 146M
Model ICA-PLB 146MEAN 8057685301382
21 specifications
- Weight5.76 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range0 - 12°
- Compliance certificatesRoHS
- Width458 mm
Overview
- Weight
- 5.76 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 0 - 12°
- Compliance certificates
- RoHS
- Width
- 458 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 146M
- Part number
- ICA-PLB 146M
- EAN / UPC
- 8057685301382
- Also known as
- Techly 23-55" Wall Bracket for LED TV LCD Full-Motion" ICA-PLB 146M
Specifications
21 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |

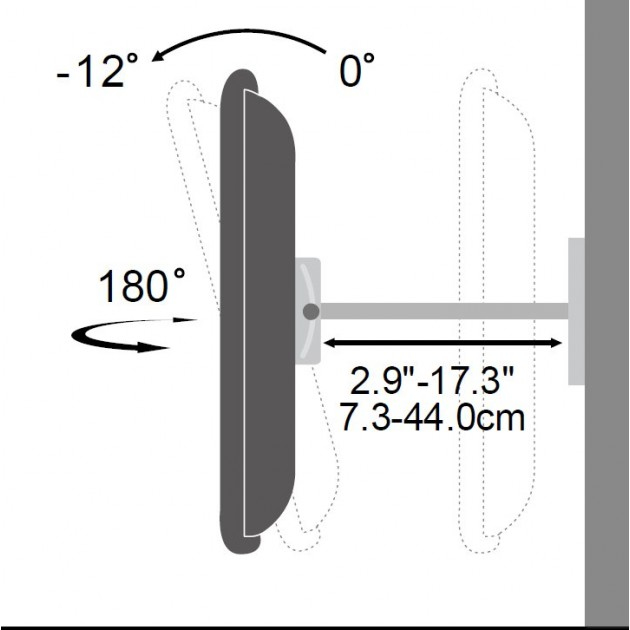

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 0 - 12° |
| Swivel angle | 180° |
| Distance to the wall (max) | 44 cm |
| Distance to the wall (min) | 7.3 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

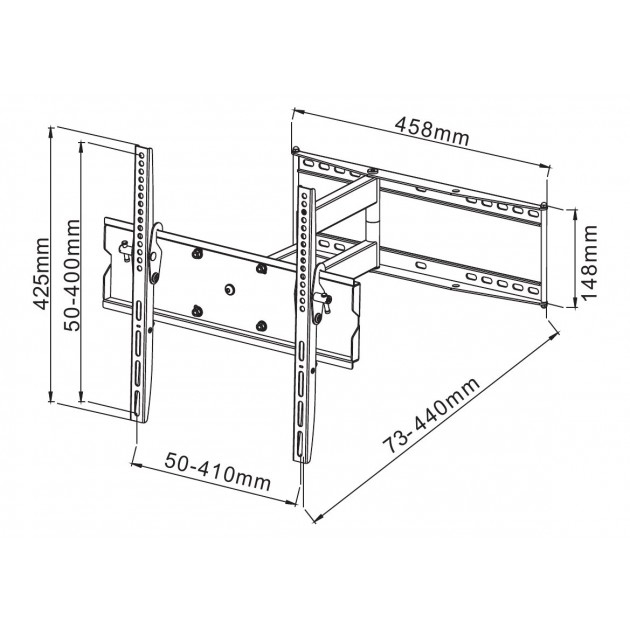

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 458 mm |
| Depth (min) | 7.3 cm |
| Depth (max) | 40 cm |
| Height | 425 mm |
| Weight | 5.76 kg |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
