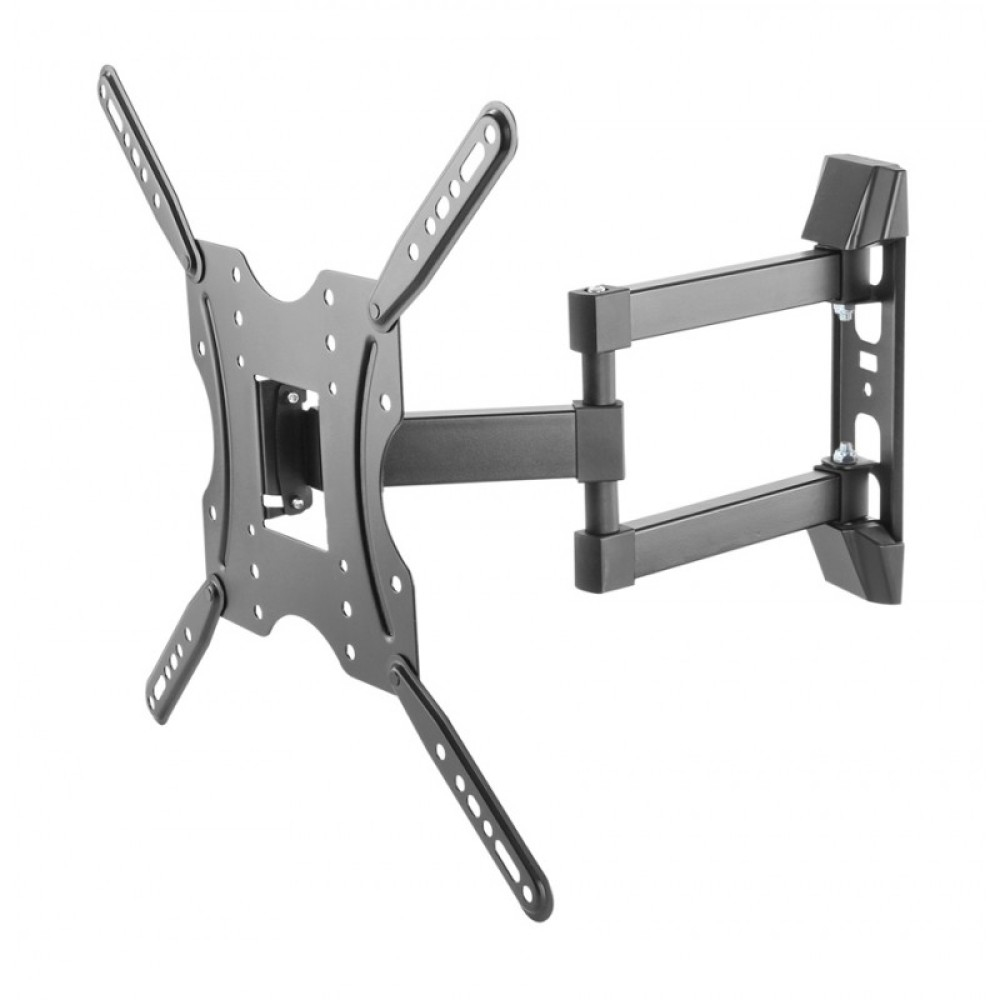

ICA-PLB 136E
Model ICA-PLB 136EEAN 8051128100884
26 specifications
- Weight2.83 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-10 - 3°
- Number of joints3
- Width89 mm
Overview
- Weight
- 2.83 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -10 - 3°
- Number of joints
- 3
- Width
- 89 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 136E
- Part number
- ICA-PLB 136E
- EAN / UPC
- 8051128100884
- Also known as
- Techly 32-55" Universal LCD TV Wall Mount Bracket Black
Specifications
26 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 30 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |

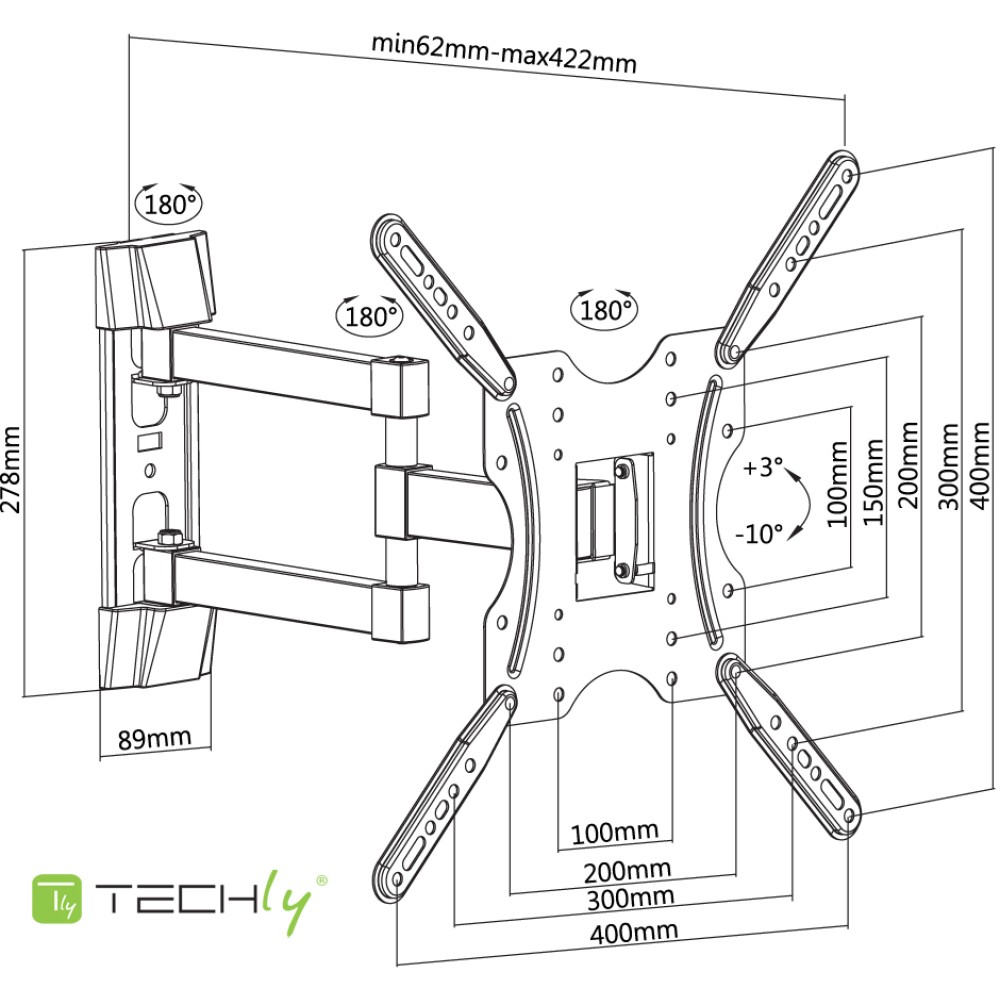

| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|

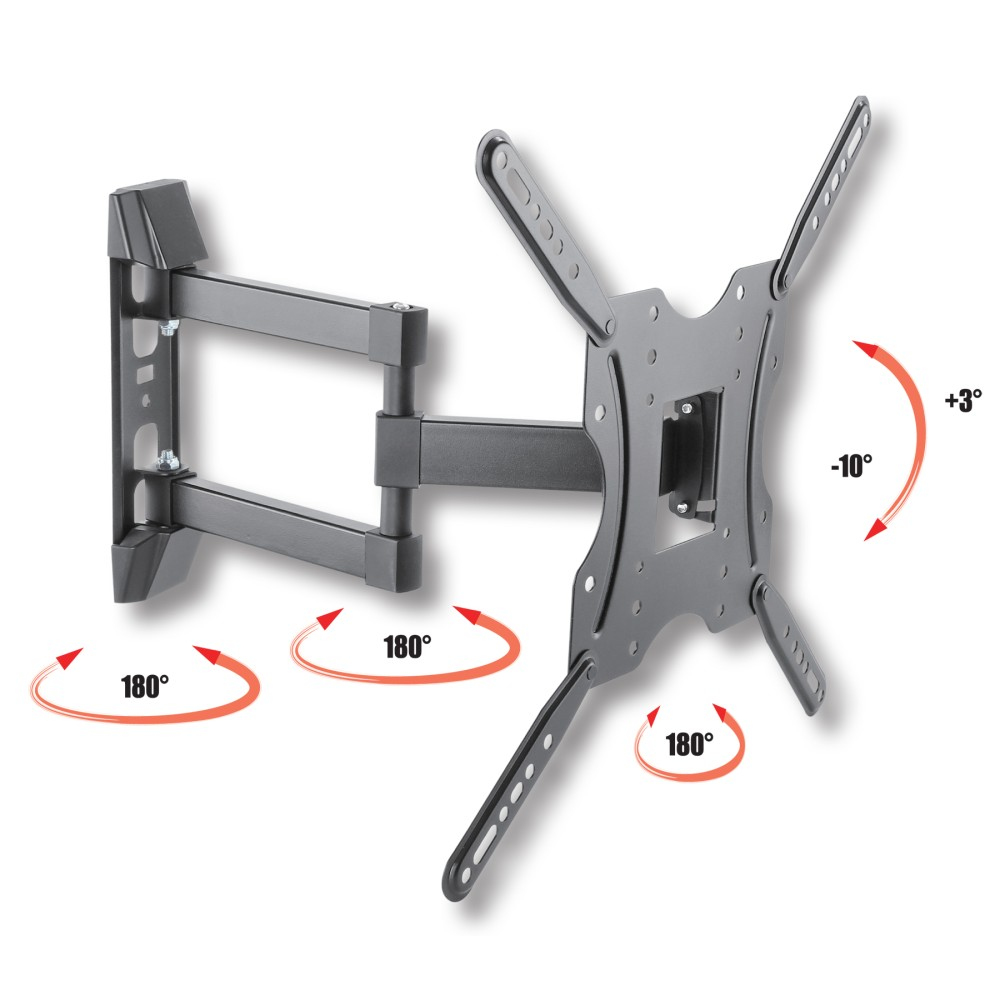

| Tilt angle range | -10 - 3° |
| Swivel angle | 180° |
| Built-in spirit level | No |

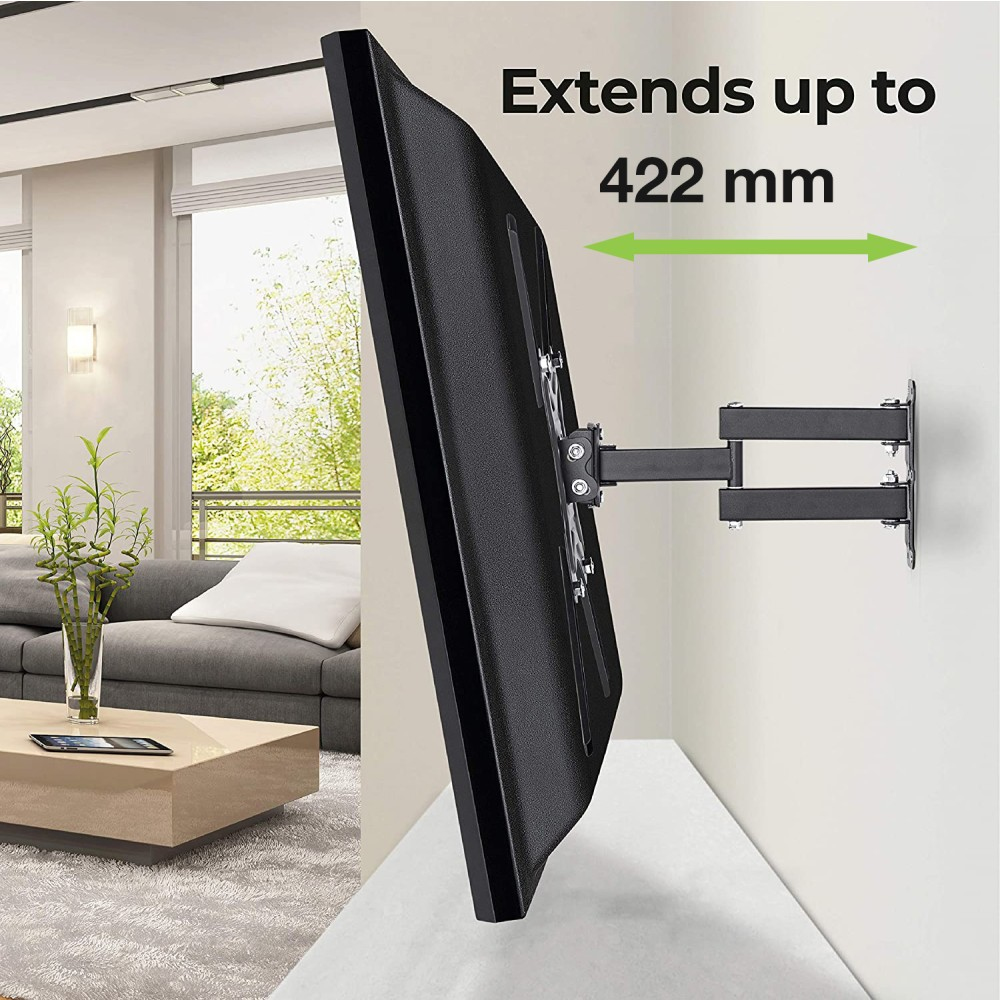

| Distance to the wall (max) | 42.2 cm |

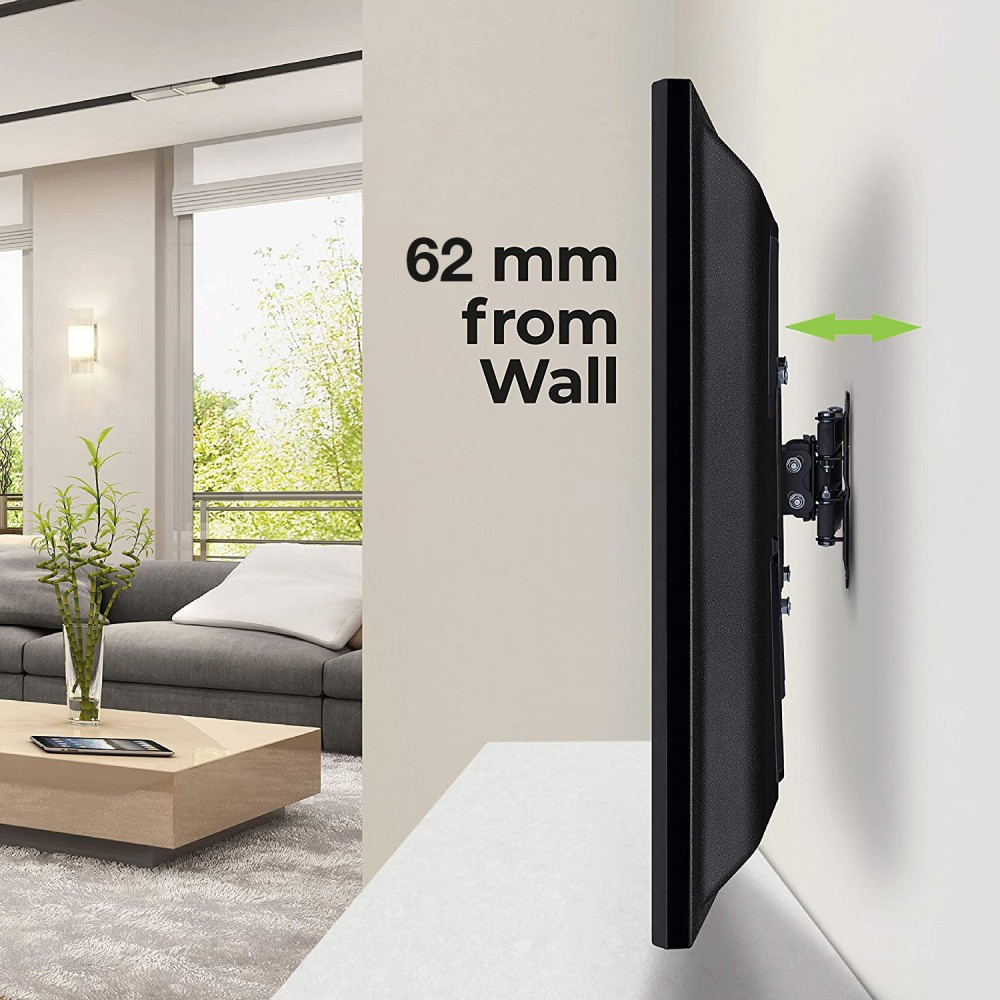

| Distance to the wall (min) | 6.2 cm |
| Suitable for curved screen | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of joints | 3 |
| Warranty period | 10 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 89 mm |
| Depth (min) | 6.2 cm |
| Depth (max) | 42.2 cm |
| Height | 278 mm |
| Weight | 2.83 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
