ICA-PLB 131M
Model ICA-PLB 131MEAN 8057685301269
21 specifications
- Weight2.16 kg
- ColourBlack
- Maximum weight capacity60 kg
- Tilt angle range-15 - 15°
- Compliance certificatesRoHS
- Width450 mm
Overview
- Weight
- 2.16 kg
- Colour
- Black
- Maximum weight capacity
- 60 kg
- Tilt angle range
- -15 - 15°
- Compliance certificates
- RoHS
- Width
- 450 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 131M
- Part number
- ICA-PLB 131M
- EAN / UPC
- 8057685301269
- Also known as
- Techly 23-55" Wall Bracket for LED LCD TV Tilting" ICA-PLB 131M
Specifications
21 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 60 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -15 - 15° |
| Built-in spirit level | No |
| Distance to the wall (min) | 5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 10 year(s) |

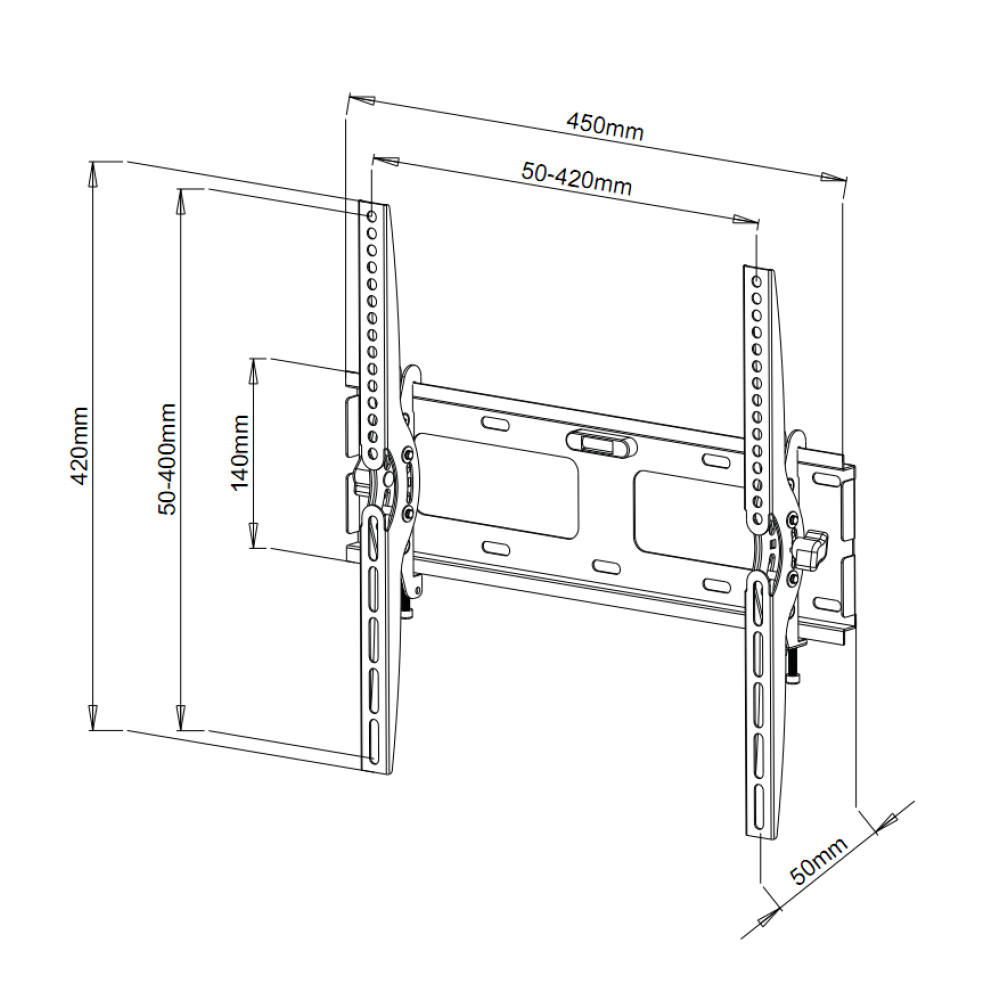

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 450 mm |
| Depth | 50 mm |
| Height | 420 mm |
| Weight | 2.16 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Size | M |
