ICA-PLB 118B
Model ICA-PLB 118BEAN 8057685301290
17 specifications
- Weight4.38 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range0 - -12°
- Compliance certificatesRoHS
- Width800 mm
Overview
- Weight
- 4.38 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 0 - -12°
- Compliance certificates
- RoHS
- Width
- 800 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 118B
- Part number
- ICA-PLB 118B
- EAN / UPC
- 8057685301290
- Also known as
- Techly 32-60" Wall Bracket for LED LCD TV Tilt" ICA-PLB 118B
Specifications
17 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 80 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 152.4 cm (60") |
| Mounting type | Wall |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 200,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 0 - -12° |
| Distance to the wall (max) | 3.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

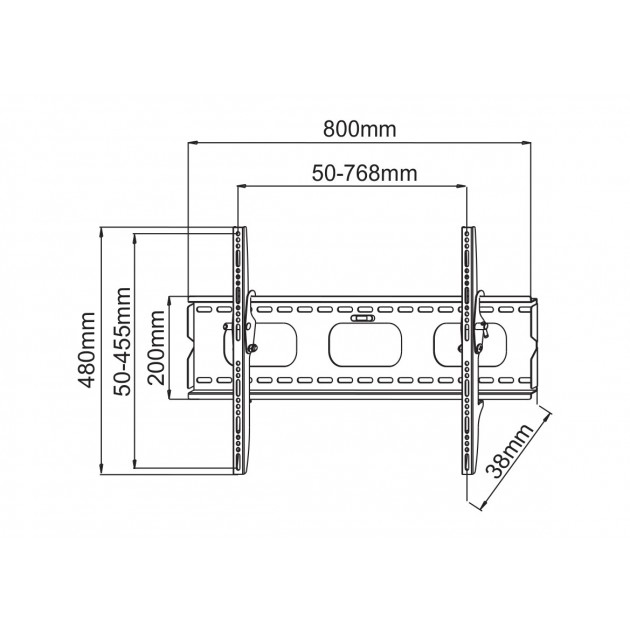

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 800 mm |
| Depth | 38 mm |
| Height | 480 mm |
| Weight | 4.38 kg |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
