ICA-PLB 103B
Model ICA-PLB 103BEAN 8057685301221
18 specifications
- Weight5.97 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-15 - 15°
- Compliance certificatesRoHS
- Width815 mm
Overview
- Weight
- 5.97 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -15 - 15°
- Compliance certificates
- RoHS
- Width
- 815 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 103B
- Part number
- ICA-PLB 103B
- EAN / UPC
- 8057685301221
- Also known as
- Techly 32-60" Wall Bracket for LED LCD TV Tilt" ICA-PLB 103B
Specifications
18 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 80 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 152.4 cm (60") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 200,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|

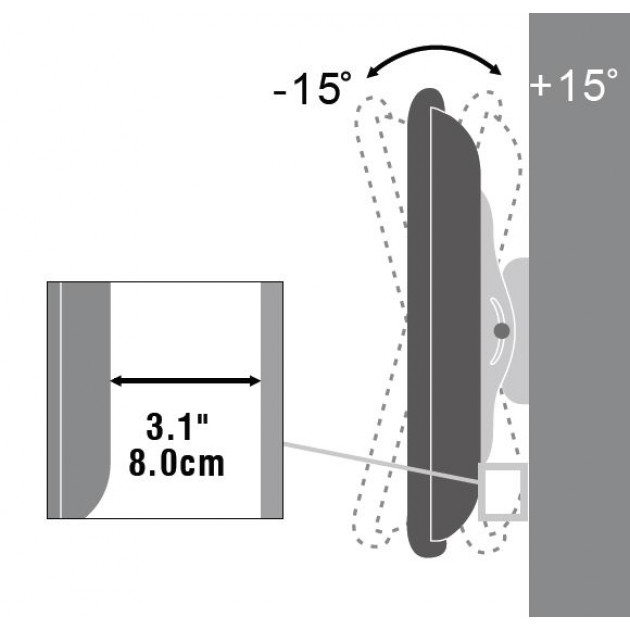

| Tilt angle range | -15 - 15° |
| Distance to the wall (max) | 8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|

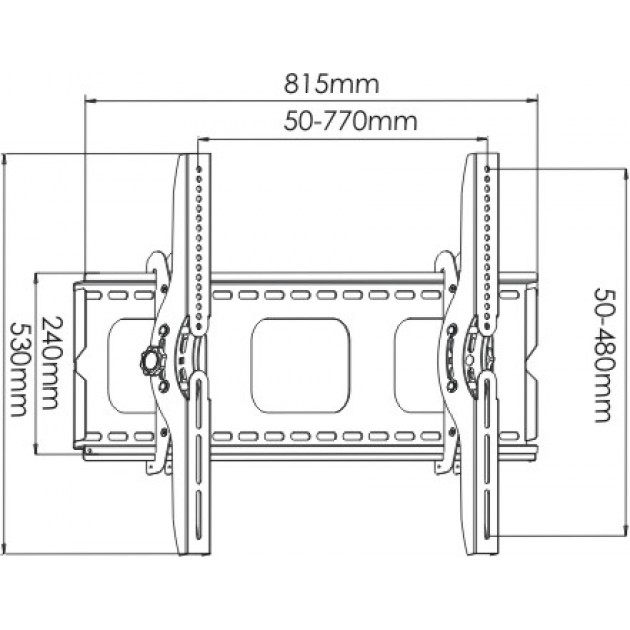

| Width | 815 mm |
| Depth | 80 mm |
| Height | 510 mm |
| Weight | 5.97 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
