ICA-PLB 046F
Model ICA-PLB 046FEAN 8054529028160
18 specifications
- Weight6.67 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range3 - 5°
- Width934 mm
Overview
- Weight
- 6.67 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 3 - 5°
- Width
- 934 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-PLB 046F
- Part number
- ICA-PLB 046F
- EAN / UPC
- 8054529028160
- Also known as
- Techly ICA-PLB 046F TV mount/stand 177.8 cm (70") Black
Specifications
18 specifications in 5 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 70 kg |
| Minimum screen size | 114.3 cm (45") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 3 - 5° |
| Cable management | Yes |
| Distance to the wall (min) | 7.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |

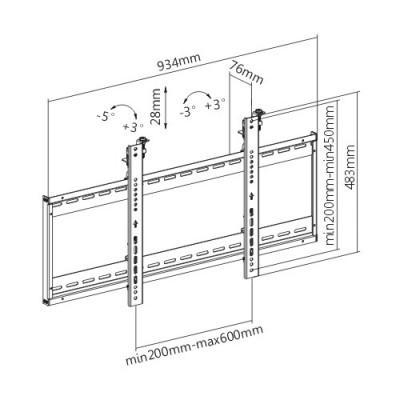

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 934 mm |
| Depth | 76 mm |
| Height | 483 mm |
| Weight | 6.67 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
