Techly ICA-LCD 923B

Techly ICA-LCD 923B

Model ICA-LCD 923BEAN 8054529025336

26 specifications

Weight1.18 kg
ColourBlack
Number of displays supported1
Tilt angle range-15 - 15°
Number of joints3
Width151 mm

See all specifications

Overview

Weight: 1.18 kg
Colour: Black
Number of displays supported: 1
Tilt angle range: -15 - 15°
Number of joints: 3
Width: 151 mm

Brand: Techly
Category: TV Mounts & Stands
Model: ICA-LCD 923B
Part number: ICA-LCD 923B
EAN / UPC: 8054529025336
Also known as: Techly Wall Support for LCD LED 13-30" Tilting 2 Joints Black ICA-LCD 923B

Specifications

26 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity	15 kg
Minimum screen size	33 cm (13")
Maximum screen size	76.2 cm (30")
Mounting type	Wall

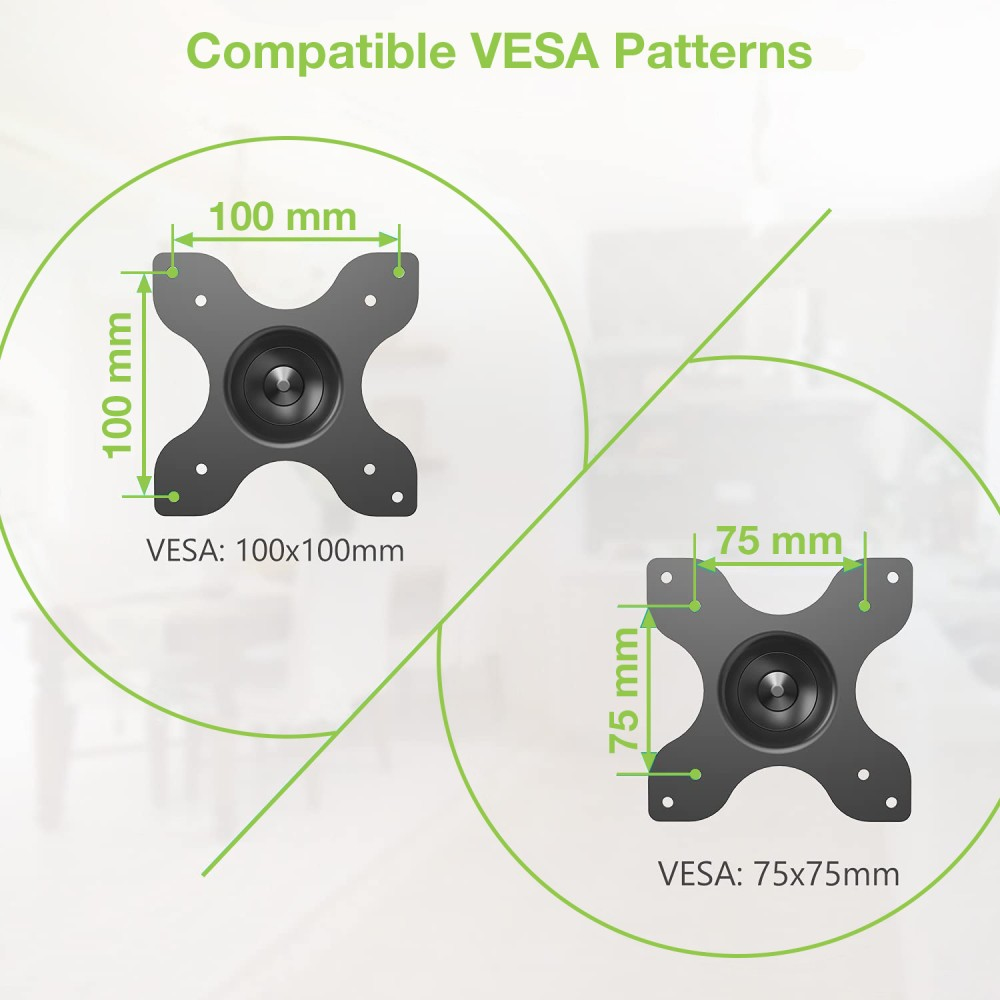

Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm

Ergonomics

Specification	Value

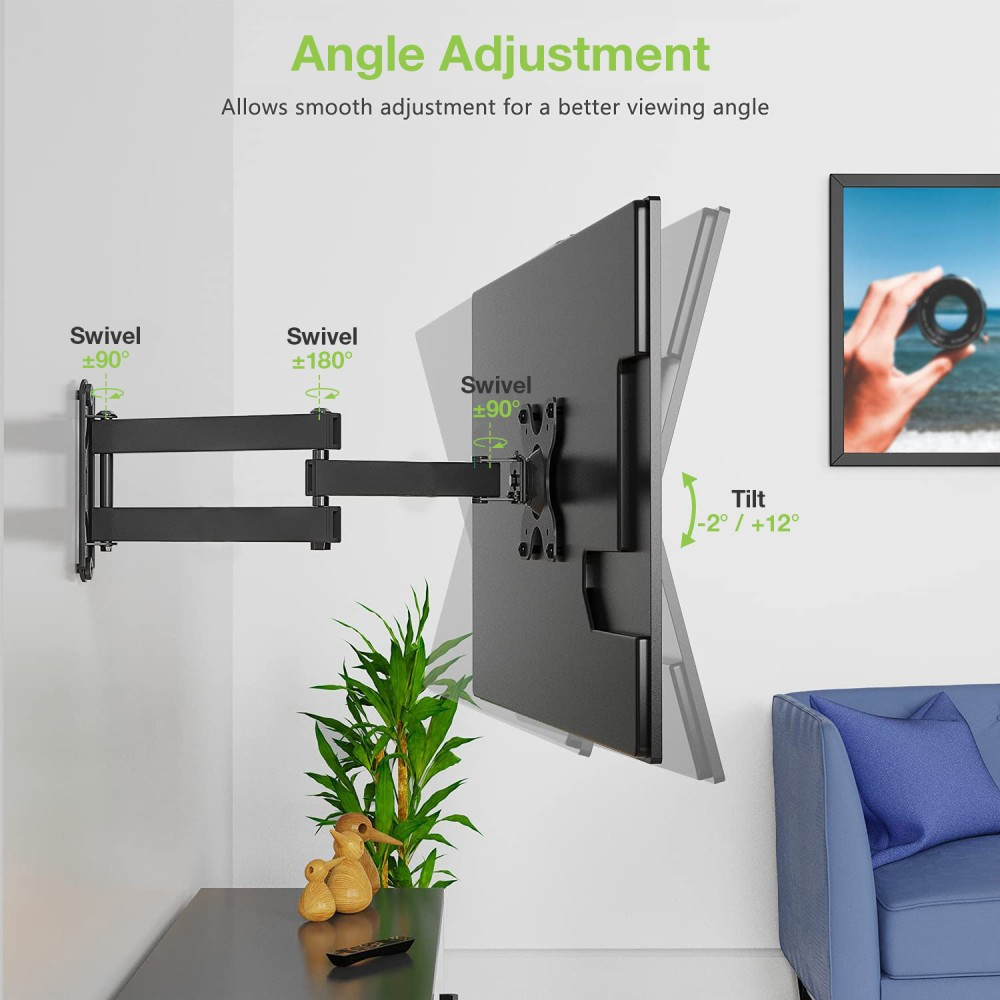

Tilt angle range	-15 - 15°
Swivel angle	180°
Swivel angle range	0 - 180°
Angle of rotation	180°
Built-in spirit level	No

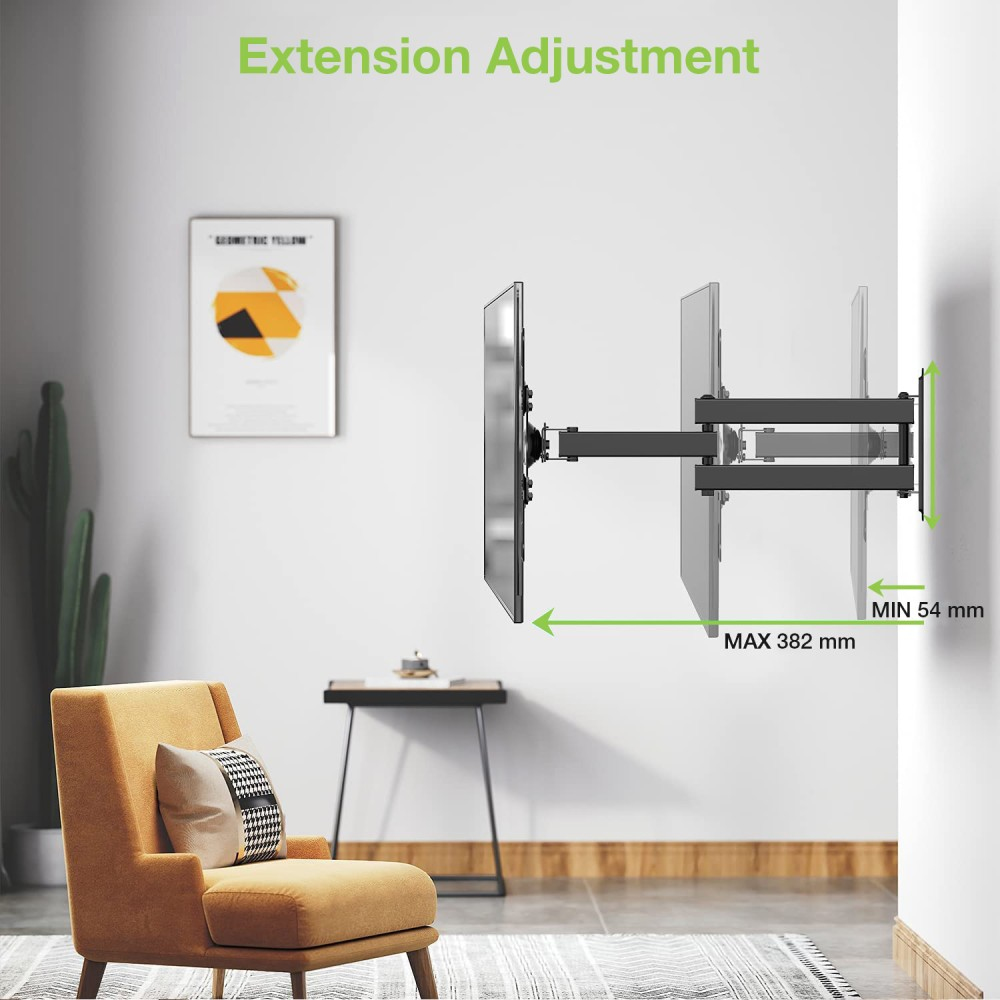

Distance to the wall (max)	38.2 cm
Distance to the wall (min)	5.4 cm
Suitable for curved screen	Yes

Design

Specification	Value
Product colour	Black
Housing material	Aluminium
Anti-theft function	No

Packaging content

Specification	Value
Quick installation guide	Yes

Technical details

Specification	Value
Number of joints	3
Warranty period	10 year(s)

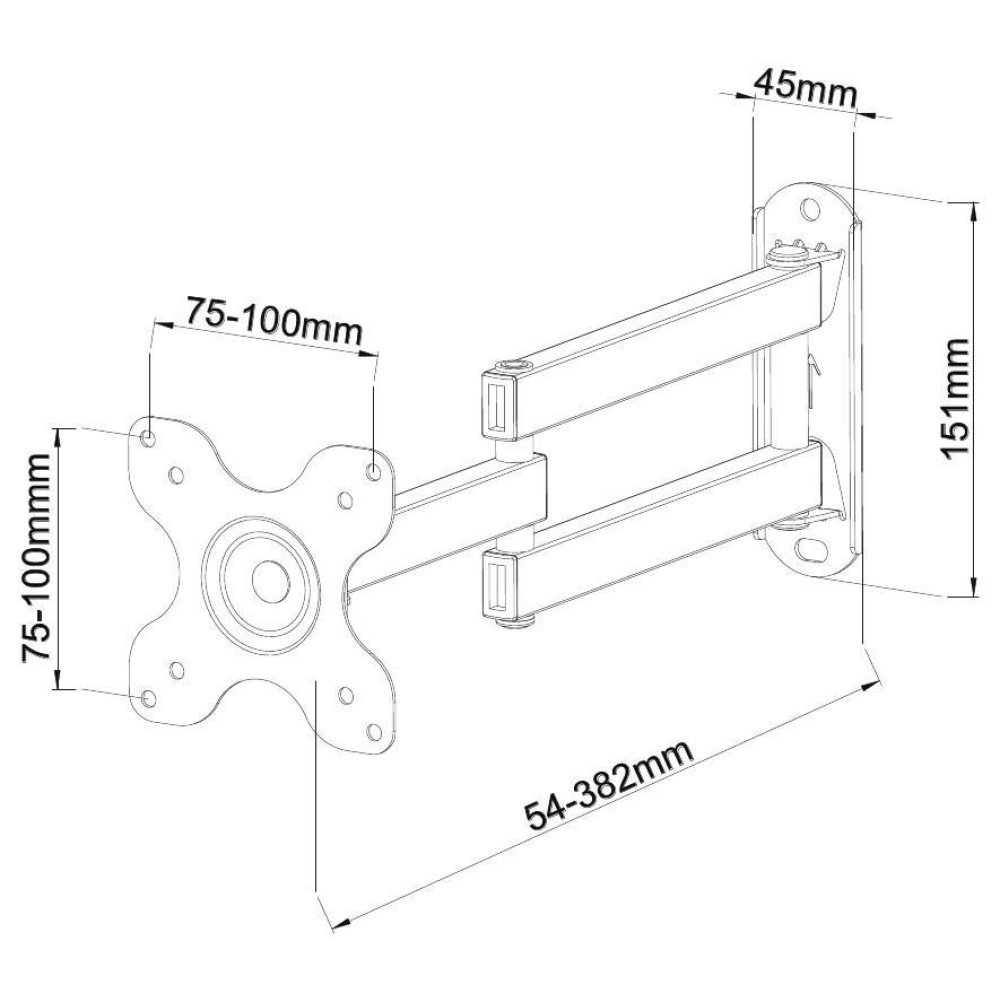

Weight & dimensions

Specification	Value
Width	151 mm
Height	45 mm
Weight	1.18 kg
Arm length	38.2 cm

Logistics data

Specification	Value
Harmonized System (HS) code	85299097
