ICA-LCD 2923E
Model ICA-LCD 2923EEAN 8051128100877
25 specifications
- Weight1.65 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-10 - 3°
- Number of joints3
- Width220 mm
Overview
- Weight
- 1.65 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -10 - 3°
- Number of joints
- 3
- Width
- 220 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 2923E
- Part number
- ICA-LCD 2923E
- EAN / UPC
- 8051128100877
- Also known as
- Techly Wall Mount for TV LCD LED 23-42" 3 Joints Tilt Black
Specifications
25 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 20 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 106.7 cm (42") |
| Mounting type | Wall |
| Suitable for computer monitor | Yes |

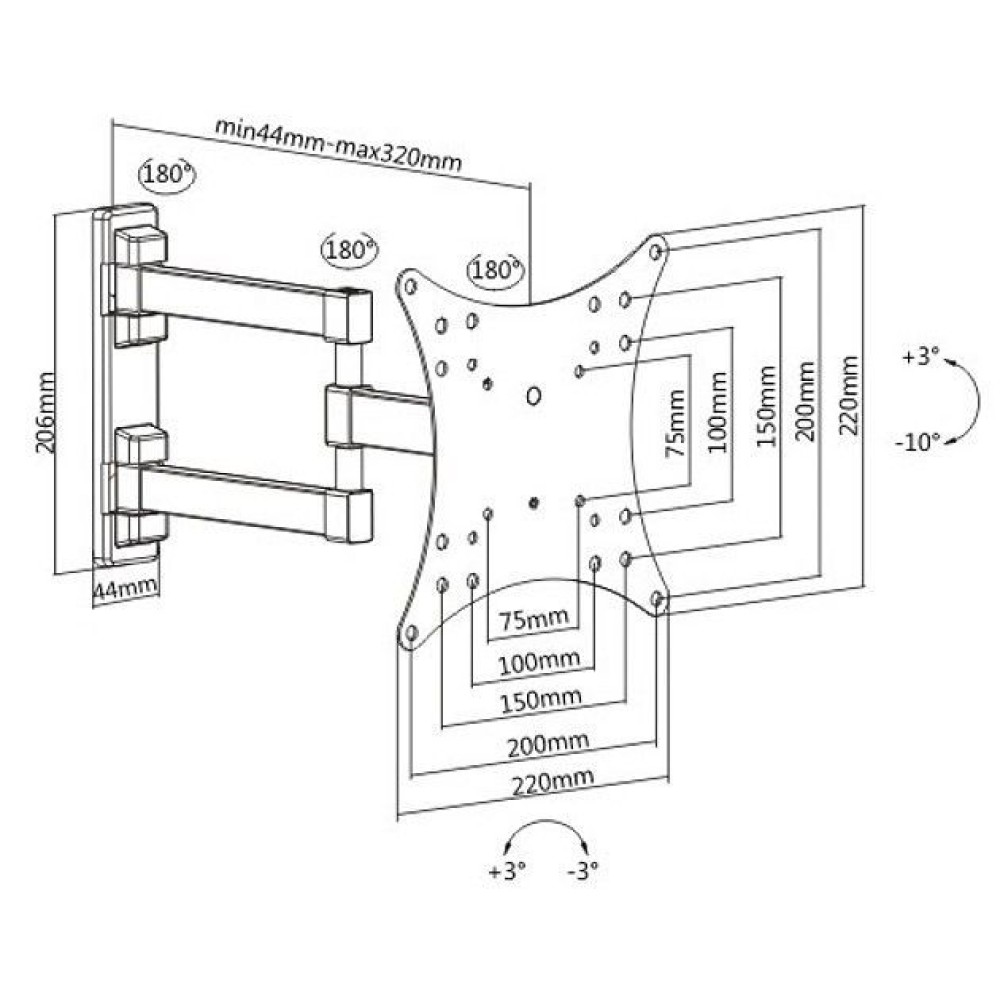

| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,100 x 150,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -10 - 3° |
| Swivel angle | 180° |
| Angle of rotation | 90° |
| Built-in spirit level | No |
| Distance to the wall (max) | 32 cm |
| Distance to the wall (min) | 4.4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of joints | 3 |
| Warranty period | 10 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 320 mm |
| Height | 220 mm |
| Weight | 1.65 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
