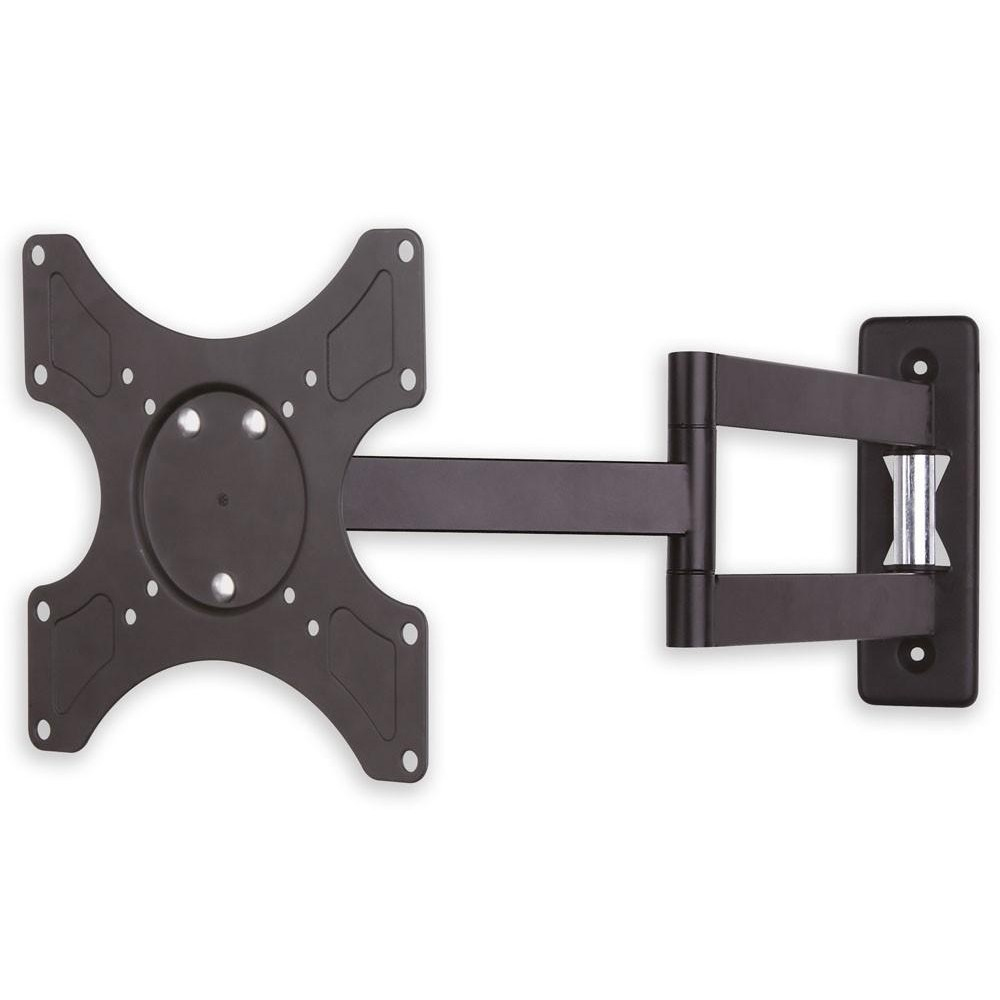

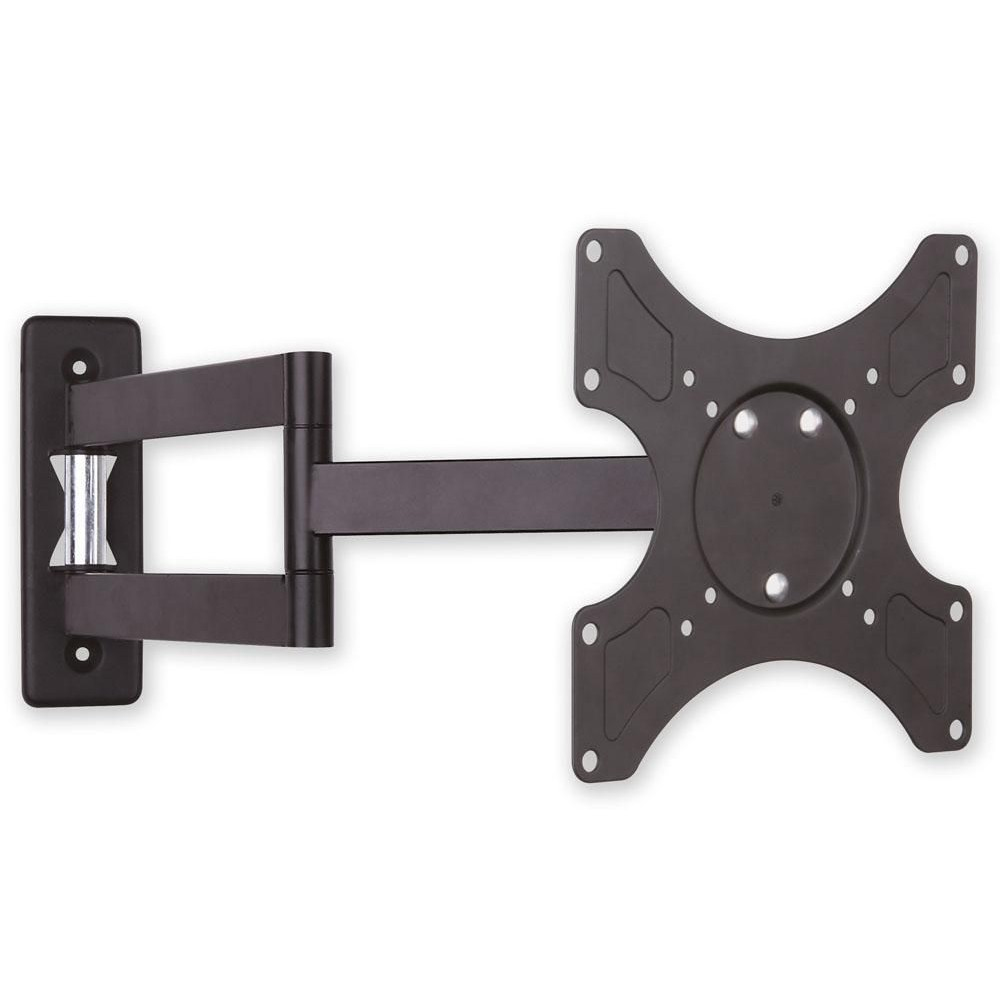

ICA-LCD 2903
Model ICA-LCD 2903EAN 8057685301450
27 specifications
- Weight2.83 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-12 - 0°
- Compliance certificatesRoHS
- Width57 mm
Overview
- Weight
- 2.83 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -12 - 0°
- Compliance certificates
- RoHS
- Width
- 57 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 2903
- Part number
- ICA-LCD 2903
- EAN / UPC
- 8057685301450
- Also known as
- Techly 19-37" Wall Bracket for LED LCD TV Tilt 3 Joints Black" ICA-LCD 2903
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 48.3 cm (19") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |

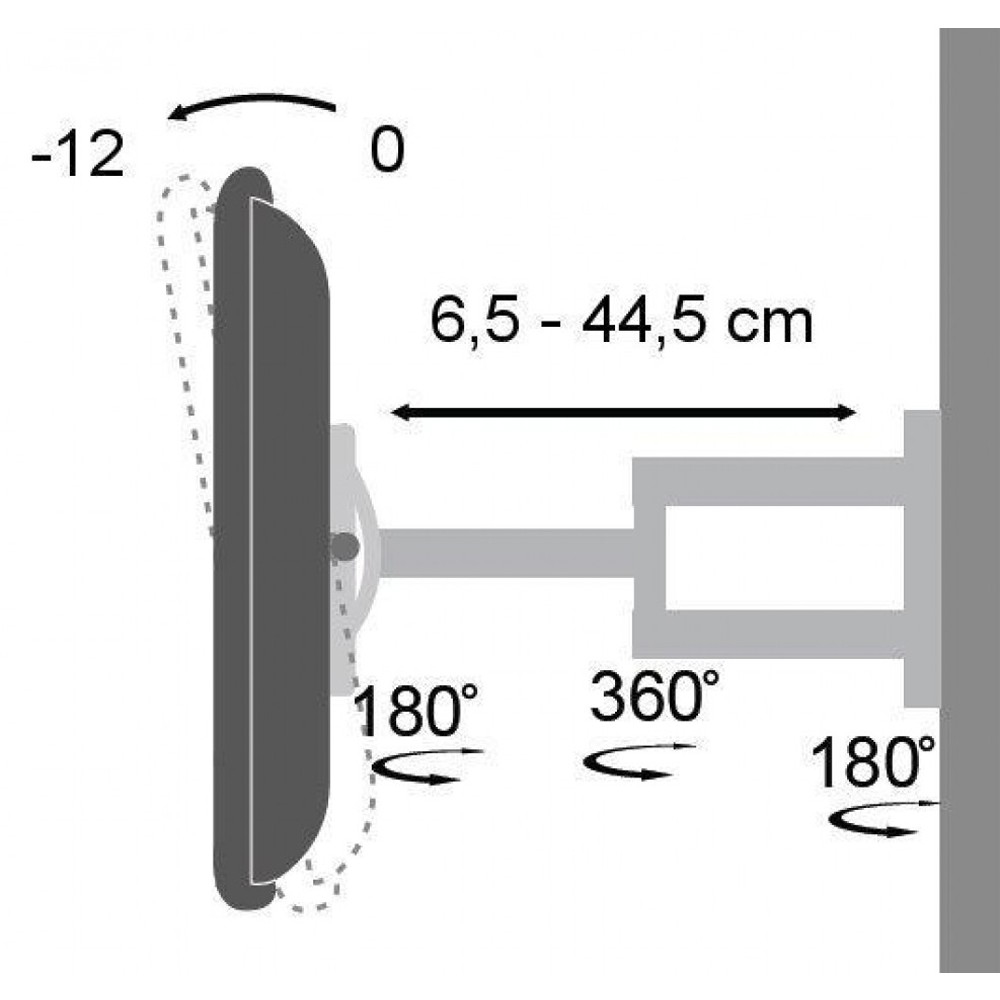

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -12 - 0° |
| Swivel angle | 180° |
| Swivel angle range | 0 - 180° |
| Built-in spirit level | No |
| Distance to the wall (max) | 44.5 cm |
| Distance to the wall (min) | 6.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Number of joints | 3 |
| Warranty period | 10 year(s) |

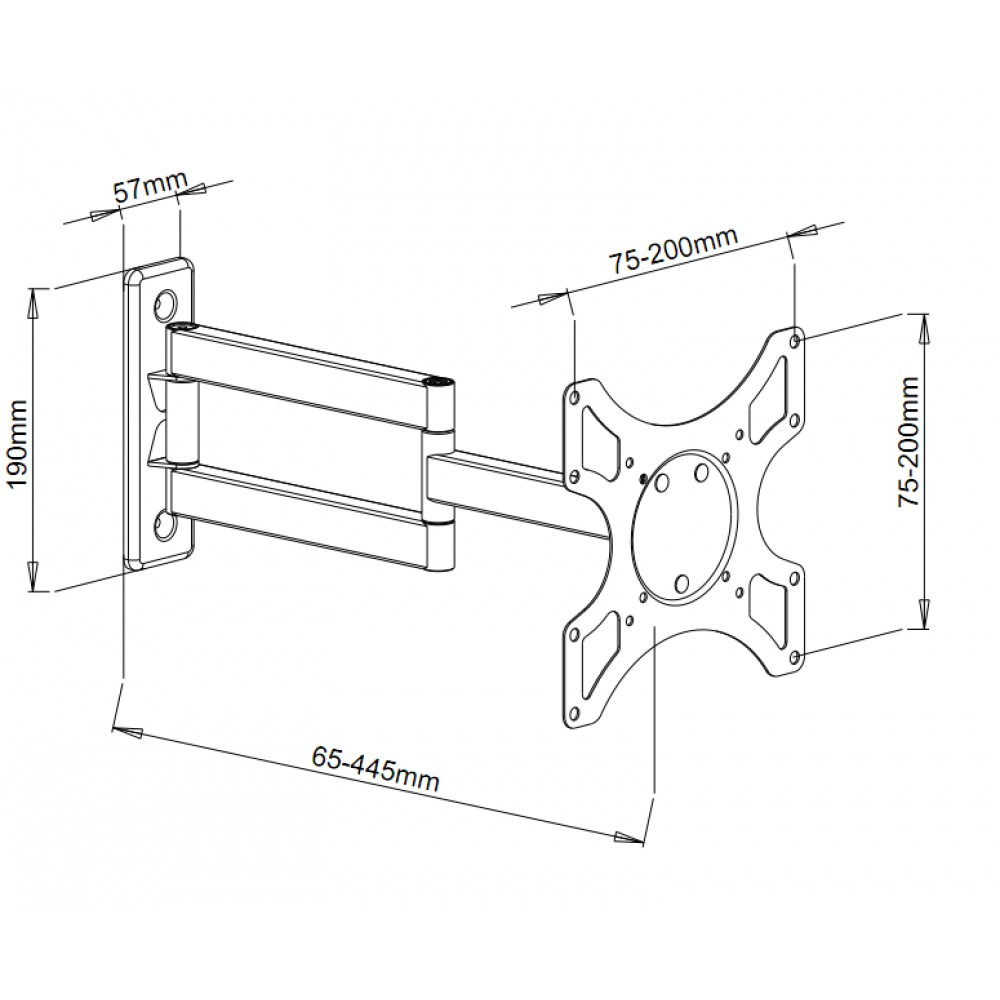

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57 mm |
| Depth (min) | 6.5 cm |
| Depth (max) | 44.5 cm |
| Height | 190 mm |
| Weight | 2.83 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
