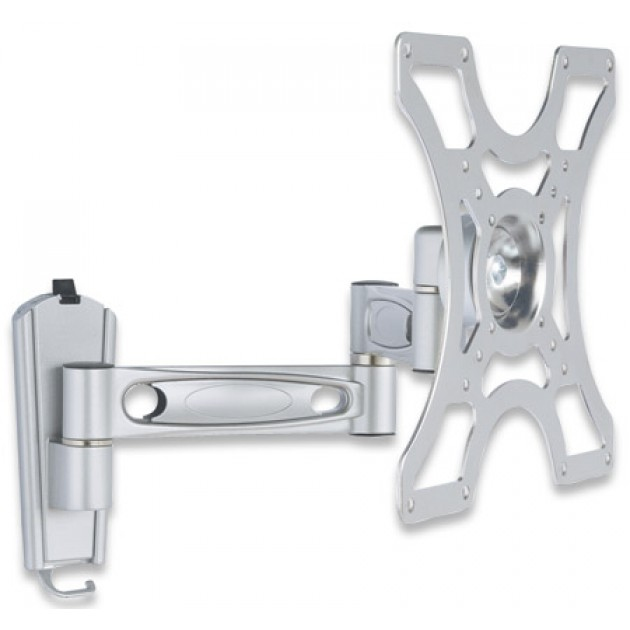

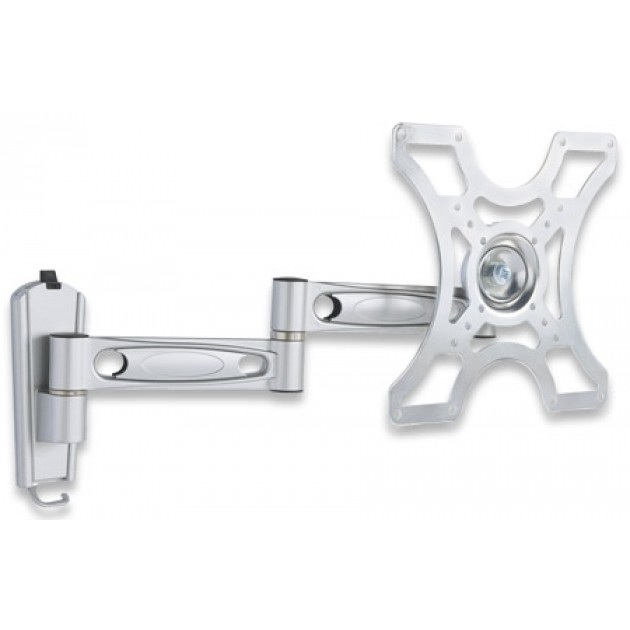

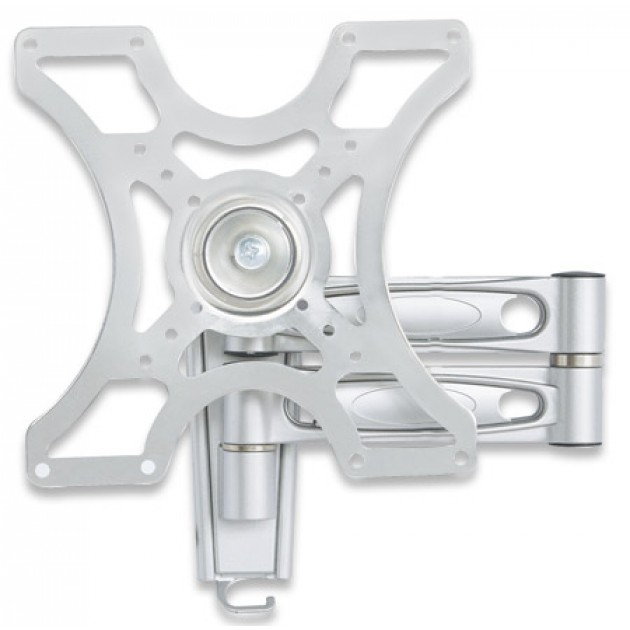

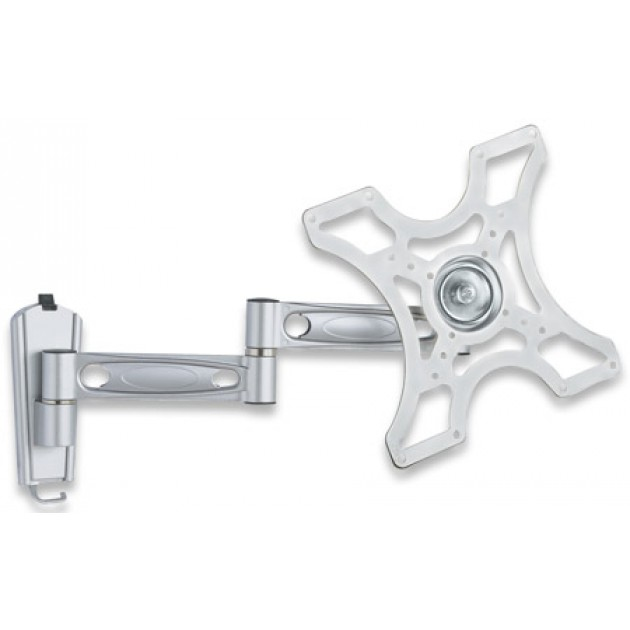

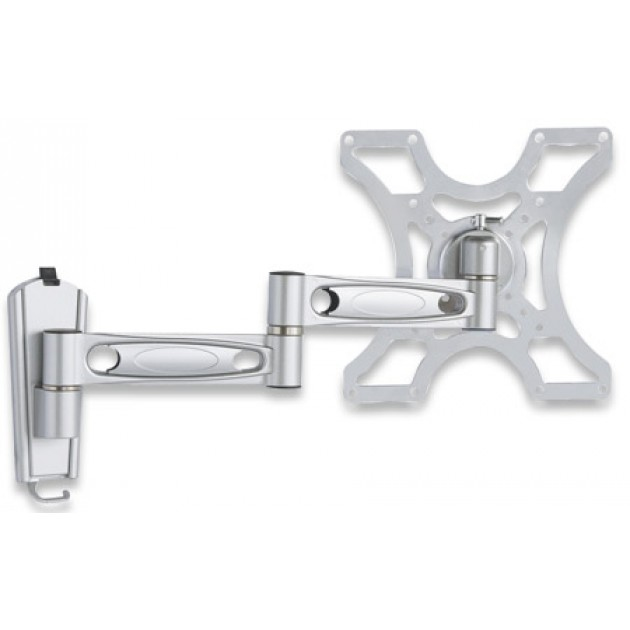

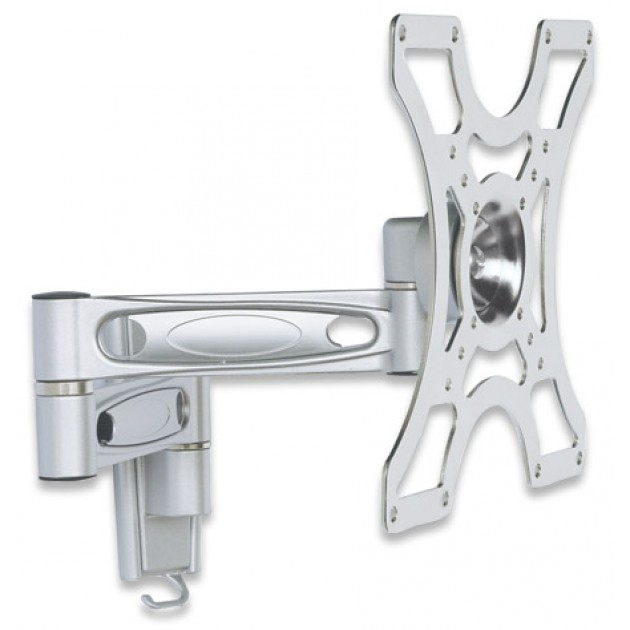

ICA-LCD 2602
Model ICA-LCD 2602EAN 8057685301474
23 specifications
- Weight2.09 kg
- ColourSilver
- Number of displays supported1
- Tilt angle range-15 - 15°
- Compliance certificatesRoHS
- Width61 mm
Overview
- Weight
- 2.09 kg
- Colour
- Silver
- Number of displays supported
- 1
- Tilt angle range
- -15 - 15°
- Compliance certificates
- RoHS
- Width
- 61 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 2602
- Part number
- ICA-LCD 2602
- EAN / UPC
- 8057685301474
- Also known as
- Techly 17-37" Wall Bracket for LED LCD TV Tilt 3 Joints Silver" ICA-LCD 2602
Specifications
23 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 43.2 cm (17") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |

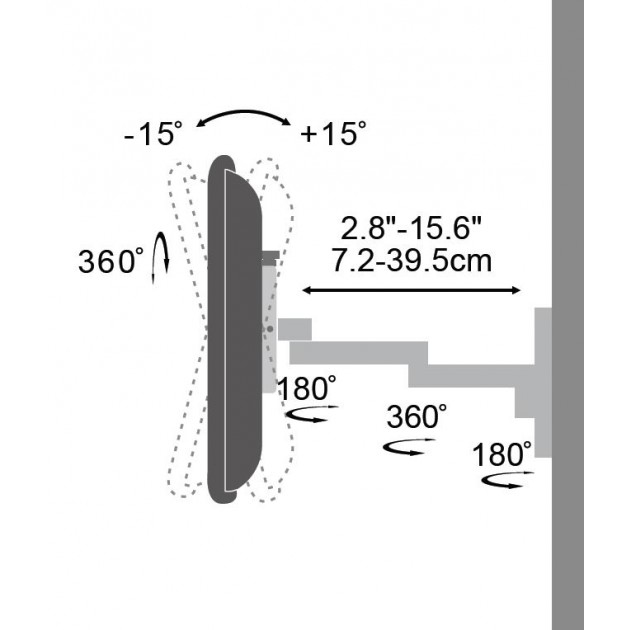

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -15 - 15° |
| Angle of rotation | 360° |
| Turn angle | 180° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Distance to the wall (max) | 39.5 cm |
| Distance to the wall (min) | 7.2 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

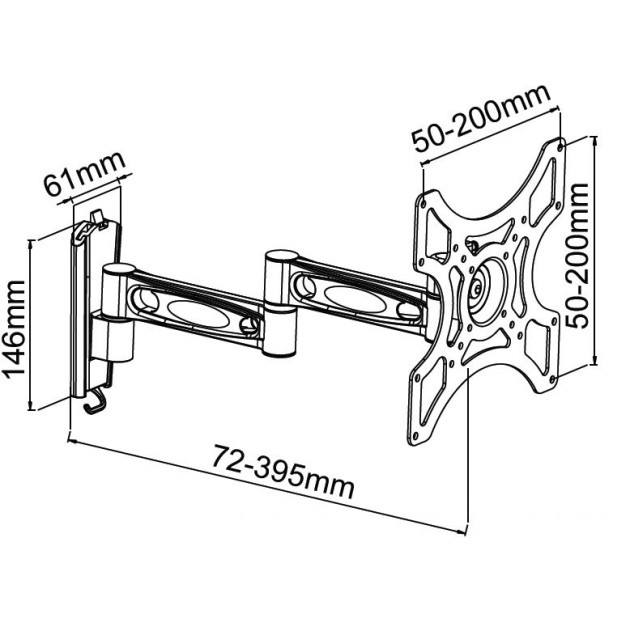

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth (min) | 7.2 cm |
| Depth (max) | 39.5 cm |
| Height | 146 mm |
| Weight | 2.09 kg |
