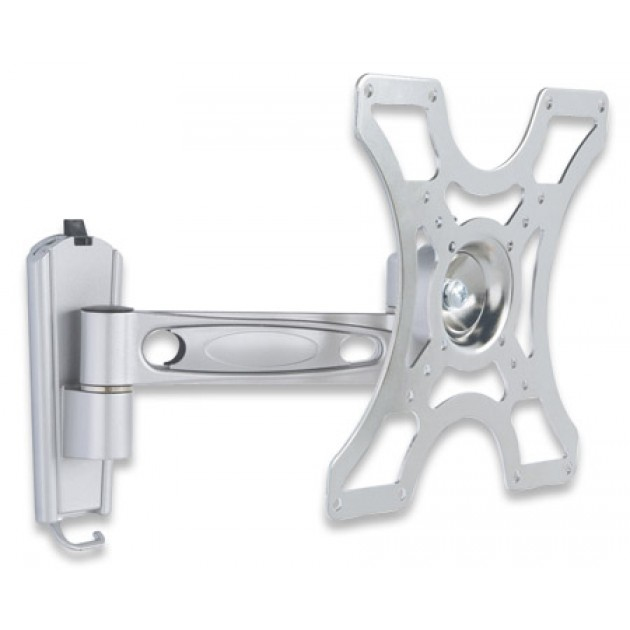

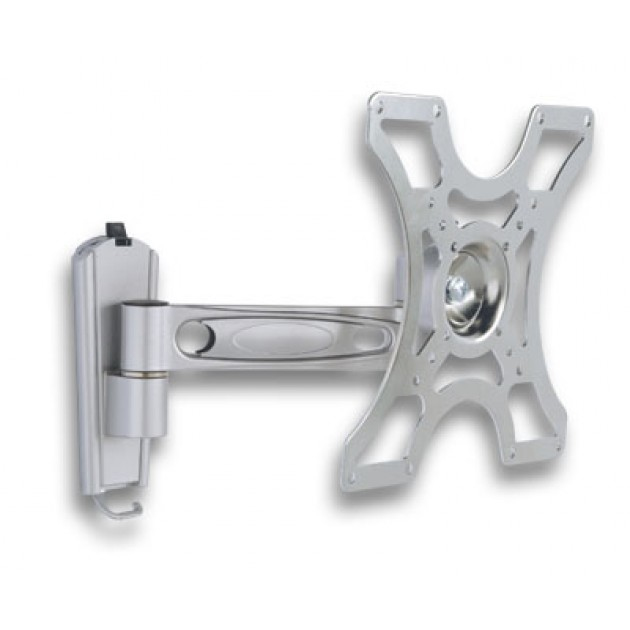

ICA-LCD 2601
Model ICA-LCD 2601EAN 8057685301467
19 specifications
- Weight1.5 kg
- ColourSilver
- Number of displays supported1
- Tilt angle range-15 - 15°
- Compliance certificatesRoHS
Overview
- Weight
- 1.5 kg
- Colour
- Silver
- Number of displays supported
- 1
- Tilt angle range
- -15 - 15°
- Compliance certificates
- RoHS
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 2601
- Part number
- ICA-LCD 2601
- EAN / UPC
- 8057685301467
- Also known as
- Techly 17-37" Wall Bracket for LED LCD TV Tilt 2 Joints Silver" ICA-LCD 2601
Specifications
19 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 43.2 cm (17") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |

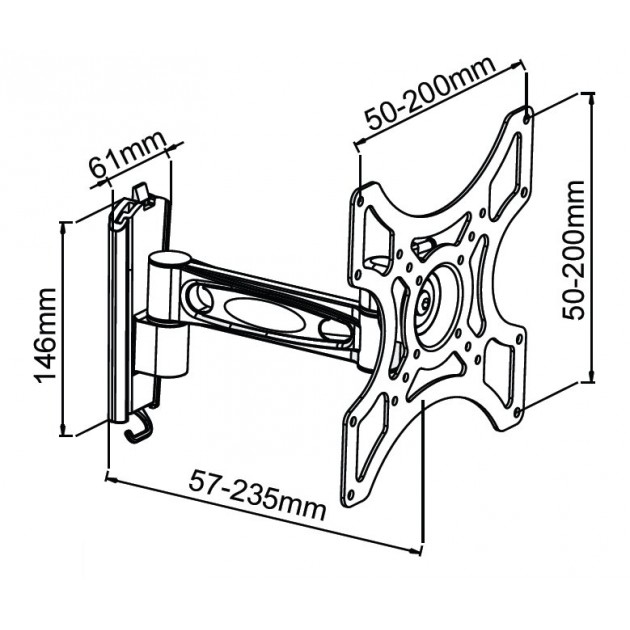

| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|

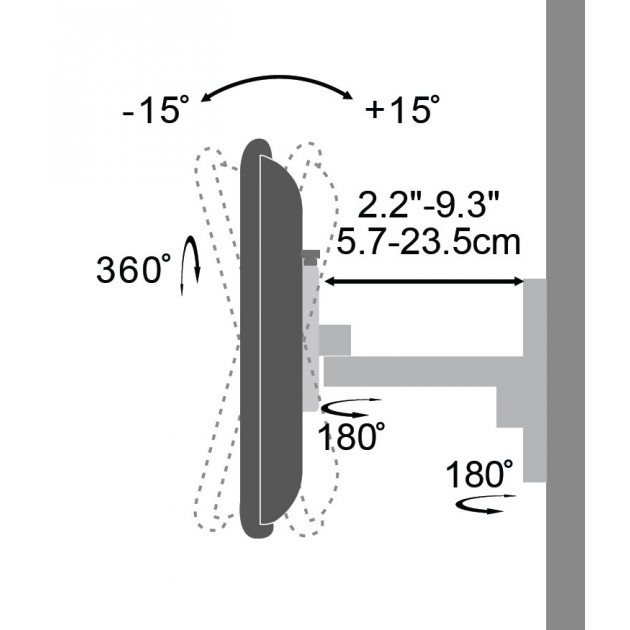

| Tilt angle range | -15 - 15° |
| Swivel angle | 180° |
| Swivel angle range | -90 - 90° |
| Turn angle | 360° |
| Number of pivot points | 2 |
| Distance to the wall (max) | 23.5 cm |
| Distance to the wall (min) | 5.7 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.5 kg |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
