ICA-LCD 217S
Model ICA-LCD 217SEAN 8054529022670
30 specifications
- Weight1.69 kg
- ColourWhite, Black
- Number of displays supported1
- Tilt angle range-90 - 45°
- Number of joints2
- Depth (min)11.6 cm
Overview
- Weight
- 1.69 kg
- Colour
- White, Black
- Number of displays supported
- 1
- Tilt angle range
- -90 - 45°
- Number of joints
- 2
- Depth (min)
- 11.6 cm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 217S
- Part number
- ICA-LCD 217S
- EAN / UPC
- 8054529022670
- Also known as
- Techly Tilt Wall Mount for LED LCD TV 15-27 2 Joints Black / White" ICA-LCD 217S
Specifications
30 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 38.1 cm (15") |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
Ergonomics
| Specification | Value |
|---|---|

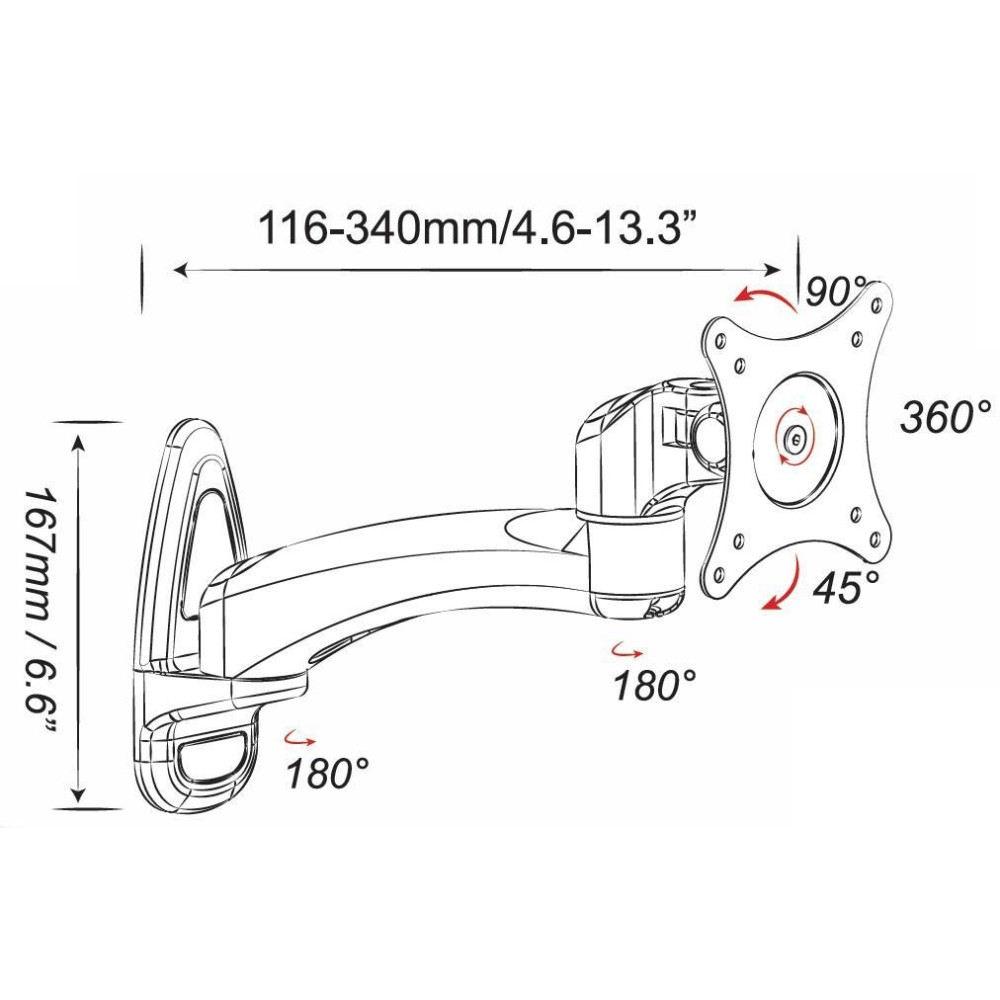

| Tilt angle range | -90 - 45° |
| Swivel angle | 180° |
| Swivel angle range | 0 - 360° |
| Angle of rotation | 360° |
| Pan range | 0 - 180° |
| Cable management | Yes |
| Built-in spirit level | No |
| Distance to the wall (max) | 34 cm |
| Distance to the wall (min) | 11.6 cm |
| Suitable for curved screen | No |
Design
| Specification | Value |
|---|---|
| Product colour | White, Black |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of joints | 2 |
| Vendor code | 022670 |
| Warranty period | 10 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth (min) | 11.6 cm |
| Depth (max) | 34 cm |
| Height | 167 mm |
| Weight | 1.69 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
