ICA-LCD 2102
Model ICA-LCD 2102EAN 8057685308817
27 specifications
- Weight1.58 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-15 - 15°
- Number of joints3
Overview
- Weight
- 1.58 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -15 - 15°
- Number of joints
- 3
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 2102
- Part number
- ICA-LCD 2102
- EAN / UPC
- 8057685308817
- Also known as
- Techly 13-37 LED TV LCD Tilt Wall bracket 3 Joints Black" ICA-LCD 2102
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |

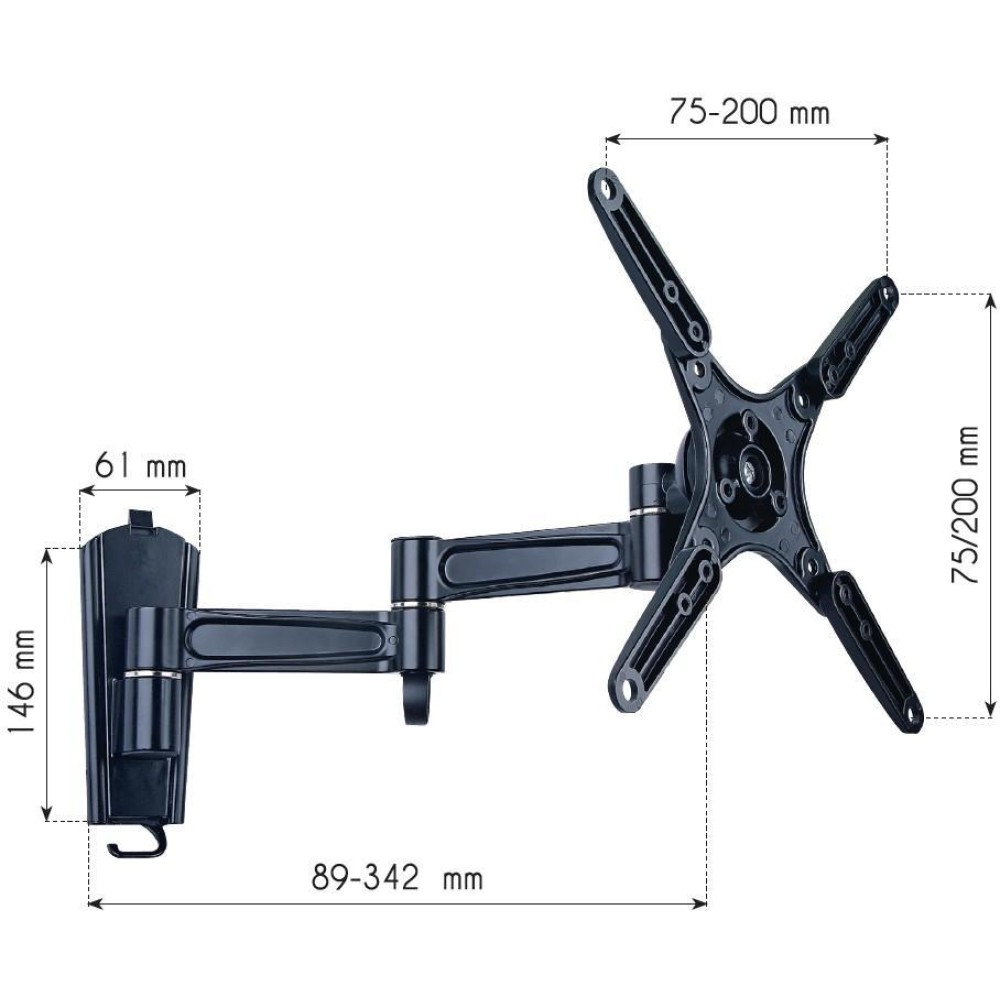

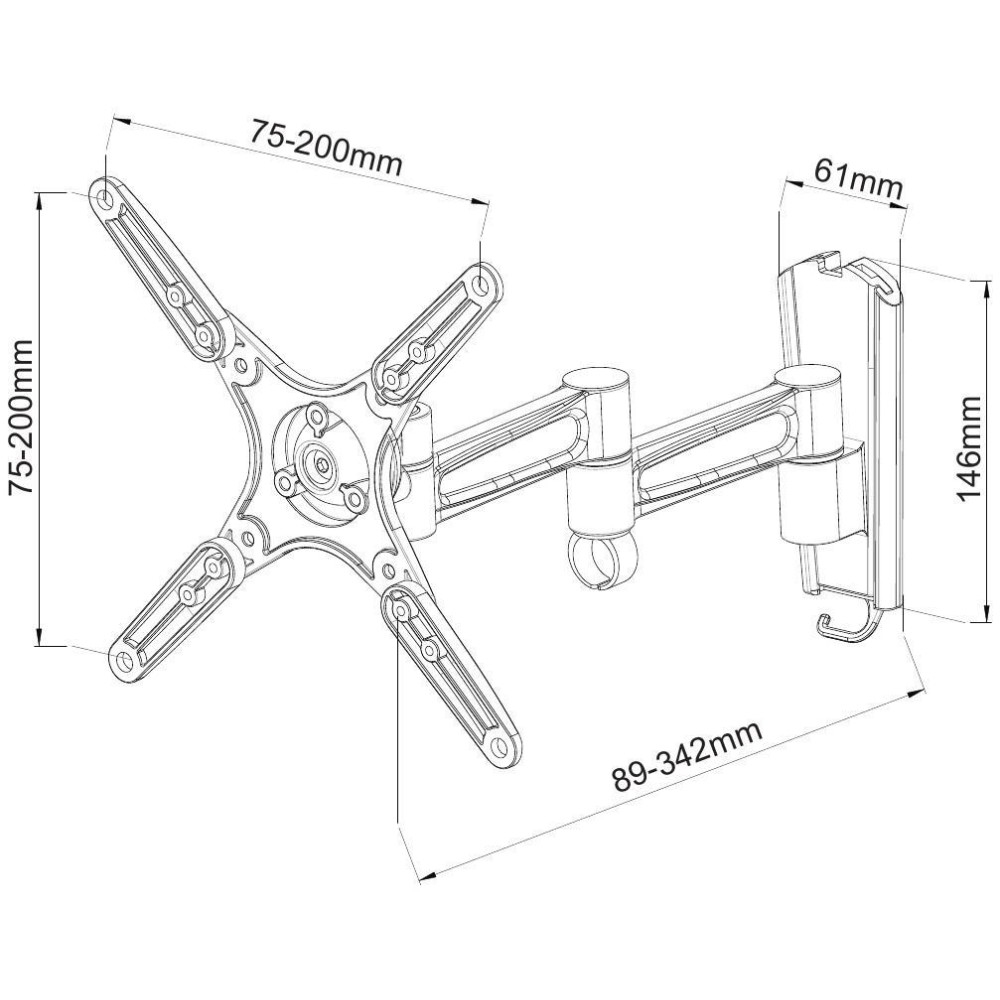

| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|

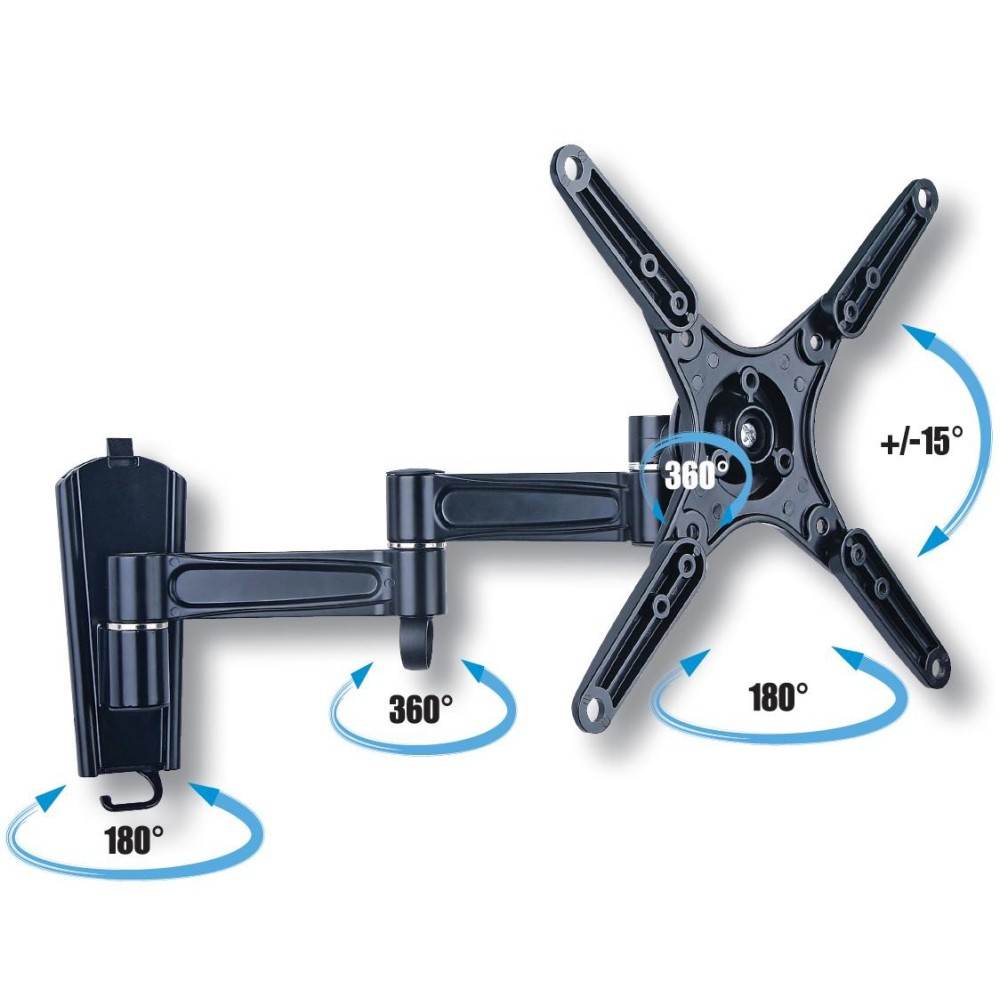

| Tilt angle range | -15 - 15° |
| Swivel angle | 180° |
| Angle of rotation | 360° |
| Turn angle | 360° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Built-in spirit level | Yes |
| Distance to the wall (max) | 34.2 cm |
| Distance to the wall (min) | 8.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of joints | 3 |
| Warranty period | 10 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.58 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
