ICA-LCD 113-BK
Model ICA-LCD 113-BKEAN 8057685301924
22 specifications
- Weight1.57 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-25 - 18°
- Compliance certificatesRoHS
- Width218 mm
Overview
- Weight
- 1.57 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -25 - 18°
- Compliance certificates
- RoHS
- Width
- 218 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 113-BK
- Part number
- ICA-LCD 113-BK
- EAN / UPC
- 8057685301924
- Also known as
- Techly 17-37" Wall Bracket for LED LCD TV Tilt Black" ICA-LCD 113-BK
Specifications
22 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 43.2 cm (17") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |

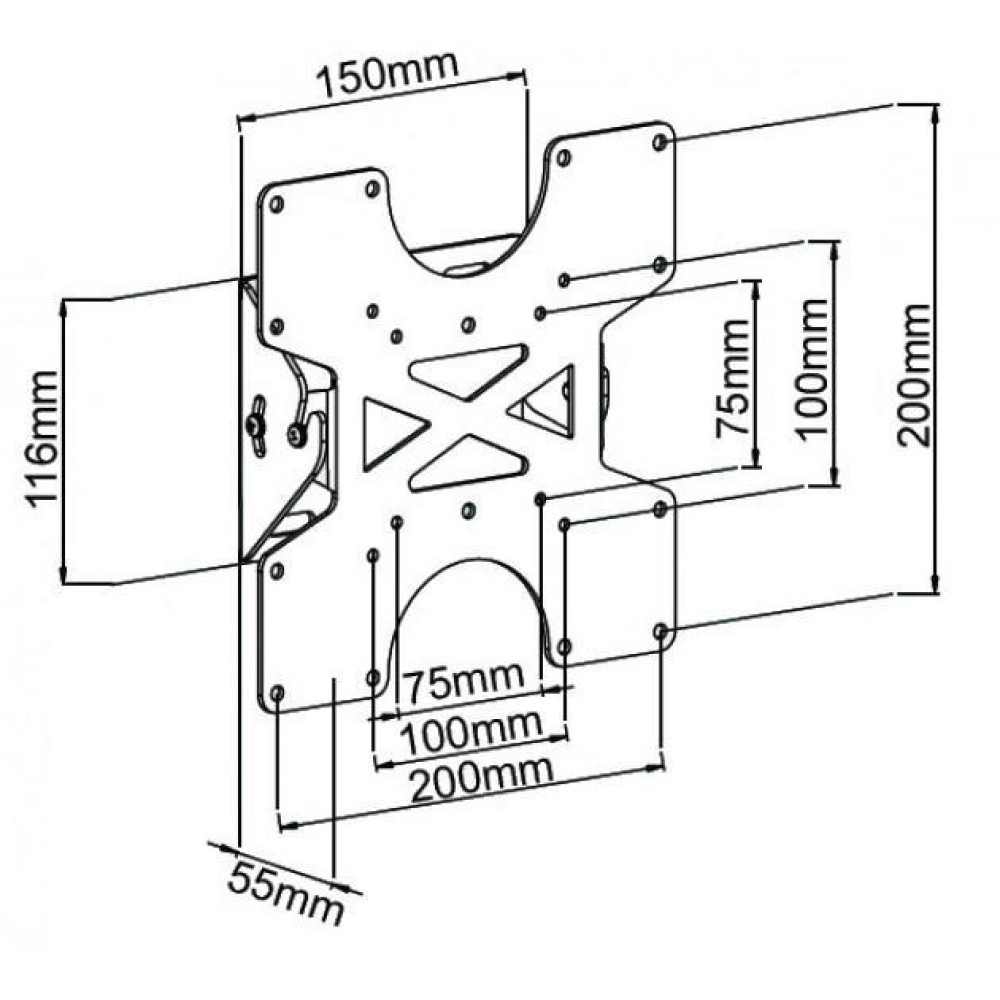

| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|

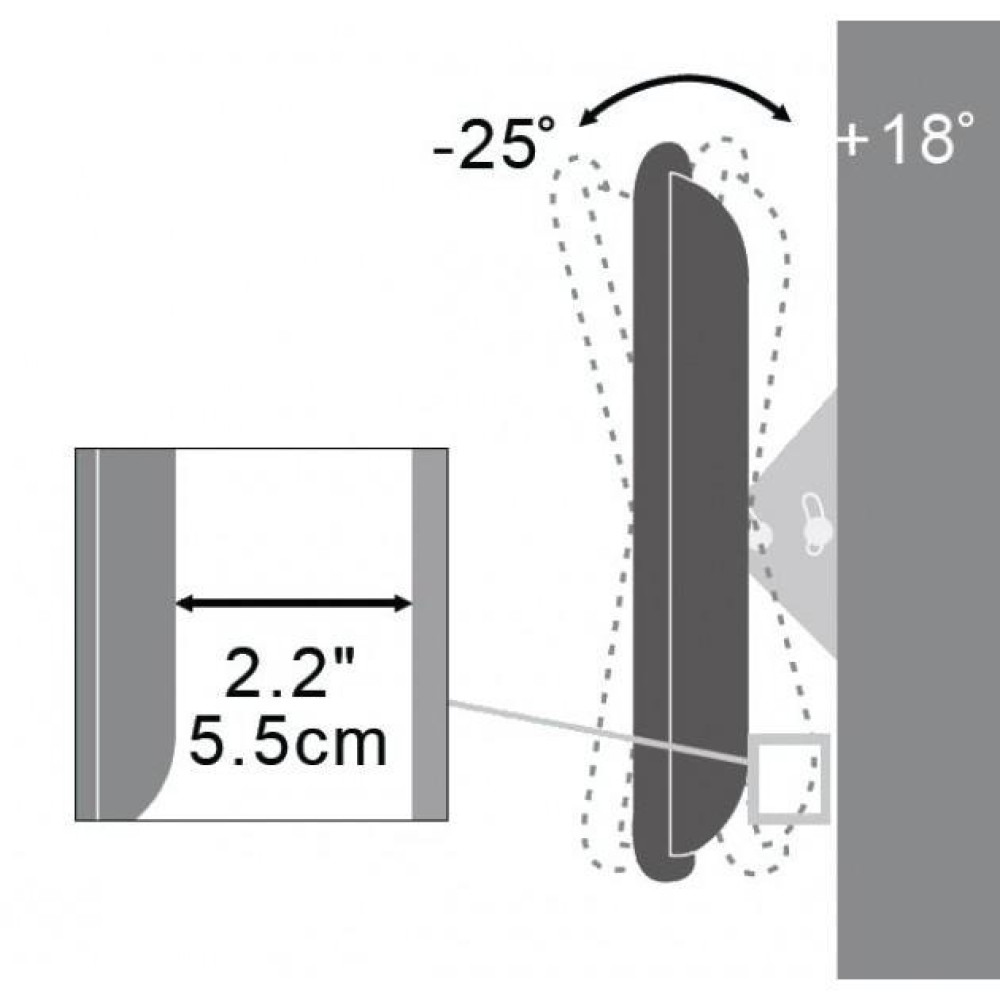

| Tilt angle range | -25 - 18° |
| Built-in spirit level | No |
| Distance to the wall (max) | 5.5 cm |
| Distance to the wall (min) | 5.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Anti-theft function | No |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 10 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 55 mm |
| Height | 218 mm |
| Weight | 1.57 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
