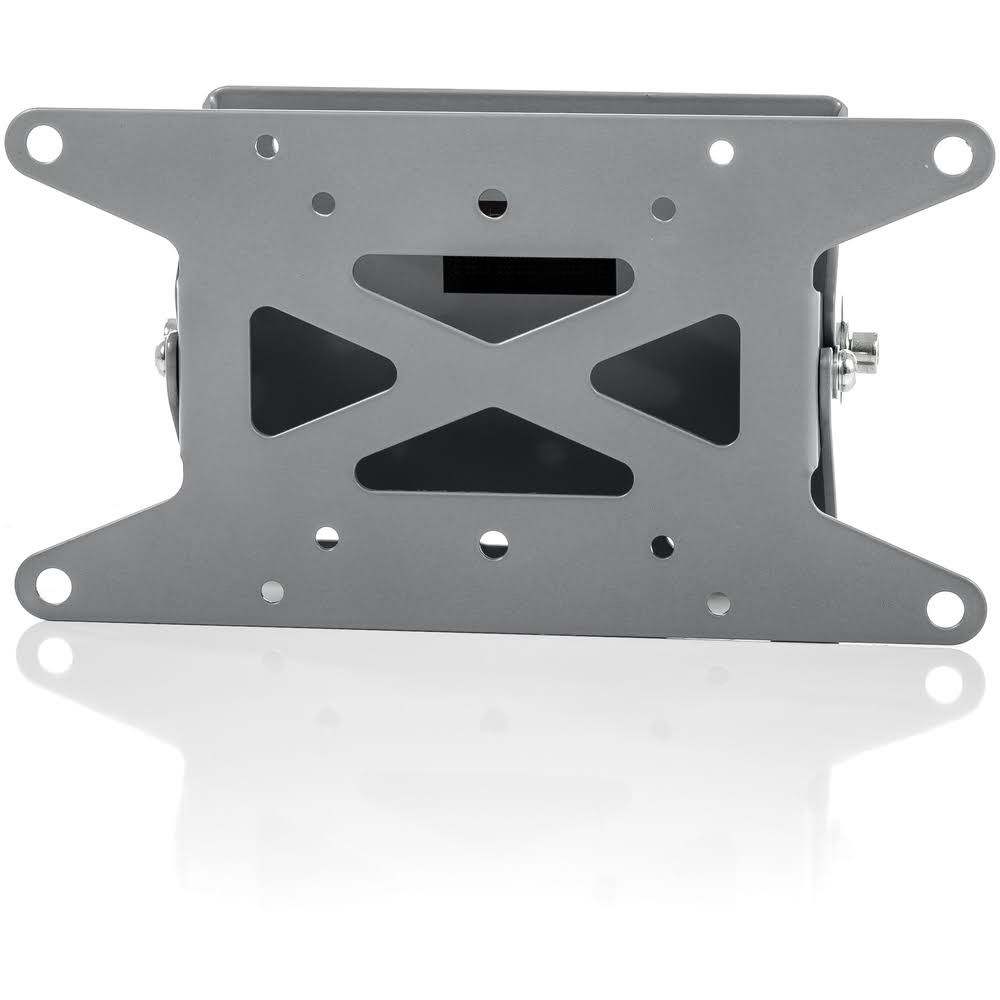

ICA-LCD 109
Model ICA-LCD 109EAN 8057685301207
22 specifications
- Weight1 kg
- ColourSilver
- Number of displays supported1
- Tilt angle range-25 - 18°
- Compliance certificatesRoHS
- Width218 mm
Overview
- Weight
- 1 kg
- Colour
- Silver
- Number of displays supported
- 1
- Tilt angle range
- -25 - 18°
- Compliance certificates
- RoHS
- Width
- 218 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 109
- Part number
- ICA-LCD 109
- EAN / UPC
- 8057685301207
- Also known as
- Techly 13-31" Wall Bracket for LED LCD TV Tilt" ICA-LCD 109
Specifications
22 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 23 kg |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 78.7 cm (31") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100 |
Ergonomics
| Specification | Value |
|---|---|

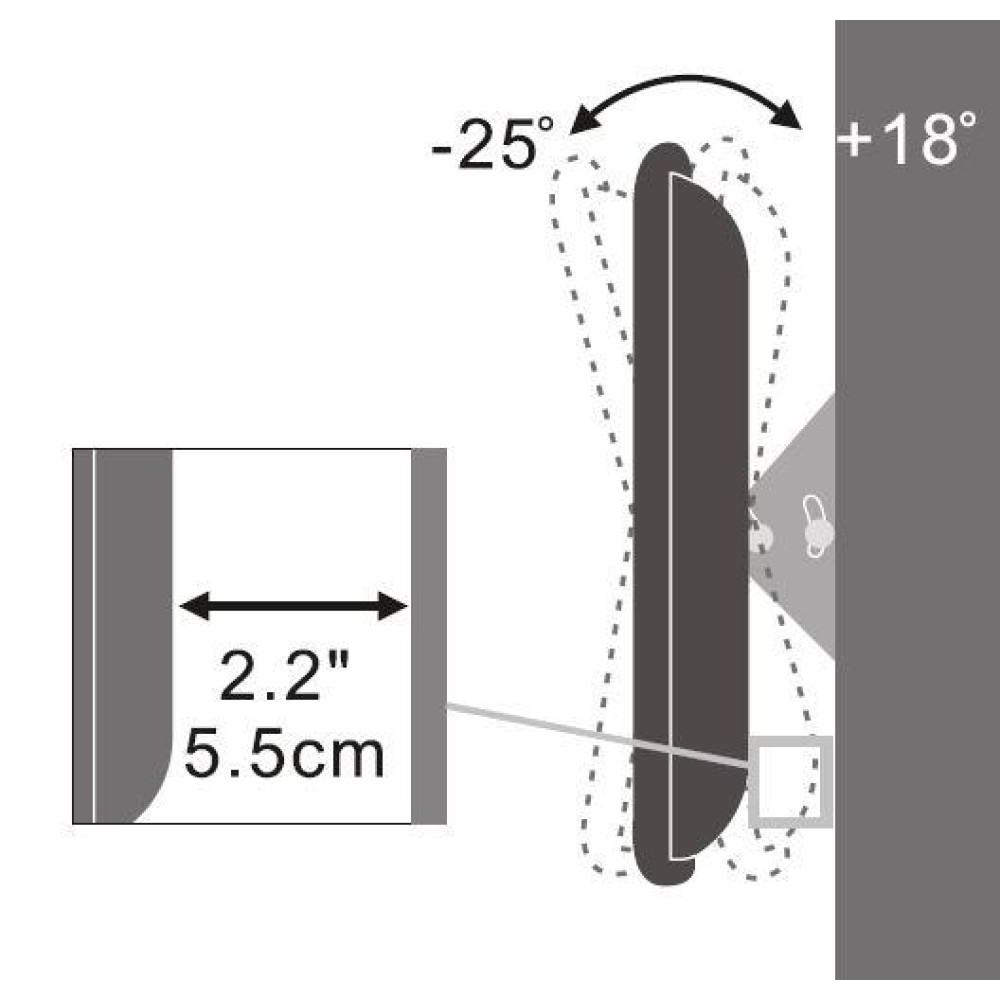

| Tilt angle range | -25 - 18° |
| Built-in spirit level | No |
| Distance to the wall (max) | 5.5 cm |
| Distance to the wall (min) | 5.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Anti-theft function | No |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 10 year(s) |

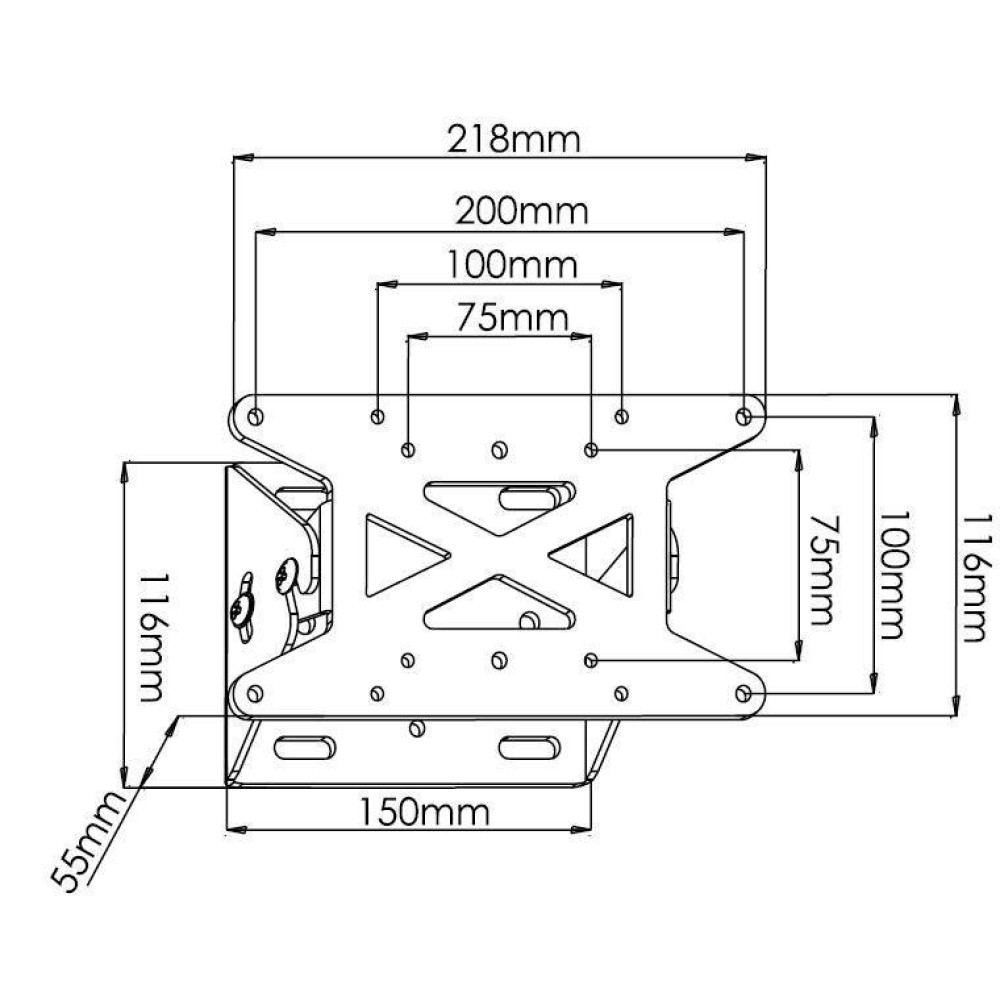

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 55 mm |
| Height | 116 mm |
| Weight | 1 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
