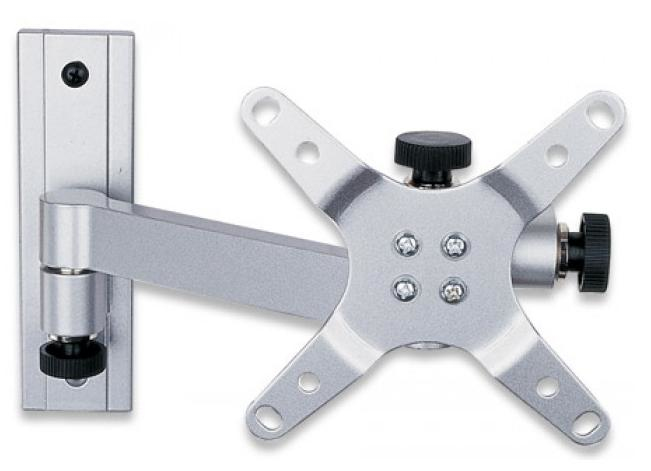

ICA-LCD 105
Model ICA-LCD 105EAN 8057685301504
21 specifications
- Weight850 g
- ColourSilver
- Number of displays supported1
- Tilt angle range-15 - 15°
- Compliance certificatesRoHS
- Width116 mm
Overview
- Weight
- 850 g
- Colour
- Silver
- Number of displays supported
- 1
- Tilt angle range
- -15 - 15°
- Compliance certificates
- RoHS
- Width
- 116 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-LCD 105
- Part number
- ICA-LCD 105
- EAN / UPC
- 8057685301504
- Also known as
- Techly 13-30" Wall Bracket for LED LCD TV Tilt 2 Joints Silver" ICA-LCD 105
Specifications
21 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 76.2 cm (30") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
Ergonomics
| Specification | Value |
|---|---|

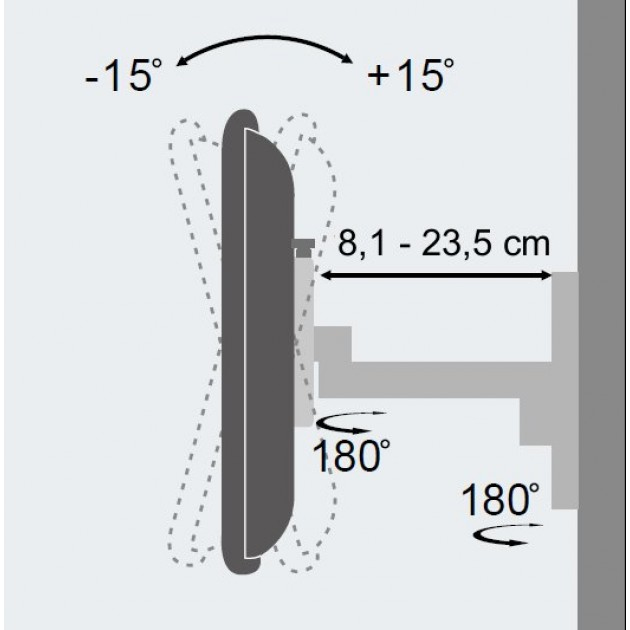

| Tilt angle range | -15 - 15° |
| Swivel angle range | 0 - 180° |
| Distance to the wall (max) | 8.1 cm |
| Distance to the wall (min) | 23.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

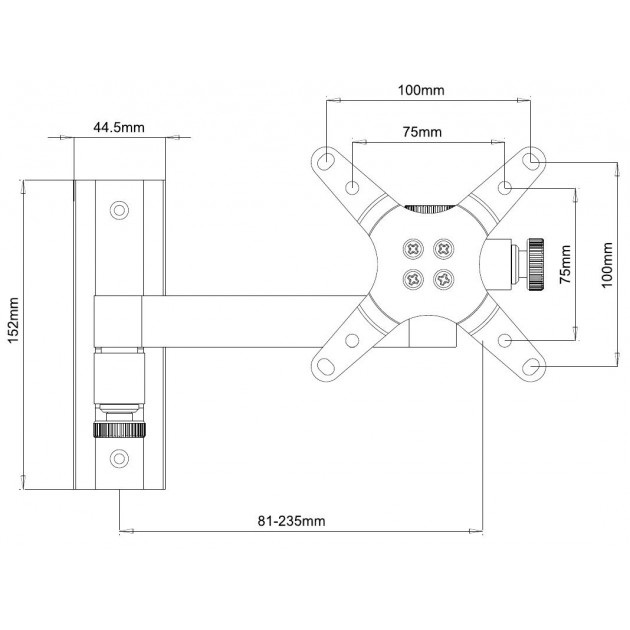

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116 mm |
| Depth (min) | 8.1 cm |
| Depth (max) | 23.5 cm |
| Height | 152 mm |
| Weight | 850 g |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
