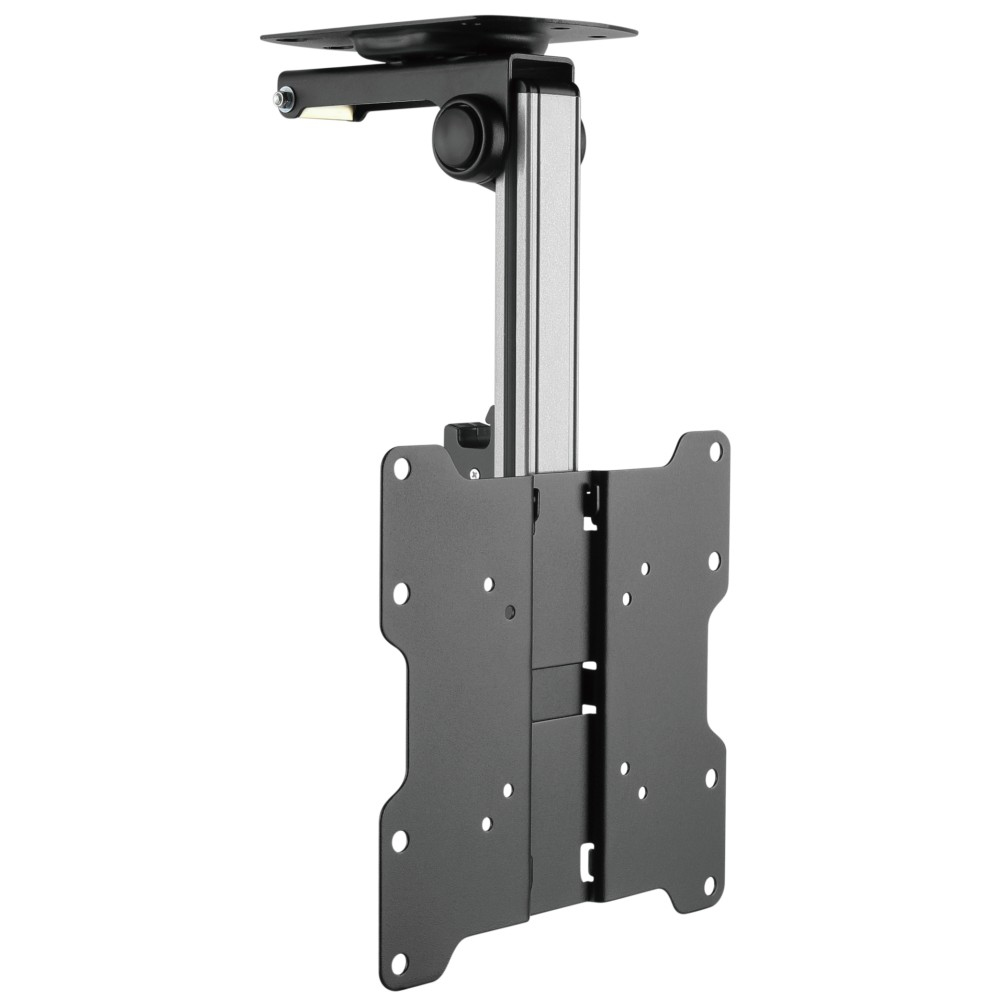

ICA-CPLB 222
Model ICA-CPLB 222EAN 8051128107142
27 specifications
- Weight4.2 kg
- ColourBlack, Silver
- Number of displays supported1
- Tilt angle range-90 - 0°
- Compliance certificatesCE
- Minimum distance to ceiling26.5 cm
Overview
- Weight
- 4.2 kg
- Colour
- Black, Silver
- Number of displays supported
- 1
- Tilt angle range
- -90 - 0°
- Compliance certificates
- CE
- Minimum distance to ceiling
- 26.5 cm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-CPLB 222
- Part number
- ICA-CPLB 222
- EAN / UPC
- 8051128107142
- Also known as

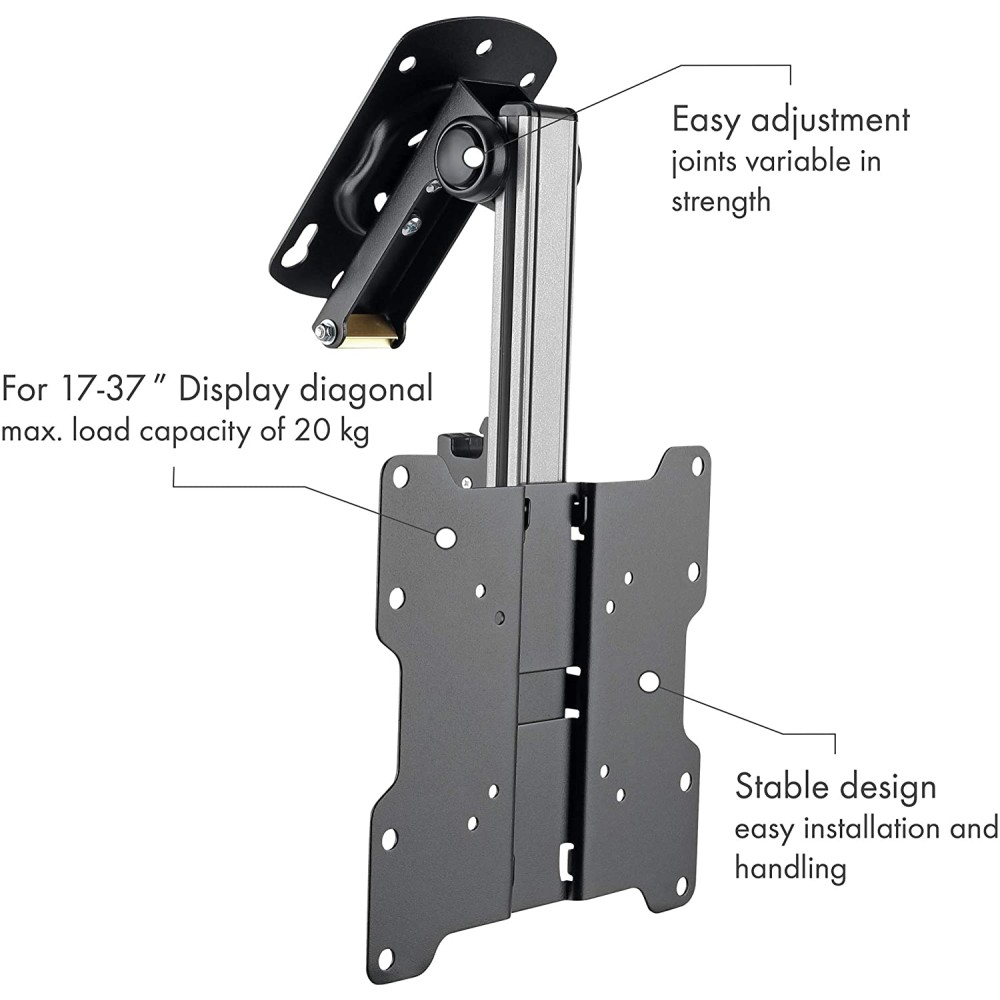

- Techly Fold-Up Retractable Ceiling Mount for TV LED/LCD 17"-37" Black
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 20 kg |

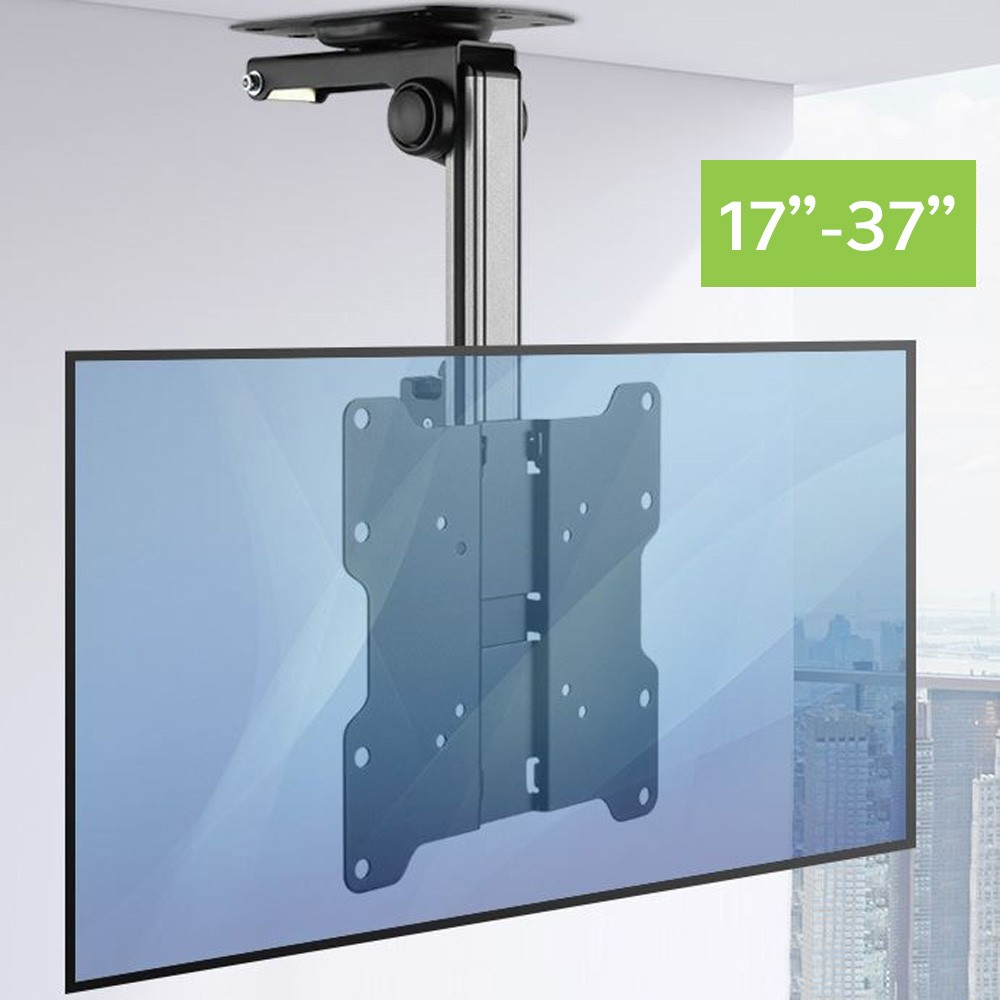

| Minimum screen size | 43.2 cm (17") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Ceiling |
| Suitable for computer monitor | Yes |

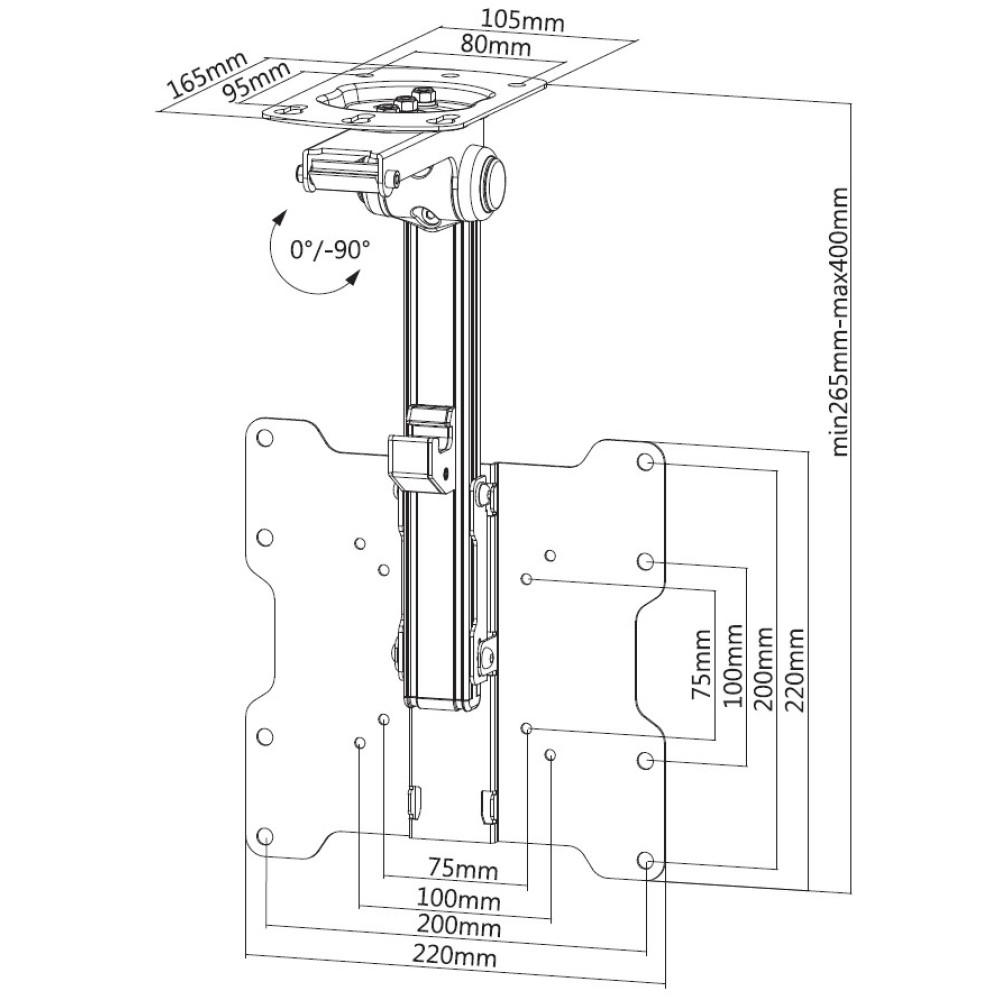

| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,100 x 200,200 x 100,200 x 200 |

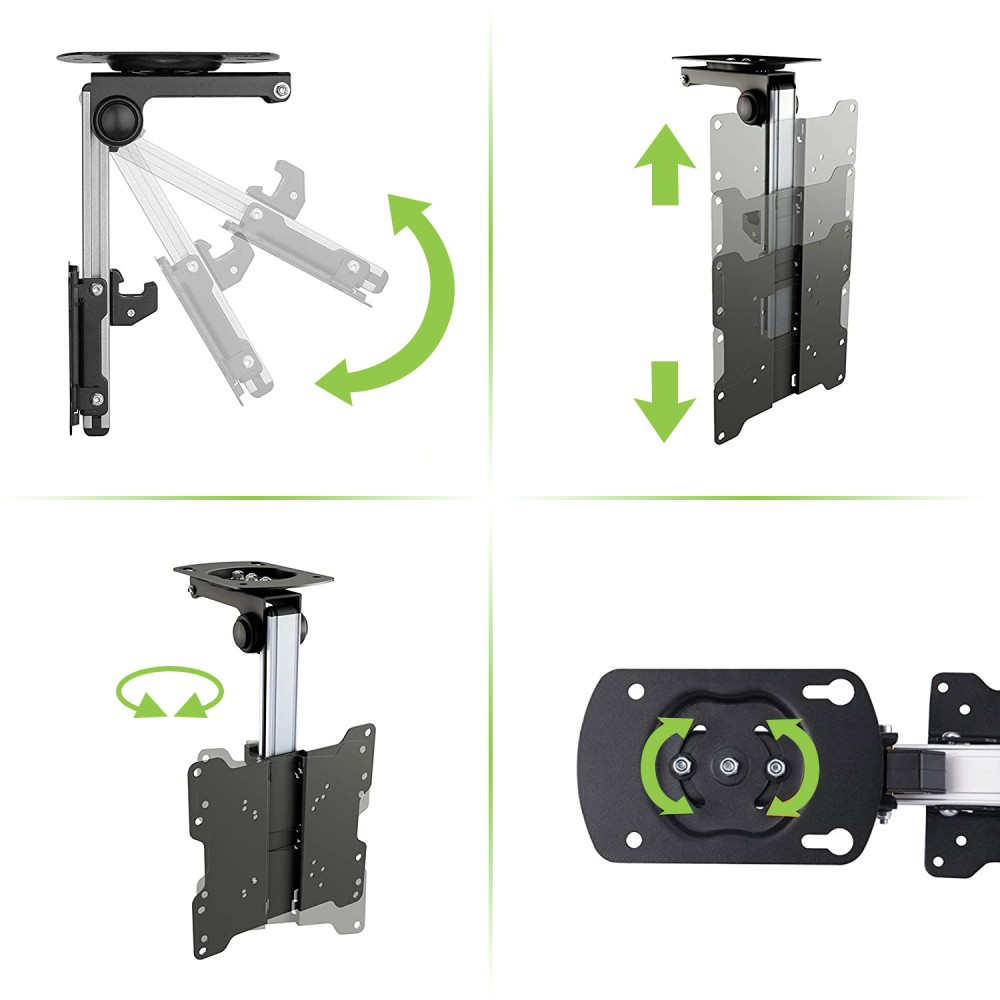

Ergonomics
| Specification | Value |
|---|---|

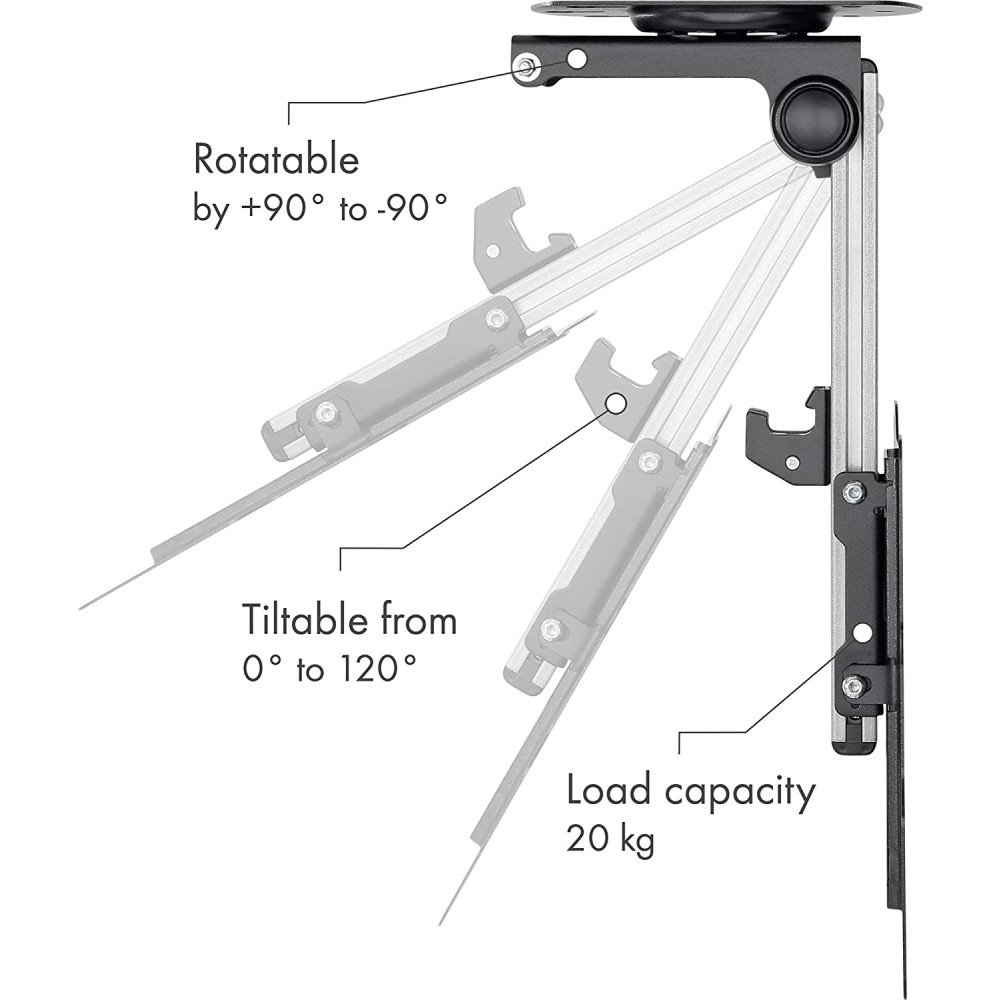

| Tilt angle range | -90 - 0° |
| Angle of rotation | 45° |
| Built-in spirit level | No |
| Distance to the wall (max) | 40 cm |
| Distance to the wall (min) | 26.5 cm |
| Maximum distance to ceiling | 40 cm |
| Suitable for curved screen | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Housing material | Steel |
| Anti-theft function | No |
| Certification | CE |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Warranty period | 1 year(s) |
Features
| Specification | Value |
|---|---|
| Minimum distance to ceiling | 26.5 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
