ICA-CPLB 102LX
Model ICA-CPLB 102LXEAN 8057685301603
21 specifications
- Weight7.09 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentYes
- Width815 mm
Overview
- Weight
- 7.09 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- Yes
- Width
- 815 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- ICA-CPLB 102LX
- Part number
- ICA-CPLB 102LX
- EAN / UPC
- 8057685301603
- Also known as
- Techly 32-60" Universal Ceiling Support for LED TV LCD Long Arm" ICA-CPLB 102LX
Specifications
21 specifications in 4 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 80 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 152.4 cm (60") |
| Mounting type | Ceiling |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 200,600 x 400 |
Ergonomics

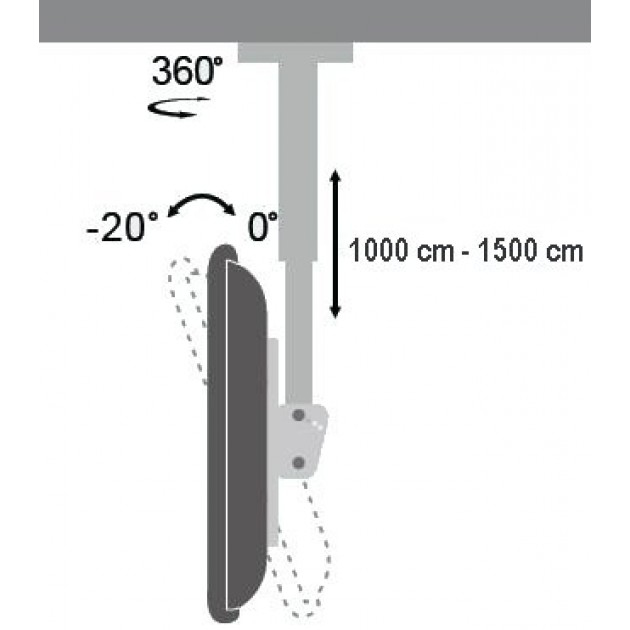

| Specification | Value |
|---|---|
| Height adjustment | Yes |
| Height adjustment range | 1000 - 1500 mm |
| Tilt angle range | 0 - -20° |
| Angle of rotation | 360° |
| Ceiling mounting tube length (max) | 150 cm |
| Ceiling mounting tube length (min) | 100 cm |
| Maximum distance to ceiling | 150 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | RoHS |

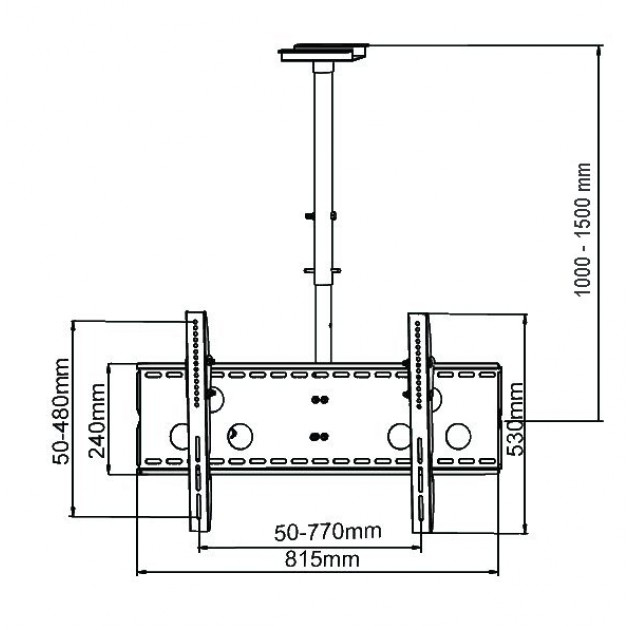

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 815 mm |
| Depth | 150 mm |
| Height | 1500 mm |
| Weight | 7.09 kg |
