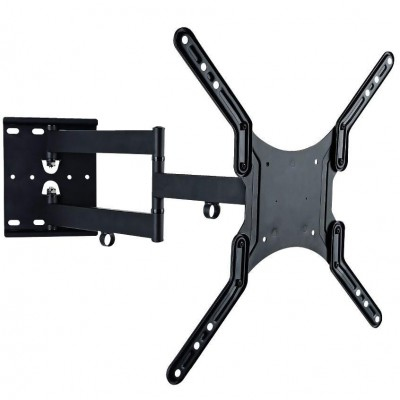

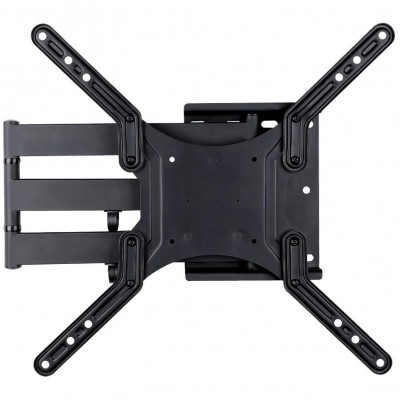

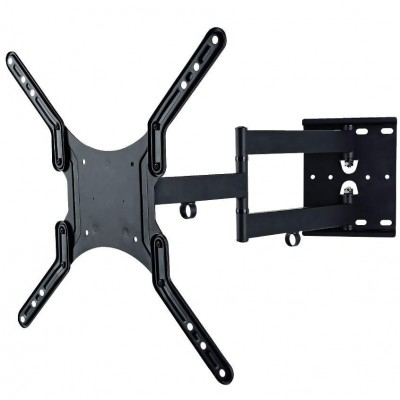

308893 TV mount/stand
139.7 cm (55") Black
Model 308893
19 specifications
- Weight4.79 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-2 - 12°
- Width170 mm
Overview
- Weight
- 4.79 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -2 - 12°
- Width
- 170 mm
- Brand
- Techly
- Category
- TV Mounts & Stands
- Model
- 308893
- Part number
- 308893
- Also known as
- Techly 308893 TV mount/stand 139.7 cm (55") Black
Specifications
19 specifications in 4 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -2 - 12° |
| Swivel angle | 180° |
| Angle of rotation | 180° |
| Distance to the wall (max) | 59 cm |
| Distance to the wall (min) | 4.8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

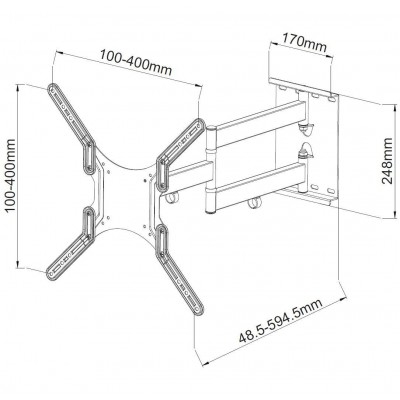

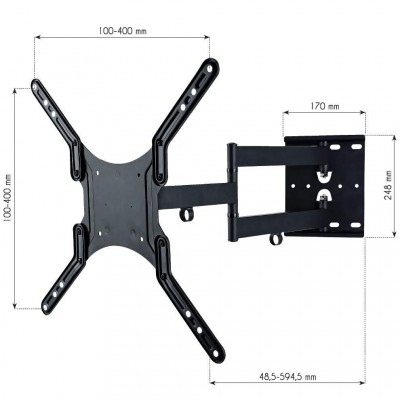

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth (min) | 4.8 cm |
| Depth (max) | 59 cm |
| Height | 248 mm |
| Weight | 4.79 kg |
