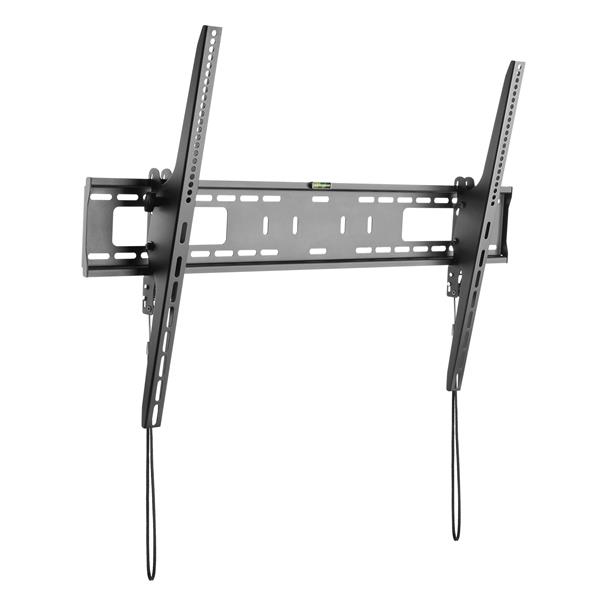

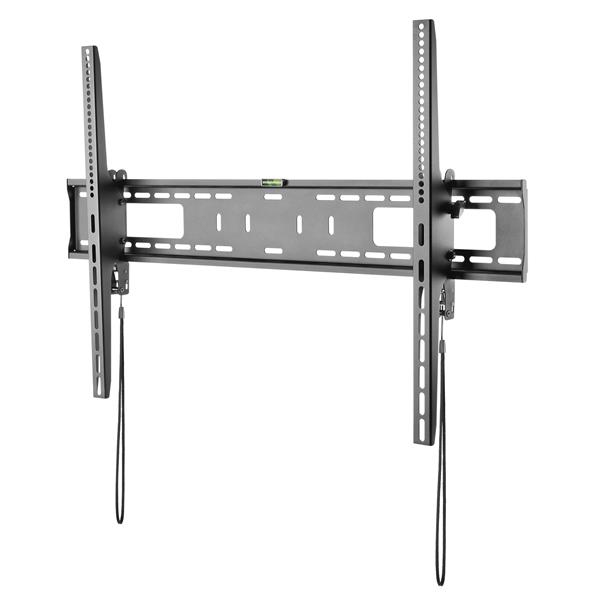

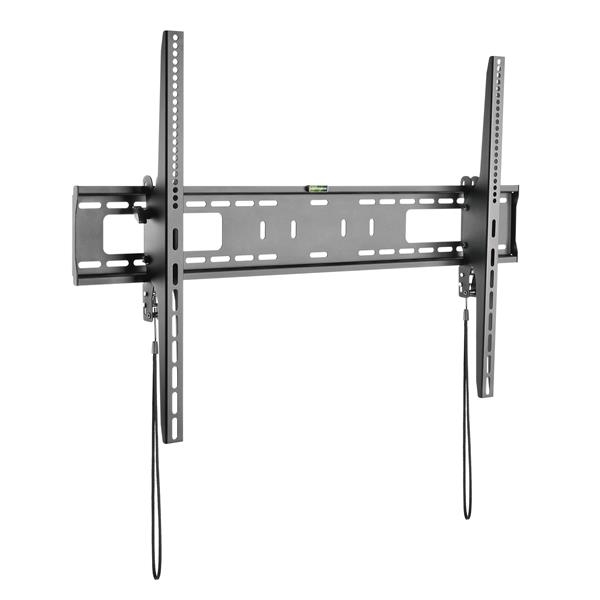

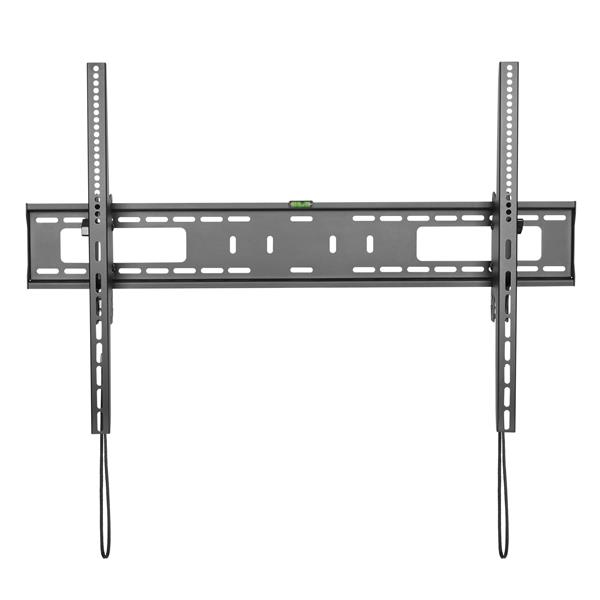

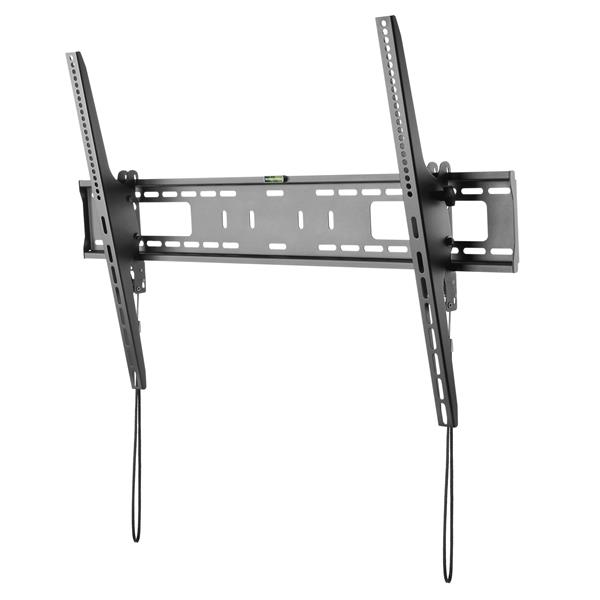

TV Wall Mount supports 60-100 inch VESA Displays (165lb/75kg) - Heavy Duty Tilting Universal TV Wall Mount - Adjustable Mounting Bracket for Large
Model FPWTLTB1EAN 065030880503
40 specifications
- Weight4.5 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-10 - 5°
- Compliance certificatesRoHS
- Width625 mm
Overview
- Weight
- 4.5 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -10 - 5°
- Compliance certificates
- RoHS
- Width
- 625 mm
- Brand
- StarTech.com
- Category
- TV Mounts & Stands
- Model
- FPWTLTB1
- Part number
- FPWTLTB1
- EAN / UPC
- 065030880503
- Also known as
- StarTech.com TV Wall Mount supports 60-100 inch VESA Displays (165lb/75kg) - Heavy Duty Tilting Universal TV Wall Mount - Adjustable Mounting Bracket for Large
Specifications
40 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 152.4 cm (60") |
| Maximum screen size | 2.54 m (100") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 900 x 600 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400,600 x 600,600 x 300,800 x 400,800 x 600,900 x 600 |
Ergonomics
| Specification | Value |
|---|---|

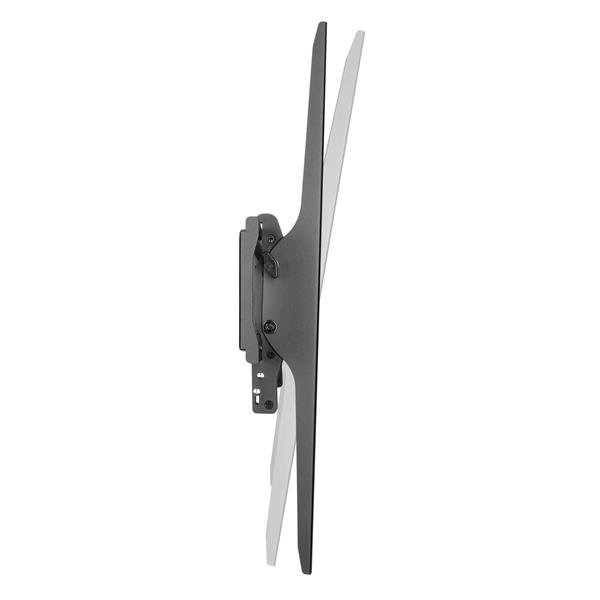

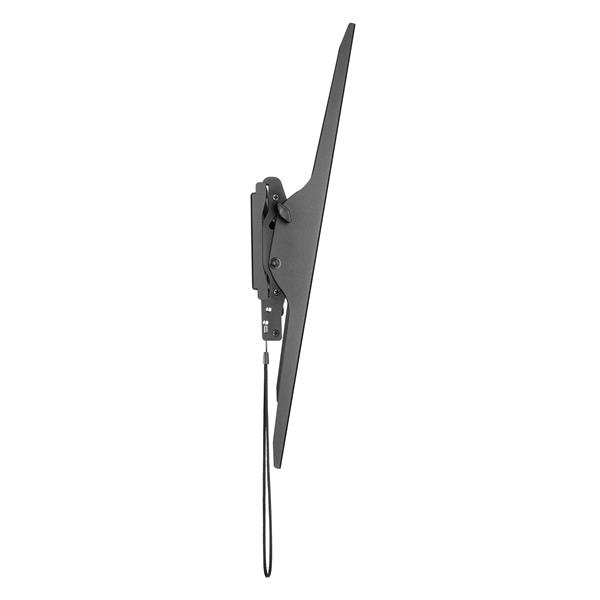

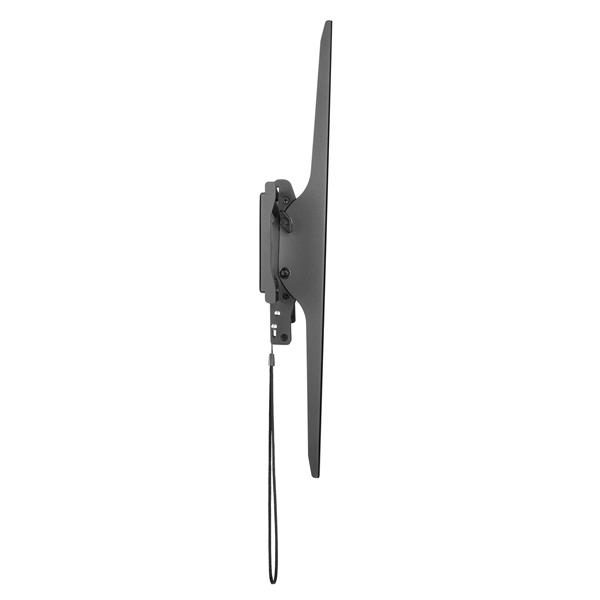

| Tilt angle range | -10 - 5° |
| Cable management | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Steel |
| Anti-theft function | No |
| Certification | CE, REACH |

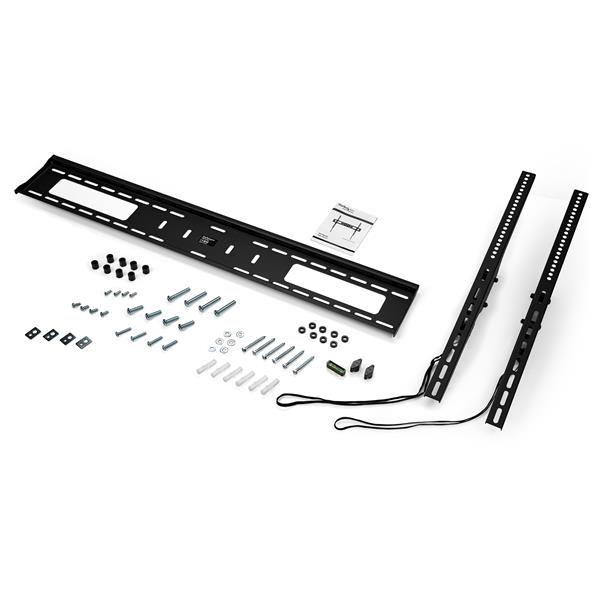

Packaging content
| Specification | Value |
|---|---|
| Adapter bracket included | Yes |
| Number of adapter brackets included | 2 |
| Anchors included | Yes |
| Number of anchors included | 6 |
| Washers included | Yes |
| Number of washers included | 10 |
| Spacer included | Yes |
| Number of spacers included | 16 |
| Screws included | Yes |
| Number of screws | 26 |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 625 mm |
| Depth | 954 mm |
| Depth (max) | 95.4 cm |
| Height | 50 mm |
| Weight | 4.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 985 mm |
| Package height | 57 mm |
| Package weight | 4.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 182 mm |
| Master (outer) case length | 1007 mm |
| Master (outer) case height | 235 mm |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 85299097 |
