TV Wall Mount for up to
80 inch (110lb) VESA Mount Displays - Low Profile Full Motion Universal TV Wall Mount Bracket - Heavy Duty Adjustable Tilt/
Model FPWARTS1EAN 065030870337
44 specifications
- Weight13 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-15 - 2°
- Compliance certificatesRoHS
- Width465 mm
Overview
- Weight
- 13 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -15 - 2°
- Compliance certificates
- RoHS
- Width
- 465 mm
- Brand
- StarTech.com
- Category
- TV Mounts & Stands
- Model
- FPWARTS1
- Part number
- FPWARTS1
- EAN / UPC
- 065030870337
- Also known as
- StarTech.com TV Wall Mount for up to 80 inch (110lb) VESA Mount Displays - Low Profile Full Motion Universal TV Wall Mount Bracket - Heavy Duty Adjustable Tilt/
Specifications
44 specifications in 9 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 2.03 m (80") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -15 - 2° |
| Swivel angle range | -90 - 90° |
| Pivot angle | -90 - 90° |
| Cable management | Yes |
| Distance to the wall (max) | 65 cm |
| Distance to the wall (min) | 7 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | CE, REACH |

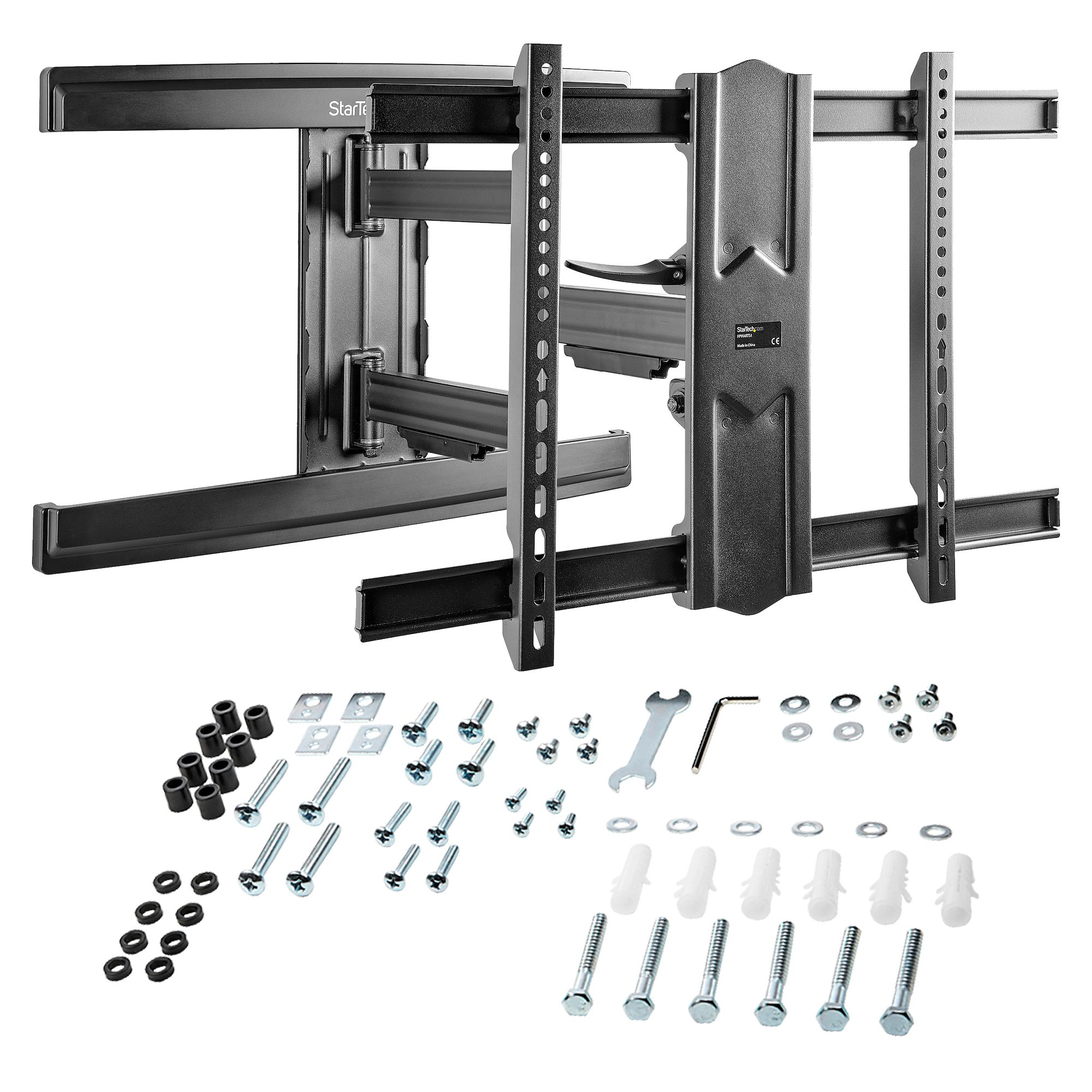

Packaging content
| Specification | Value |
|---|---|
| Decorative cover included | Yes |
| Number of decorative covers included | 2 pc(s) |
| Anchors included | Yes |
| Number of anchors included | 6 |
| Washers included | Yes |
| Wrench type | Hexagonal wrench |
| Number of washers included | 14 |
| Spacer included | Yes |
| Number of spacers included | 16 |
| Screws included | Yes |
| Number of screws | 30 |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 465 mm |
| Depth (max) | 65 cm |
| Height | 935 mm |
| Weight | 13 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 732 mm |
| Package depth | 560 mm |
| Package height | 116 mm |
| Package weight | 14.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 755 mm |
| Master (outer) case length | 578 mm |
| Master (outer) case height | 245 mm |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Screw type | M5, M6, M8 |
