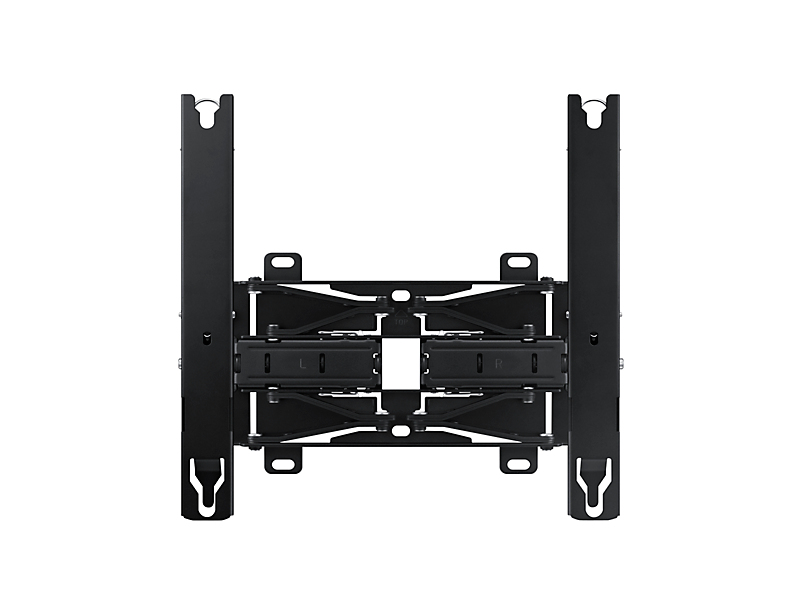

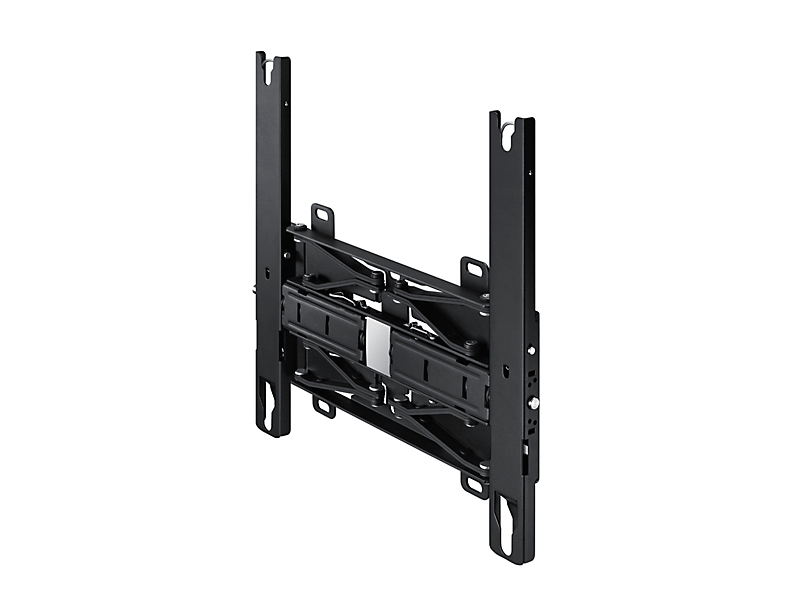

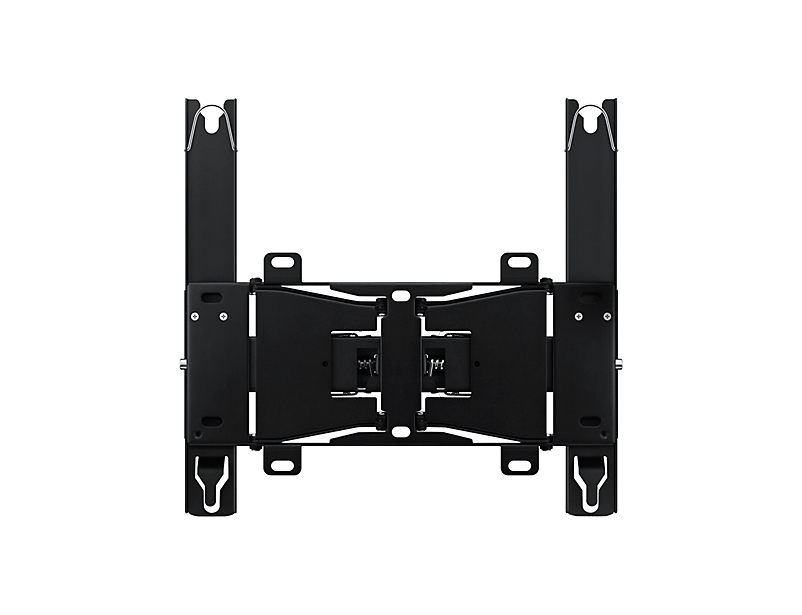

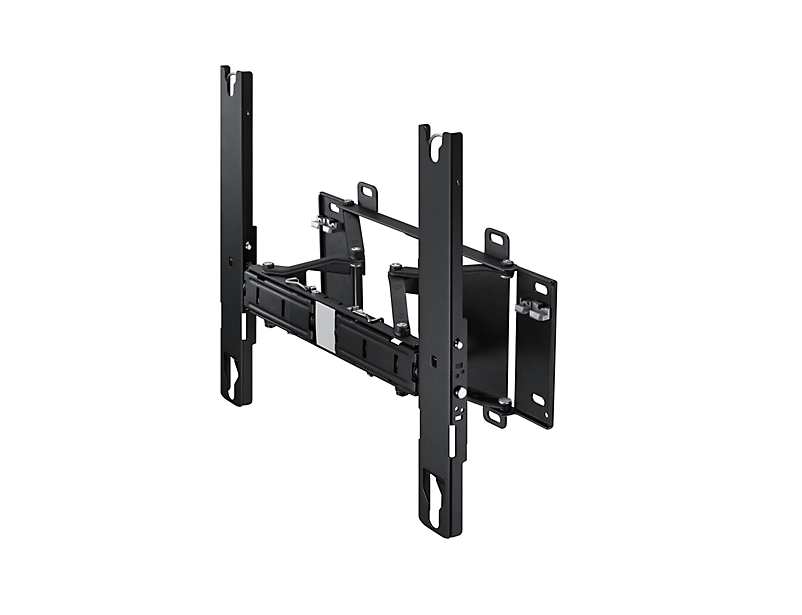

WMN4277SK TV mount/stand
190.5 cm (75") Black
Model WMN4277SKEAN 8806088300733
19 specifications
- Weight6.5 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-15 - 15°
Overview
- Weight
- 6.5 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -15 - 15°
- Brand
- Samsung
- Category
- TV Mounts & Stands
- Model
- WMN4277SK
- Part numbers
- WMN4277SK, WMN4277SK/XC
- EAN / UPC
- 8806088300733
- Also known as
- Samsung WMN4277SK TV mount/stand 190.5 cm (75") Black
Specifications
19 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 165.1 cm (65") |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Wall |
| Minimum VESA mount | 400 x 400 mm |
| Maximum VESA mount | 400 x 400 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -15 - 15° |
| Swivel angle | 20° |
| Distance to the wall (max) | 25 cm |
| Distance to the wall (min) | 2.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Compatibility | 2016 Samsung Televisions 65”-75” K Series 2012-2015 E-J 75” Samsung Televisions 2014 Samsung 75" TVs 2015 Samsung 75" TVs & 78” JU7500 & 60” JS7000 |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 510 mm |
| Package depth | 90 mm |
| Package height | 280 mm |
| Package weight | 6.9 kg |
