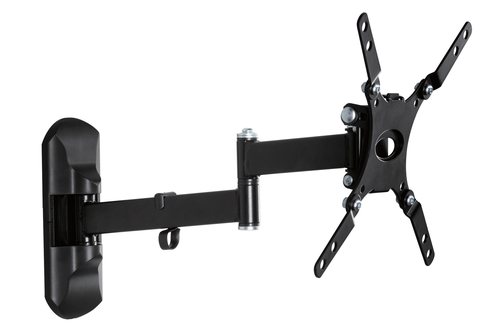

SQM9222/00 TV mount/stand
106.7 cm (42") Black
Model SQM9222/00EAN 4895185615042
33 specifications
- ColourBlack
- Maximum weight capacity25 kg
- Tilt angle range1 - 12°
Overview
- Colour
- Black
- Maximum weight capacity
- 25 kg
- Tilt angle range
- 1 - 12°
- Brand
- Philips
- Category
- TV Mounts & Stands
- Model
- SQM9222/00
- Part number
- SQM9222/00
- EAN / UPC
- 4895185615042, 6959033844706
- Also known as
- Philips SQM9222/00 TV mount/stand 106.7 cm (42") Black
Specifications
33 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 25 kg |
| Maximum screen size | 106.7 cm (42") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 1 - 12° |
| Swivel angle range | 0 - 180° |
| Distance to the wall (max) | 4.2 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package tare weight | 0.155 g |
| Package width | 28.5 mm |
| Package depth | 40 mm |
| Package height | 23.3 mm |
| Package weight | 2.02 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 12.6 g |
Other features
| Specification | Value |
|---|---|
| Width (imperial) | 28.4 cm (11.2") |
| Depth (imperial) | 4.06 cm (1.6") |
| Height (imperial) | 23.4 cm (9.2") |
| Quantity | 1 |
| Gross weight (imperial) | 2.02 kg (4.46 lbs) |
| Gross weight (outer carton) | 12.6 kg (27.8 lbs) |
| Height (cm) outer carton | 14 cm |
| Height outer carton (imperial) | 14 cm (5.5") |
| Length (cm) outer carton | 48.5 cm |
| Length outer carton (imperial) | 48.5 cm (19.1") |
| Net weight (outer carton) | 11.2 kg (24.7 lbs) |
| Quantity outer carton | 6 pc(s) |
| Tare weight (imperial) | 0.155 kg (0.342 lbs) |
| Tare weight outer carton (imperial) | 1.38 kg (3.04 lbs) |
| Width (cm) outer carton | 28.5 cm |
| Width outer carton (imperial) | 28.4 cm (11.2") |
