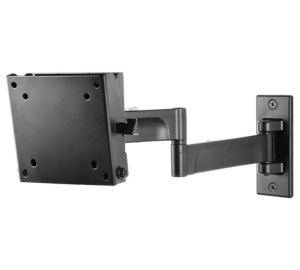

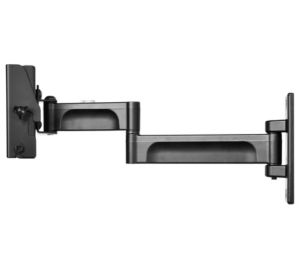

YBA100 TV mount/stand
66 cm (26") Black
Model YBA100EAN 735029284277
24 specifications
- Weight1.38 kg
- ColourBlack
- Maximum weight capacity11 kg
- Tilt angle range-5 - 15°
- Compliance certificatesRoHS
- Width228 mm
Overview
- Weight
- 1.38 kg
- Colour
- Black
- Maximum weight capacity
- 11 kg
- Tilt angle range
- -5 - 15°
- Compliance certificates
- RoHS
- Width
- 228 mm
- Brand
- Peerless
- Category
- TV Mounts & Stands
- Model
- YBA100
- Part number
- YBA100
- EAN / UPC
- 735029284277
- Also known as
- Peerless YBA100 TV mount/stand 66 cm (26") Black
Specifications
24 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 11 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 66 cm (26") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -5 - 15° |
| Swivel angle range | -90 - 90° |
| Cable management | Yes |
| Distance to the wall (max) | 37.8 cm |
| Distance to the wall (min) | 8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | UL |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 228 mm |
| Depth (min) | 8 cm |
| Depth (max) | 37.8 cm |
| Height | 179 mm |
| Weight | 1.38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210 mm |
| Package depth | 254 mm |
| Package height | 89 mm |
| Package weight | 1.73 kg |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
