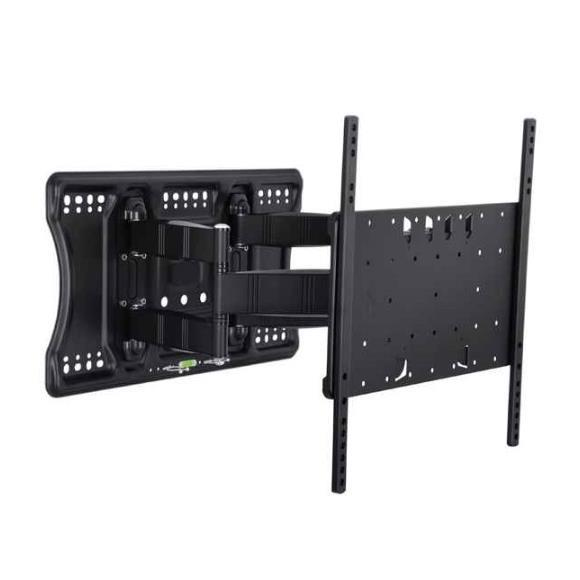

MB9697 TV mount/stand 2.13 m (84") Black
Model MB9697
18 specifications
- Weight10 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-2 - 7°
- Width595 mm
Overview
- Weight
- 10 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -2 - 7°
- Width
- 595 mm
- Brand
- Nilox
- Category
- TV Mounts & Stands
- Model
- MB9697
- Part number
- MB9697
- Also known as
- Nilox MB9697 TV mount/stand 2.13 m (84") Black
Specifications
18 specifications in 4 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 65 kg |
| Maximum screen size | 2.13 m (84") |
| Mounting type | Wall |

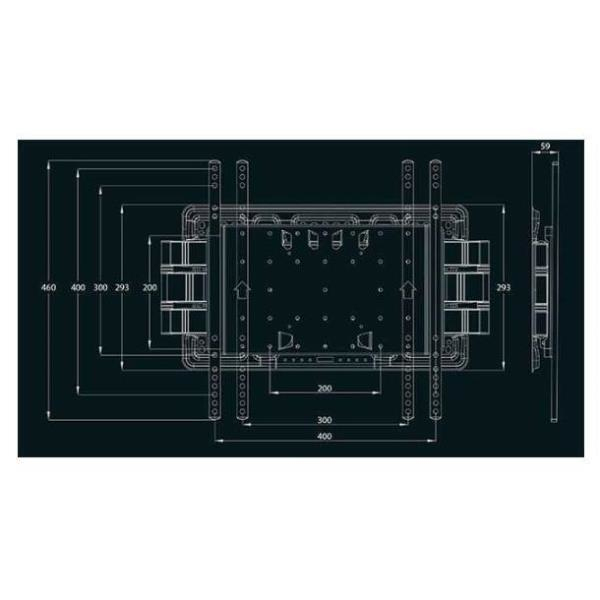

| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|

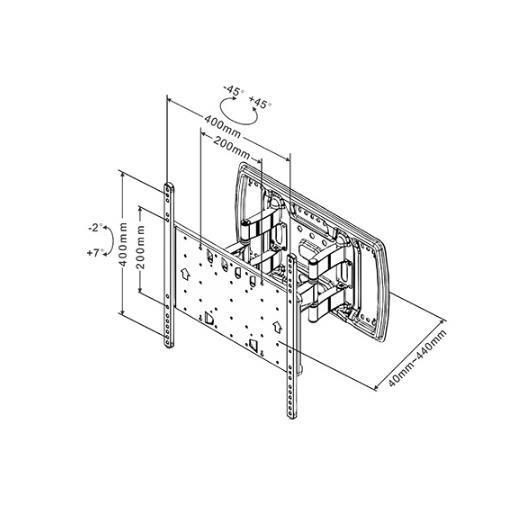

| Tilt angle range | -2 - 7° |
| Turn angle | 90° |
| Number of pivot points | 3 |
| Distance to the wall (max) | 44 cm |
| Distance to the wall (min) | 4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 48 mm |
| Height | 294 mm |
| Weight | 10 kg |
