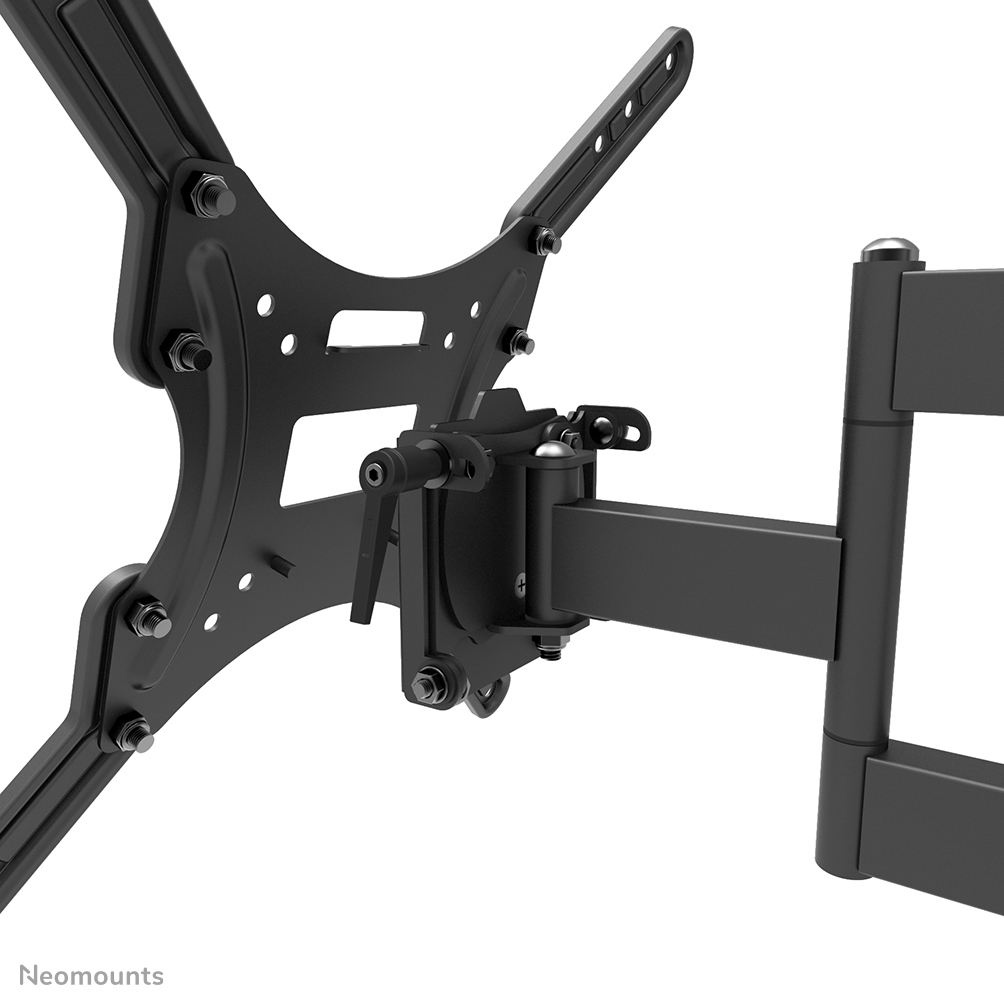

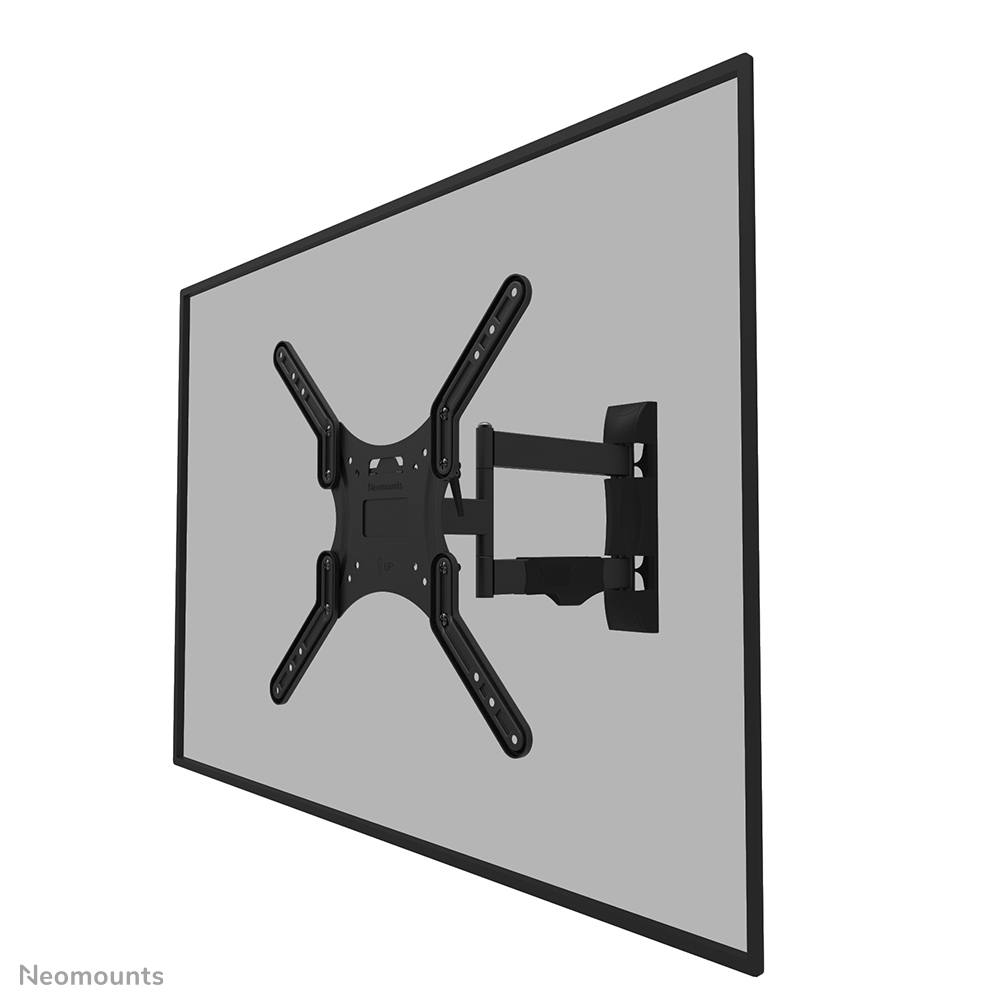

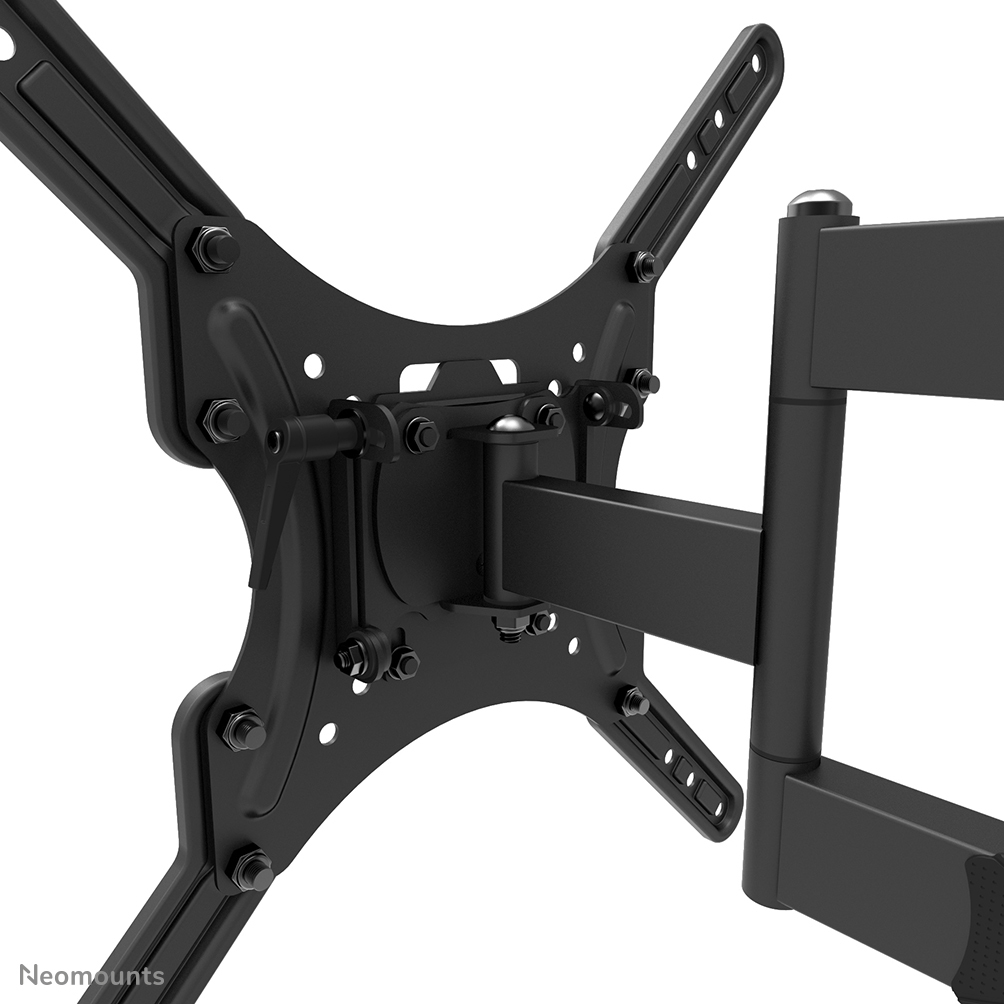

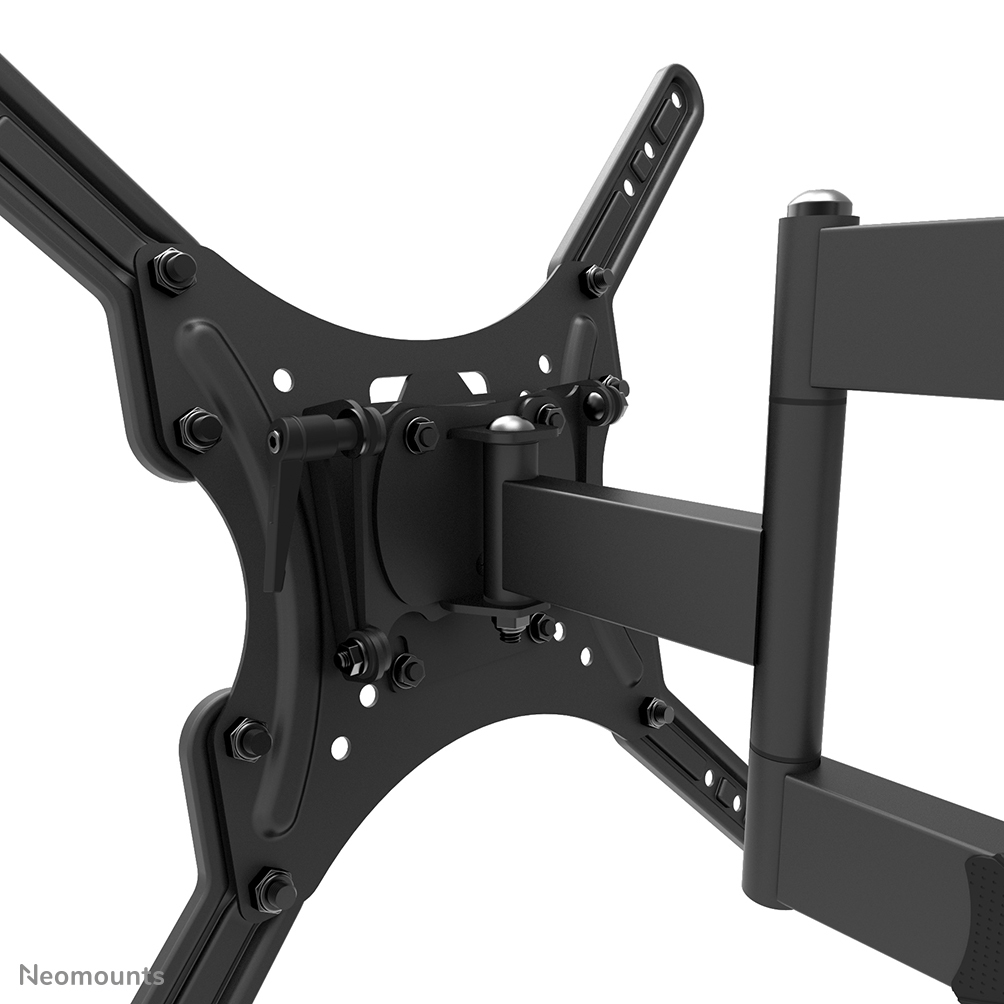

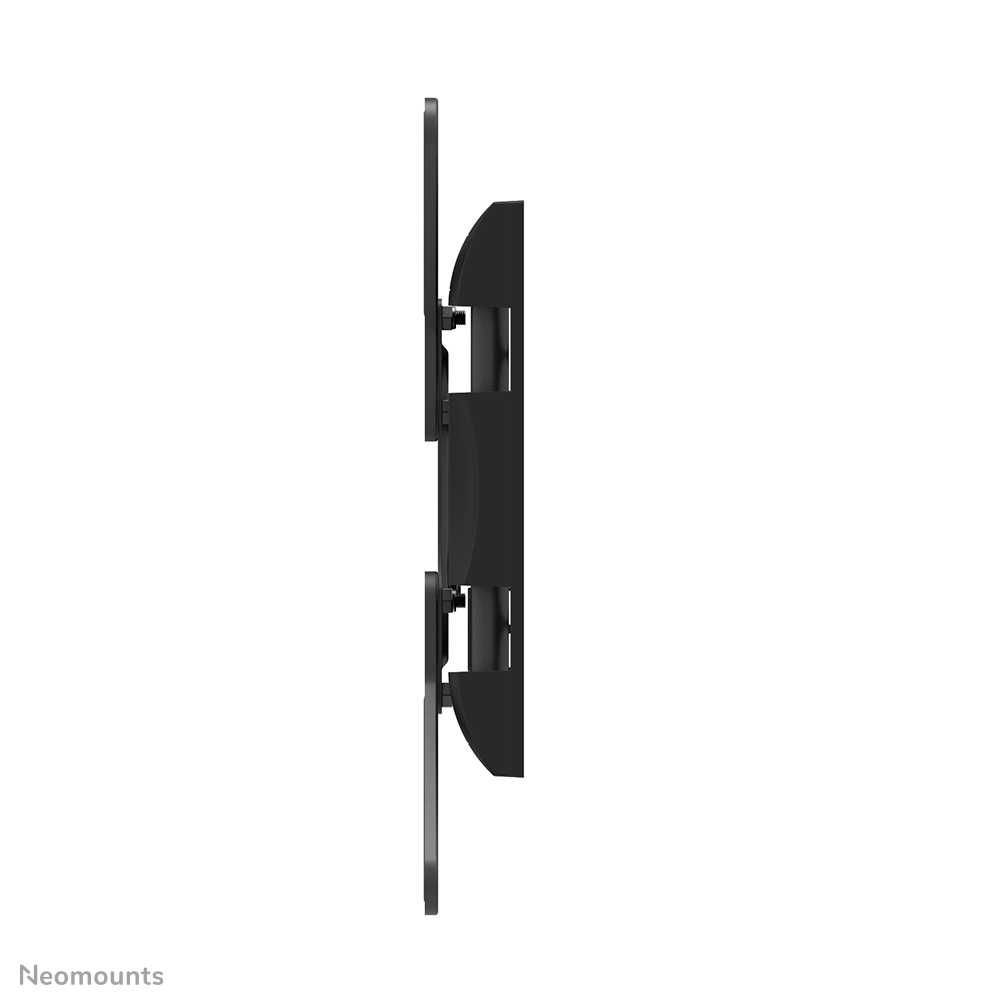

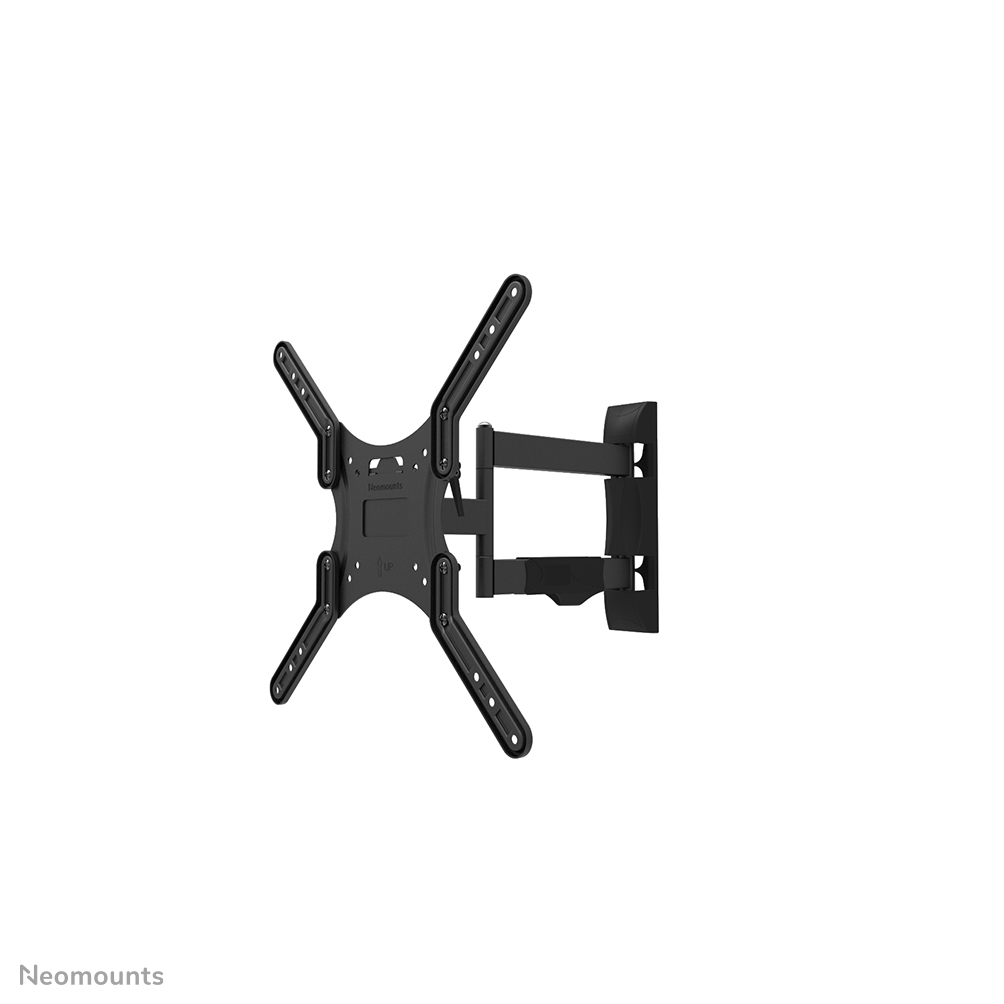

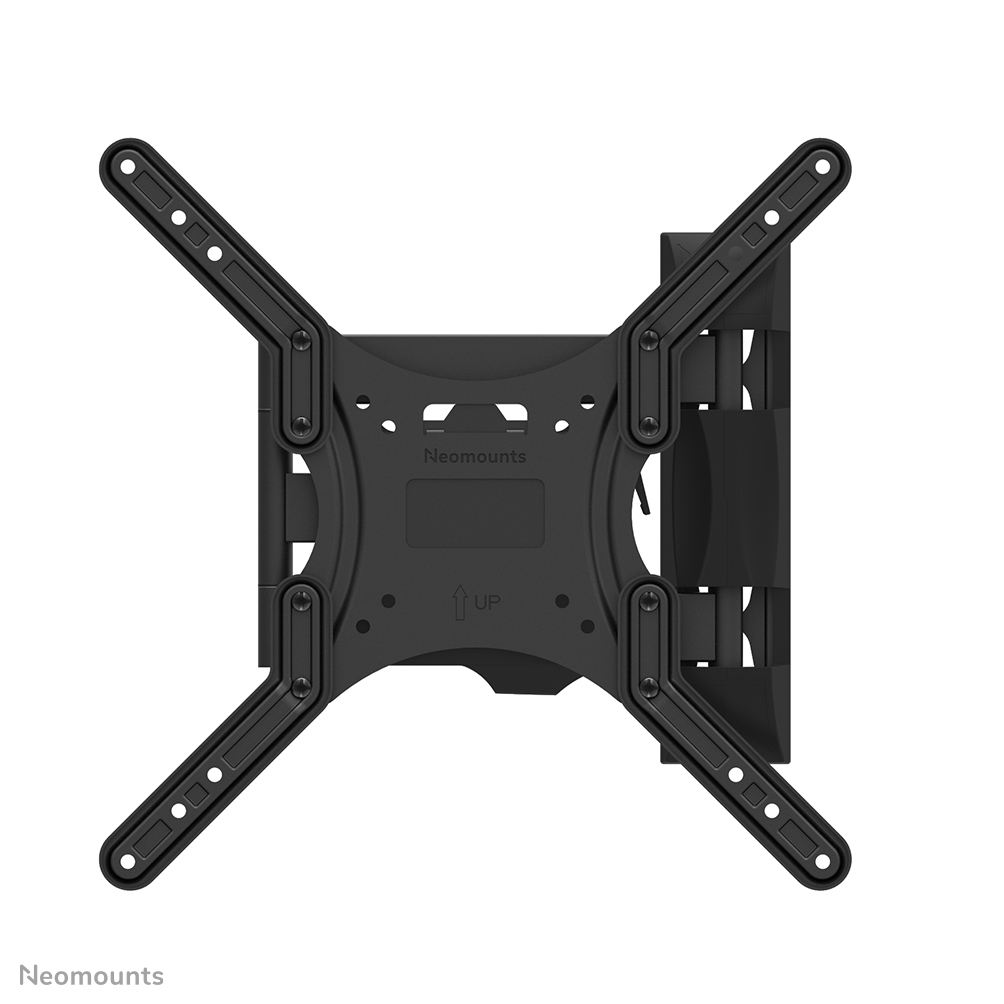

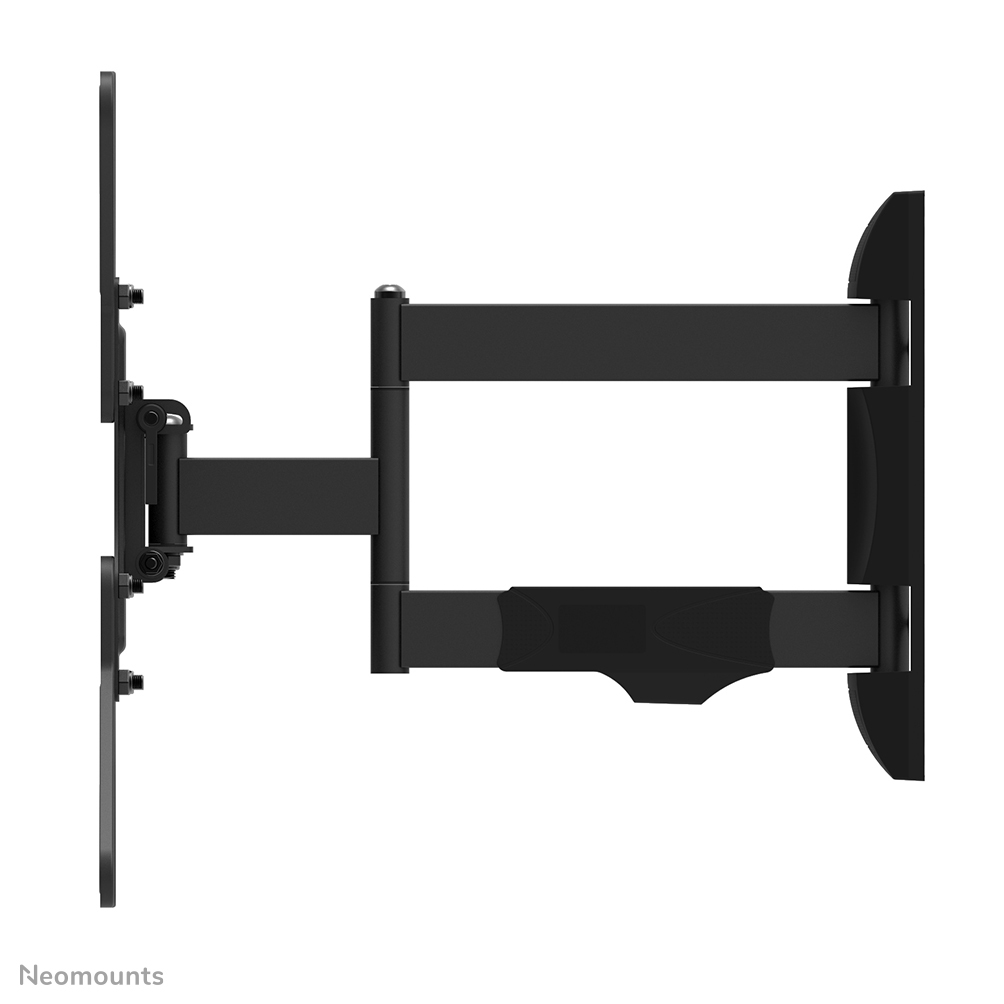

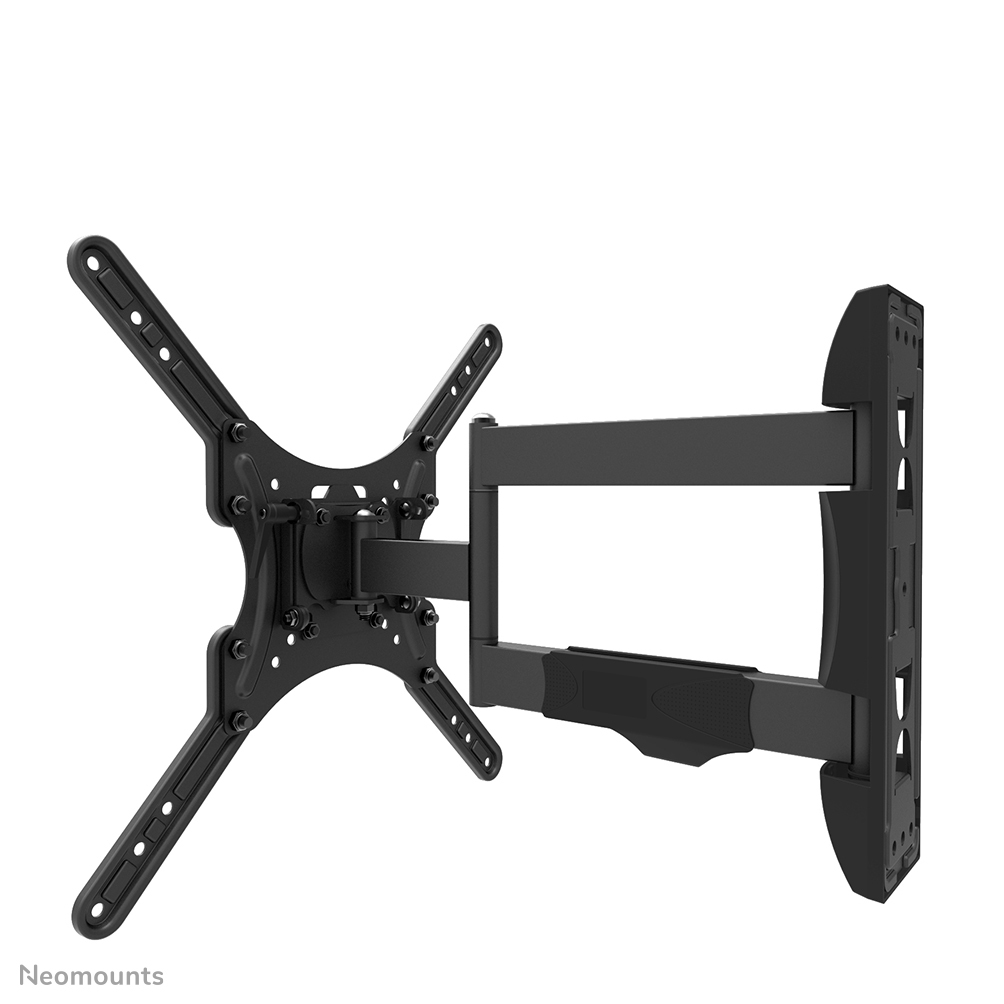

Neomounts WL40-550BL14 TV mount wall 40-55" - full motion - easy install

WL40-550BL14 TV mount wall 40-55" - full motion - easy install

Model WL40-550BL14EAN 8717371448714

46 specifications

TypeFull motion
Weight3.7 kg
ColourBlack
Number of displays supported1
Height adjustmentNo
Country of originChina

See all specifications

Overview

Type: Full motion
Weight: 3.7 kg
Colour: Black
Number of displays supported: 1
Height adjustment: No
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: WL40-550BL14
Part number: WL40-550BL14
EAN / UPC: 8717371448714
Also known as: Neomounts WL40-550BL14 TV mount wall 40-55" - full motion - easy install

Specifications

46 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	35 kg
Maximum weight capacity	35 kg
Minimum screen size	101.6 cm (40")
Maximum screen size	139.7 cm (55")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400

Ergonomics

Specification	Value
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-2 - 12°
Swivelling	Yes
Swivel angle	40°
Swivel angle range	0 - 40°
Rotating	Yes
Angle of rotation	6°
Pivot angle	-3 - 3°
Cable management	Yes
Type	Full motion
Distance to the wall (max)	42 cm
Distance to the wall (min)	4.5 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Packaging content

Specification	Value
Mounting kit	Yes

Technical details

Specification	Value
Country of origin	China
Quantity per pack	1 pc(s)
Lockable	Not lockable
Package net weight	4.5 kg

Weight & dimensions

Specification	Value
Width	433 mm
Depth	45 mm
Depth (max)	4.5 cm
Height	433 mm
Weight	3.7 kg

Packaging data

Specification	Value
Package width	329 mm
Package depth	310 mm
Package height	55 mm
Package weight	4.5 kg

Logistics data

Specification	Value
Master (outer) case width	349 mm
Master (outer) case length	295 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	22.7 kg
Master (outer) case net weight	21 kg
Products per master (outer) case	5 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	160 pc(s)
