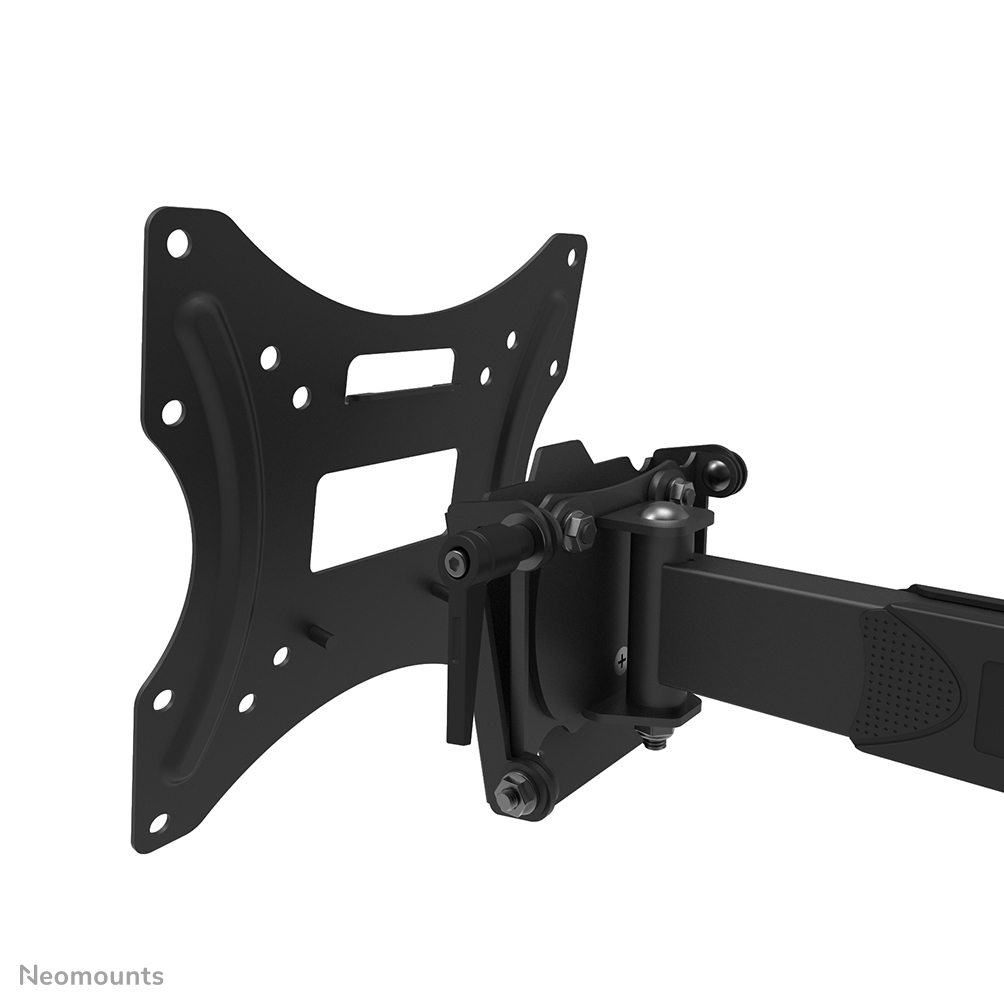

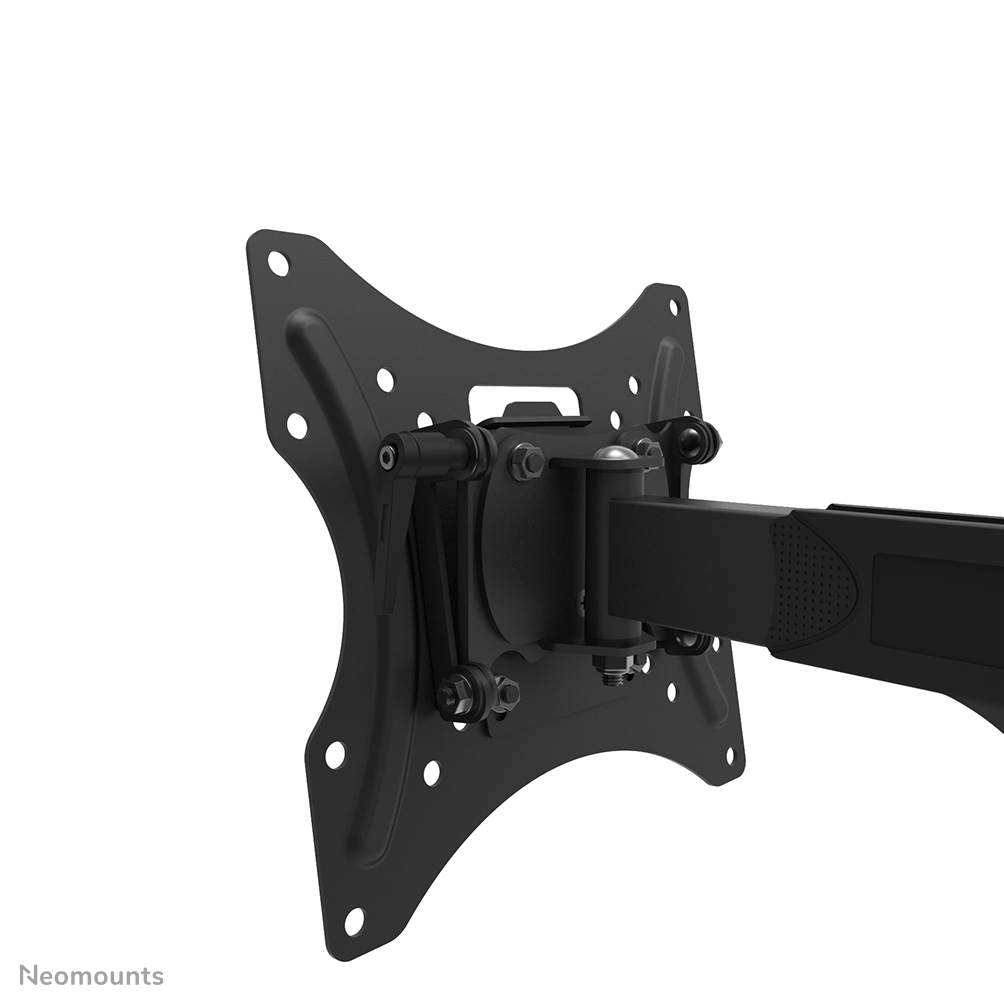

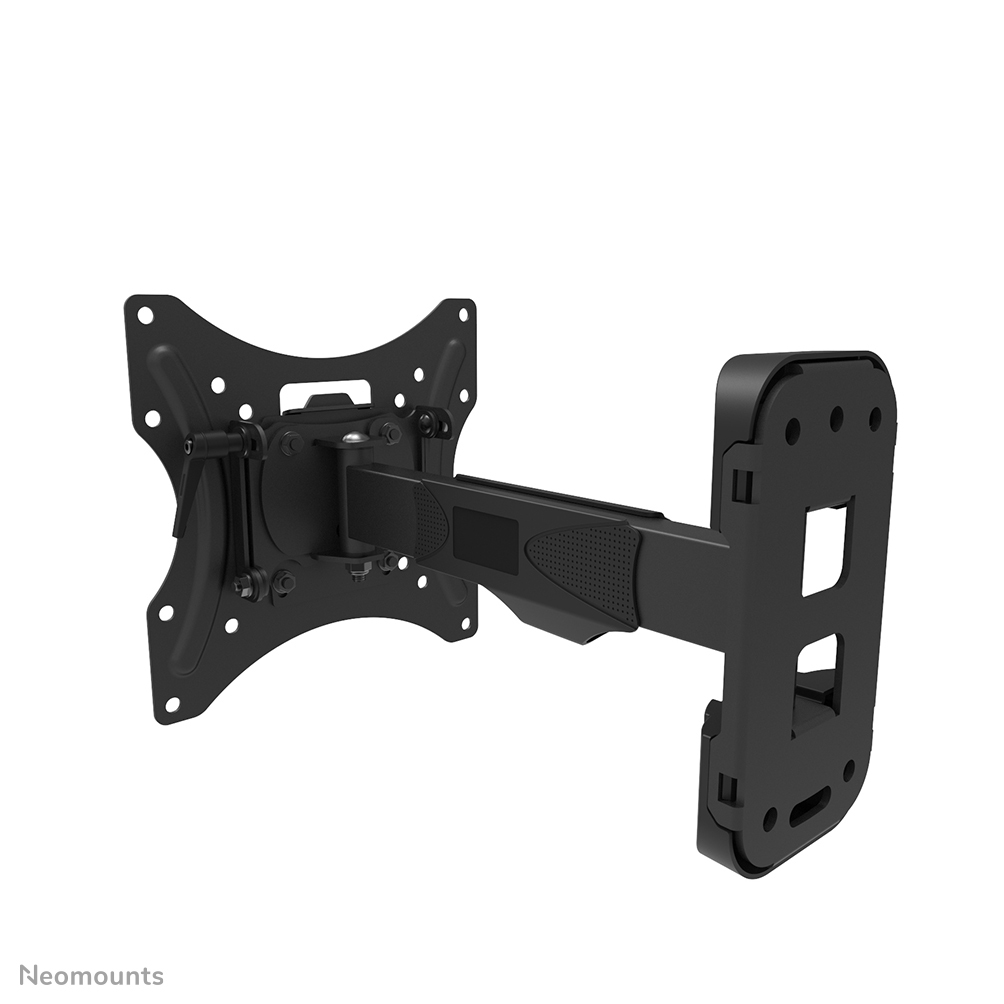

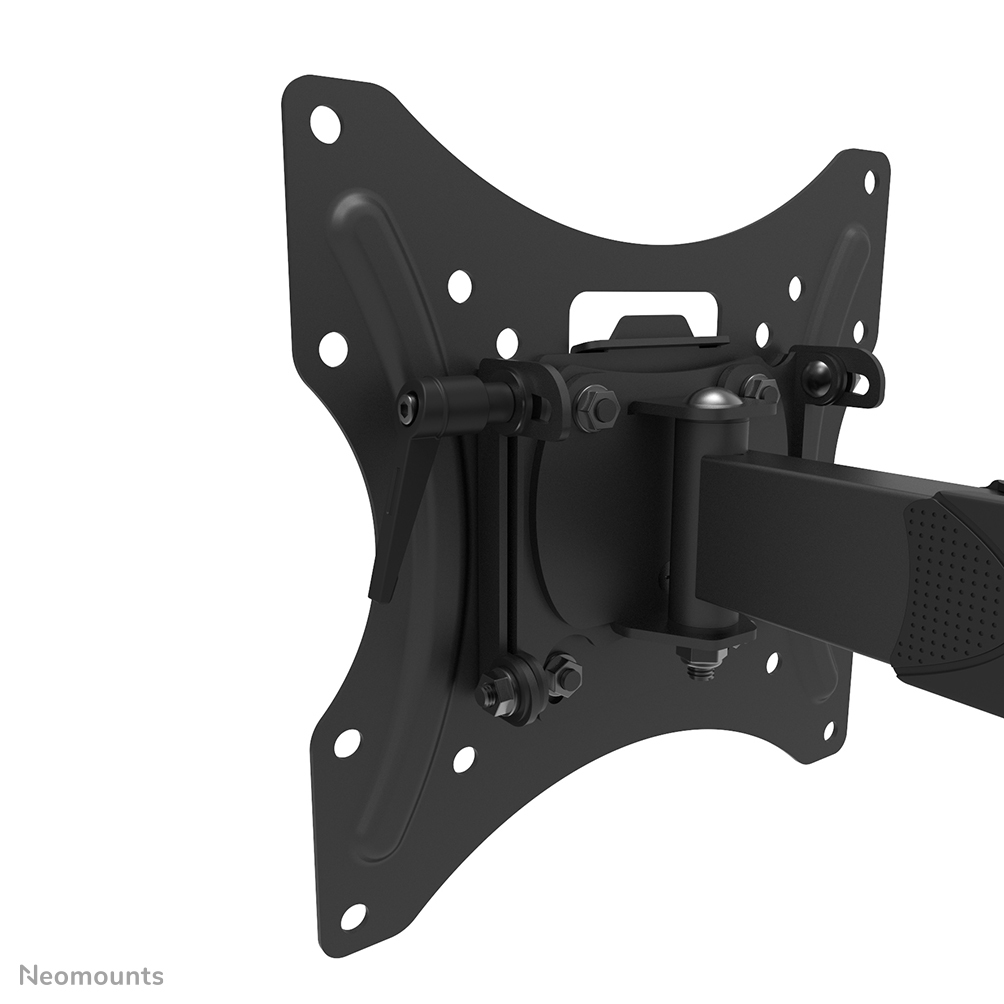

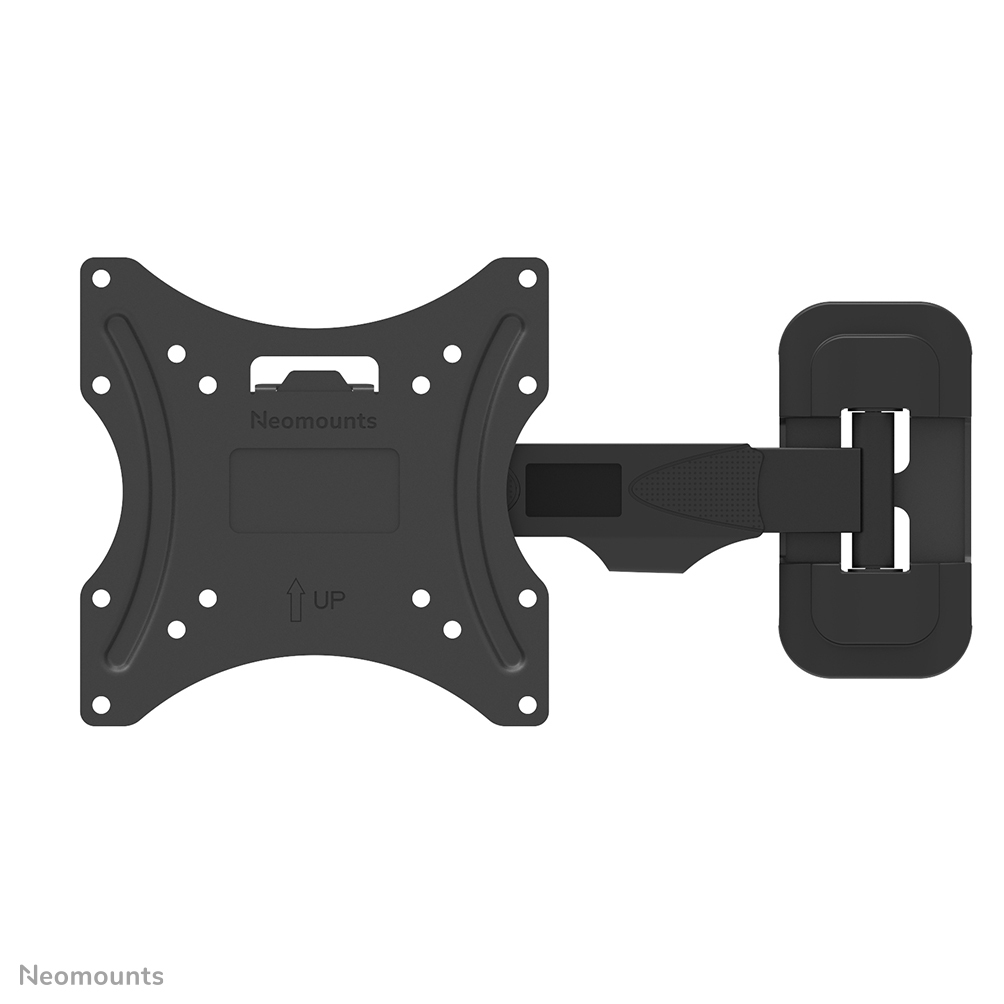

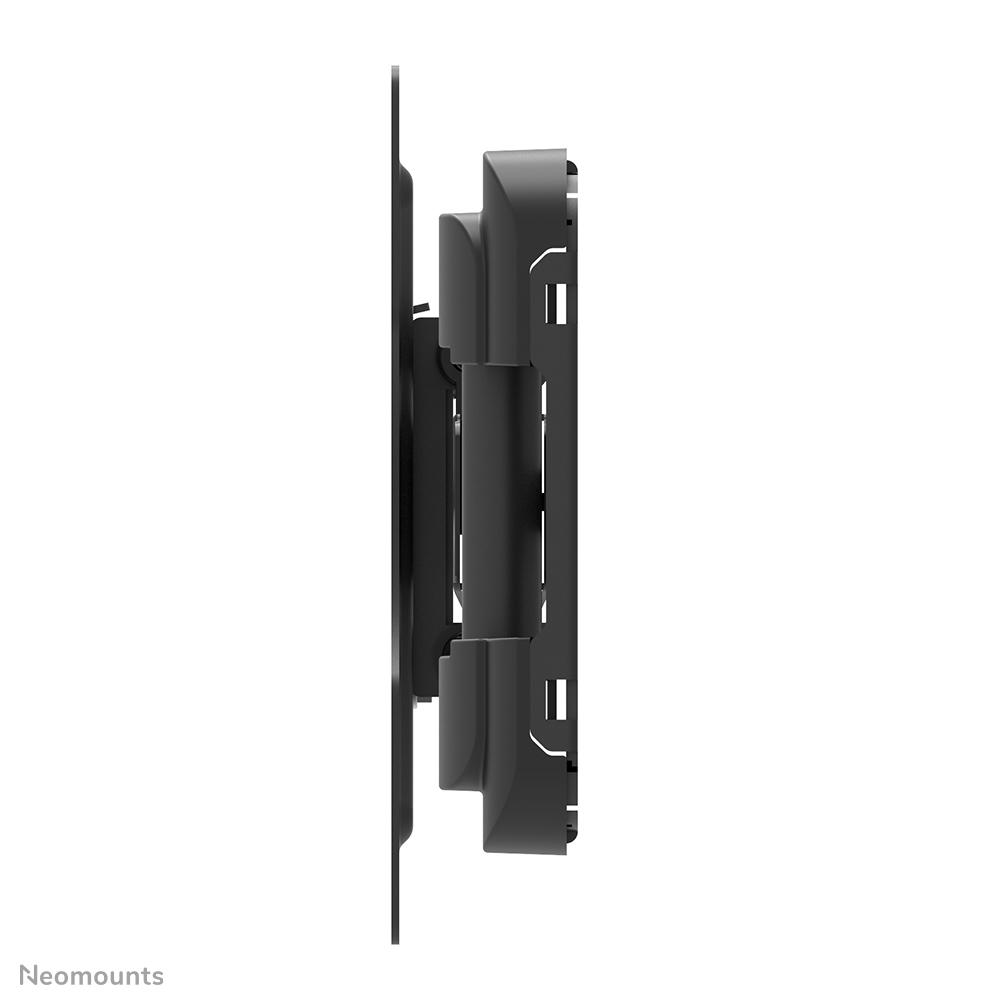

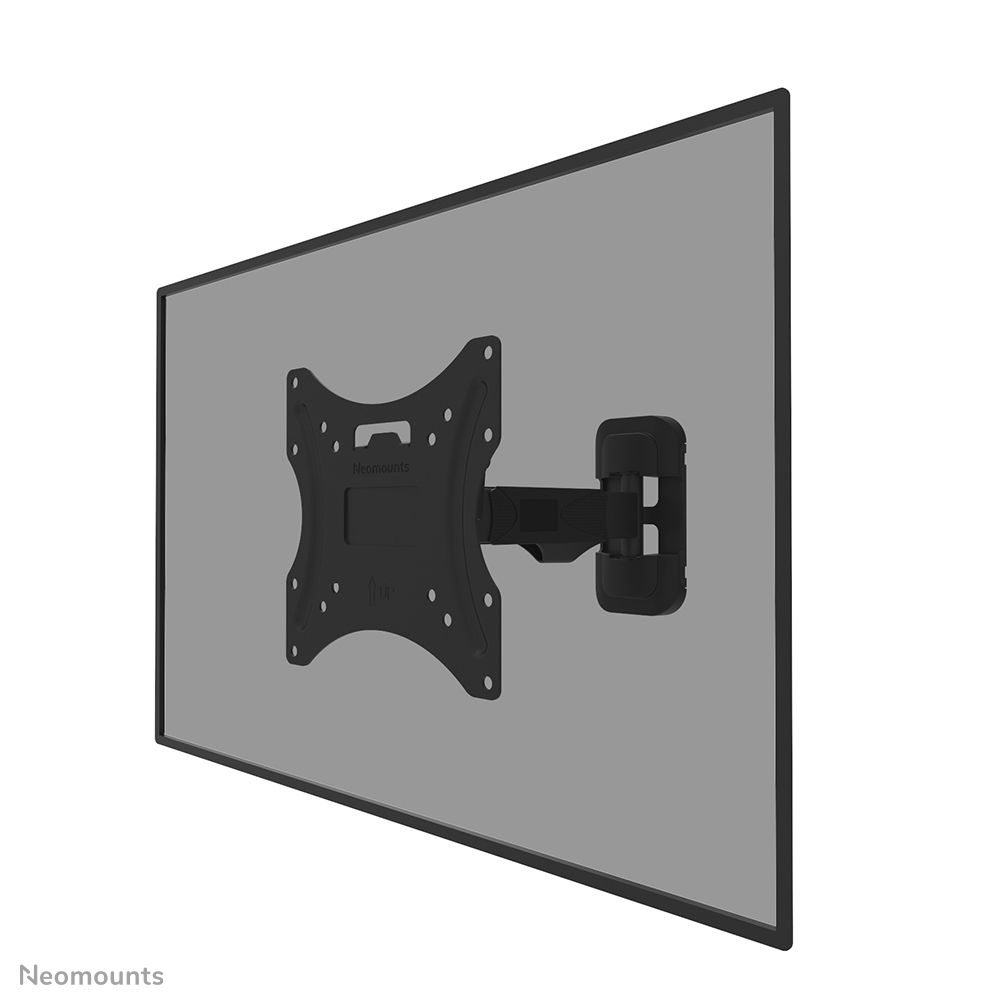

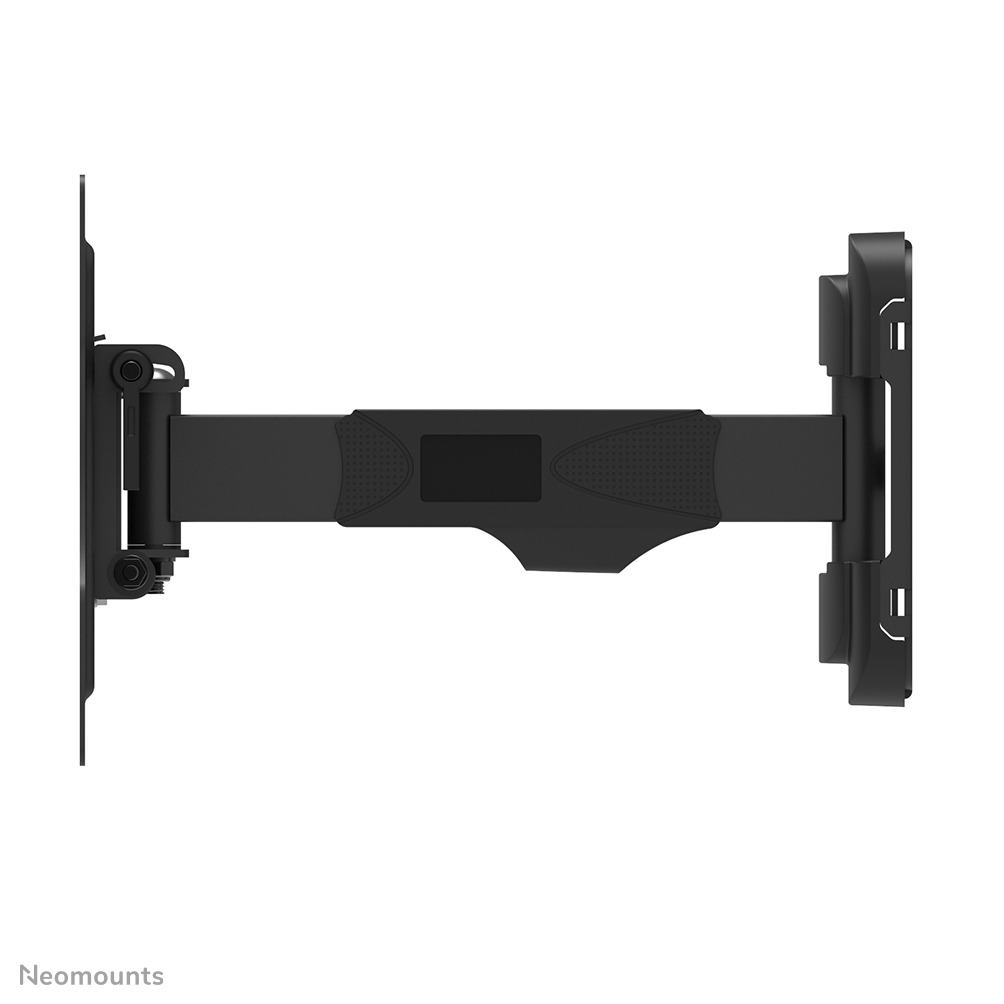

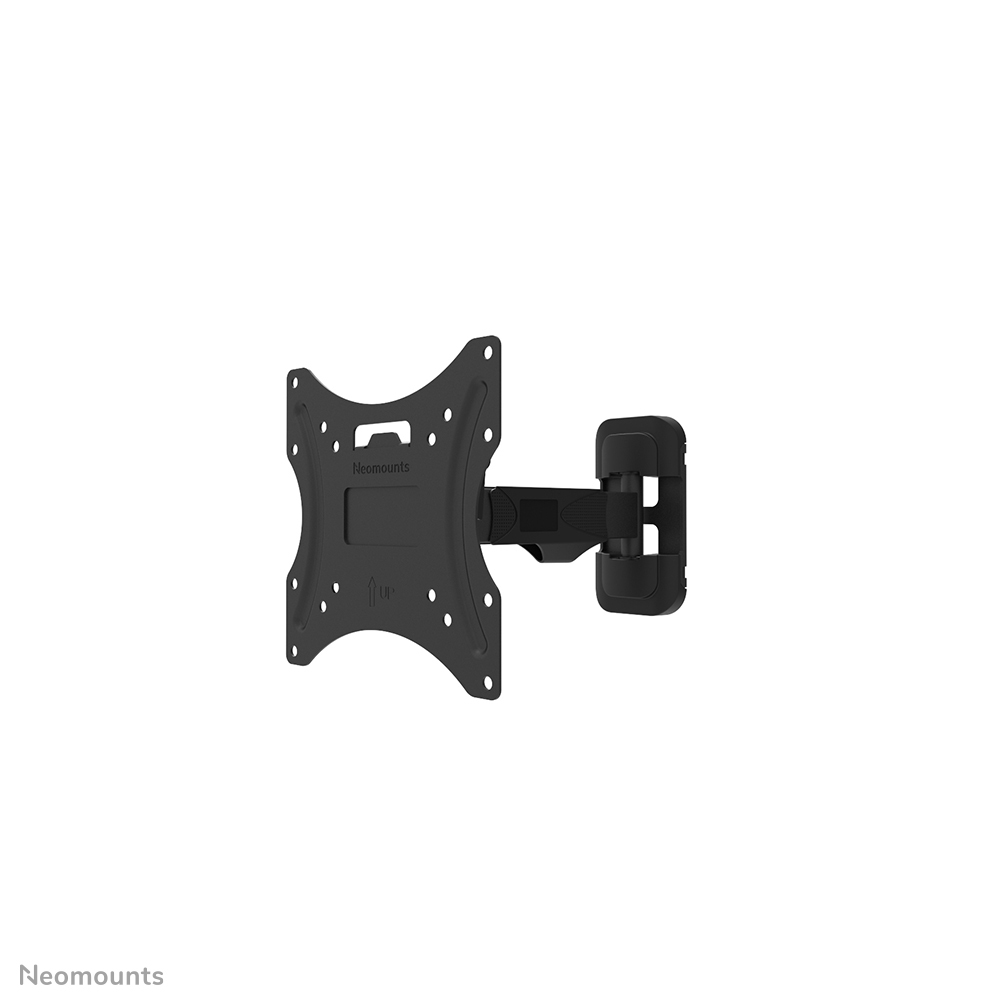

Neomounts WL40-540BL12 TV mount wall 32-55" - full motion - easy install

WL40-540BL12 TV mount wall 32-55" - full motion - easy install

Model WL40-540BL12EAN 8717371448691

46 specifications

TypeFull motion
Weight2.25 kg
ColourBlack
Number of displays supported1
Height adjustmentNo
Country of originChina

See all specifications

Overview

Type: Full motion
Weight: 2.25 kg
Colour: Black
Number of displays supported: 1
Height adjustment: No
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: WL40-540BL12
Part number: WL40-540BL12
EAN / UPC: 8717371448691
Also known as: Neomounts WL40-540BL12 TV mount wall 32-55" - full motion - easy install

Specifications

46 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	35 kg
Maximum weight capacity	35 kg
Minimum screen size	81.3 cm (32")
Maximum screen size	139.7 cm (55")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 100,200 x 100,200 x 200

Ergonomics

Specification	Value
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-2 - 12°
Swivelling	Yes
Swivel angle	30°
Swivel angle range	0 - 30°
Rotating	Yes
Angle of rotation	6°
Pivot angle	-3 - 3°
Cable management	Yes
Type	Full motion
Distance to the wall (max)	30.8 cm
Distance to the wall (min)	4.6 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Packaging content

Specification	Value
Mounting kit	Yes

Technical details

Specification	Value
Country of origin	China
Quantity per pack	1 pc(s)
Lockable	Not lockable
Package net weight	3.1 kg

Weight & dimensions

Specification	Value
Width	220 mm
Depth	46 mm
Depth (max)	4.6 cm
Height	220 mm
Weight	2.25 kg

Packaging data

Specification	Value
Package width	442 mm
Package depth	229 mm
Package height	56 mm
Package weight	3.1 kg

Logistics data

Specification	Value
Master (outer) case width	462 mm
Master (outer) case length	300 mm
Master (outer) case height	250 mm
Master (outer) case gross weight	16 kg
Master (outer) case net weight	14.4 kg
Products per master (outer) case	5 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	150 pc(s)
