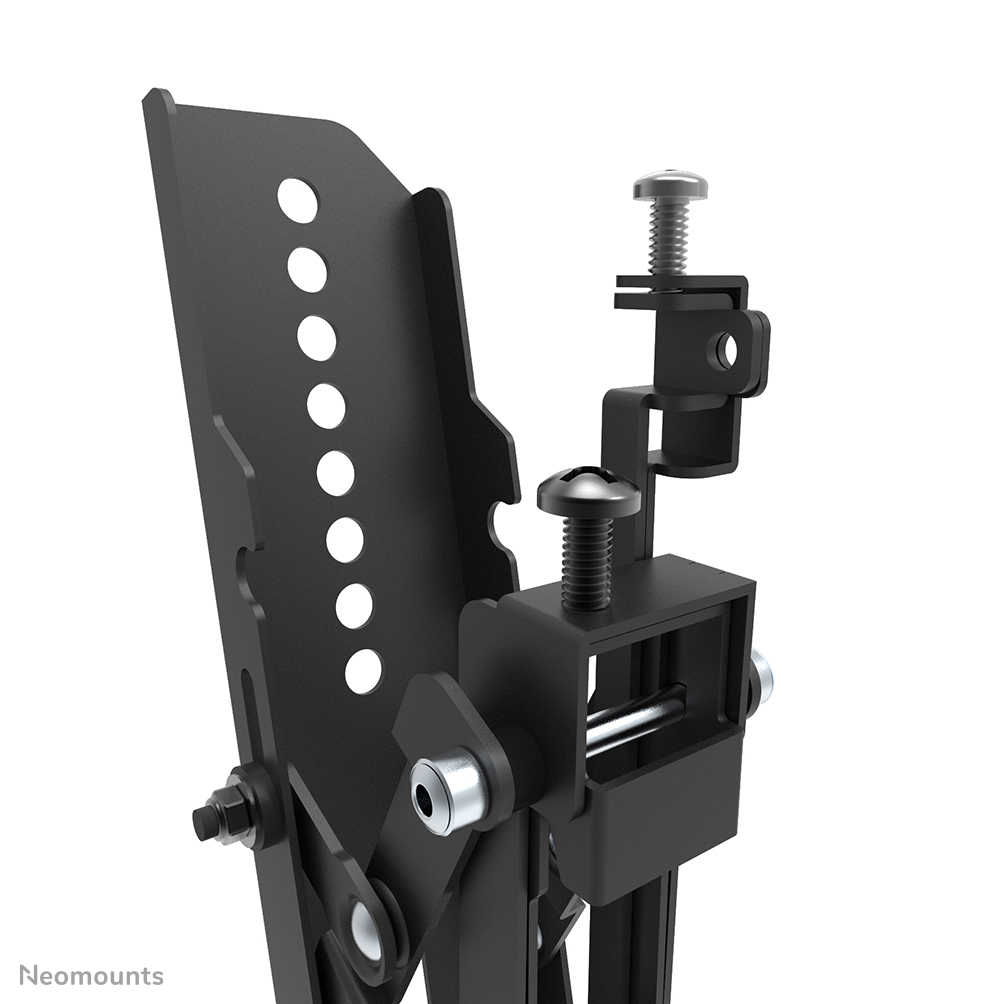

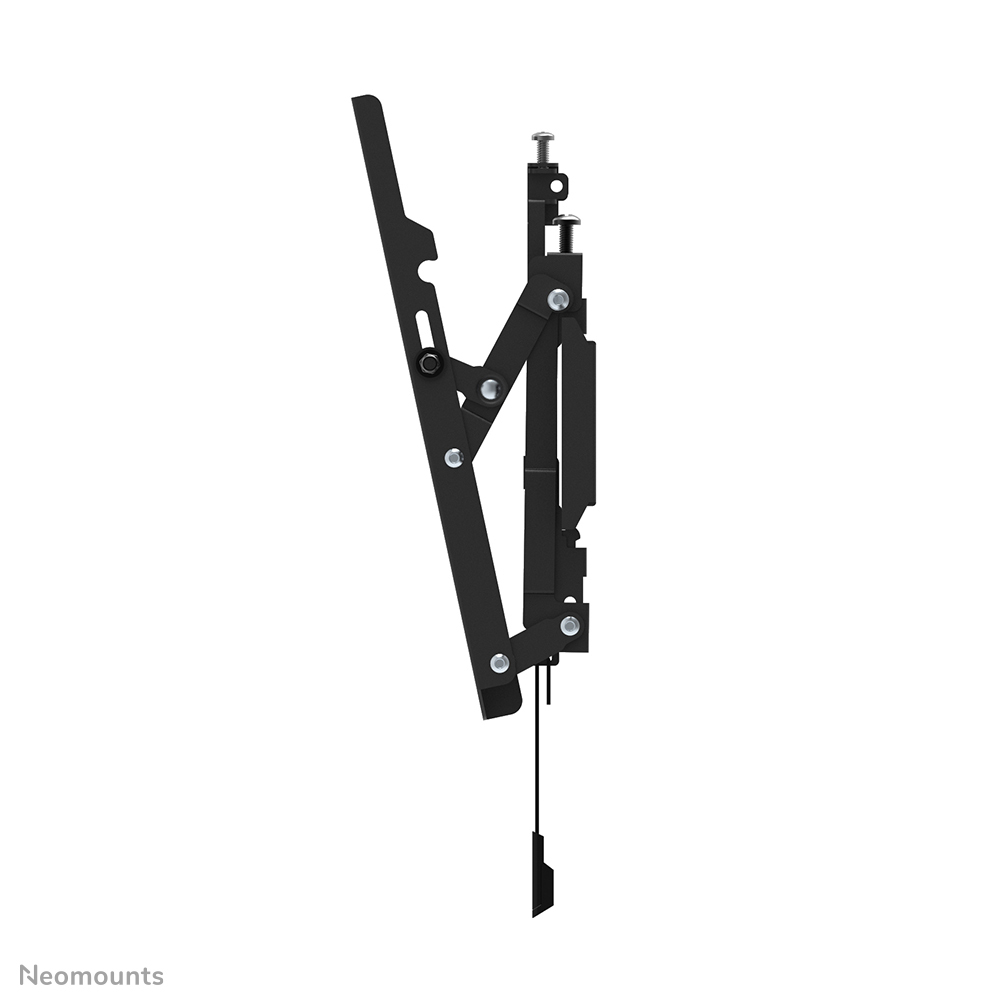

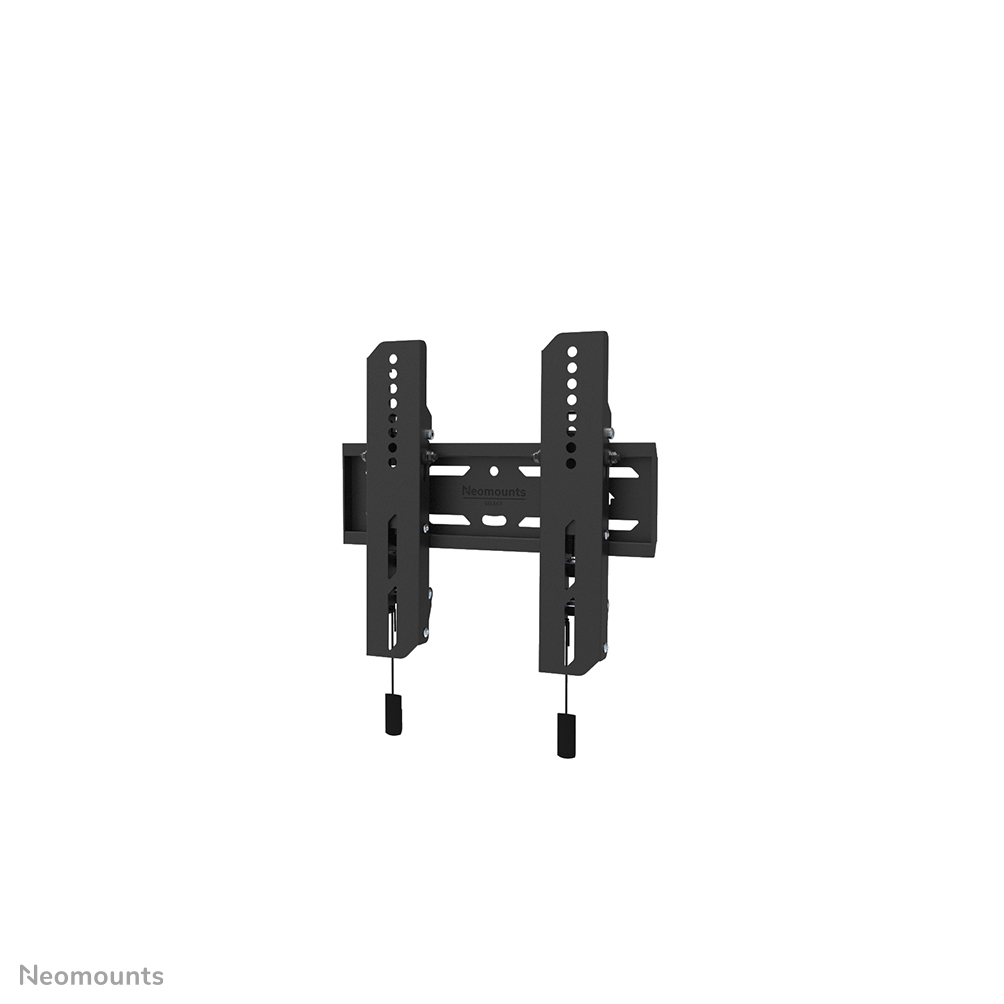

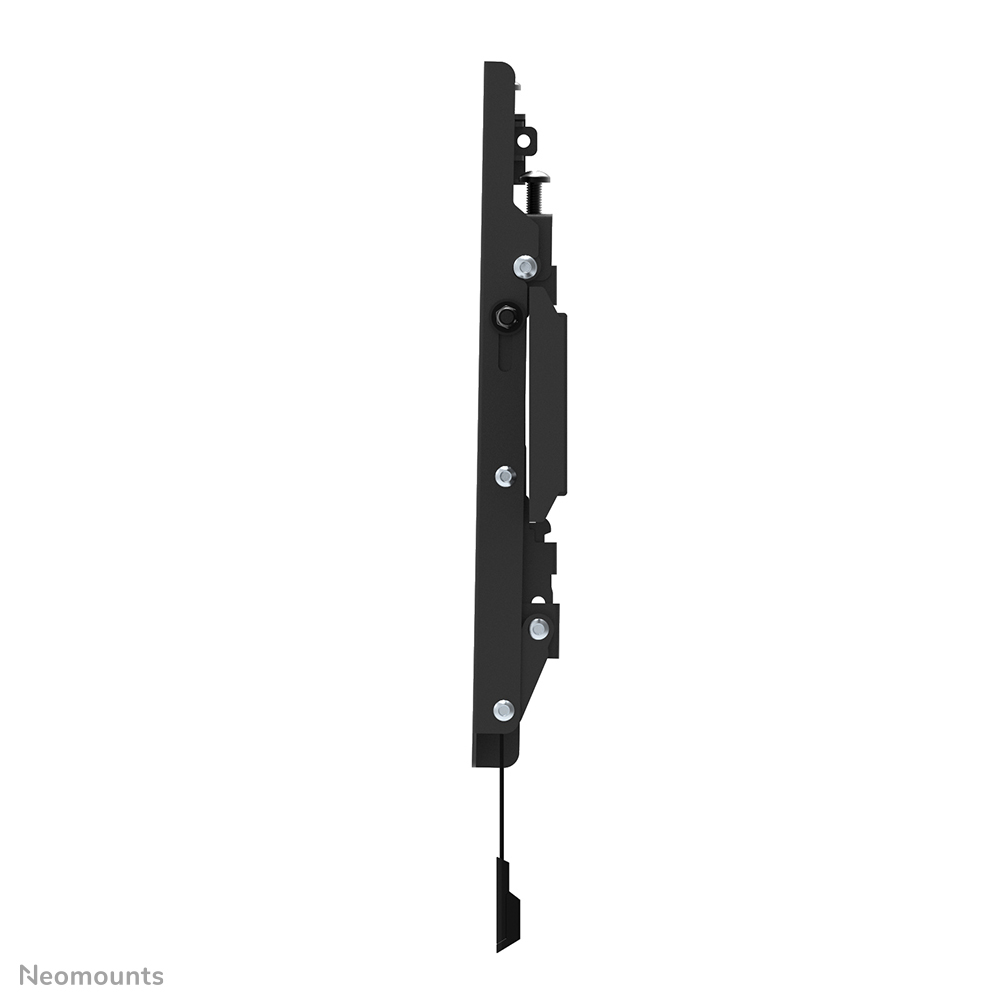

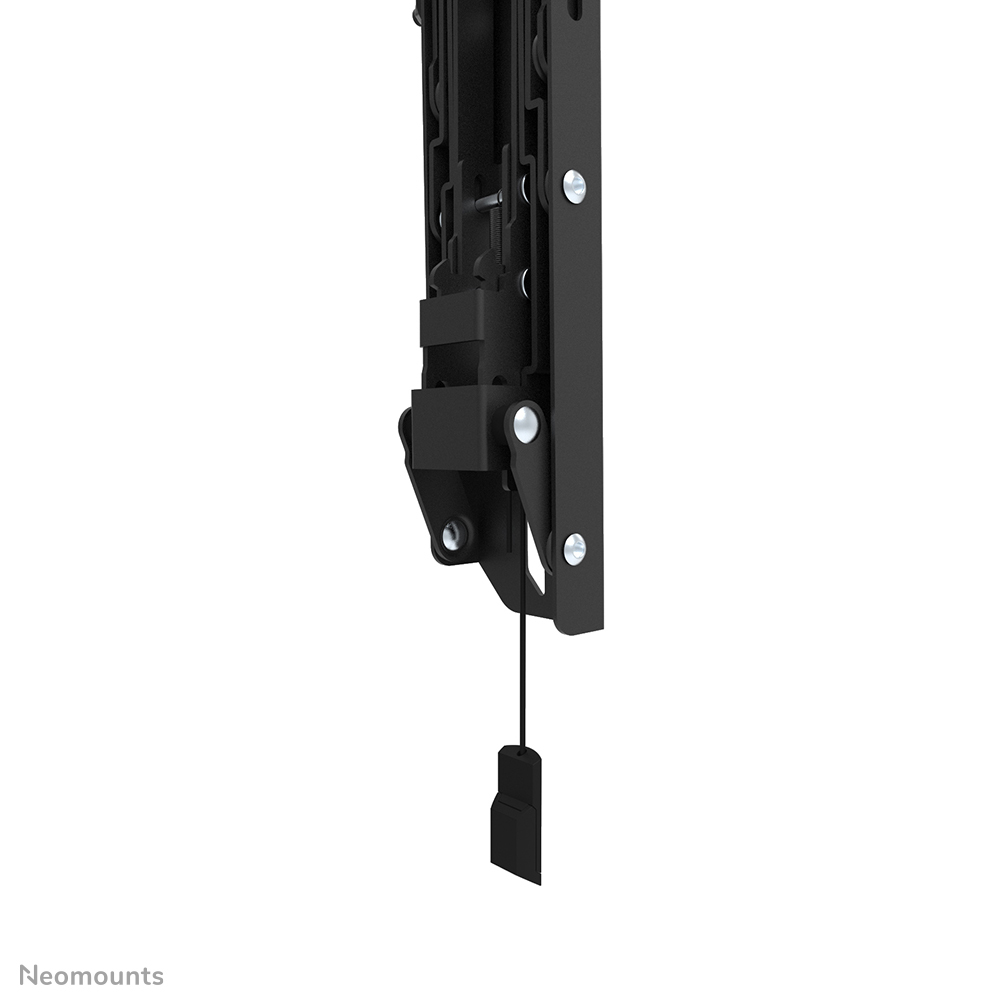

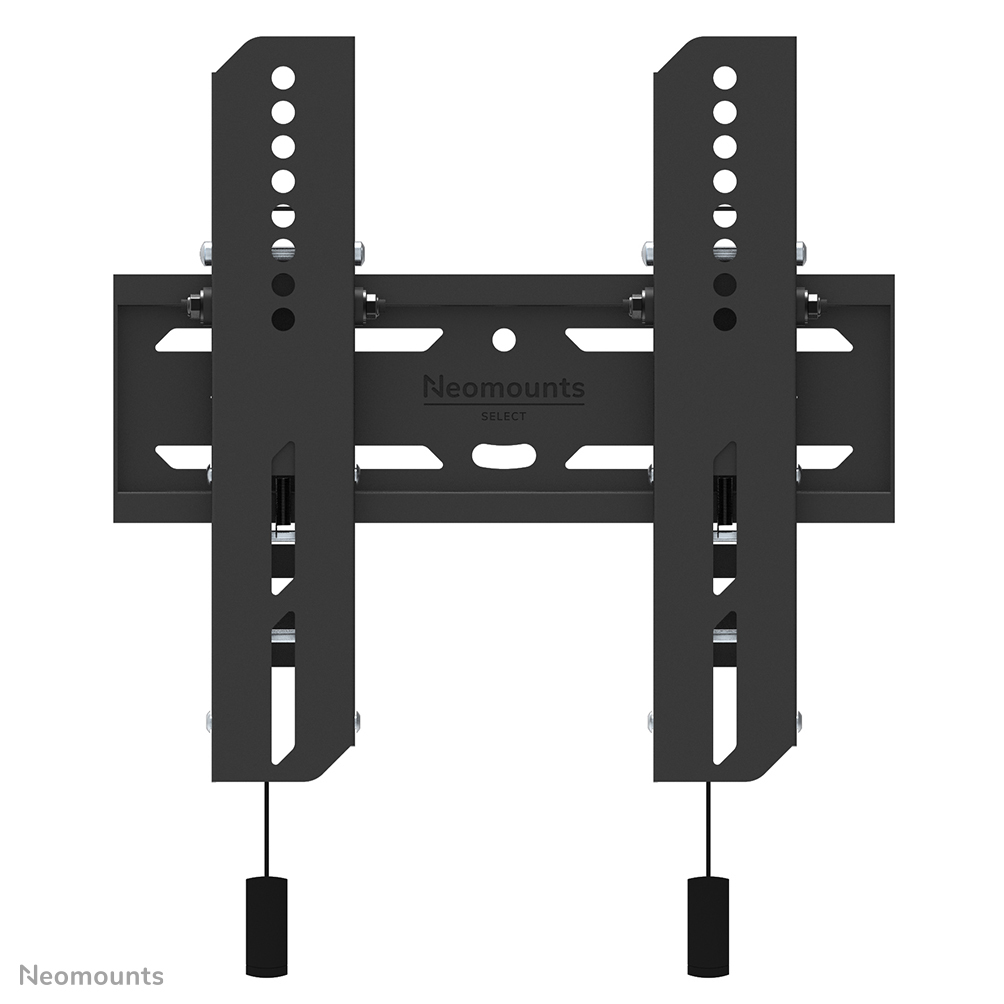

Neomounts WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation

WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation

Model WL35S-850BL12EAN 8717371448783

37 specifications

Weight1.55 kg
ColourBlack
Number of displays supported1
Height adjustmentYes
Country of originChina
Width283 mm

See all specifications

Overview

Weight: 1.55 kg
Colour: Black
Number of displays supported: 1
Height adjustment: Yes
Country of origin: China
Width: 283 mm

Brand: Neomounts
Category: TV Mounts & Stands
Model: WL35S-850BL12
Part number: WL35S-850BL12
EAN / UPC: 8717371448783
Also known as: Neomounts WL35S-850BL12 TV mount wall 24-65" - tiltable - lockable - fast installation

Specifications

37 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	40 kg
Maximum weight capacity	40 kg
Minimum screen size	61 cm (24")
Maximum screen size	165.1 cm (65")
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,75 x 75,75 x 100,75 x 200

Ergonomics

Specification	Value
Height adjustment	Yes
Height adjustment range	0 - 20 mm
Tilt adjustment	Yes
Tilt angle range	0 - 12°
Distance to the wall (max)	3.5 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Quantity per pack	1 pc(s)

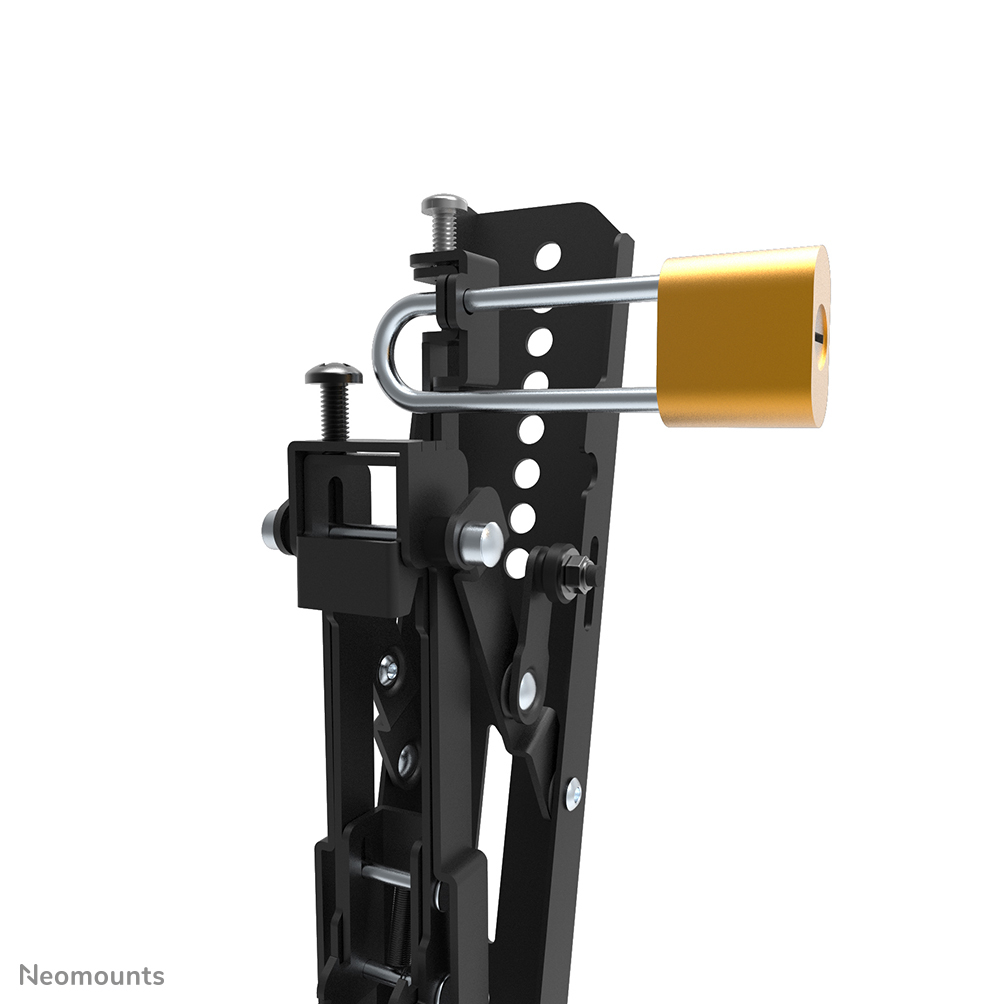

Lockable	Security screw included
Package net weight	2.4 kg

Weight & dimensions

Specification	Value
Width	283 mm
Depth	35 mm
Depth (max)	3.5 cm
Height	270 mm
Weight	1.55 kg

Packaging data

Specification	Value
Package width	545 mm
Package depth	158 mm
Package height	74 mm
Package weight	2.4 kg

Logistics data

Specification	Value
Master (outer) case width	565 mm
Master (outer) case length	240 mm
Master (outer) case height	343 mm
Master (outer) case gross weight	15 kg
Master (outer) case net weight	11.1 kg
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	144 pc(s)
