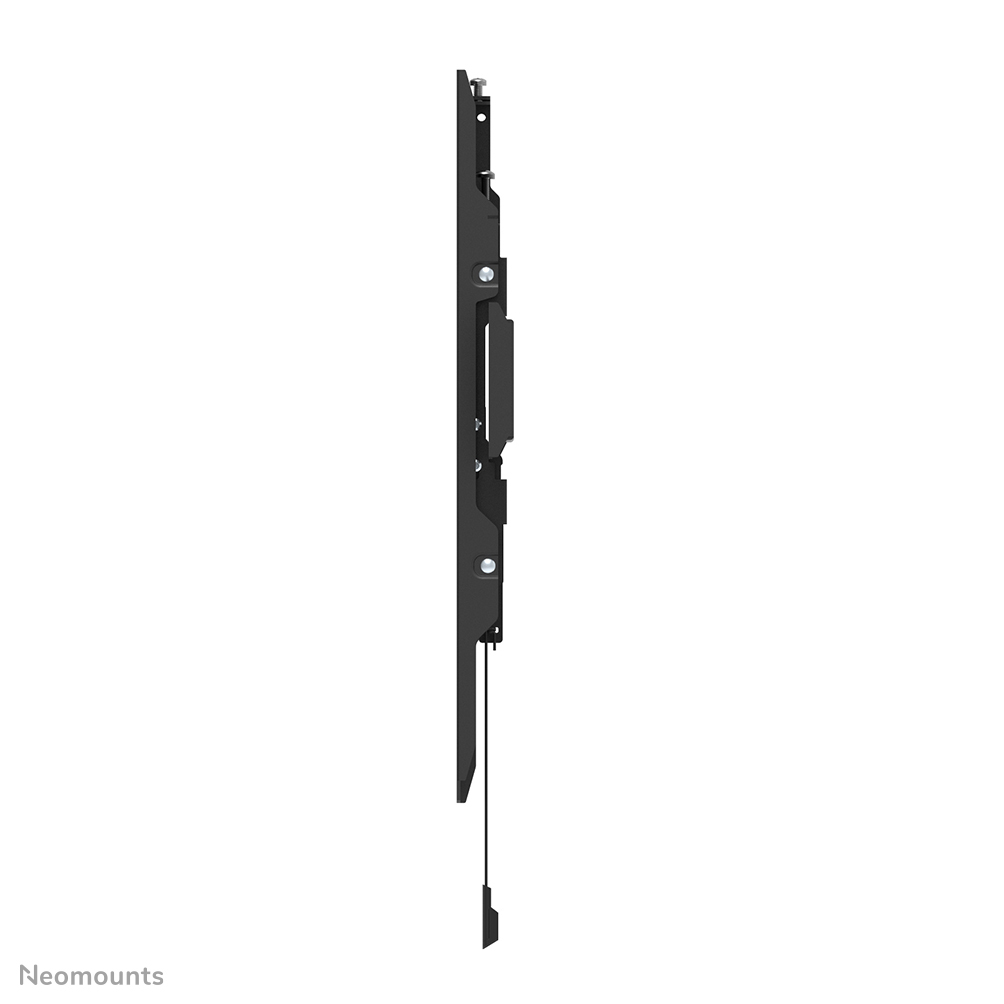

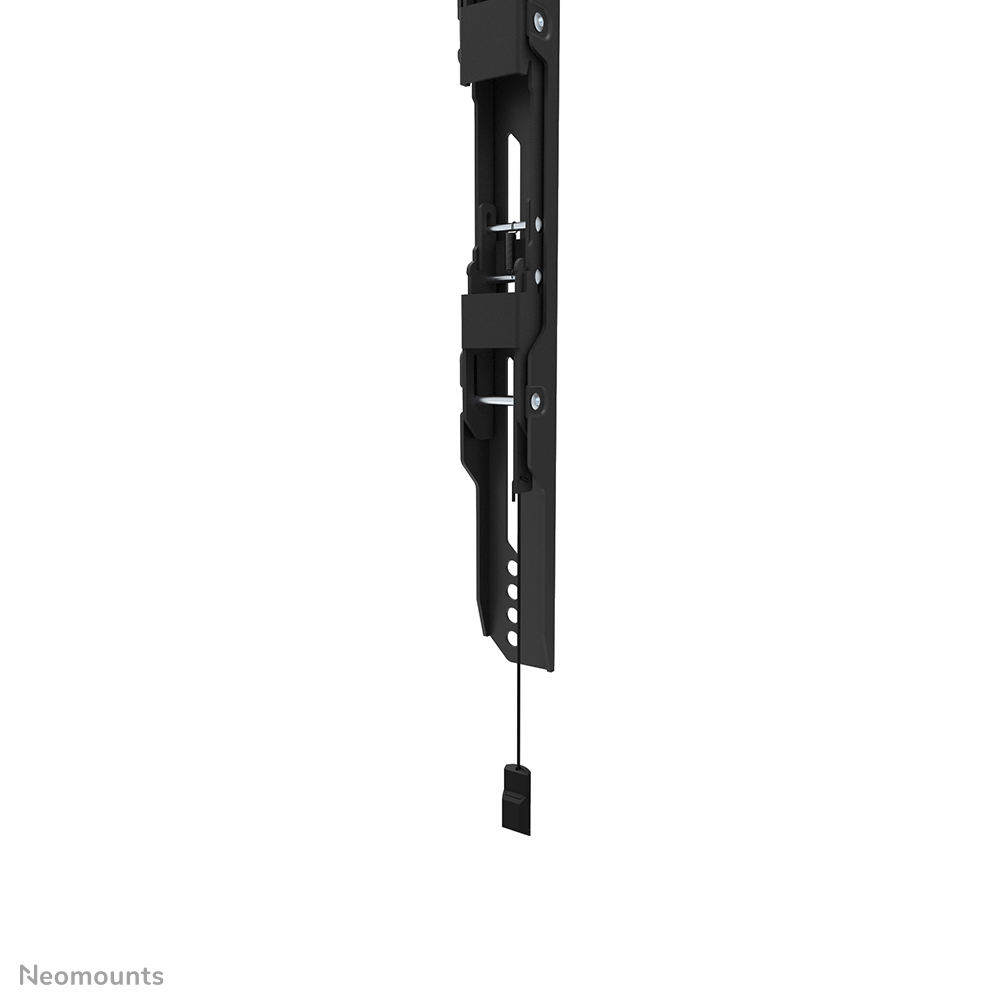

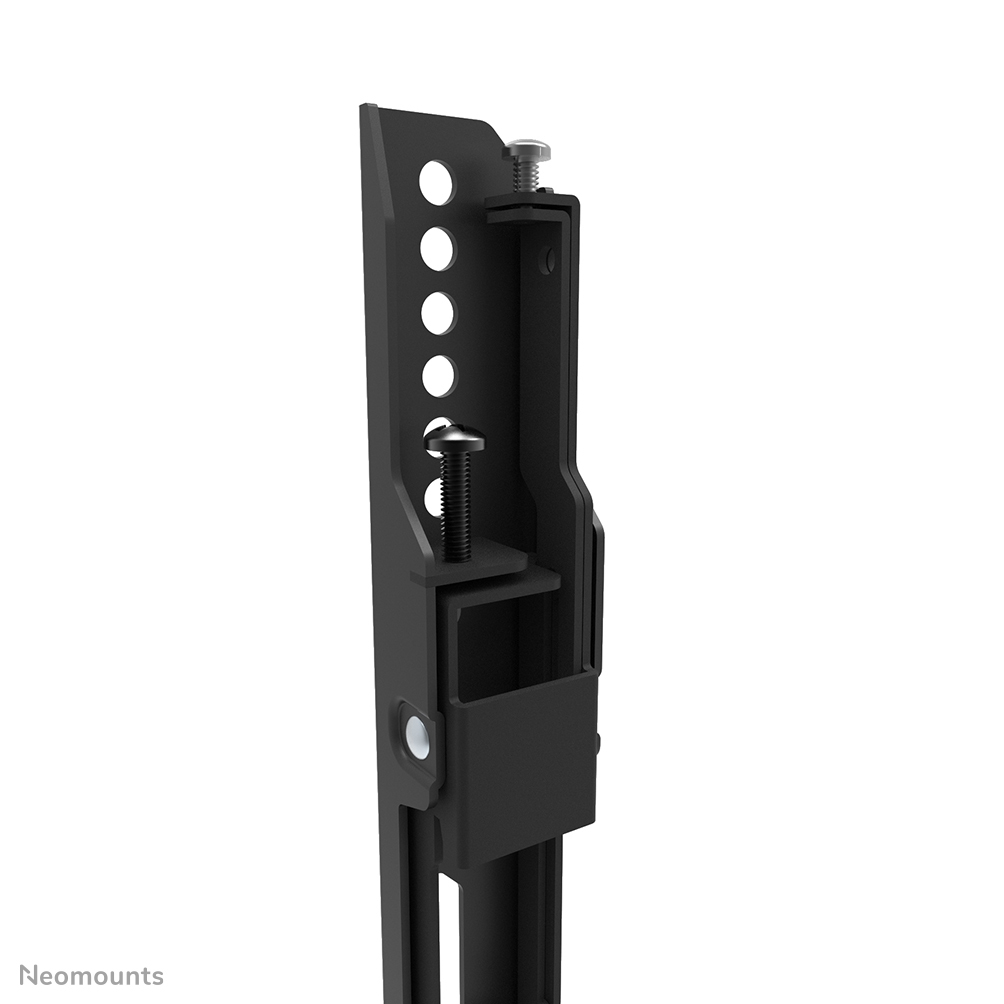

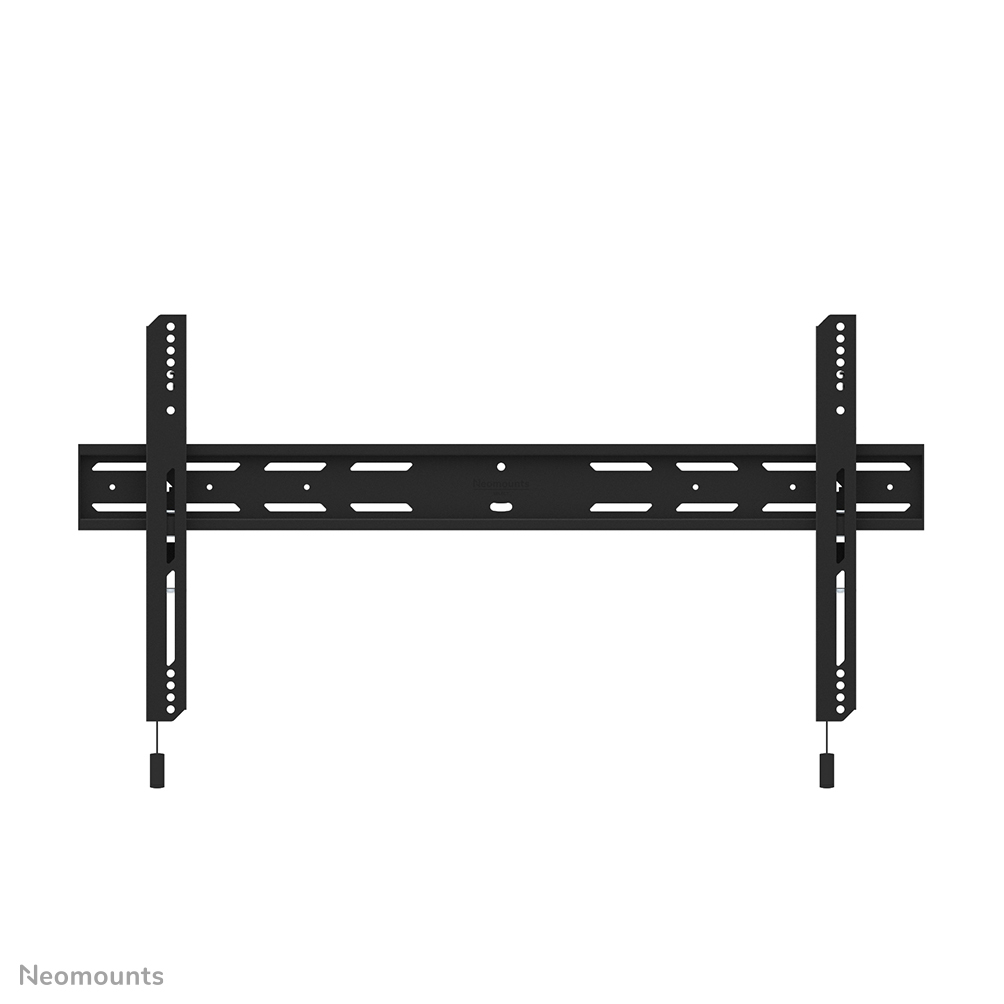

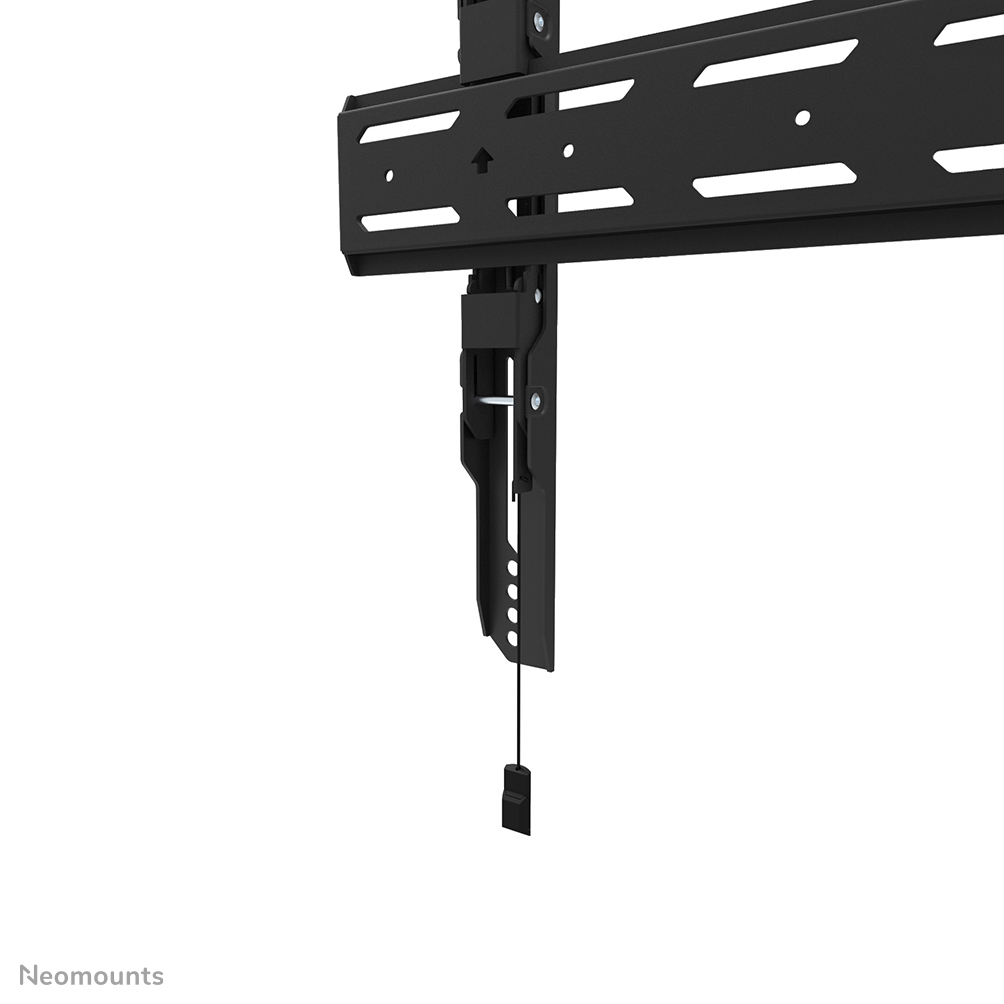

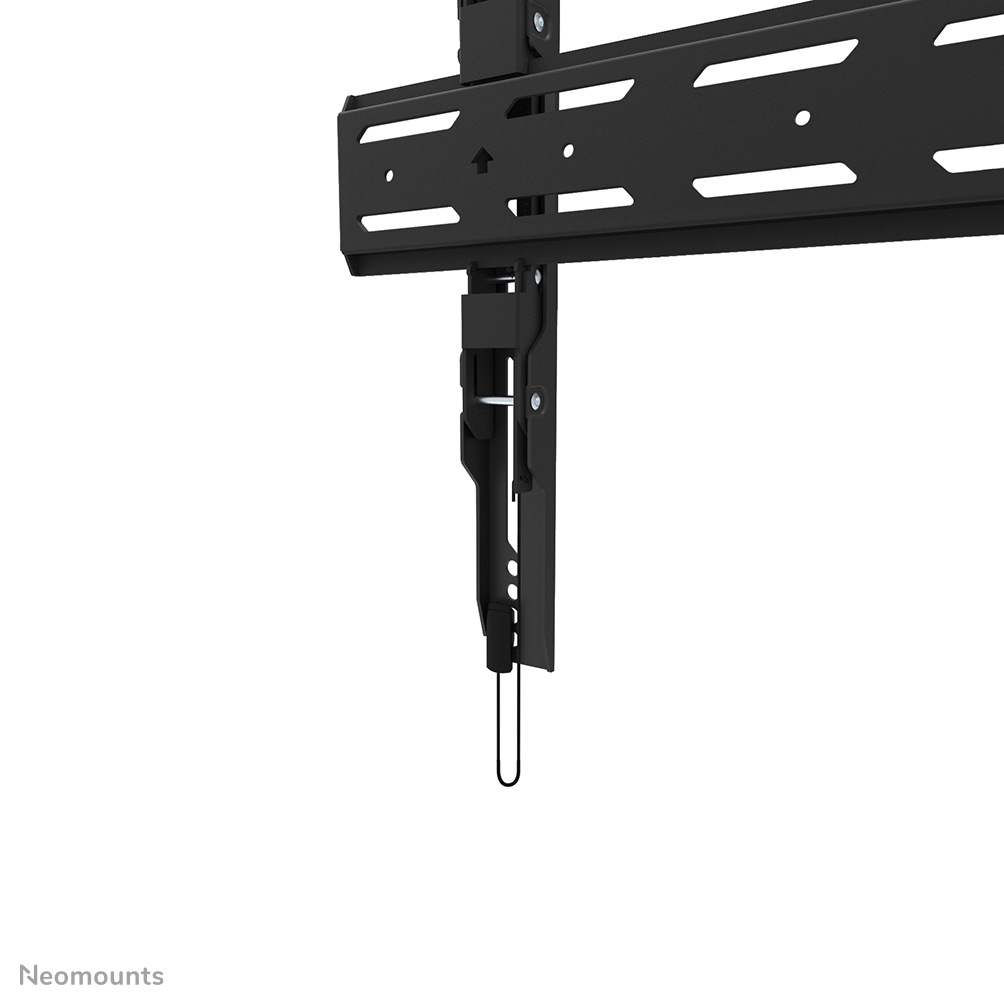

Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation

WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation

Model WL30S-850BL18EAN 8717371448882

35 specifications

TypeFixed
Weight2.7 kg
ColourBlack
Number of displays supported1
Height adjustmentYes
Country of originChina

See all specifications

Overview

Type: Fixed
Weight: 2.7 kg
Colour: Black
Number of displays supported: 1
Height adjustment: Yes
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: WL30S-850BL18
Part number: WL30S-850BL18
EAN / UPC: 8717371448882
Also known as: Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation

Specifications

35 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	60 kg
Maximum weight capacity	60 kg
Minimum screen size	109.2 cm (43")
Maximum screen size	2.18 m (86")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	800 x 400 mm
Panel mounting interface	100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,680 x 300,800 x 200,800 x 400

Ergonomics

Specification	Value
Height adjustment	Yes
Height adjustment range	0 - 20 mm
Type	Fixed
Distance to the wall (max)	3.3 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China

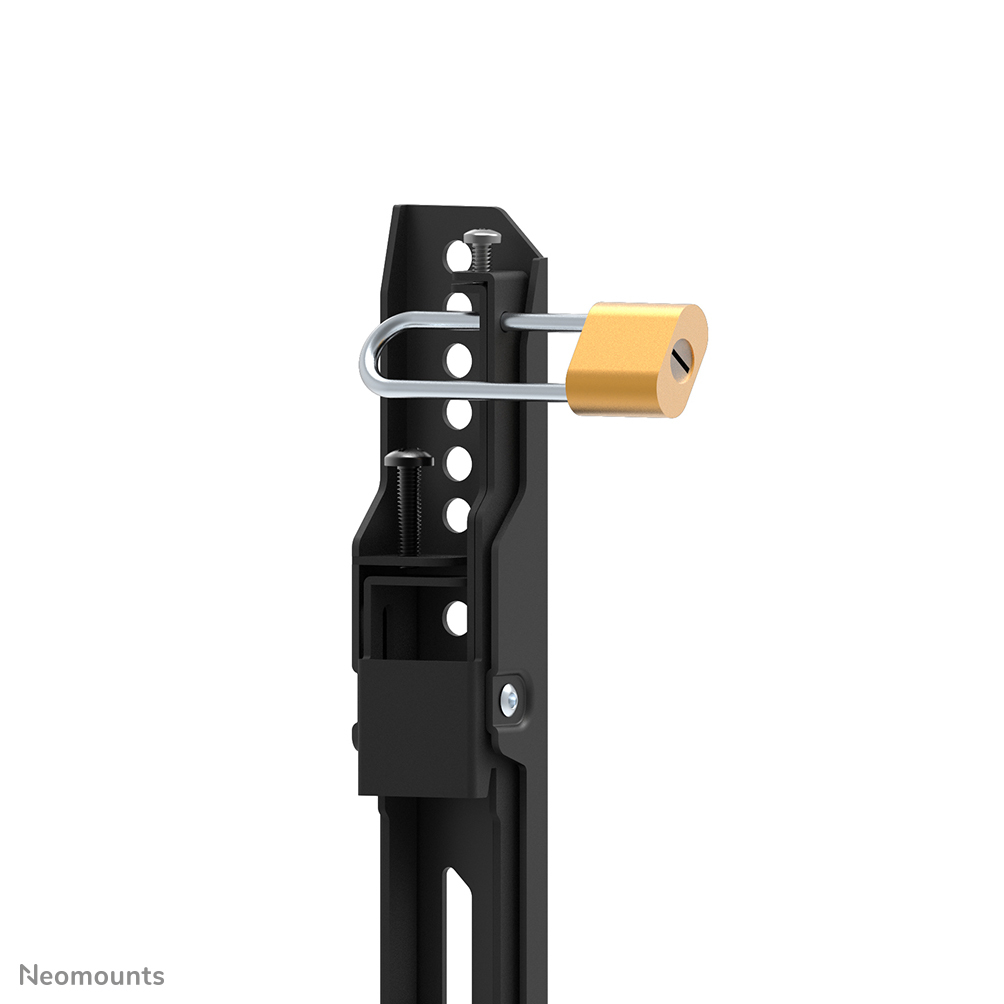

Lockable	Security screw included
Package net weight	4 kg

Weight & dimensions

Specification	Value
Width	884 mm
Depth	33 mm
Depth (max)	3.3 cm
Height	425 mm
Weight	2.7 kg

Packaging data

Specification	Value
Package width	904 mm
Package depth	158 mm
Package height	74 mm
Package weight	4 kg

Logistics data

Specification	Value
Master (outer) case width	924 mm
Master (outer) case length	240 mm
Master (outer) case height	343 mm
Master (outer) case gross weight	24.7 kg
Master (outer) case net weight	18 kg
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	72 pc(s)
