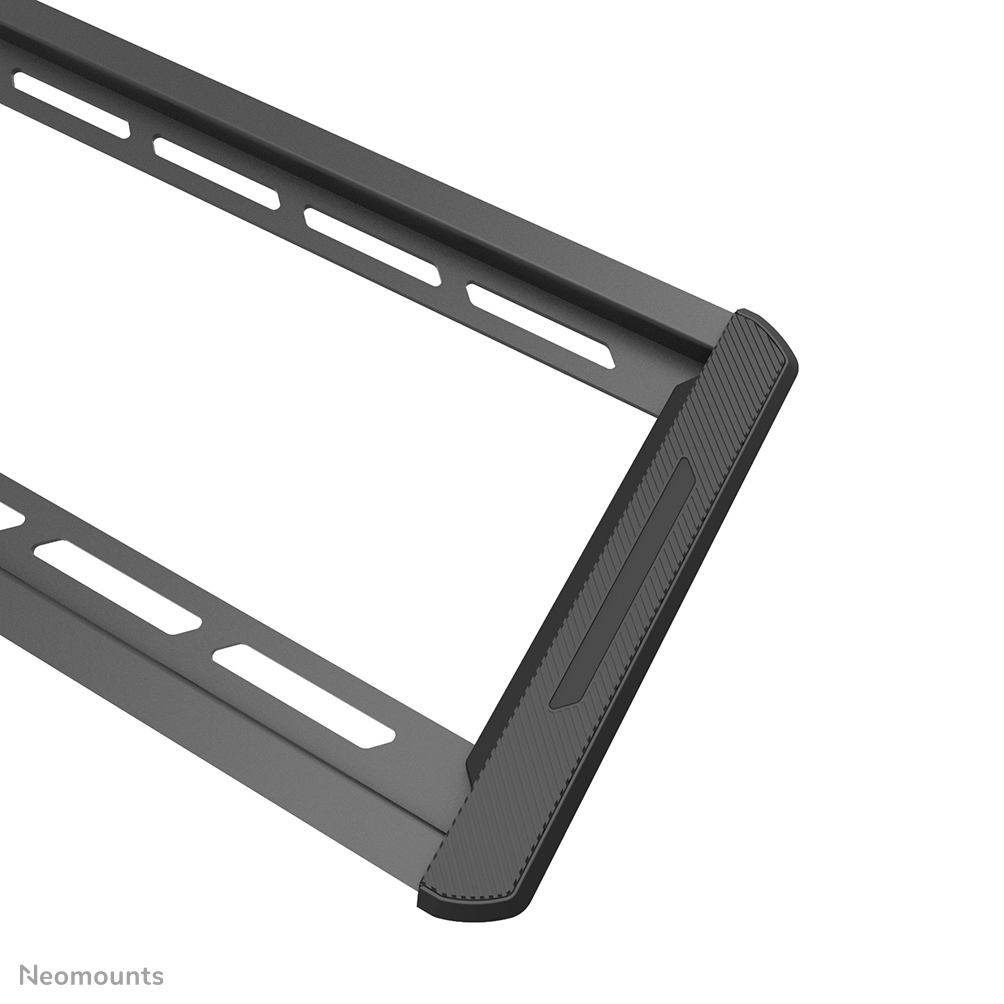

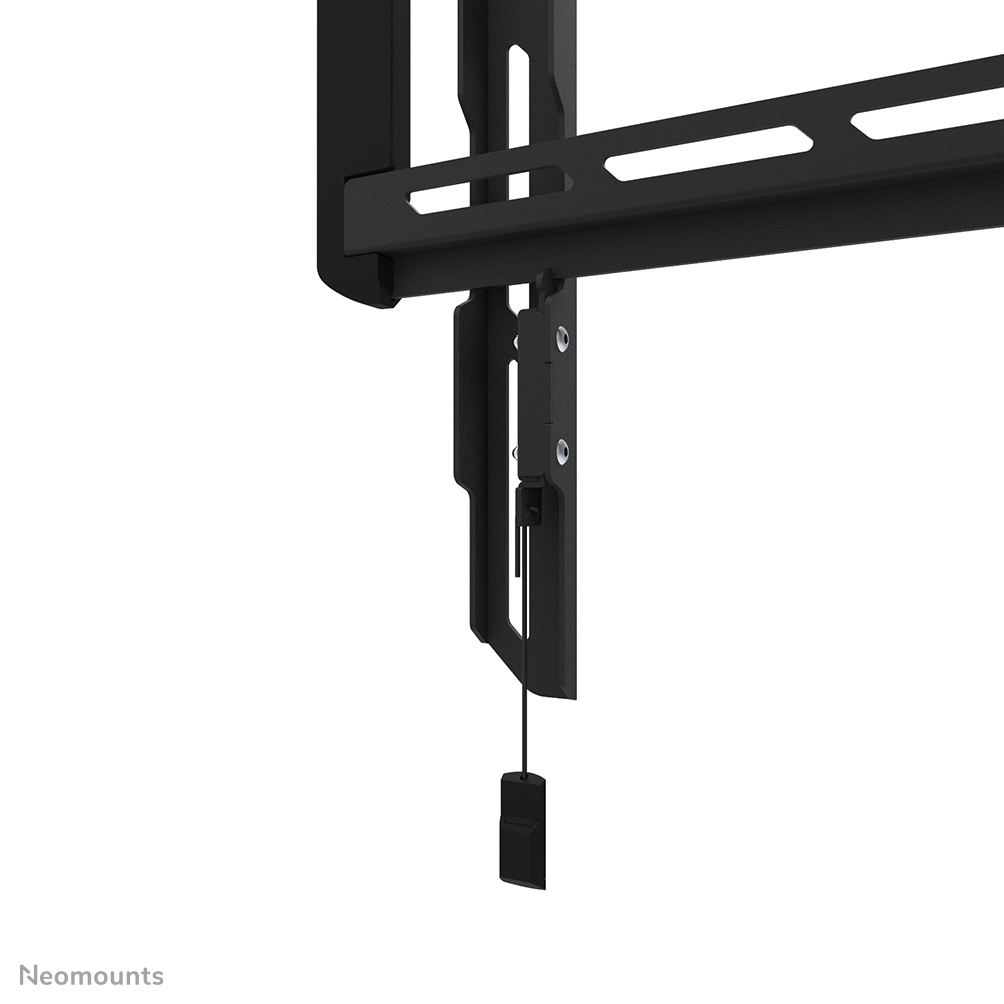

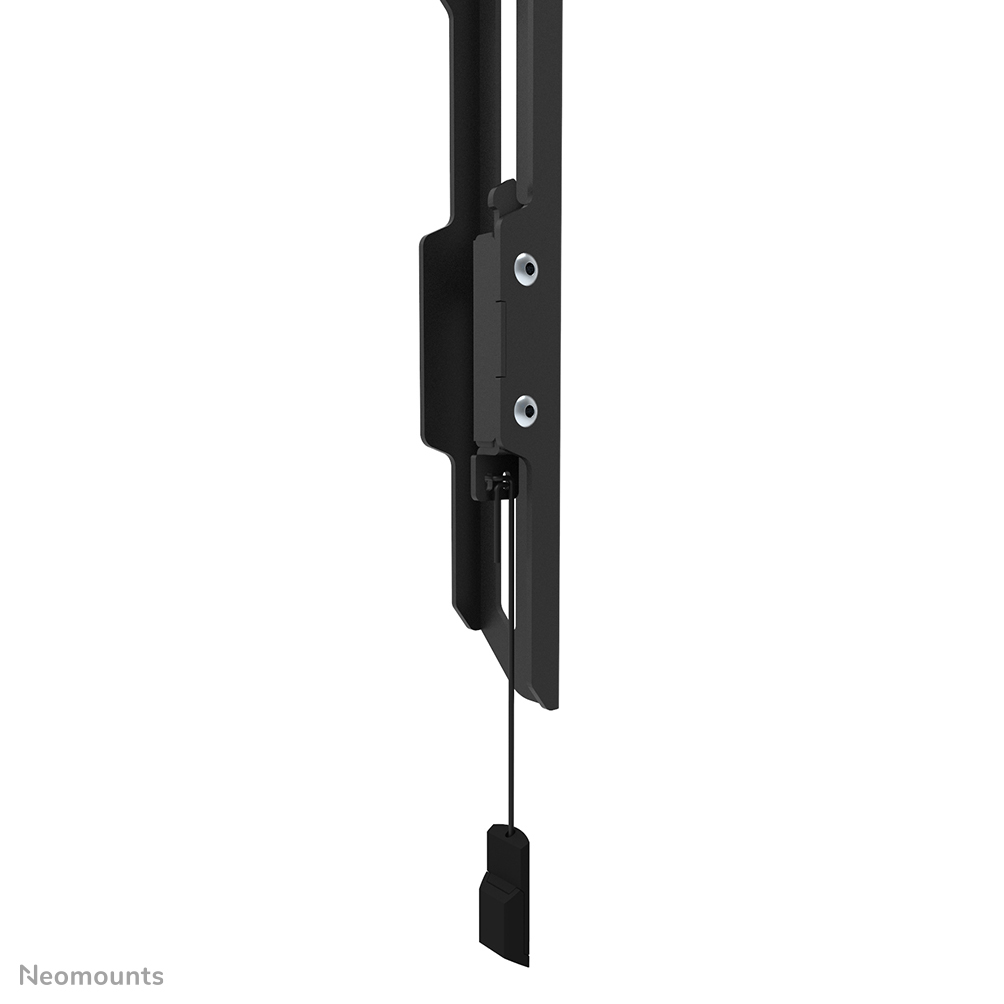

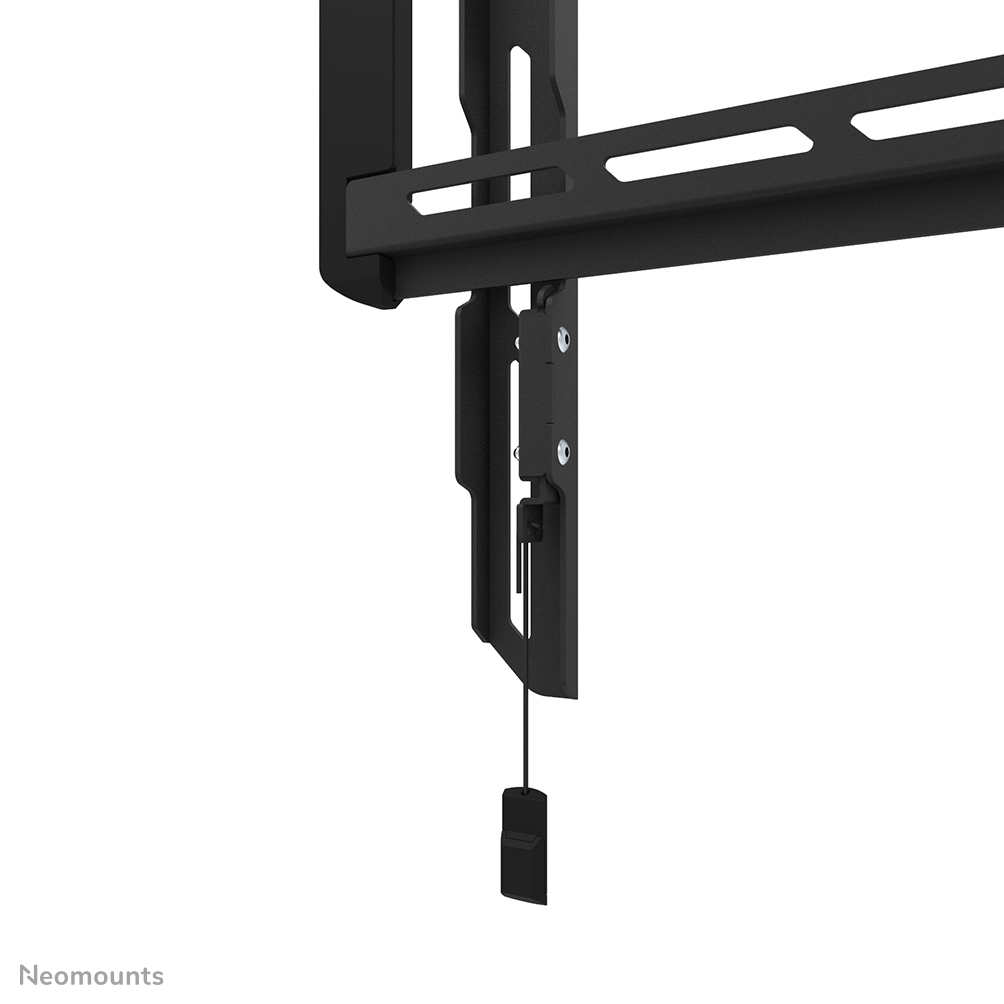

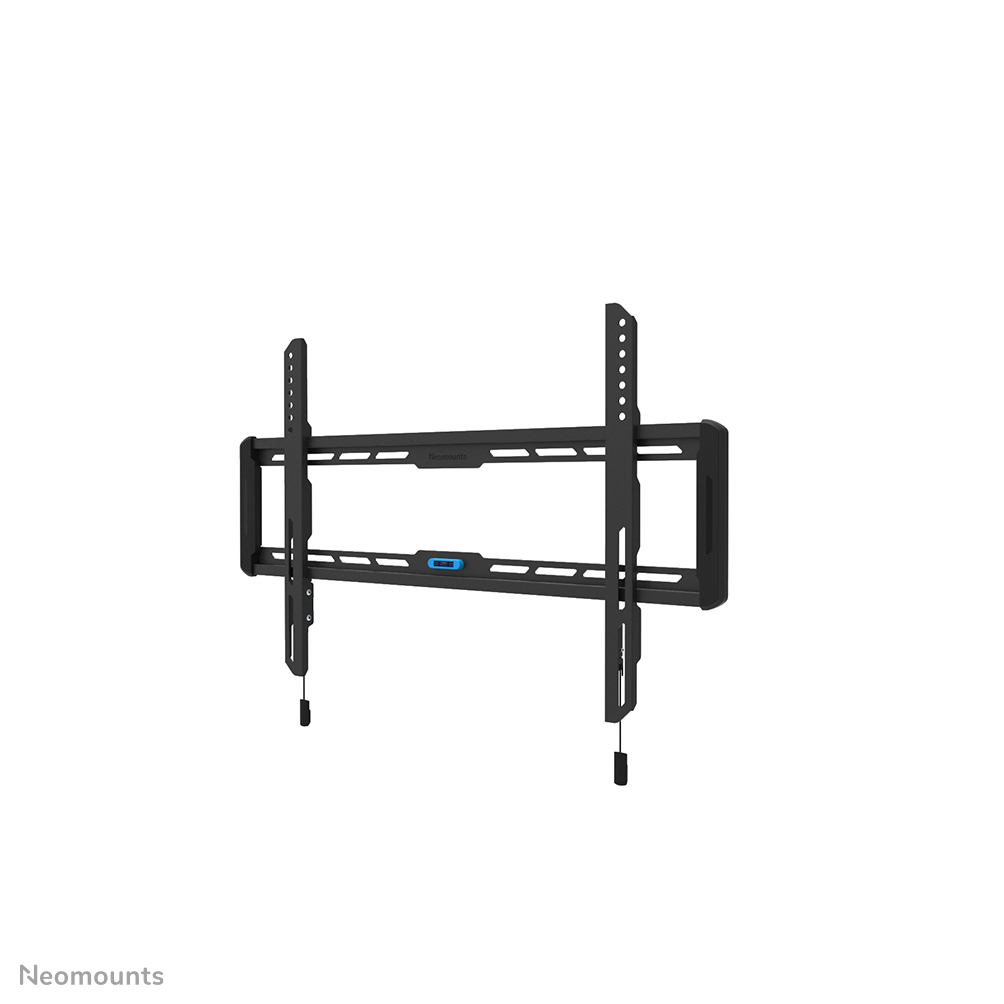

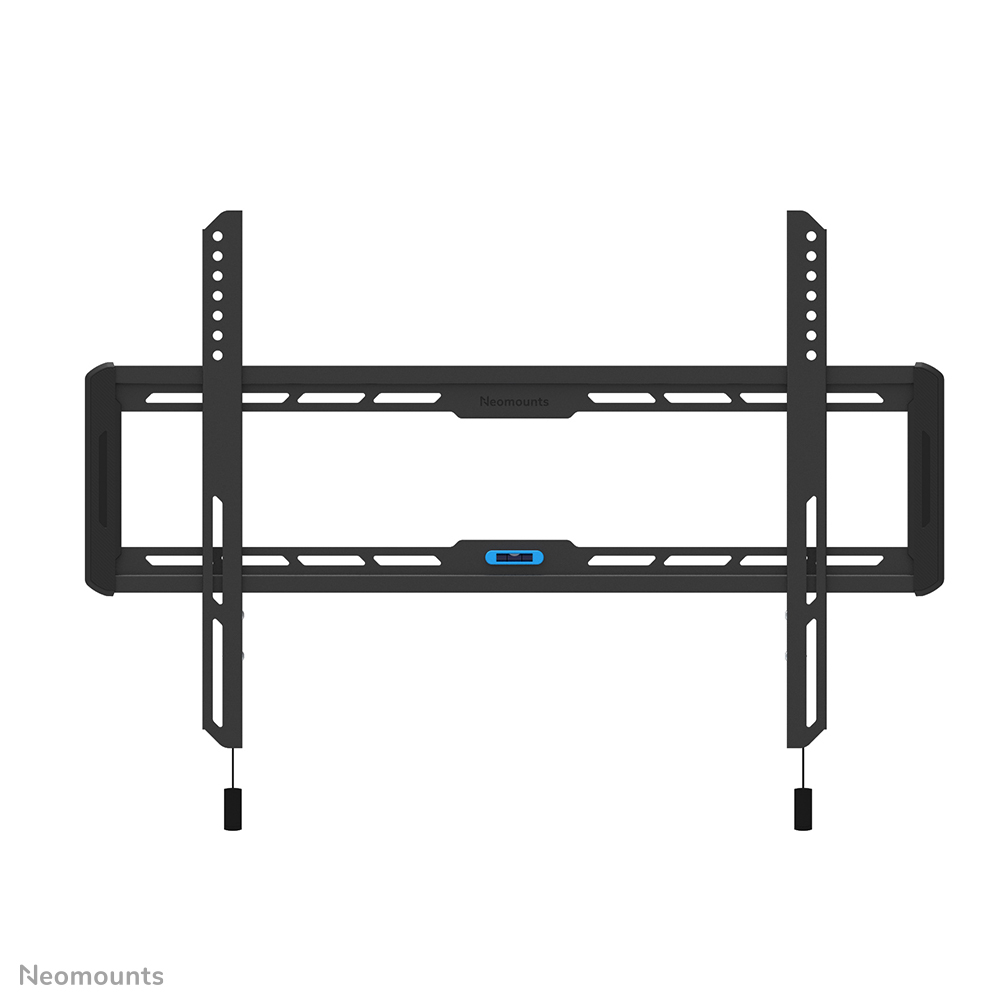

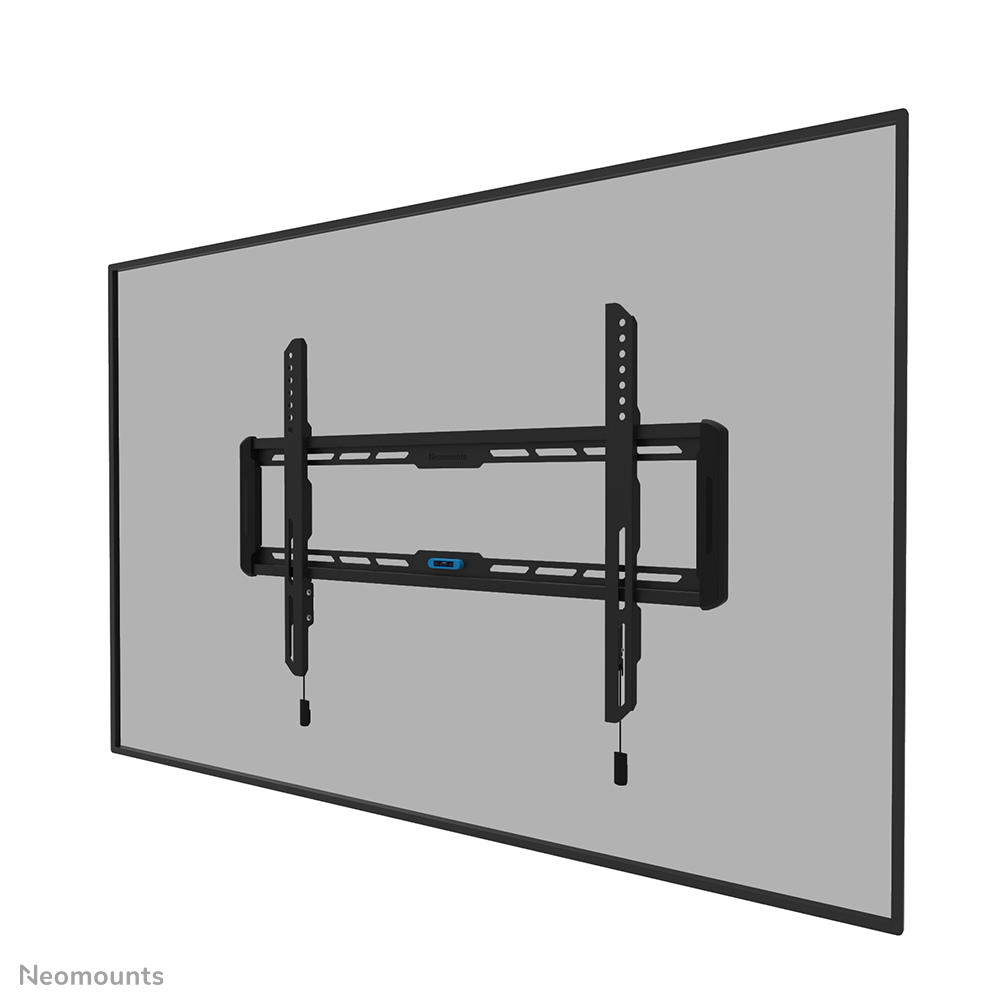

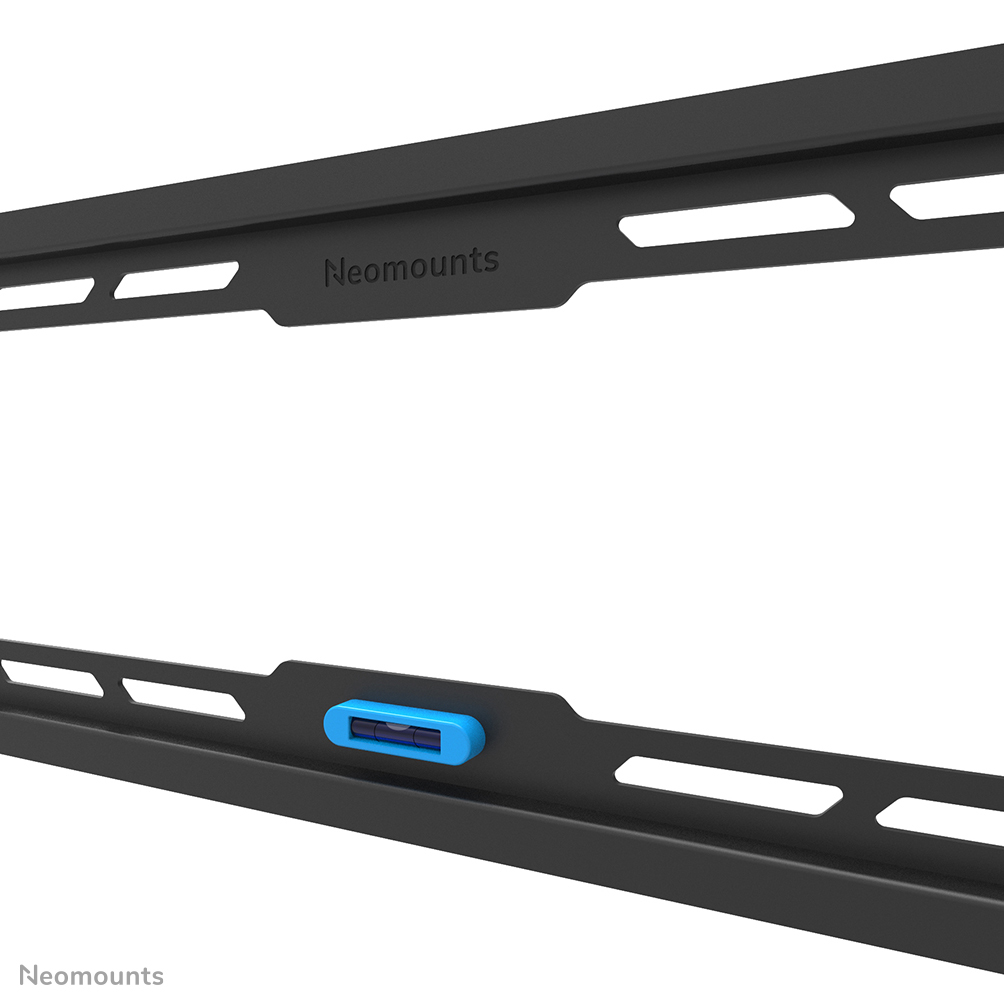

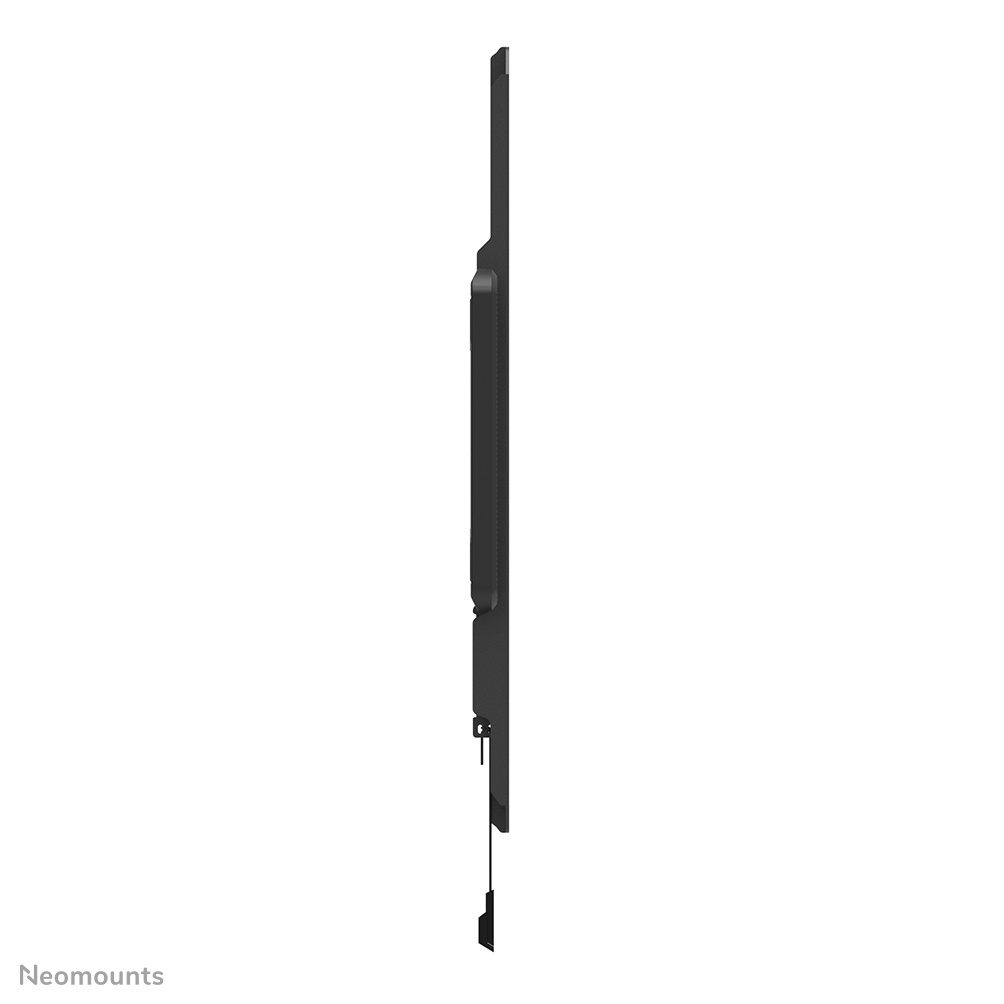

Neomounts WL30-550BL16 TV mount wall 42-86" - ultra-flat - easy install

WL30-550BL16 TV mount wall 42-86" - ultra-flat - easy install

Model WL30-550BL16EAN 8717371448653

34 specifications

TypeFixed
Weight1.8 kg
ColourBlack
Number of displays supported1
Height adjustmentNo
Country of originChina

See all specifications

Overview

Type: Fixed
Weight: 1.8 kg
Colour: Black
Number of displays supported: 1
Height adjustment: No
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: WL30-550BL16
Part number: WL30-550BL16
EAN / UPC: 8717371448653
Also known as: Neomounts WL30-550BL16 TV mount wall 42-86" - ultra-flat - easy install

Specifications

34 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	60 kg
Maximum weight capacity	60 kg
Minimum screen size	106.7 cm (42")
Maximum screen size	2.18 m (86")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400

Ergonomics

Specification	Value
Height adjustment	No
Type	Fixed
Distance to the wall (max)	2.3 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Lockable	Not lockable
Package net weight	2.5 kg

Weight & dimensions

Specification	Value
Width	735 mm
Depth	23 mm
Depth (max)	2.3 cm
Height	460 mm
Weight	1.8 kg

Packaging data

Specification	Value
Package width	758 mm
Package depth	208 mm
Package height	32 mm
Package weight	2.5 kg

Logistics data

Specification	Value
Master (outer) case width	773 mm
Master (outer) case length	280 mm
Master (outer) case height	230 mm
Master (outer) case gross weight	20.8 kg
Master (outer) case net weight	14.1 kg
Products per master (outer) case	8 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	192 pc(s)
