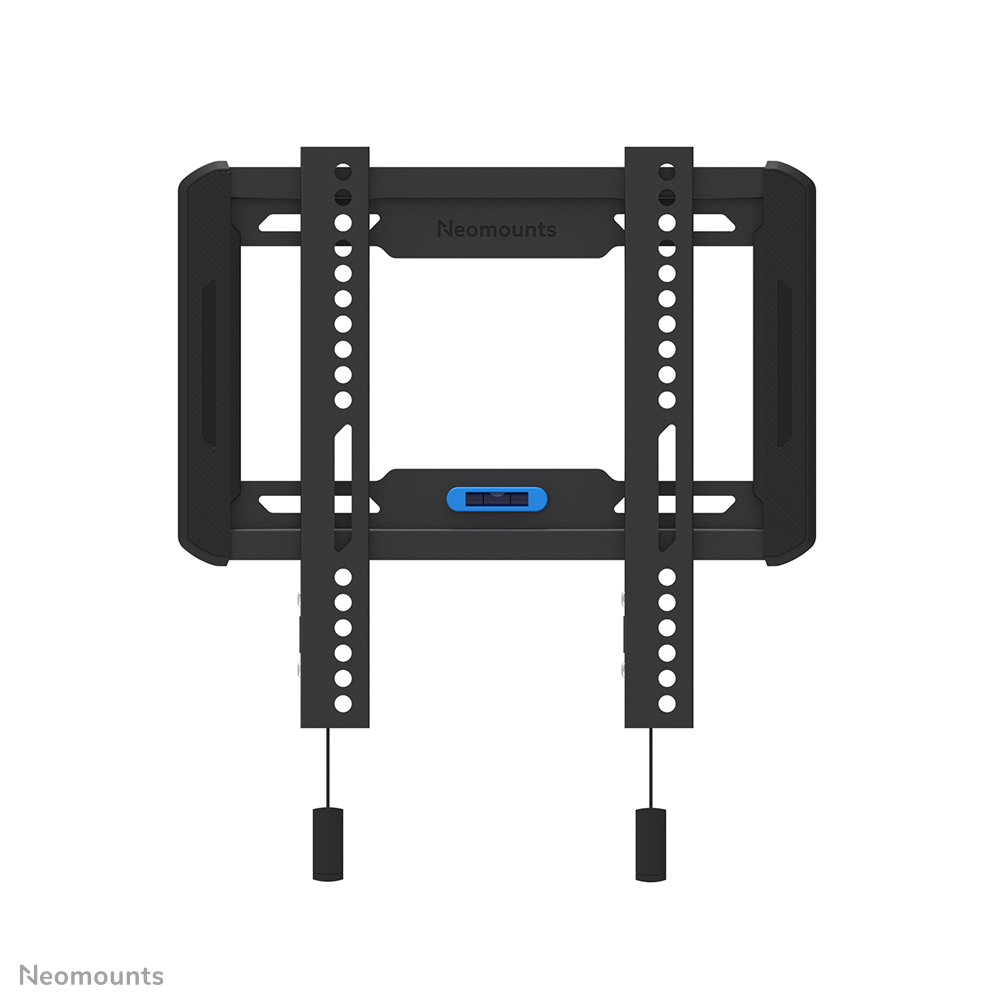

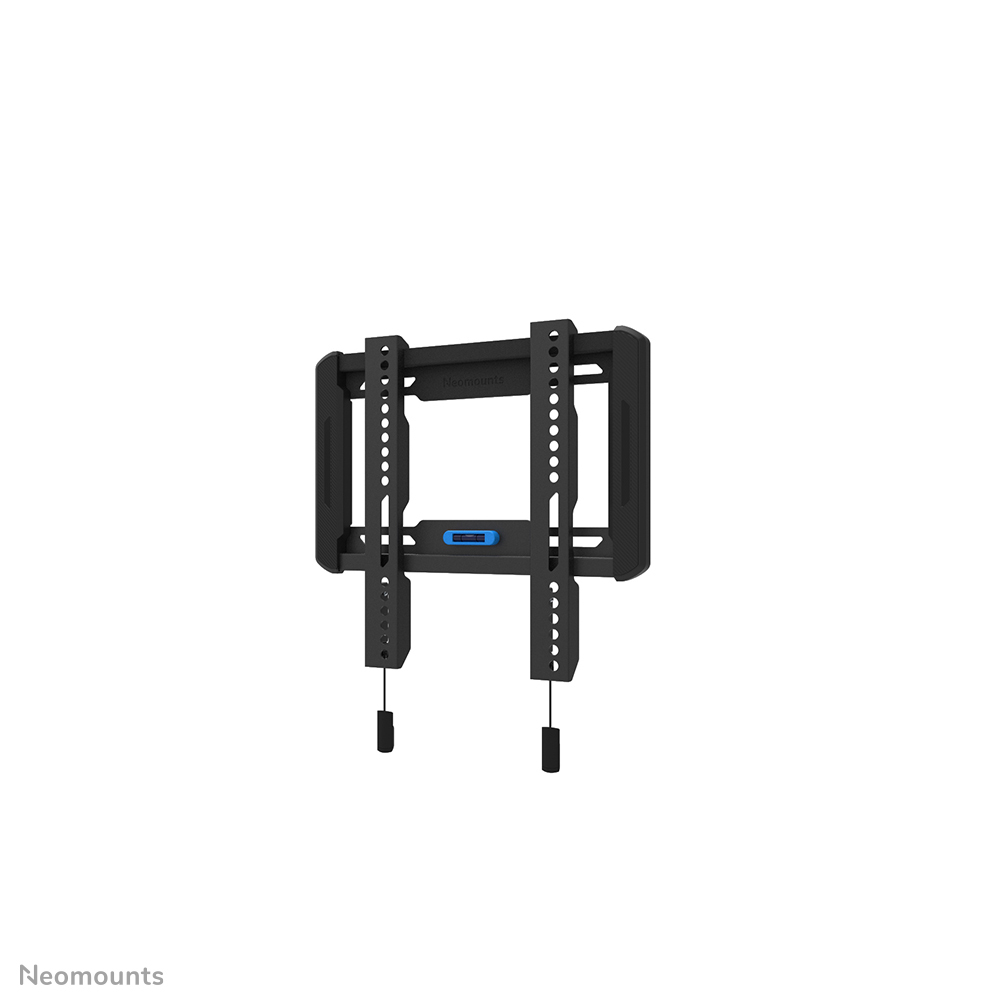

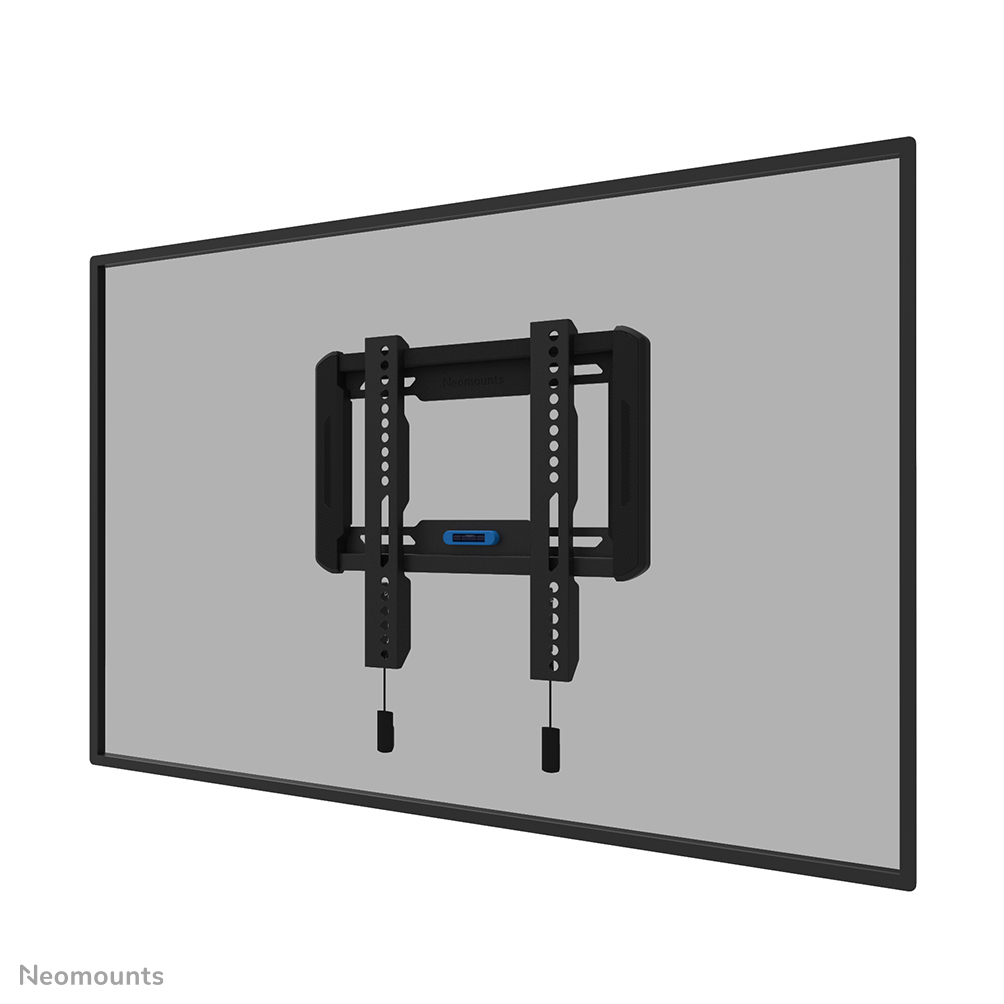

Neomounts WL30-550BL12 TV mount wall 24-65" - ultra-flat - easy install

WL30-550BL12 TV mount wall 24-65" - ultra-flat - easy install

Model WL30-550BL12EAN 8717371448639

34 specifications

TypeFixed
Weight950 g
ColourBlack
Number of displays supported1
Height adjustmentNo
Country of originChina

See all specifications

Overview

Type: Fixed
Weight: 950 g
Colour: Black
Number of displays supported: 1
Height adjustment: No
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: WL30-550BL12
Part number: WL30-550BL12
EAN / UPC: 8717371448639
Also known as: Neomounts WL30-550BL12 TV mount wall 24-65" - ultra-flat - easy install

Specifications

34 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	40 kg
Maximum weight capacity	40 kg
Minimum screen size	61 cm (24")
Maximum screen size	165.1 cm (65")
Mounting type	Wall
Minimum VESA mount	50 x 50 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,50 x 50,75 x 75,75 x 100,75 x 200

Ergonomics

Specification	Value
Height adjustment	No
Type	Fixed
Distance to the wall (max)	2.3 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Lockable	Not lockable
Package net weight	1.4 kg

Weight & dimensions

Specification	Value
Width	315 mm
Depth	23 mm
Depth (max)	2.3 cm
Height	287 mm
Weight	950 g

Packaging data

Specification	Value
Package width	335 mm
Package depth	247 mm
Package height	28 mm
Package weight	1.4 kg

Logistics data

Specification	Value
Master (outer) case width	353 mm
Master (outer) case length	300 mm
Master (outer) case height	267 mm
Master (outer) case gross weight	14.5 kg
Master (outer) case net weight	10 kg
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	300 pc(s)
