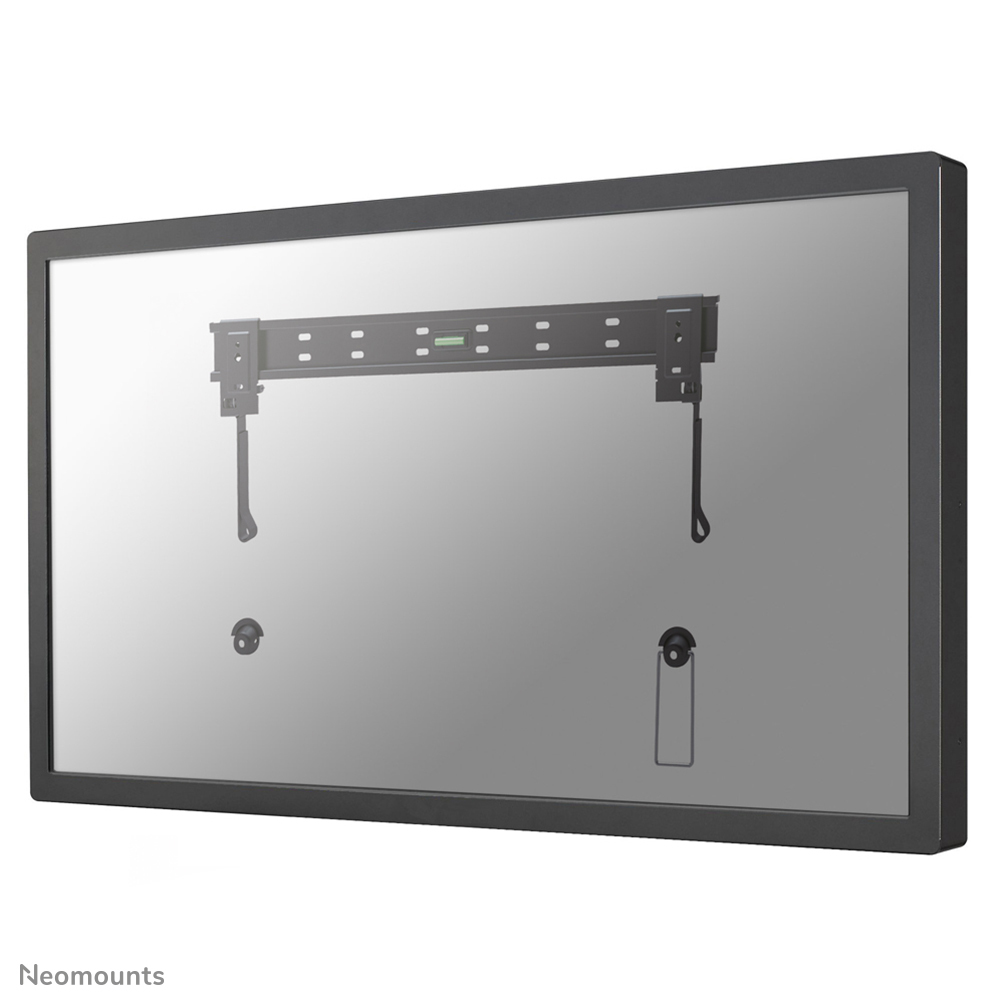

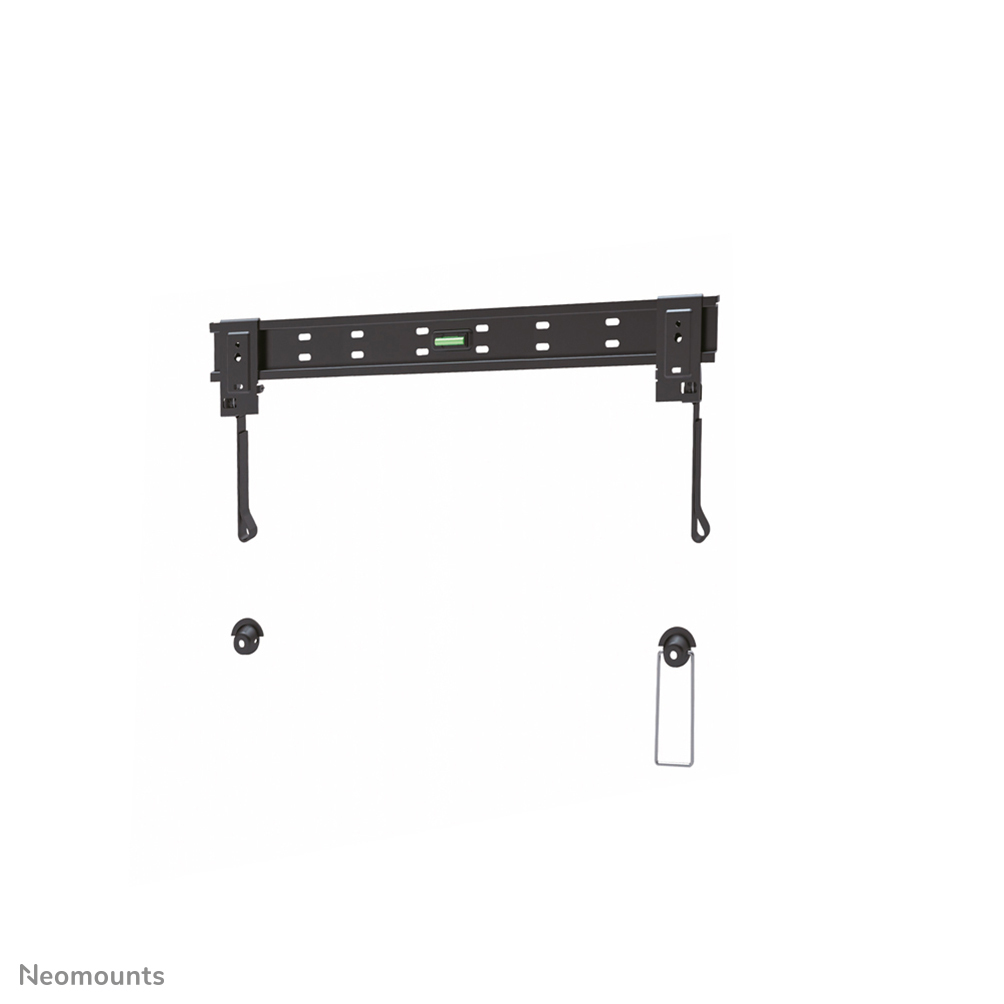

PLASMA-W860 TV mount wall 32-60" - fixed
Model PLASMA-W860EAN 111100010100
29 specifications
- TypeFixed
- Weight1.09 kg
- ColourBlack
- Number of displays supported1
- Country of originChina
Overview
- Type
- Fixed
- Weight
- 1.09 kg
- Colour
- Black
- Number of displays supported
- 1
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- PLASMA-W860
- Part number
- PLASMA-W860
- EAN / UPC
- 111100010100, 5052916732716, 5054629694237, 8717371442569
- Also known as
- Neomounts PLASMA-W860 TV mount wall 32-60" - fixed
Specifications
29 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 152.4 cm (60") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |

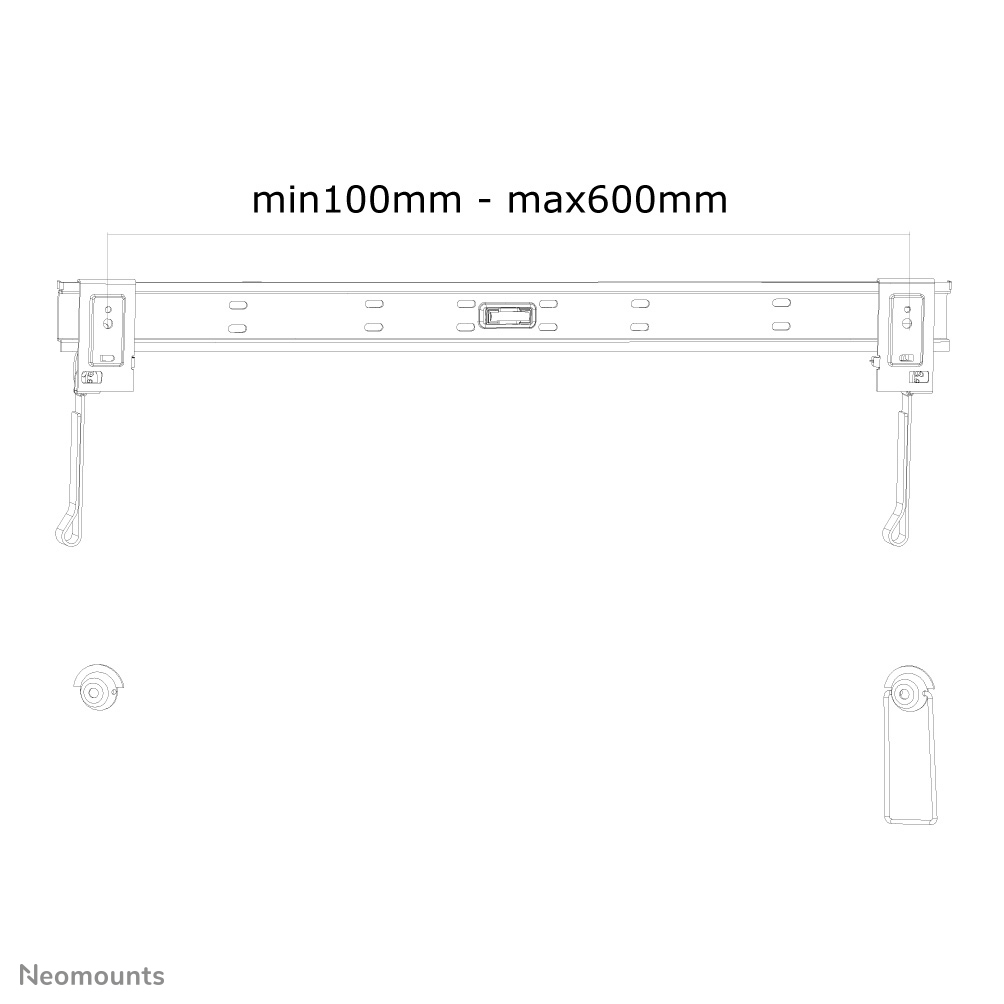

| Maximum VESA mount | 600 x 600 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600 |
Ergonomics
| Specification | Value |
|---|---|
| Type | Fixed |
| Distance to the wall (max) | 3 cm |
| Distance to the wall (min) | 1.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 1.16 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.09 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 70 mm |
| Package depth | 55 mm |
| Package height | 695 mm |
| Package weight | 1.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 710 mm |
| Master (outer) case length | 155 mm |
| Master (outer) case height | 305 mm |
| Master (outer) case gross weight | 16.5 kg |
| Master (outer) case net weight | 15 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 210 pc(s) |
