PLASMA-W800 TV mount wall 32-55" - fixed
Model PLASMA-W800EAN 5057103053216
29 specifications
- TypeFixed
- Weight330 g
- ColourBlack
- Number of displays supported1
- Country of originChina
Overview
- Type
- Fixed
- Weight
- 330 g
- Colour
- Black
- Number of displays supported
- 1
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- PLASMA-W800
- Part number
- PLASMA-W800
- EAN / UPC
- 5057103053216, 8717371442521
- Also known as
- Neomounts PLASMA-W800 TV mount wall 32-55" - fixed
Specifications
29 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 20 kg |
| Maximum weight capacity | 20 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |

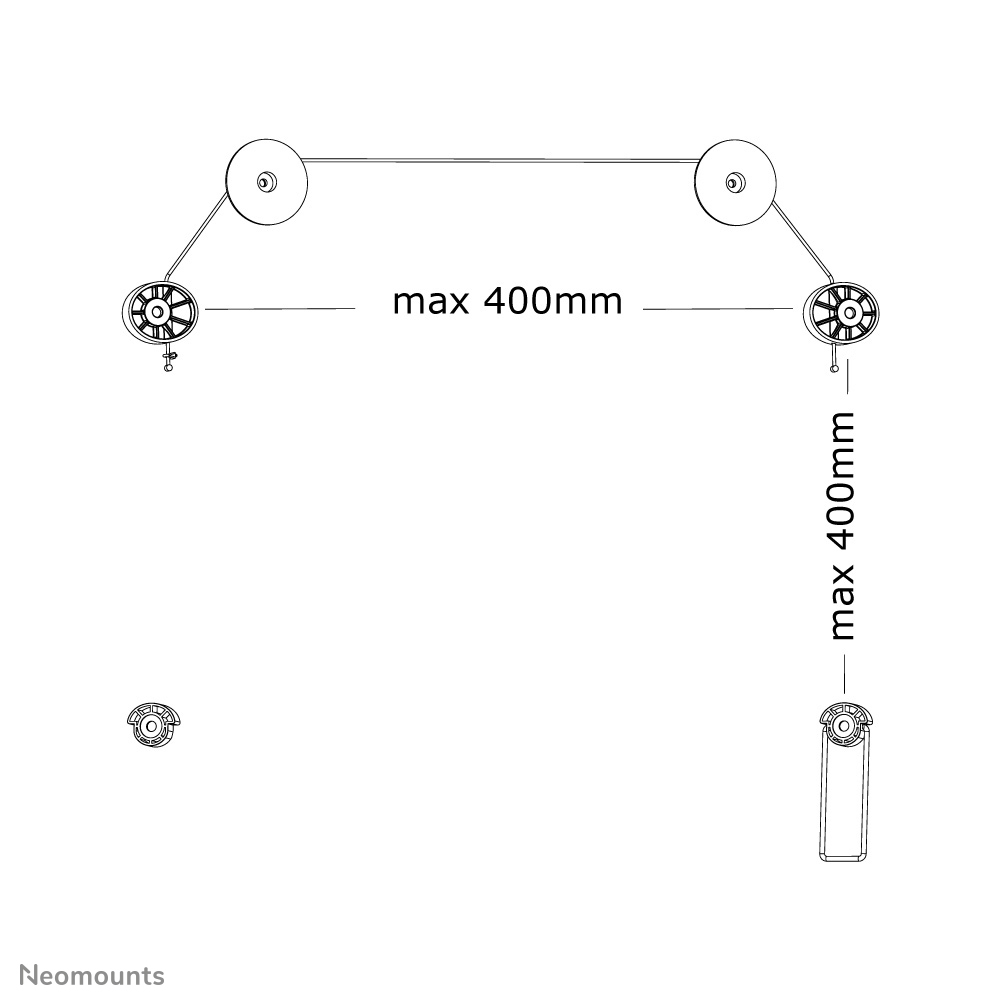

| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 200,100 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Type | Fixed |
| Distance to the wall (max) | 3 cm |
| Distance to the wall (min) | 1.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 360 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 330 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 50 mm |
| Package height | 235 mm |
| Package weight | 400 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 540 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 360 mm |
| Master (outer) case gross weight | 10.5 kg |
| Master (outer) case net weight | 9.5 kg |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 720 pc(s) |
