tv wall mount
Model PLASMA-W240EAN 5054629483299
30 specifications
- Weight2.79 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
Overview
- Weight
- 2.79 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- PLASMA-W240
- Part number
- PLASMA-W240
- EAN / UPC
- 5054629483299, 5054484189374, 5054533189379, 8435397350339 +1 more
- Also known as
- Neomounts tv wall mount
Specifications
30 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 45 kg |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 152.4 cm (60") |
| Mounting type | Wall |

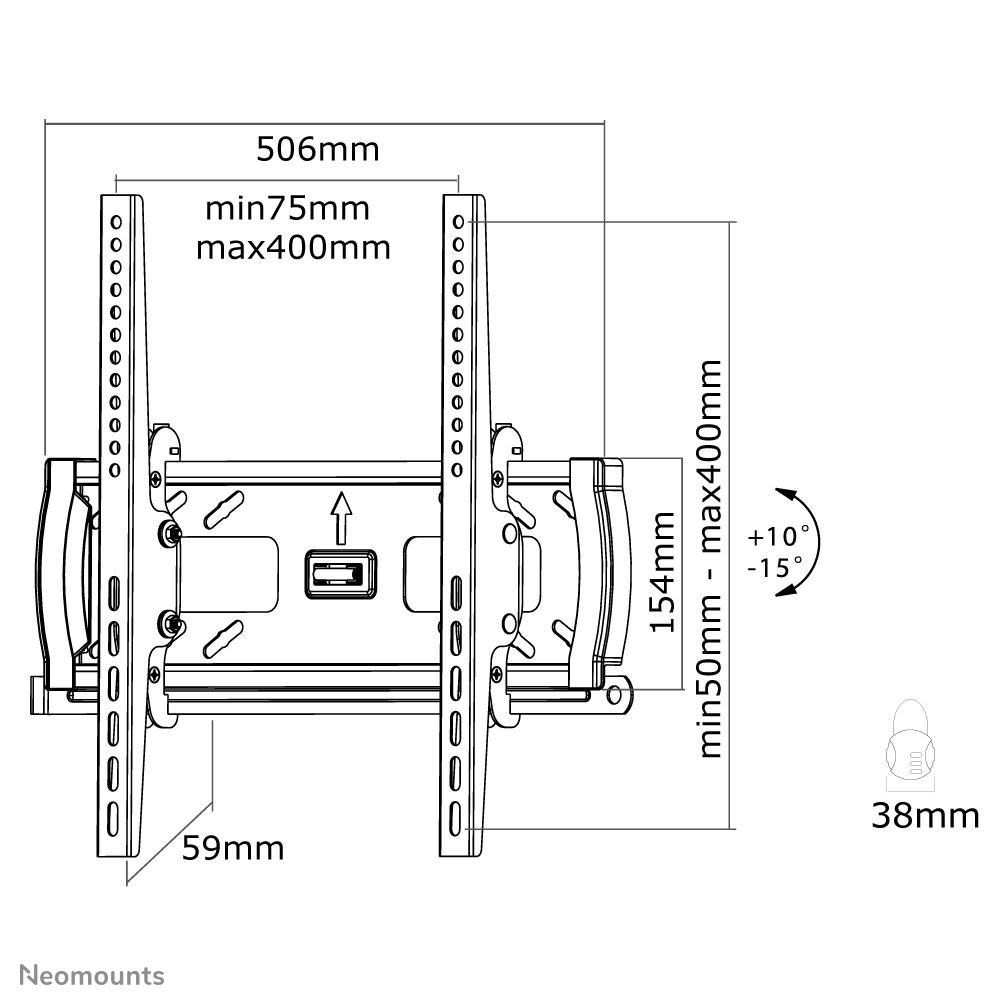

| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 200,100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,75 x 75 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 25° |
| Distance to the wall (max) | 5.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Lockable | Padlock not included |
| Package net weight | 3.1 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.79 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 50 mm |
| Package height | 525 mm |
| Package weight | 3.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 540 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 20 kg |
| Master (outer) case net weight | 18.6 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 192 pc(s) |
