Flat Screen Wall Mount
Model NM-W475Part no. NM-W475BLACKEAN 5057103005345
27 specifications
- ColourBlack
- Number of displays supported1
- Tilt angle range0 - 20°
- Country of originChina
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 0 - 20°
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- NM-W475
- Part number
- NM-W475BLACK
- EAN / UPC
- 5057103005345, 8717371444679
- Also known as
- Neomounts Flat Screen Wall Mount
Specifications
27 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,600 x 400 mm |
Ergonomics
| Specification | Value |
|---|---|

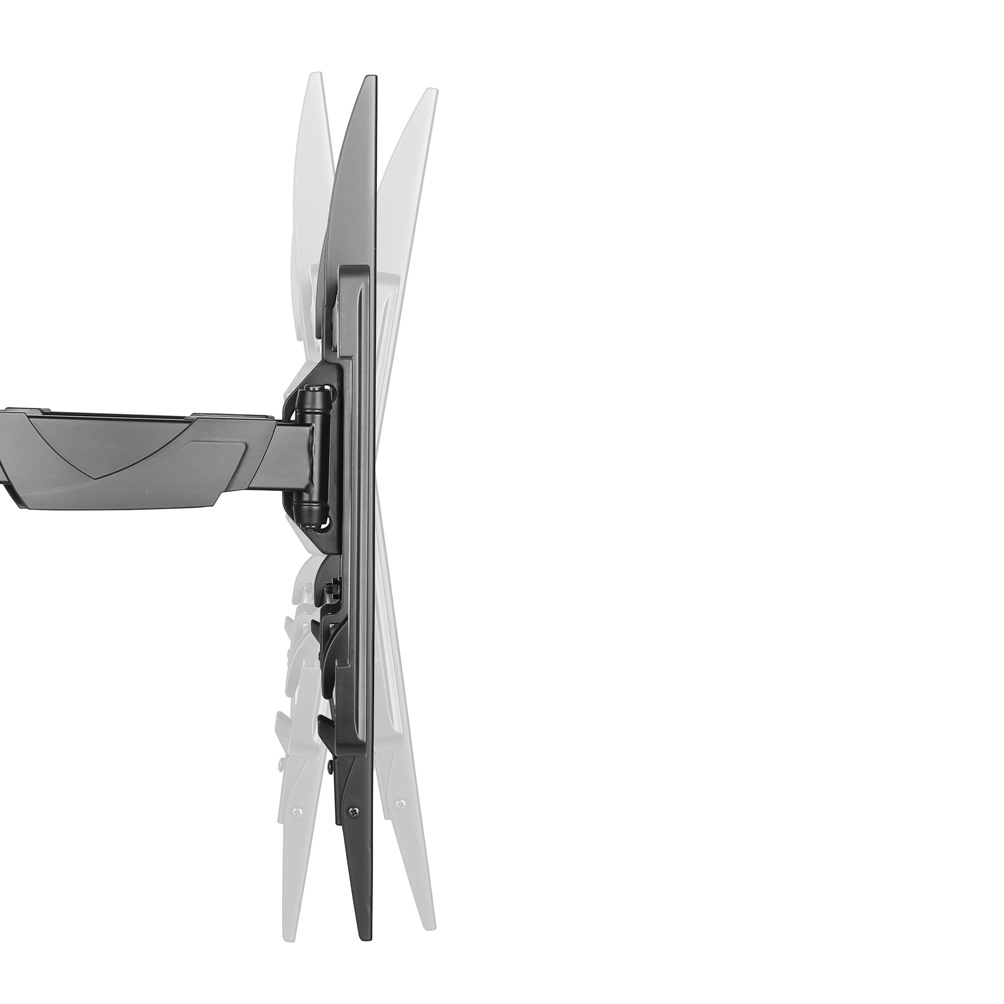

| Tilt angle range | 0 - 20° |
| Swivel angle | 120° |
| Angle of rotation | 5° |
| Distance to the wall (max) | 51 cm |
| Distance to the wall (min) | 5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 9.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 465 mm |
| Package depth | 87 mm |
| Package height | 805 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 830 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 200 mm |
| Master (outer) case gross weight | 21 kg |
| Master (outer) case net weight | 19.5 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 34 pc(s) |
