tv wall mount
Model NM-W440WHITEEAN 8717371444532
36 specifications
- TypeFull motion
- ColourWhite
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
Overview
- Type
- Full motion
- Colour
- White
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- NM-W440WHITE
- Part number
- NM-W440WHITE
- EAN / UPC
- 8717371444532
- Also known as
- Neomounts tv wall mount
Specifications
36 specifications in 6 groups

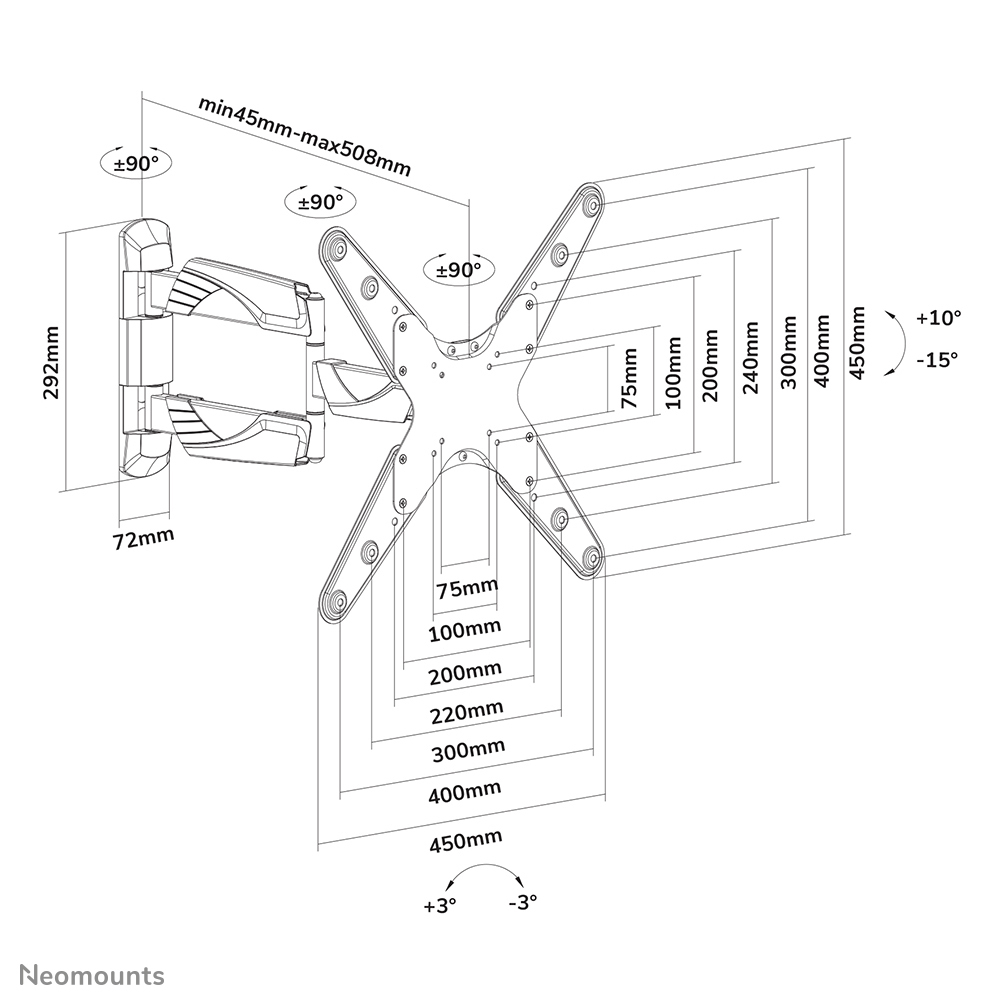

Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 25 kg |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 200,100 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,75 x 75 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 10° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | 0 - 180° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Type | Full motion |
| Distance to the wall (max) | 51 cm |
| Distance to the wall (min) | 4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 3.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 265 mm |
| Package depth | 55 mm |
| Package height | 350 mm |
| Package weight | 0 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 370 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 16.6 kg |
| Master (outer) case net weight | 29 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 180 pc(s) |
