tv wall mount
Model NM-W325Part no. NM-W325BLACKEAN 5057103005369
28 specifications
- ColourBlack
- Number of displays supported1
- Tilt angle range0 - 12°
- Country of originChina
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 0 - 12°
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- NM-W325
- Part number
- NM-W325BLACK
- EAN / UPC
- 5057103005369, 8717371444624
- Also known as
- Neomounts tv wall mount
Specifications
28 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |

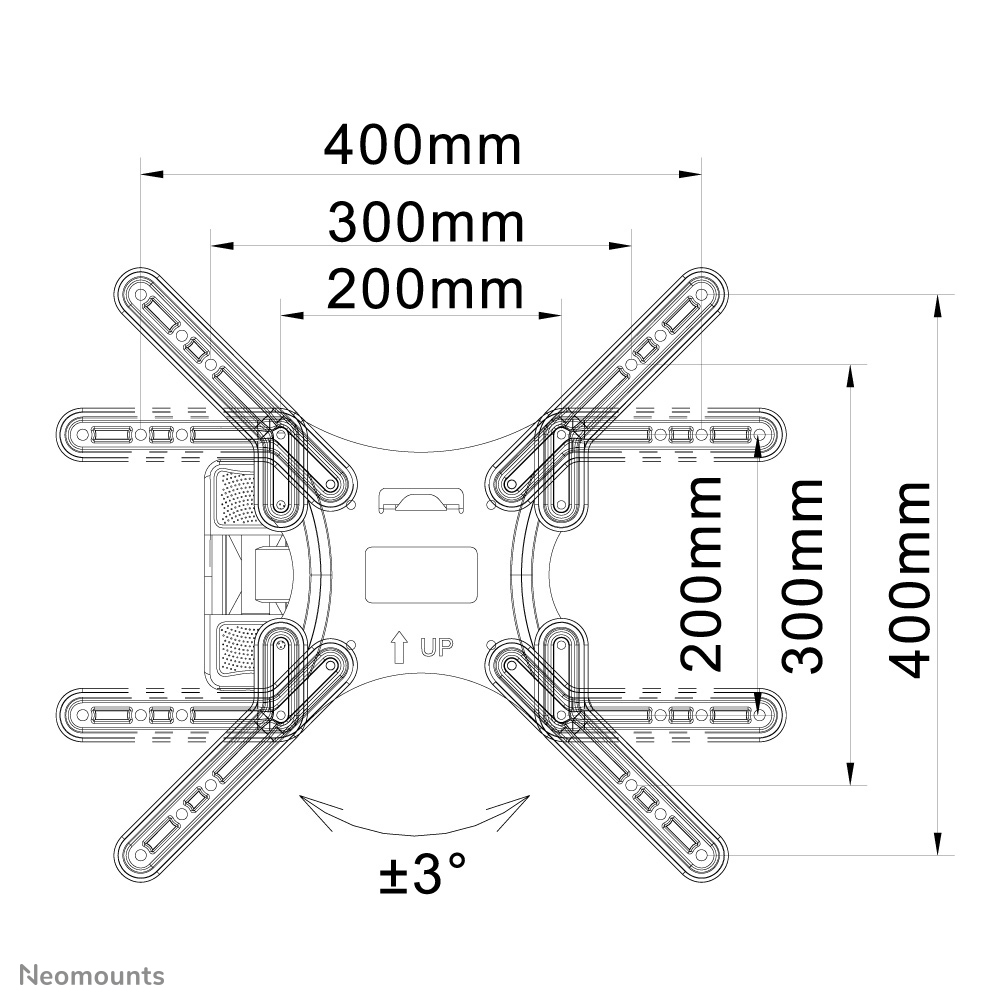

| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,400 x 400 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 0 - 12° |
| Swivel angle | 180° |
| Angle of rotation | 6° |
| Distance to the wall (max) | 16 cm |
| Distance to the wall (min) | 4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 2.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 250 mm |
| Package height | 55 mm |
| Package weight | 2.68 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 240 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 300 mm |
| Master (outer) case gross weight | 14.4 kg |
| Master (outer) case net weight | 13 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 240 pc(s) |
