tv wall mount
Model NM-W115Part no. NM-W115BLACKEAN 8717371445812
27 specifications
- ColourBlack
- Number of displays supported1
- Tilt angle range0 - 20°
- Country of originChina
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 0 - 20°
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- NM-W115
- Part number
- NM-W115BLACK
- EAN / UPC
- 8717371445812
- Also known as
- Neomounts tv wall mount
Specifications
27 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Wall |

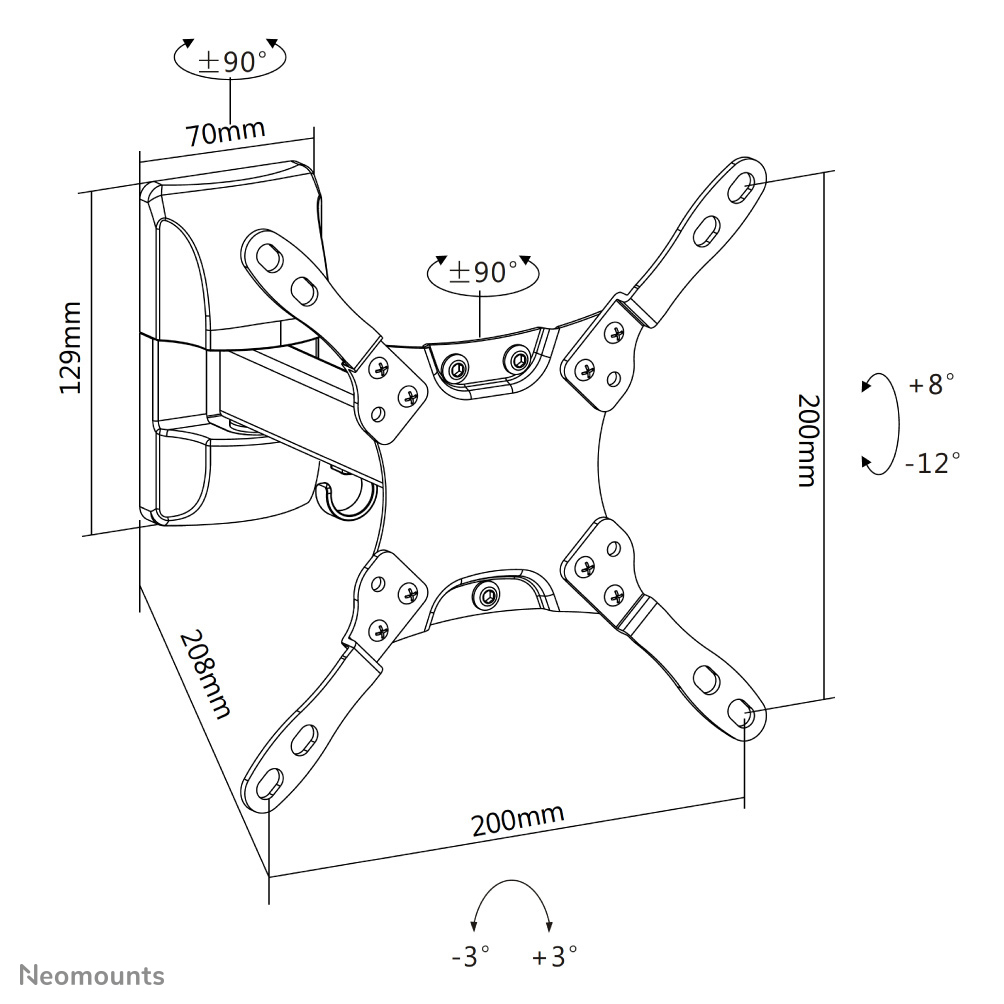

| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
Ergonomics
| Specification | Value |
|---|---|

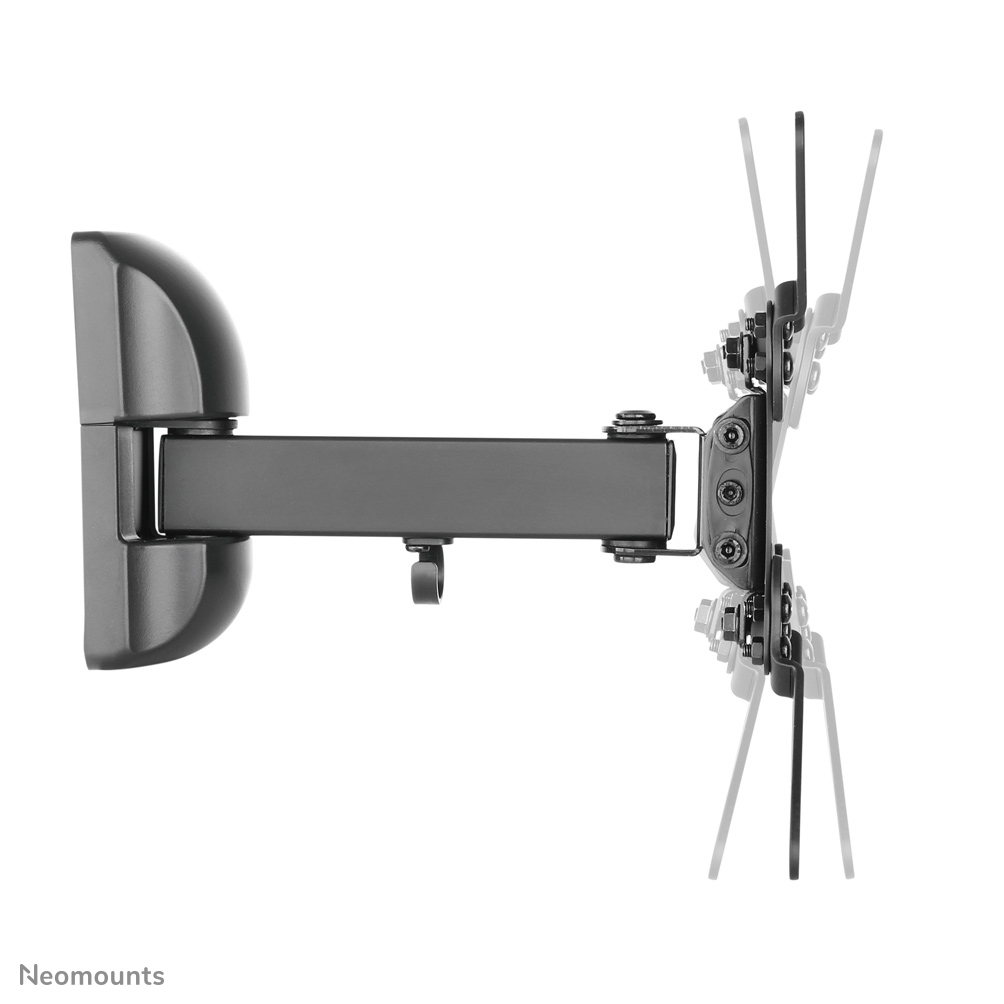

| Tilt angle range | 0 - 20° |
| Swivel angle | 180° |
| Angle of rotation | 6° |
| Number of pivot points | 2 |
| Distance to the wall (max) | 21 cm |
| Distance to the wall (min) | 5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 1.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 60 mm |
| Package height | 235 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 318 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 320 mm |
| Master (outer) case gross weight | 13.8 kg |
| Master (outer) case net weight | 11.6 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 360 pc(s) |
