Neomounts tv wall mount

tv wall mount

Model LFD-W8000EAN 7612392310938

34 specifications

TypeFull motion
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Country of originChina

See all specifications

Overview

Type: Full motion
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: LFD-W8000
Part number: LFD-W8000
EAN / UPC: 7612392310938, 5415247253204, 7330381716430, 8592978054076 +1 more
Also known as: Neomounts tv wall mount

Specifications

34 specifications in 6 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	80 kg
Maximum weight capacity	80 kg
Minimum screen size	152.4 cm (60")
Maximum screen size	2.54 m (100")
Mounting type	Wall
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	900 x 600 mm
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 20°
Swivelling	Yes
Swivel angle	90°
Swivel angle range	0 - 90°
Rotating	Yes
Type	Full motion

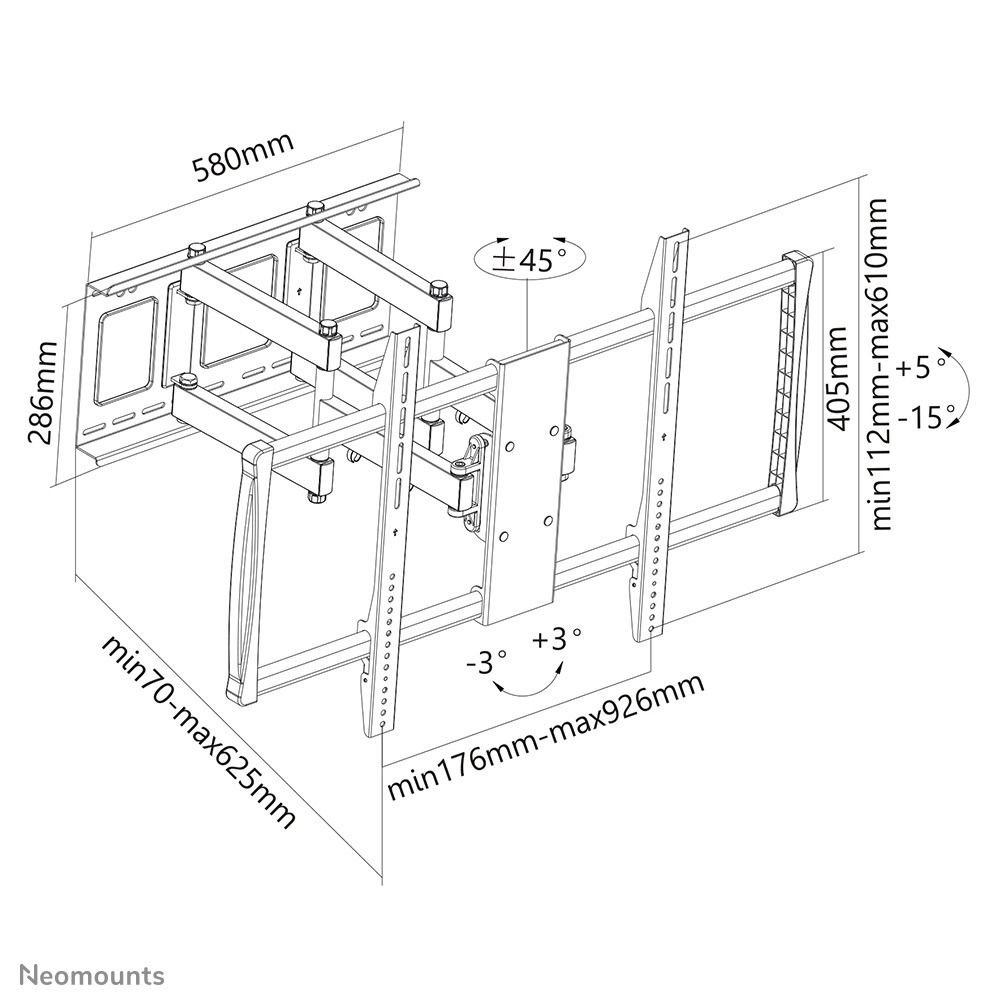

Distance to the wall (max)	62.5 cm
Distance to the wall (min)	7 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Package net weight	14.6 kg

Packaging data

Specification	Value
Package width	539 mm
Package depth	80 mm
Package height	1168 mm
Package weight	14.6 kg

Logistics data

Specification	Value
Master (outer) case width	1180 mm
Master (outer) case length	95 mm
Master (outer) case height	610 mm
Master (outer) case gross weight	18 kg
Master (outer) case net weight	14.6 kg
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	15 pc(s)
