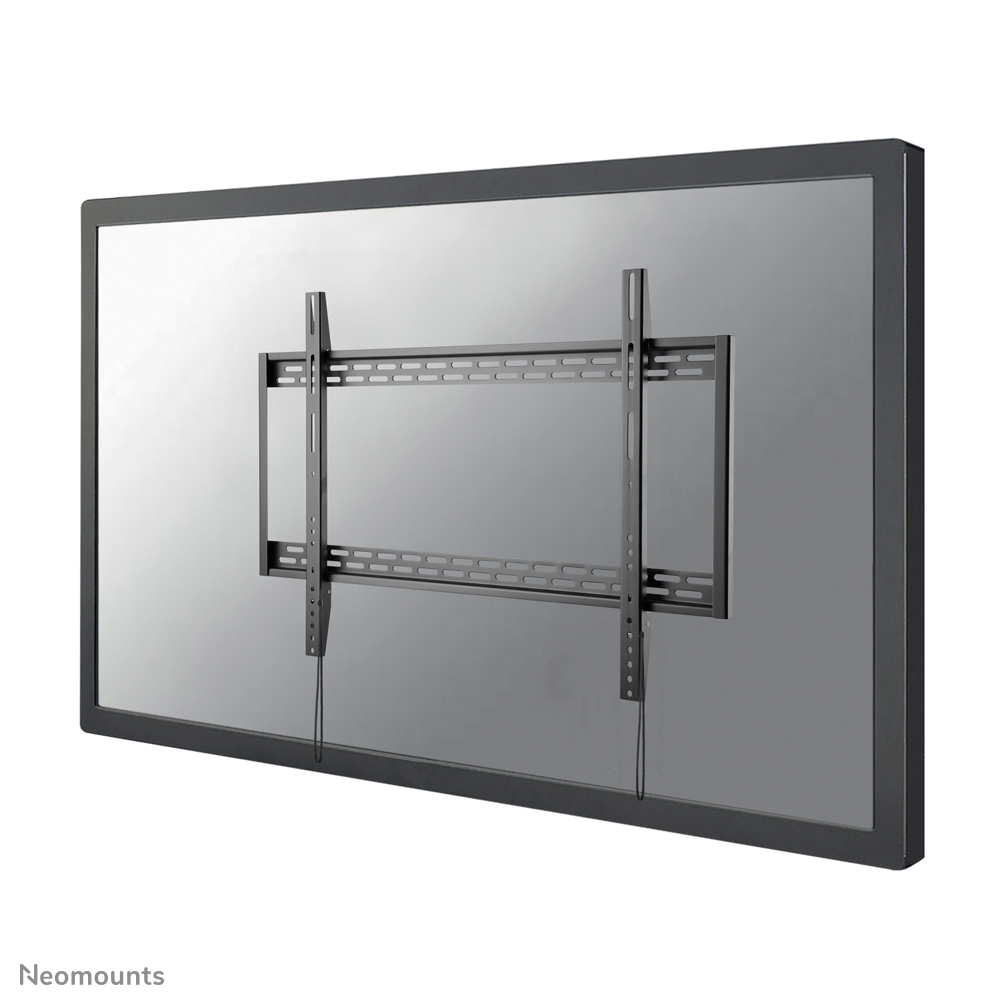

LFD-W1000 TV mount wall 60-100" - fixed
Model LFD-W1000EAN 5057103012015
28 specifications
- TypeFixed
- Weight4.55 kg
- ColourBlack
- Number of displays supported1
- Country of originChina
Overview
- Type
- Fixed
- Weight
- 4.55 kg
- Colour
- Black
- Number of displays supported
- 1
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- LFD-W1000
- Part number
- LFD-W1000
- EAN / UPC
- 5057103012015, 8717371445423
- Also known as
- Neomounts LFD-W1000 TV mount wall 60-100" - fixed
Specifications
28 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 125 kg |
| Maximum weight capacity | 125 kg |
| Minimum screen size | 152.4 cm (60") |
| Maximum screen size | 2.54 m (100") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 900 x 600 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600 |
Ergonomics
| Specification | Value |
|---|---|
| Type | Fixed |
| Distance to the wall (max) | 3.2 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 6.25 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.55 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 415 mm |
| Package depth | 40 mm |
| Package height | 1115 mm |
| Package weight | 6.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 1130 mm |
| Master (outer) case length | 180 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 25 kg |
| Master (outer) case net weight | 25 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 44 pc(s) |
